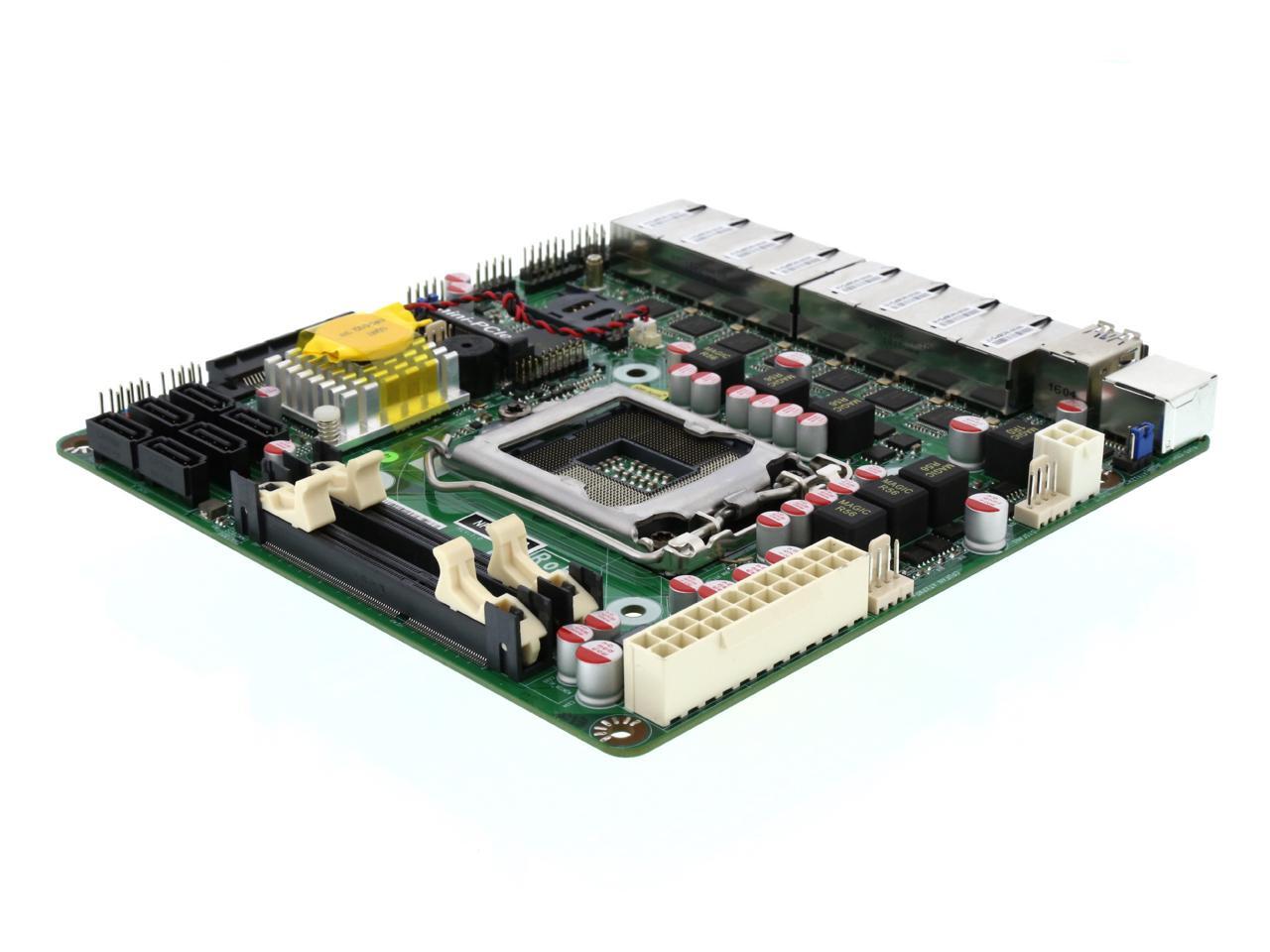

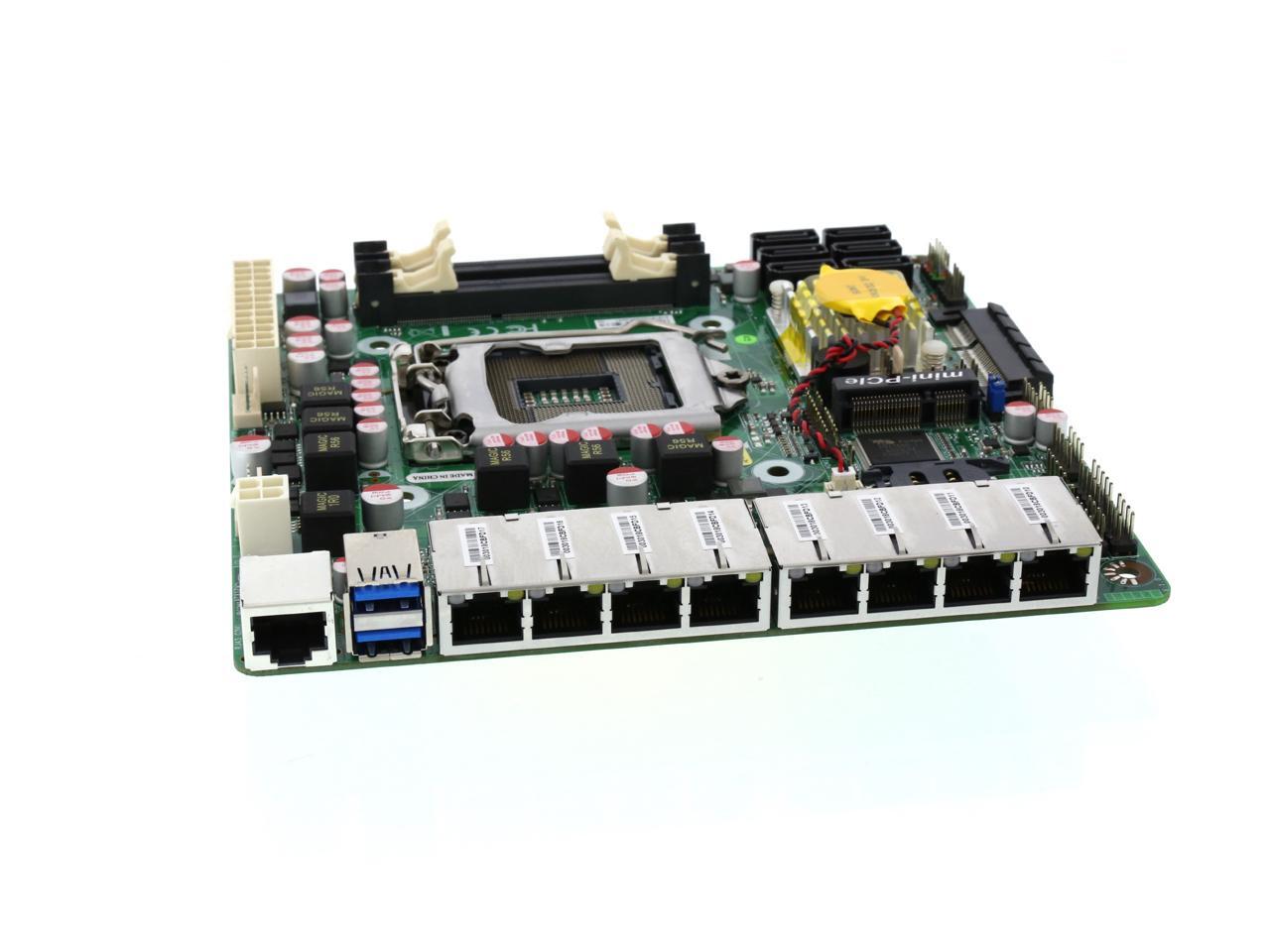

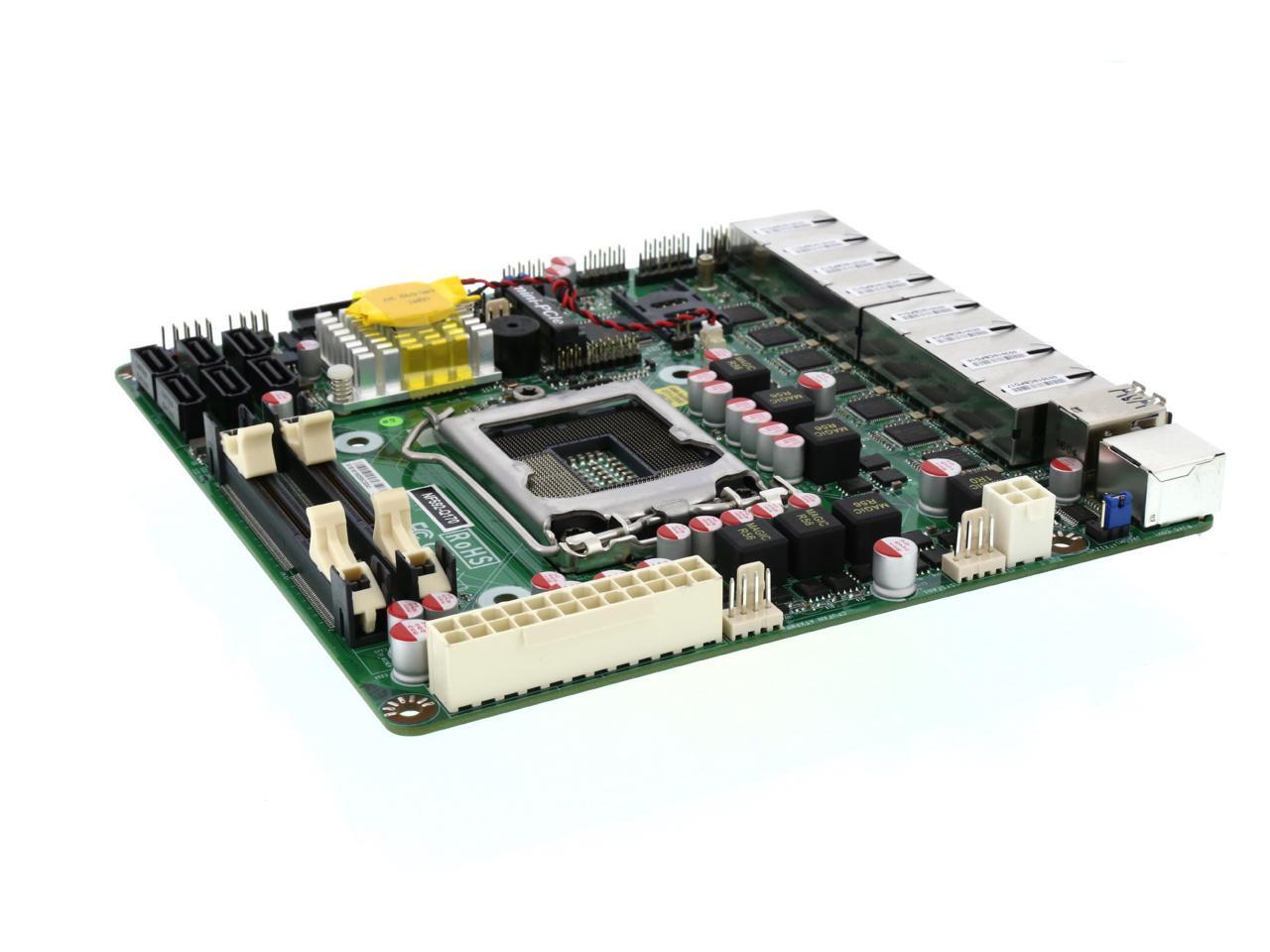

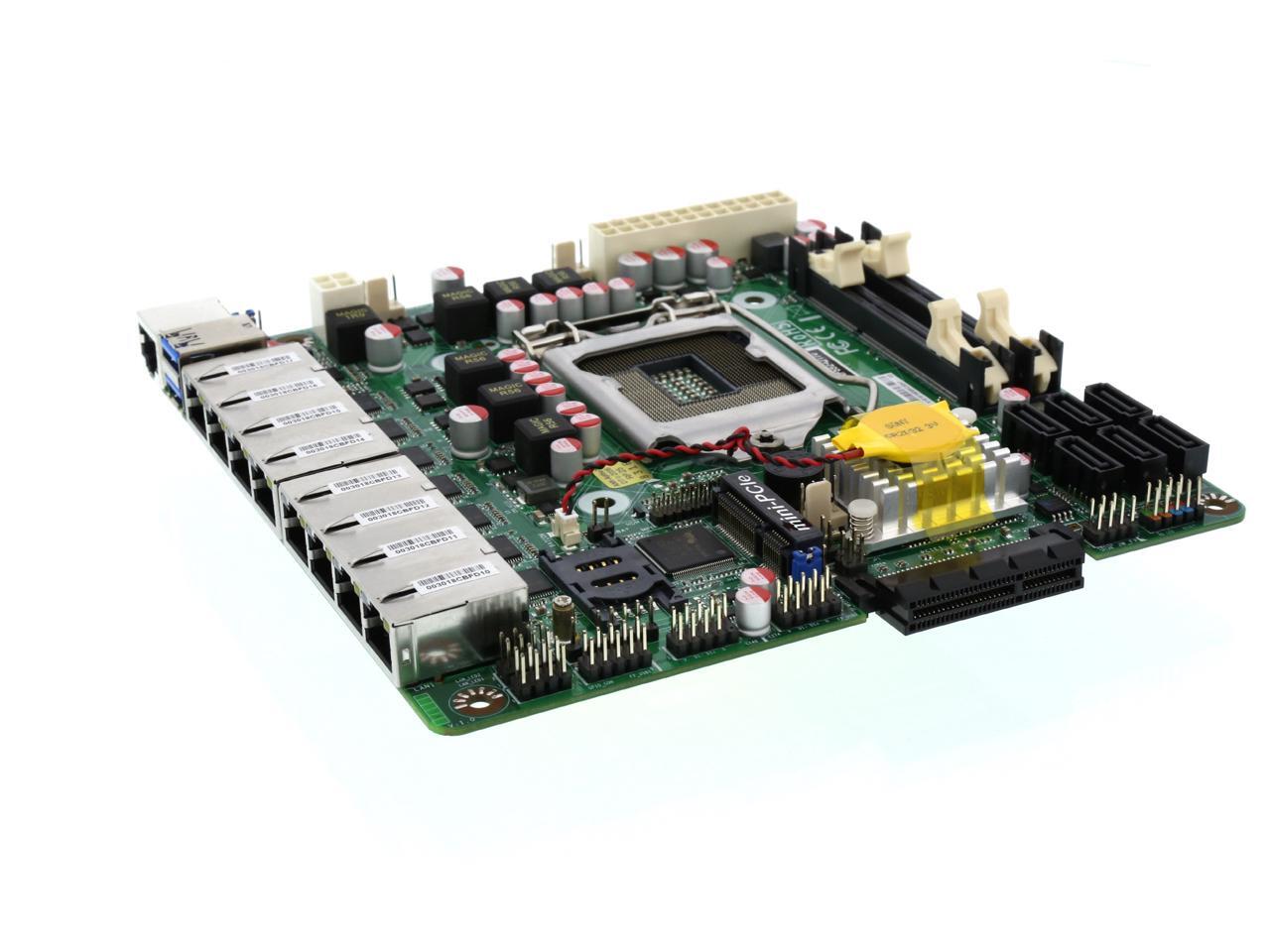

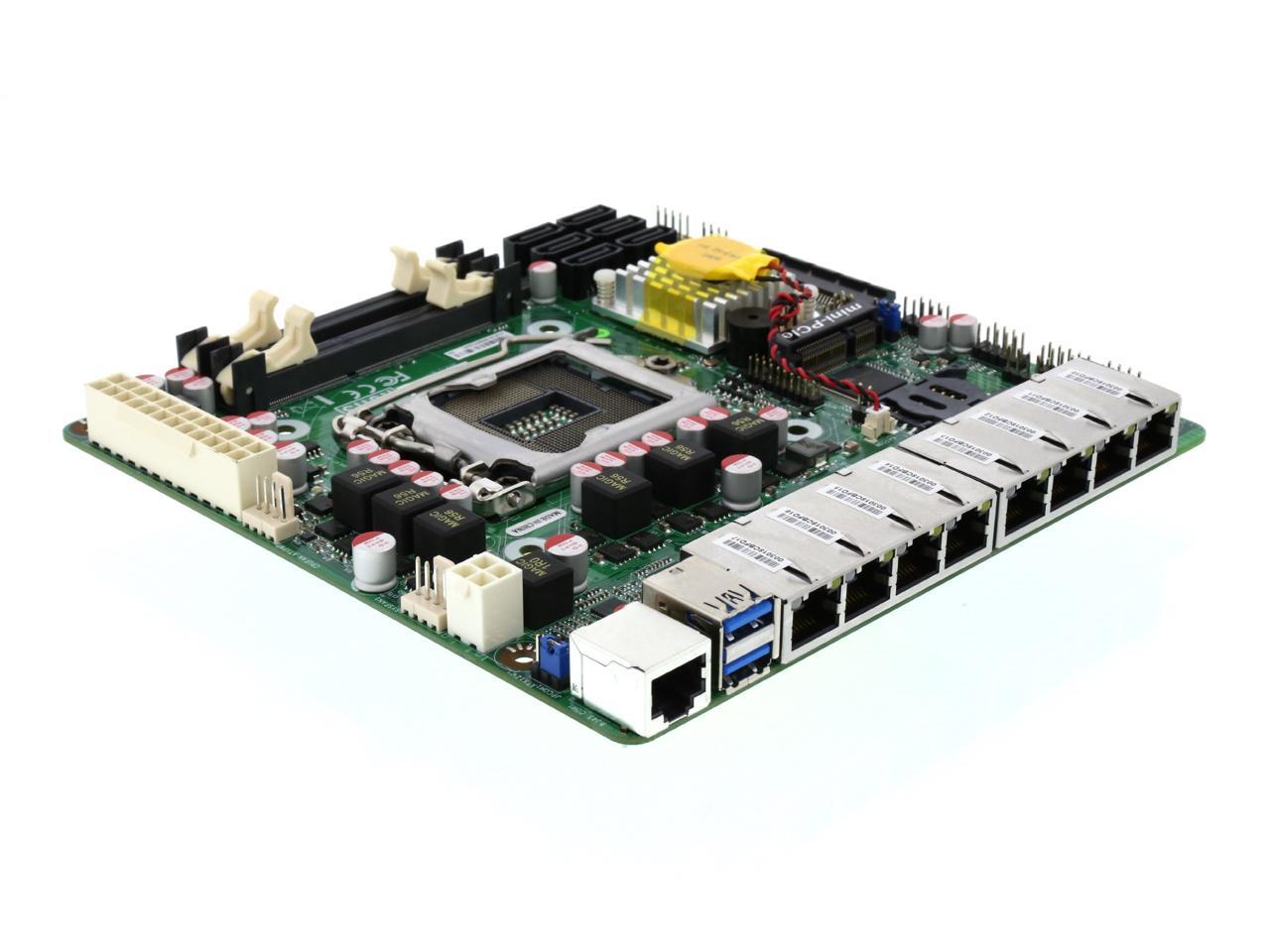

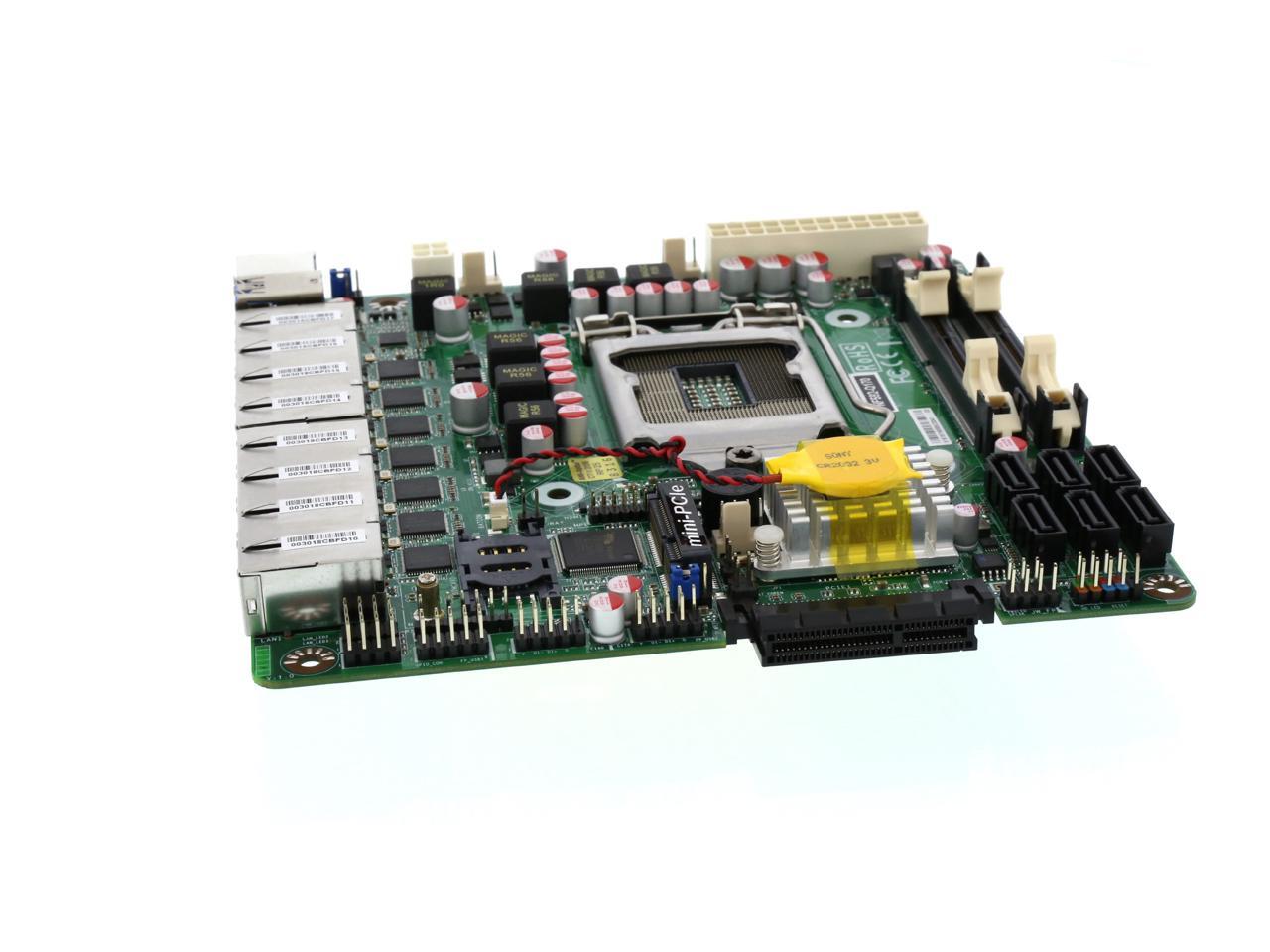

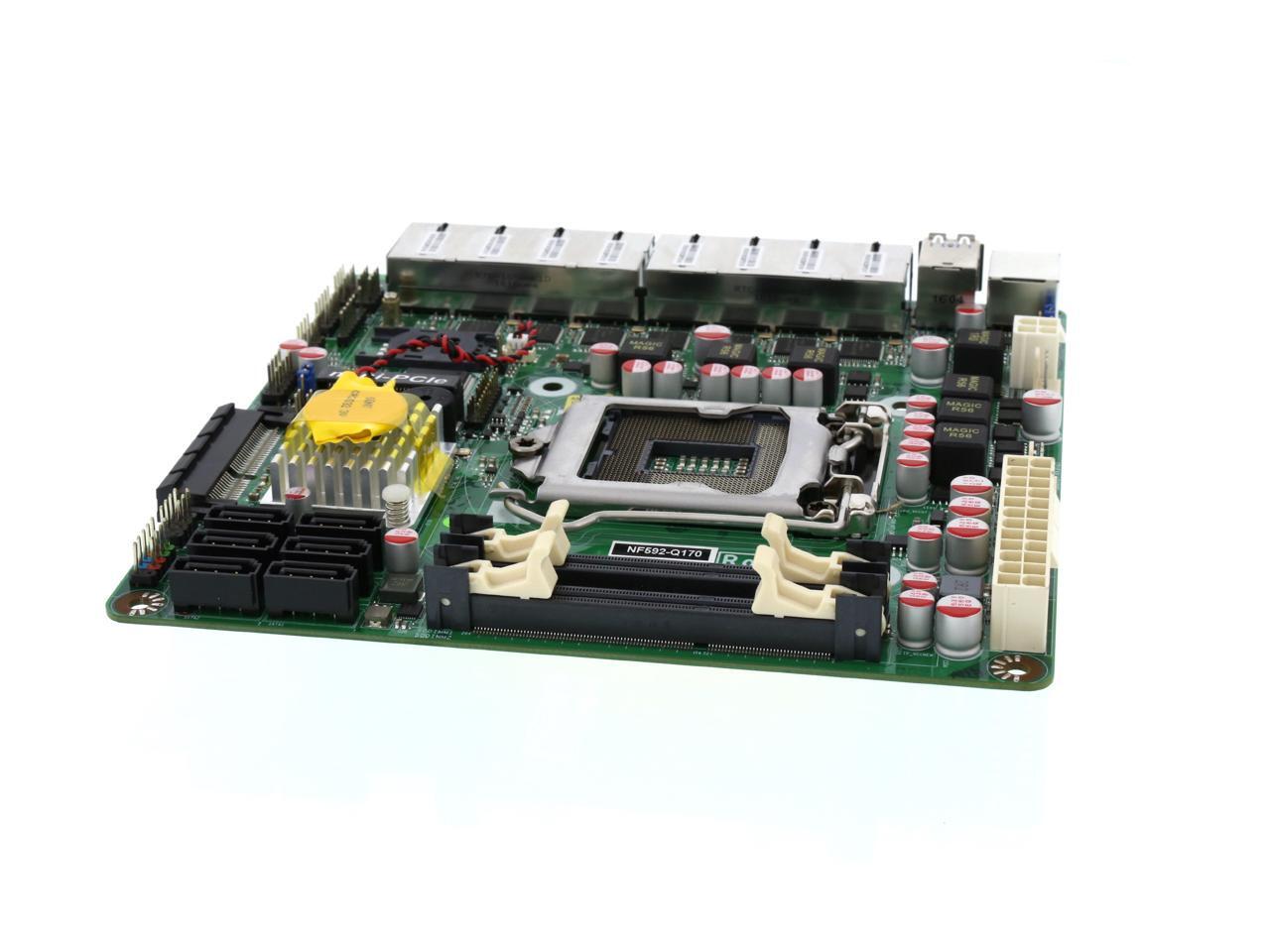

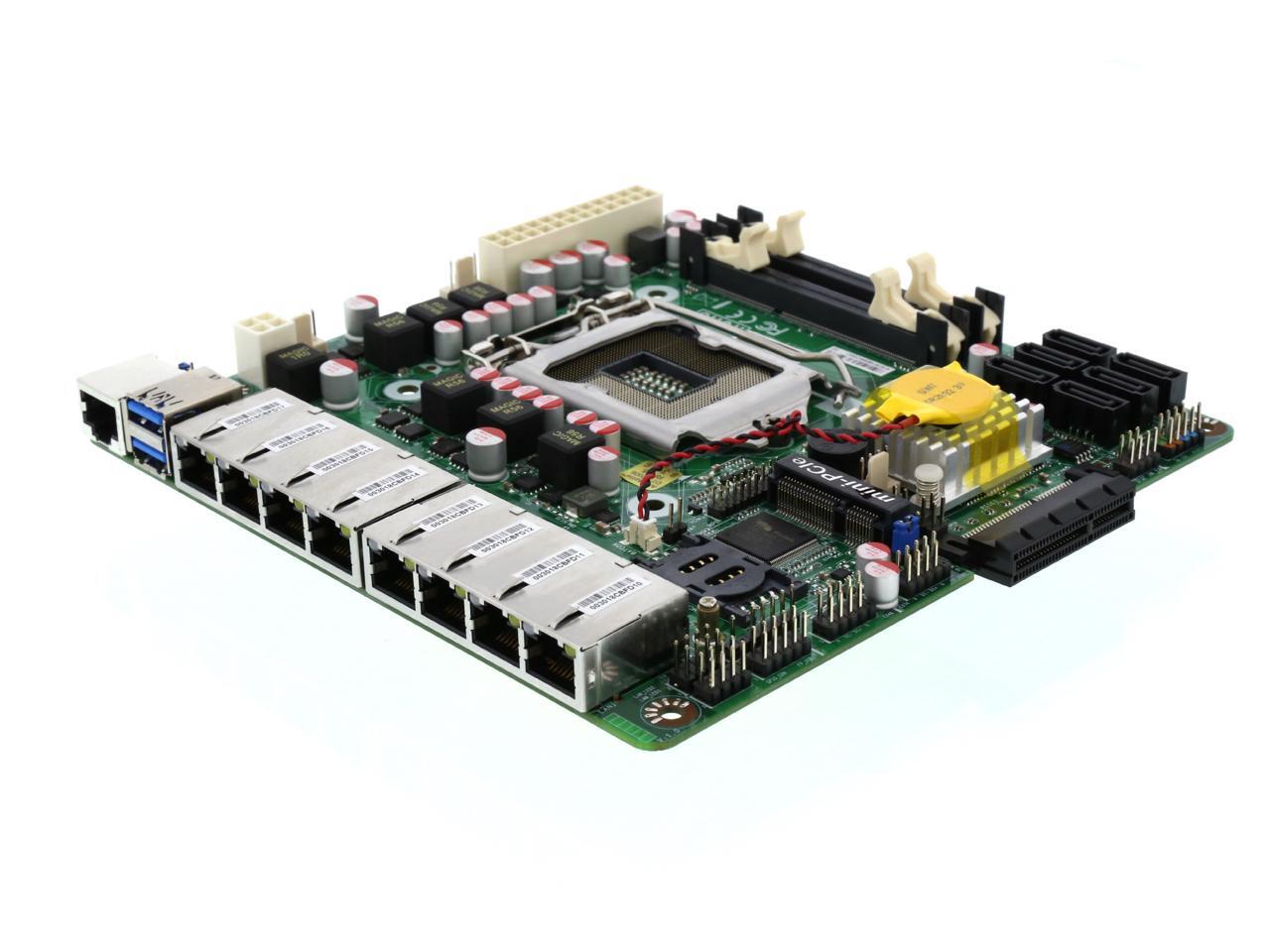

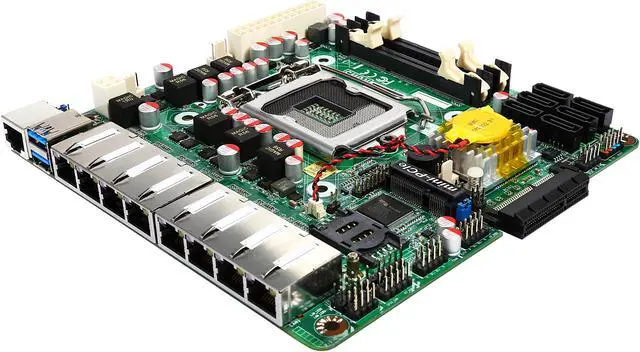

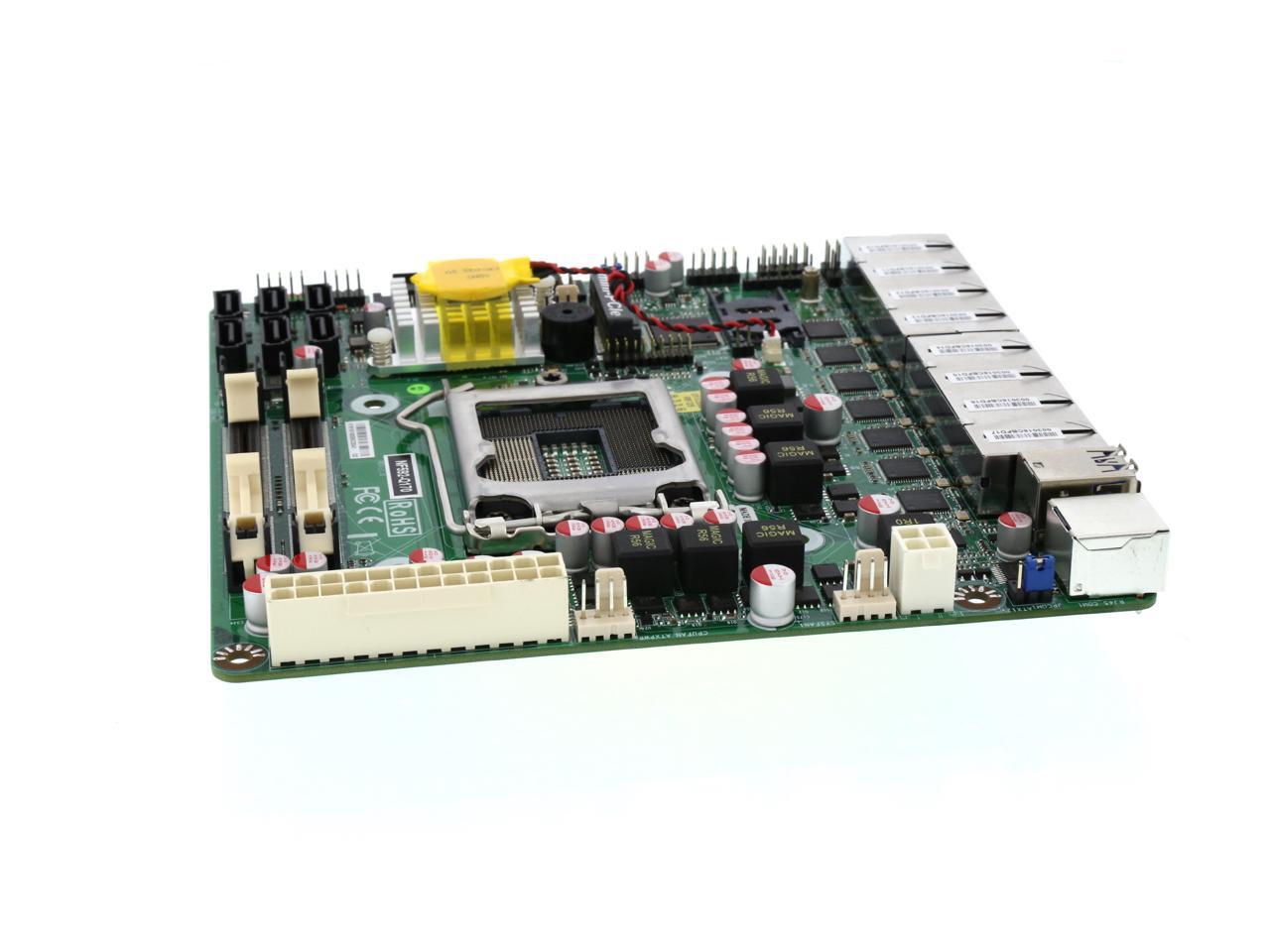

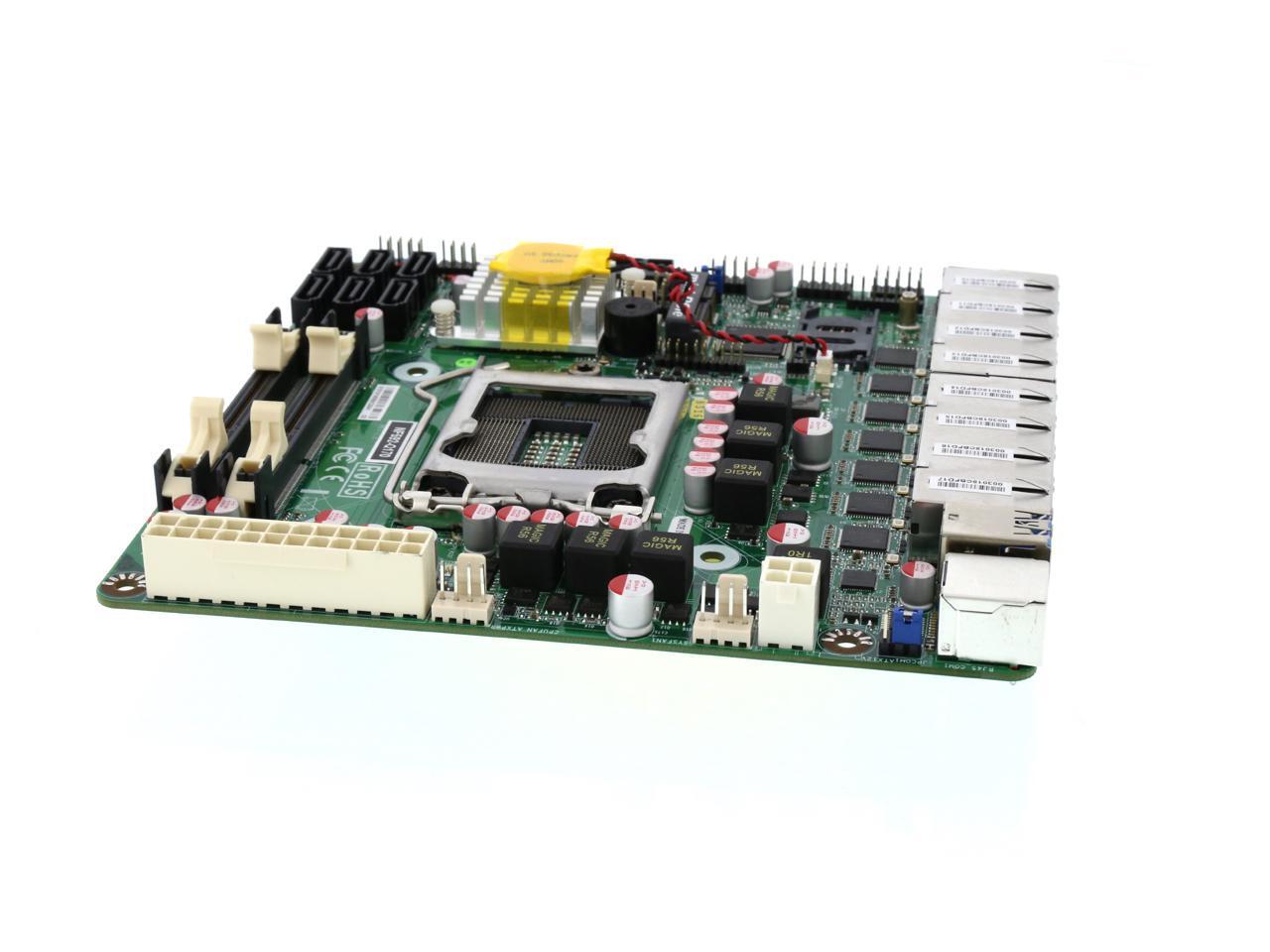

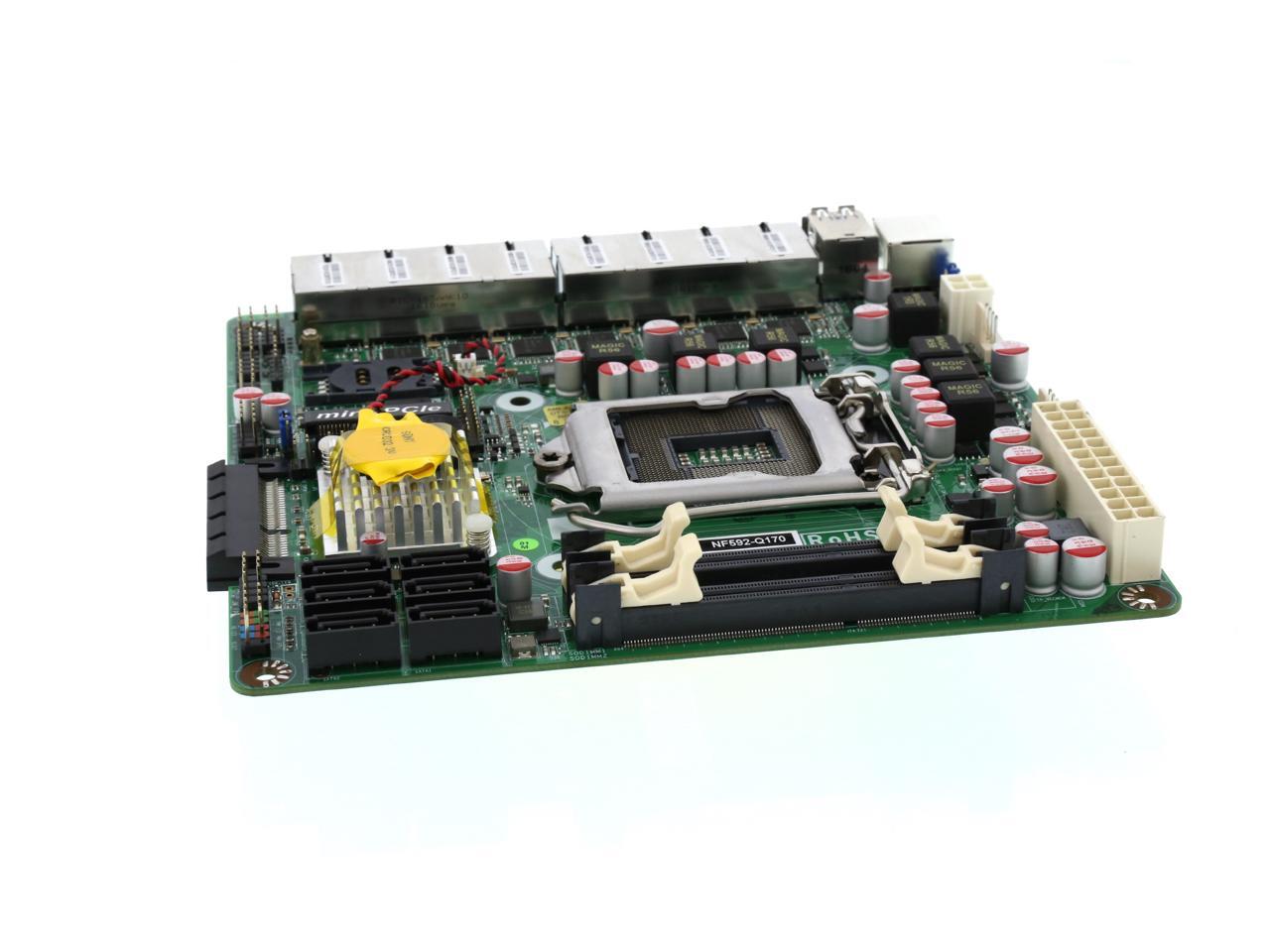

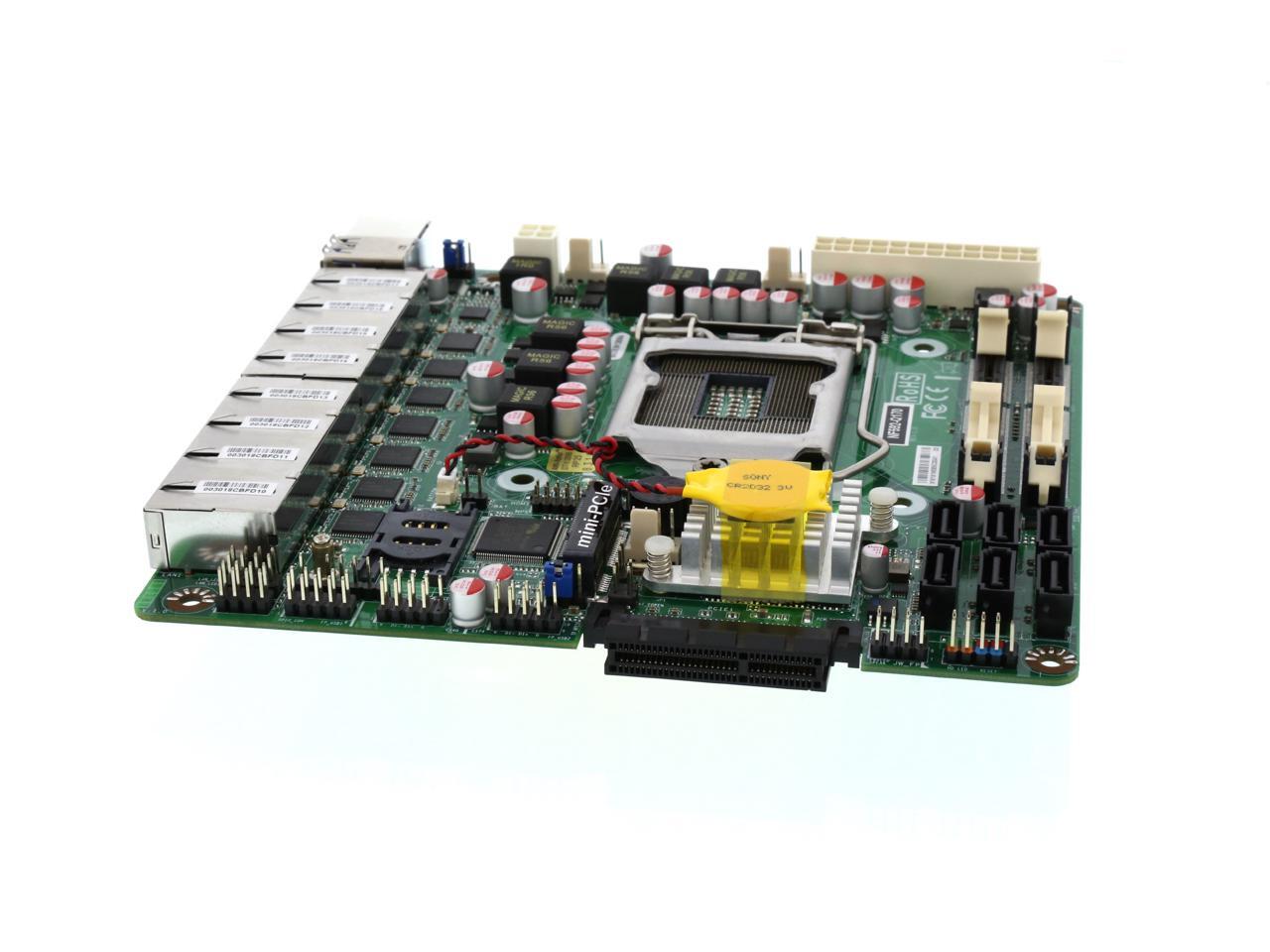

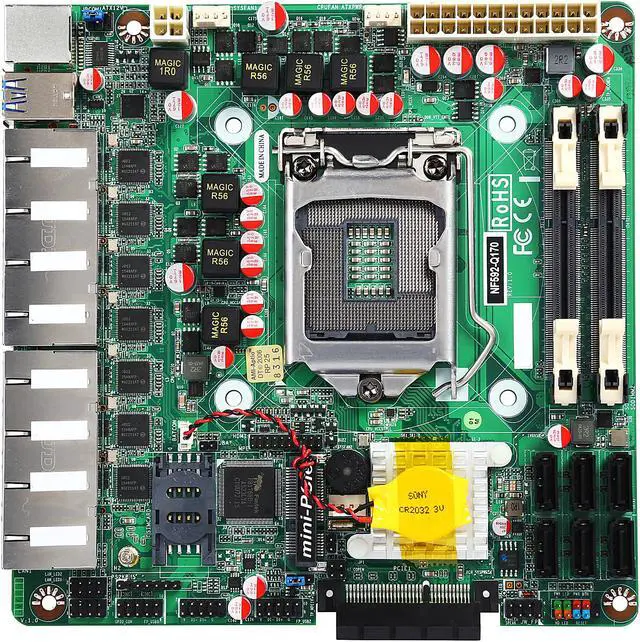

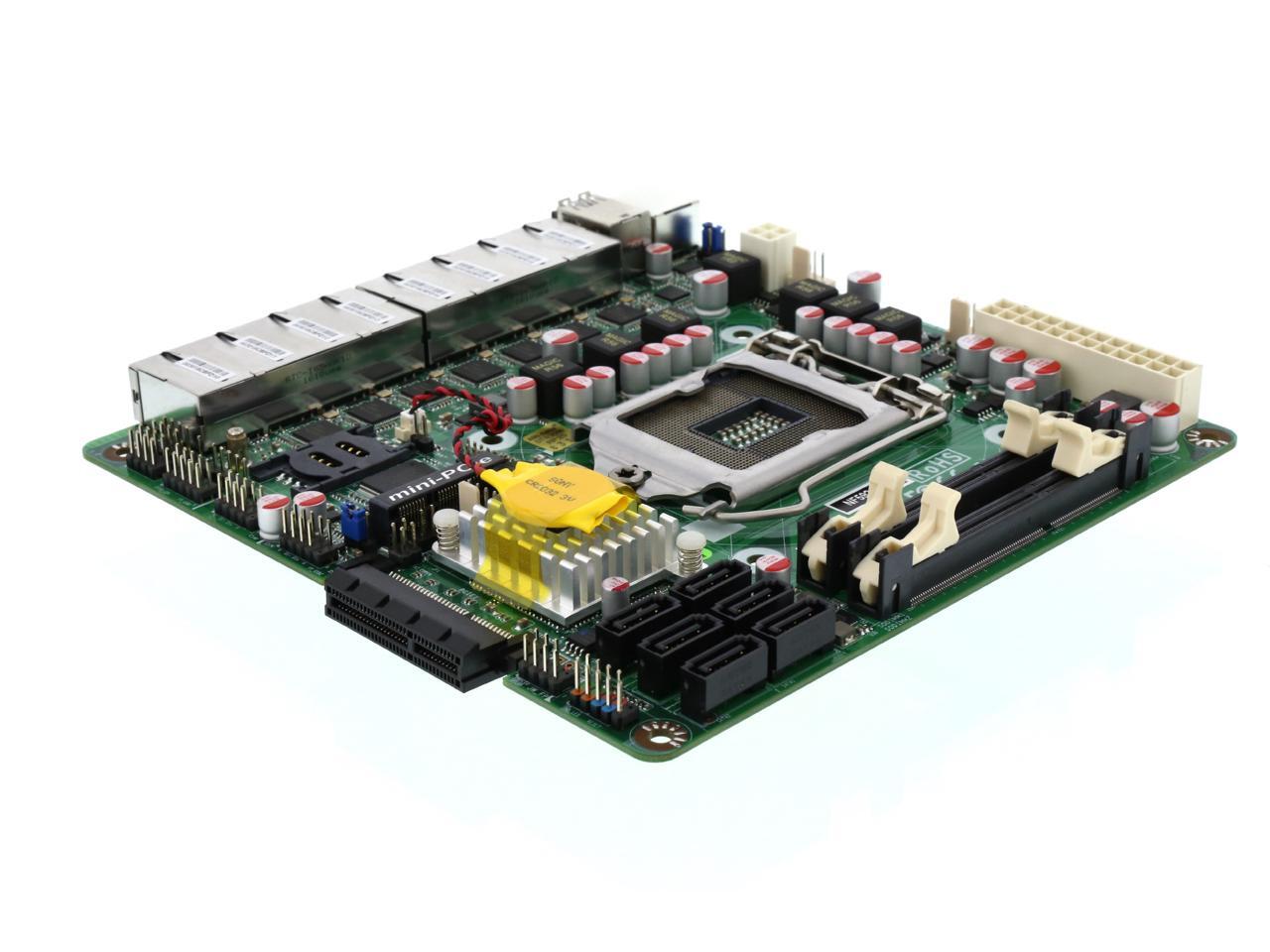

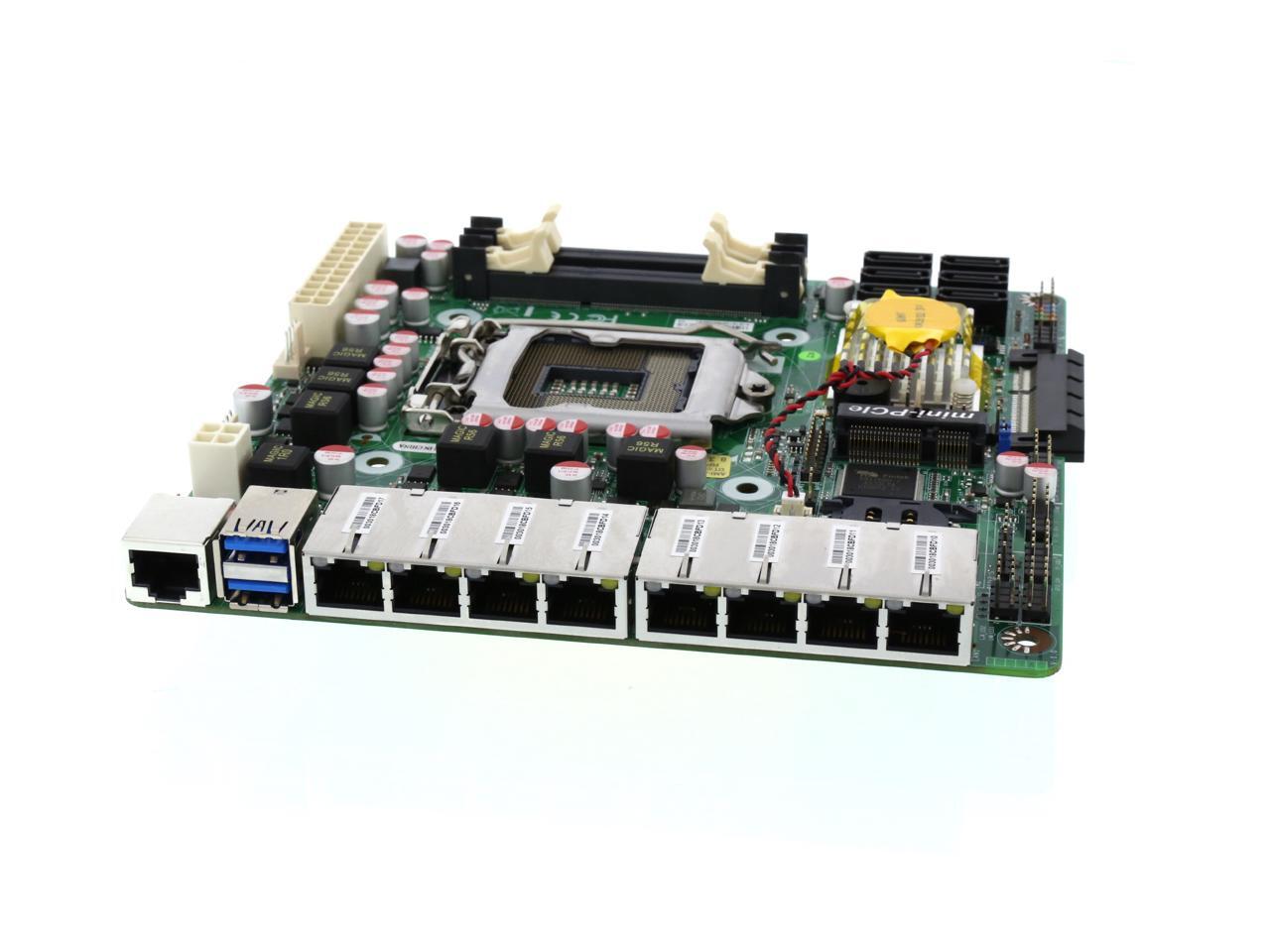

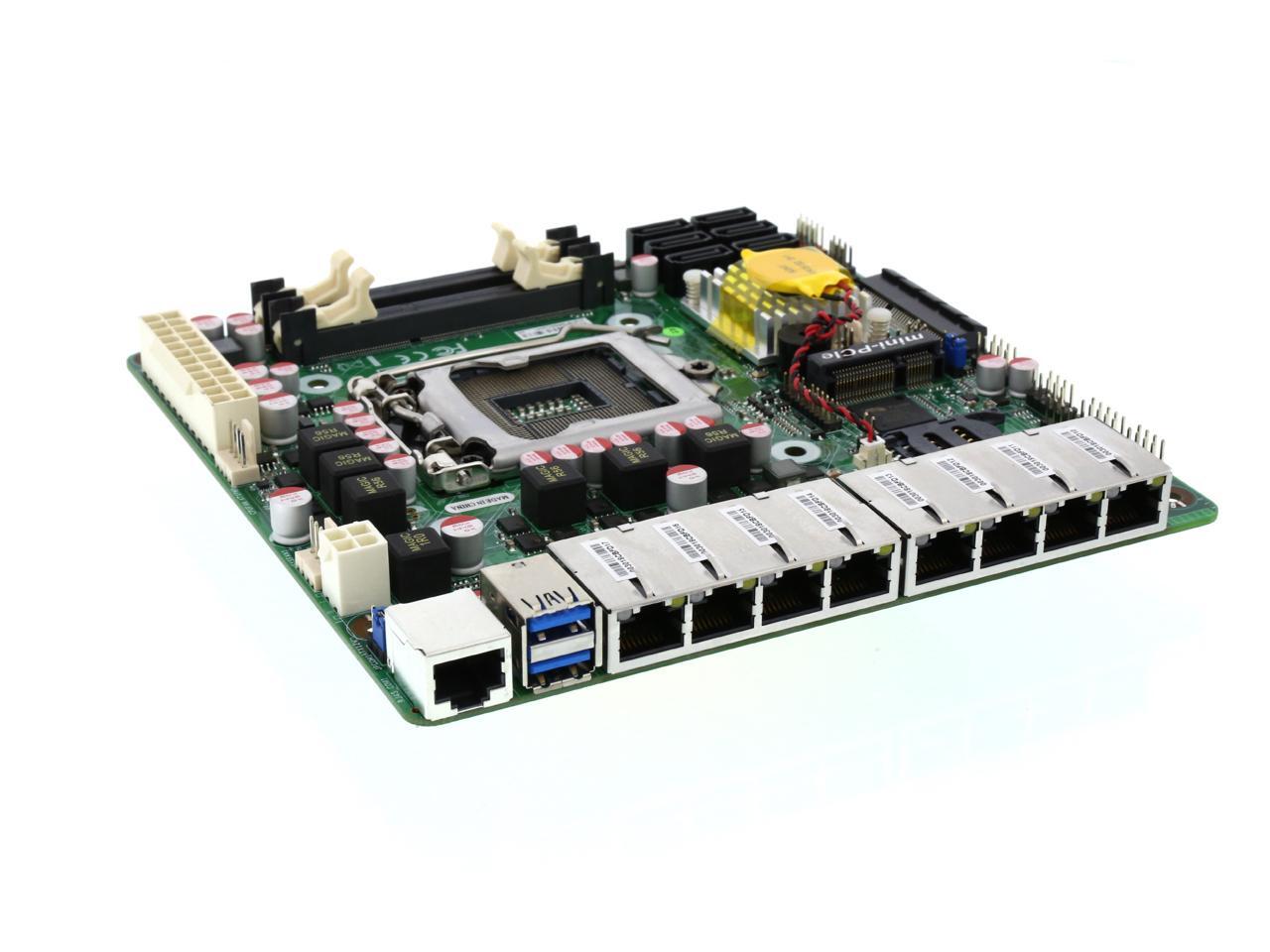

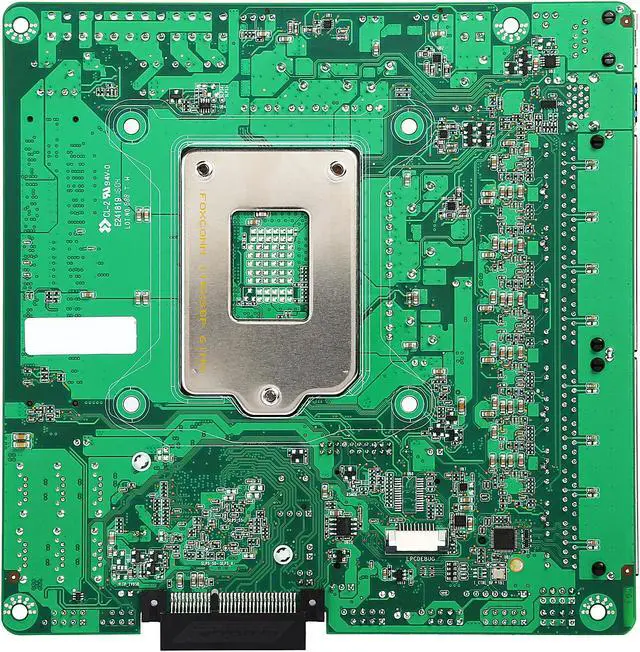

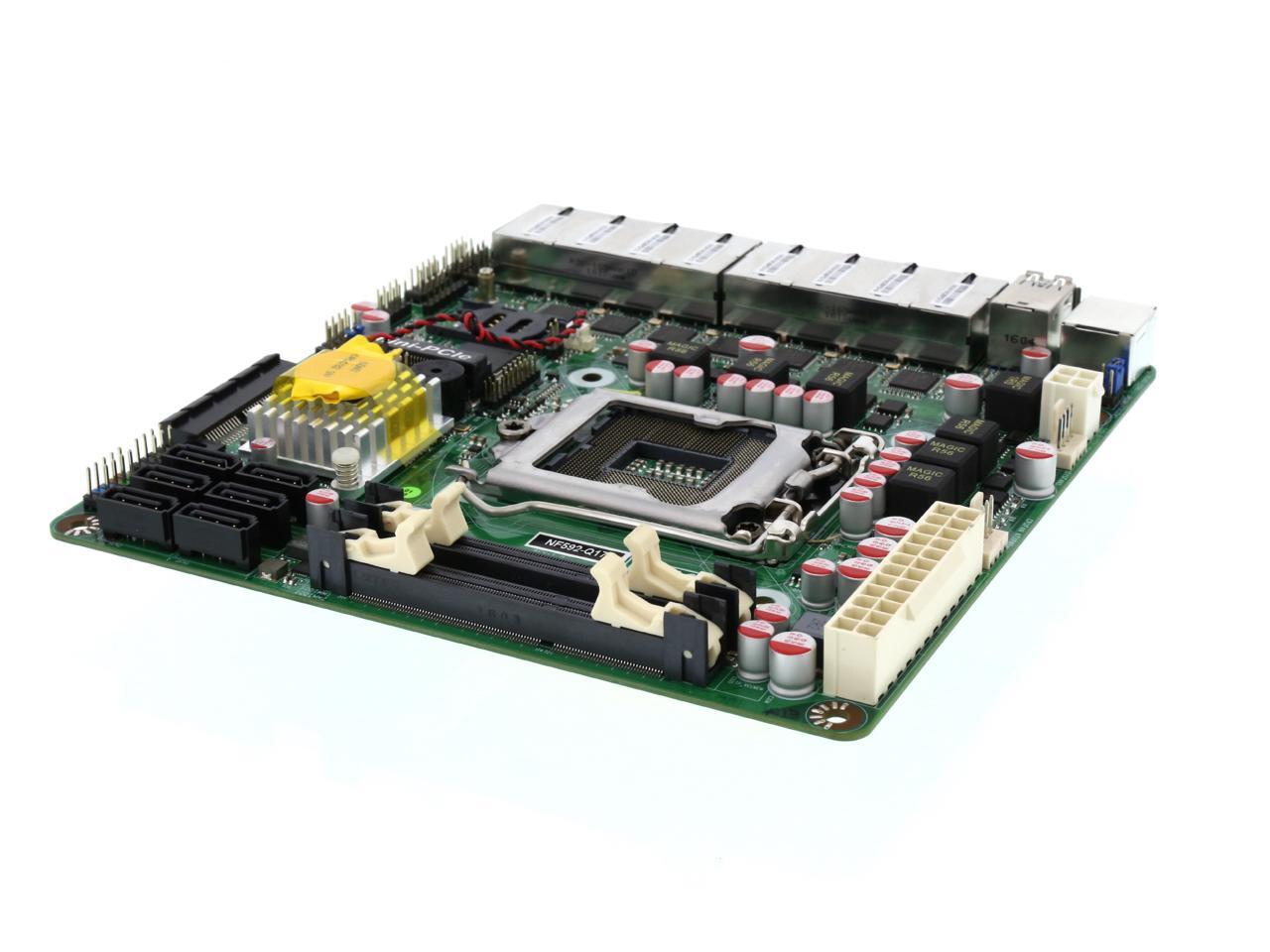

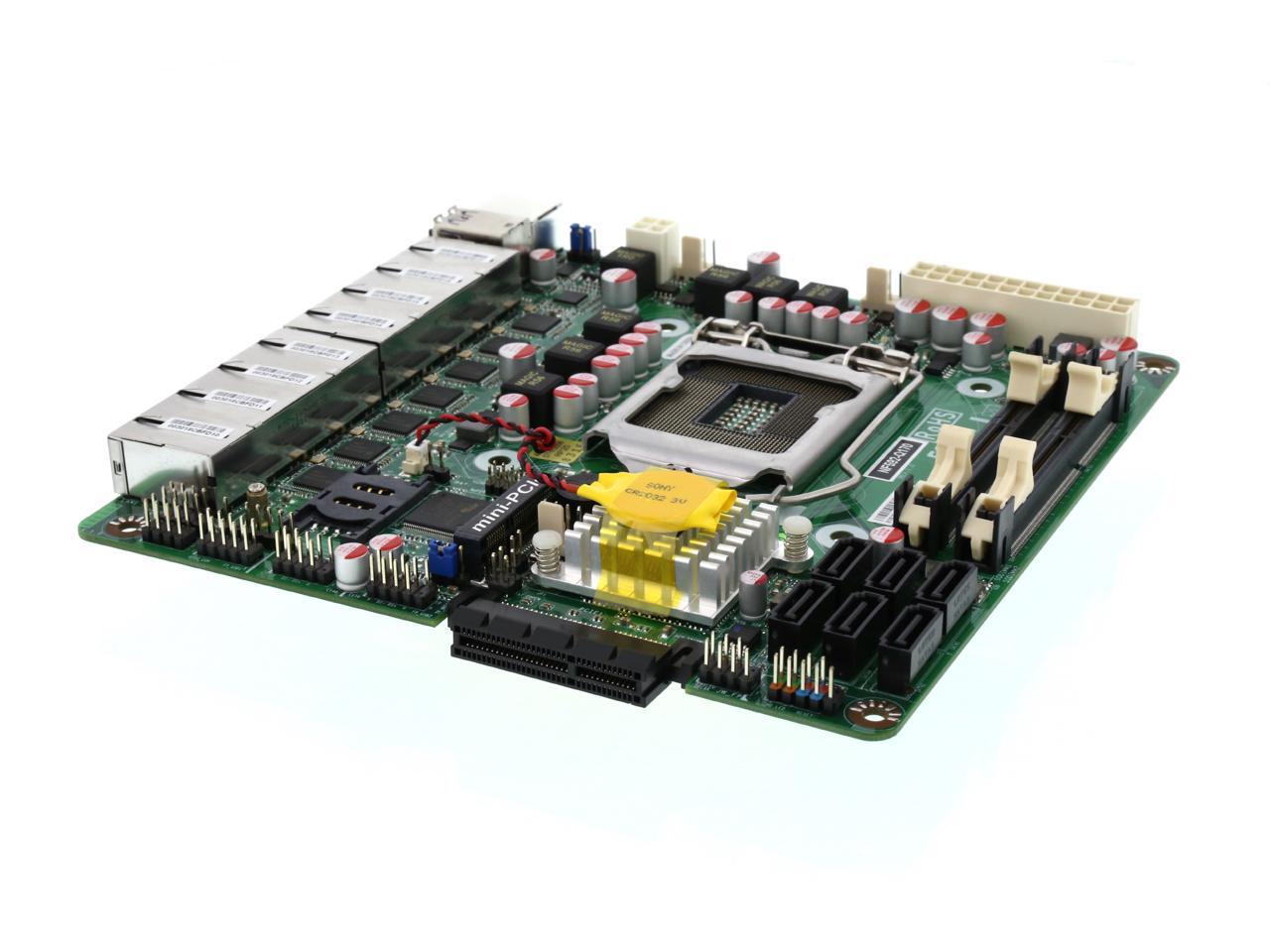

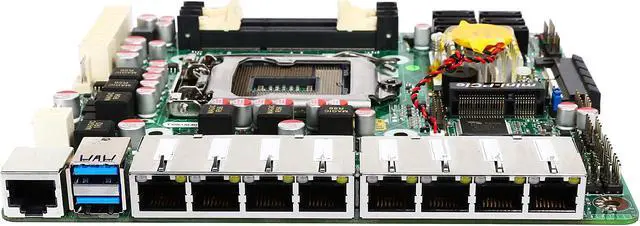

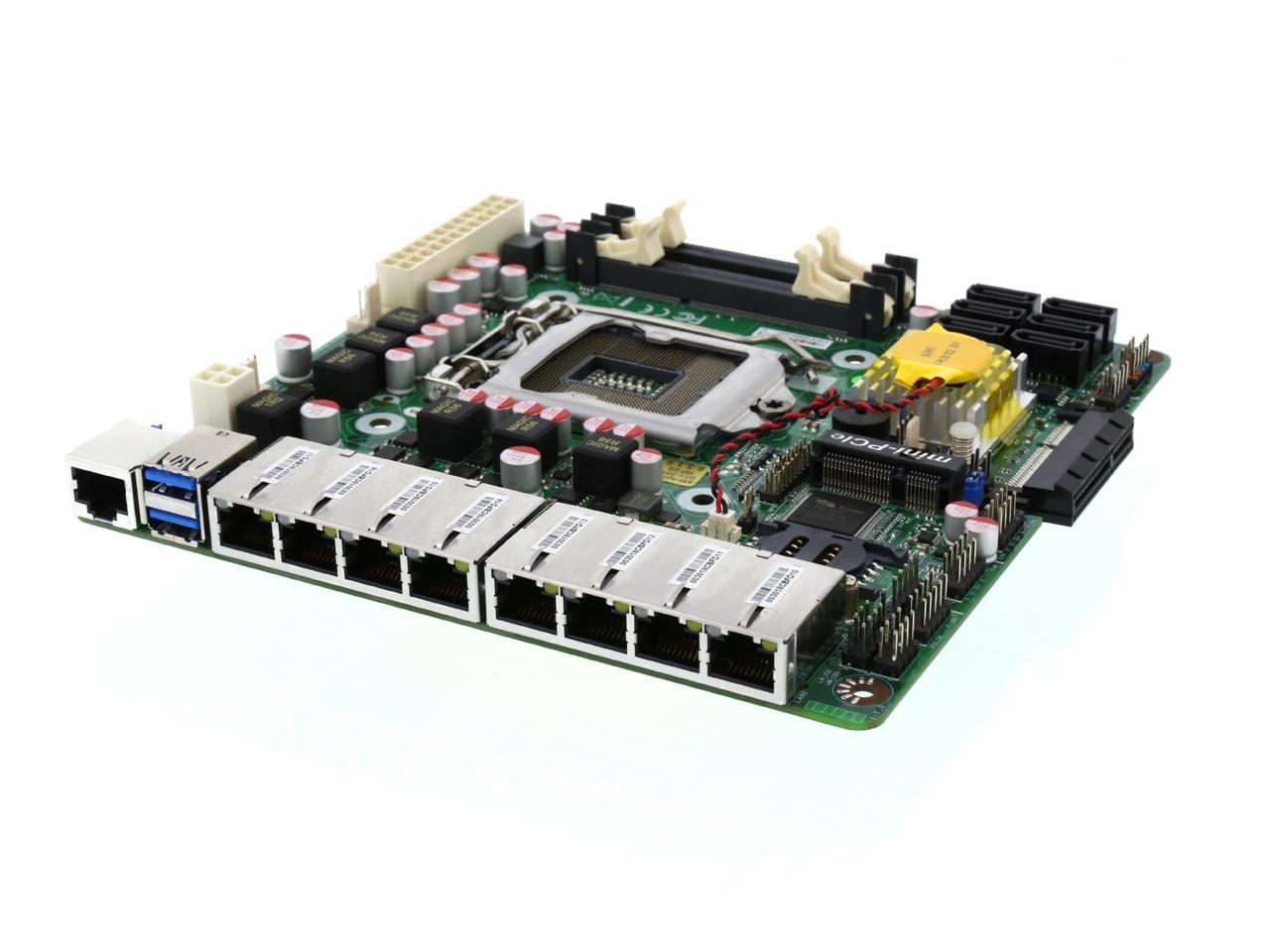

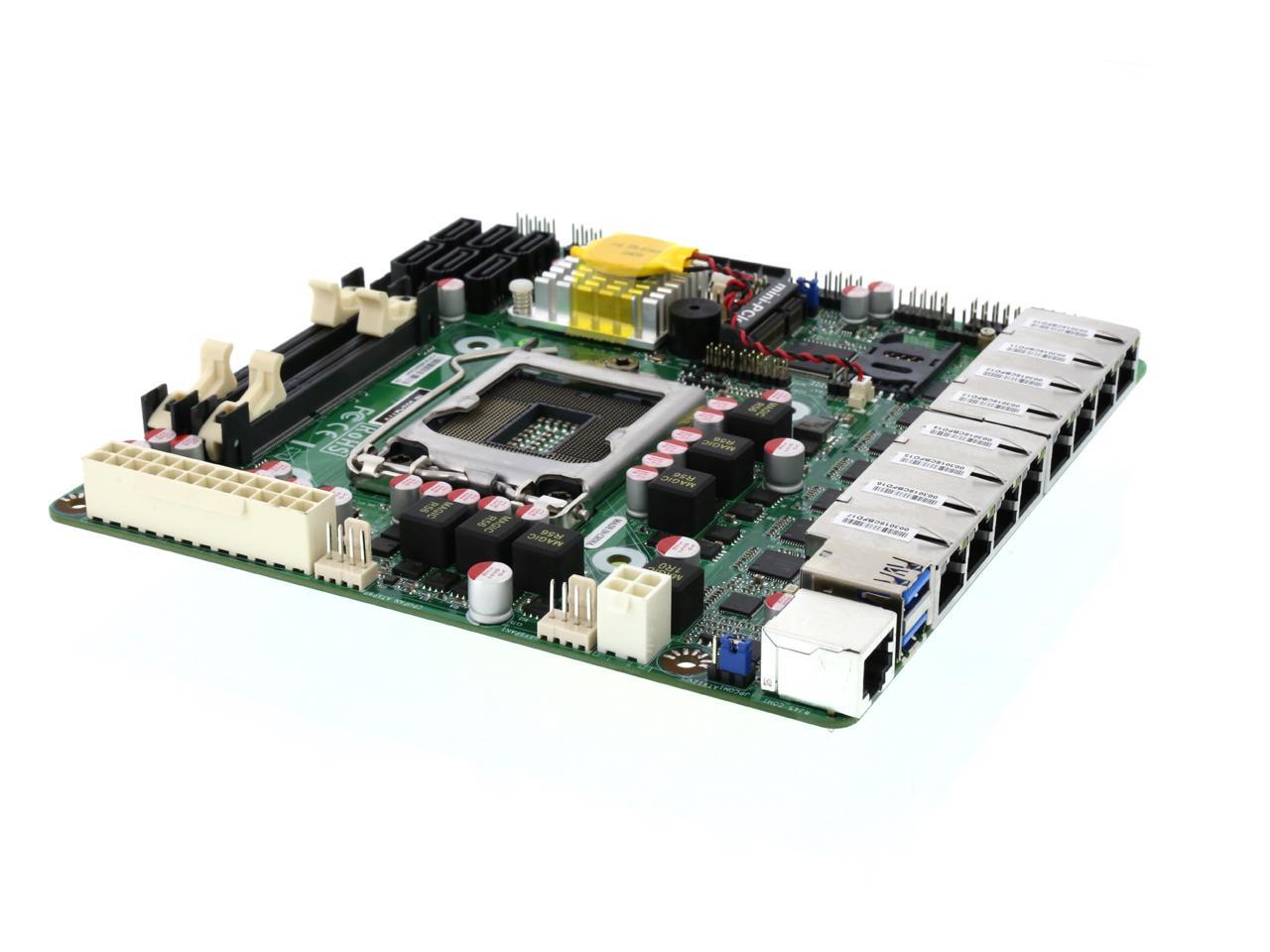

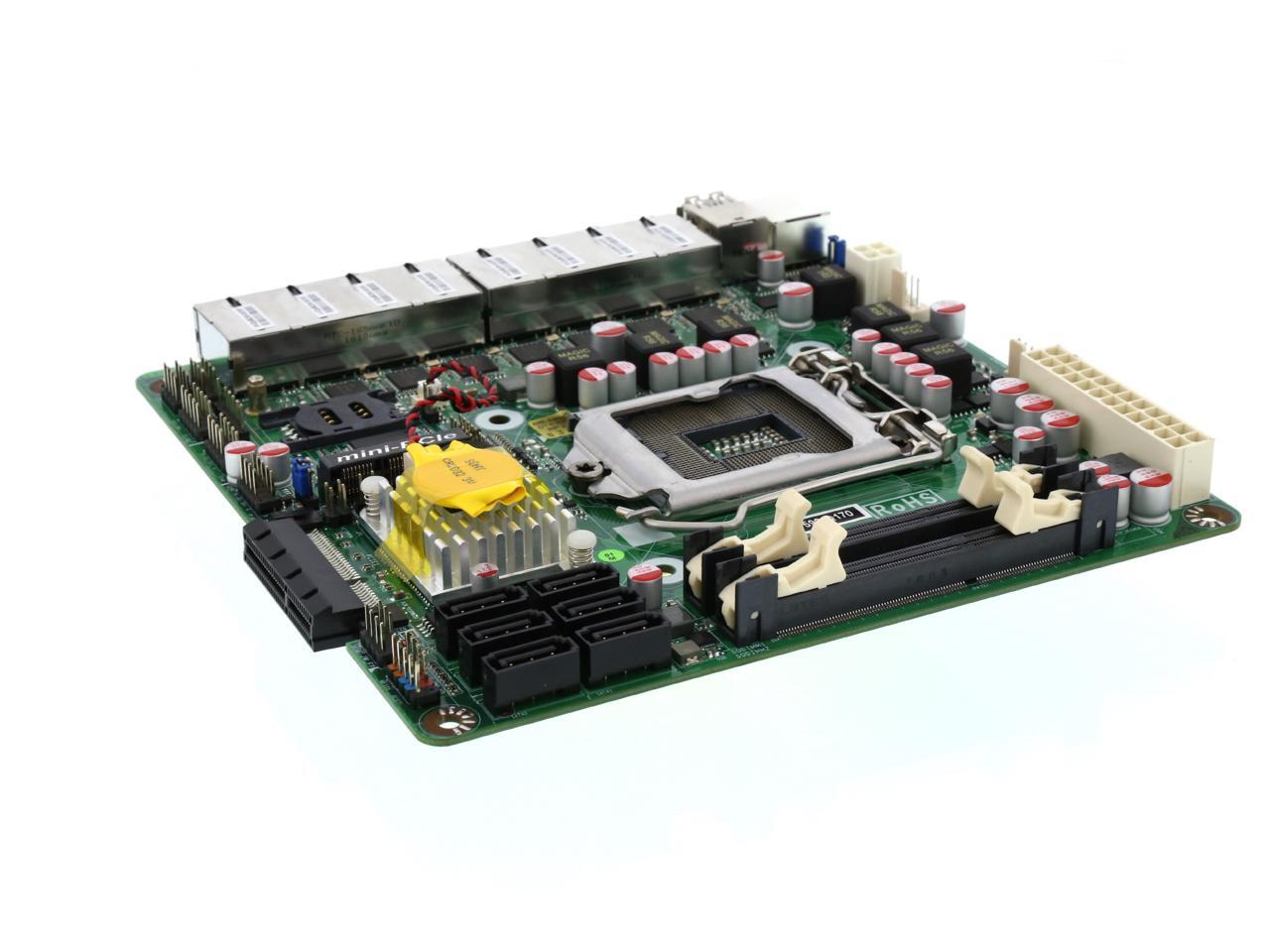

Jetway JNF592-Q170 Ultra Slim Intel Socket LGA 1151, 8*Intel GbLAN, 6*SATA3, Mini-ITX MB
- Intel Q170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium Gold
- DDR3L 1600
Learn more about the JETWAY JNF592-Q170
| Brand | JetWay |
|---|---|
| Model | JNF592-Q170 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium Gold |
| Chipset | Intel Q170 |
|---|
| Onboard Video Chipset | Intel HD Graphics |
|---|
| Number of Memory Slots | 2x204pin |
|---|---|
| Memory Standard | DDR3L 1600 |
| Maximum Memory Supported | 16GB |
| PCI Express x4 | 1 x PCI Express 2.0 x4 |
|---|---|
| Mini Card Slots | 1 x Full-size Mini-PCI Express slot, SIM Card Socket |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| LAN Chipset | 7 x Intel i211AT |
|---|---|
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x USB 3.0 |
|---|---|
| RJ45 | 8 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| Onboard USB | 2 x USB headers for 4 x USB 2.0 ports |
|---|---|
| Other Connectors | HDMI header AT/ATX power switch mode, SIM card socket Chassis Intrusion header, PS/2 KB/MS header 24-pin ATX + 4-pin ATX_12V power connectors |
| Form Factor | Thin Mini-ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| Features | Industrial Embedded Networking Motherboard with Planned Lifecycle Through Q4'2020 Supports Intel 6th Gen Core i3, i5, i7 Processor, LGA1151, Skylake, Intel Q170 Express Chipset Supports DDR3L-1600 1.35V SODIMM up to 16GB Total 8 x Intel Gigabit LAN (7 x J211-AT, 1 x J219-LM (iAMT 11.0)) 6 x SATA3 6Gb/s Ports Supporting RAID 0,1, 5,10 1 x PCI Express 2.0 x4 Side-port, 4 x USB 3.0, 4 x USB 2.0 1 x Full-size mini-PCIE Slot, SIM Card Socket HDMI Header (cable included) 1 x RS232 Port, Watchdog Timer, AT/ATX Power Switch Mode 24-pin ATX + 4-pin ATX_12V Power Connector Compatible with Windows 7,8.1,10, Linux Thin Mini-ITX Form Factor (170mm x 170mm) BIOS: AMI 128MB Flash ROM Certification: CE, FCC, RoHS, ErP/EuP, REACH Temperature: Operating Temperature 0-60 °C, Storage Temperature -20-85 °C |
|---|
| First Listed on Newegg | May 10, 2016 |
|---|
