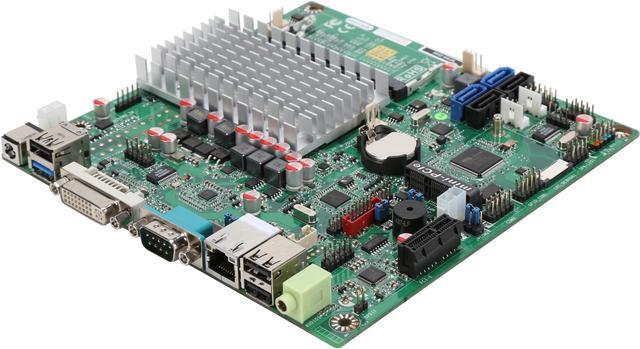

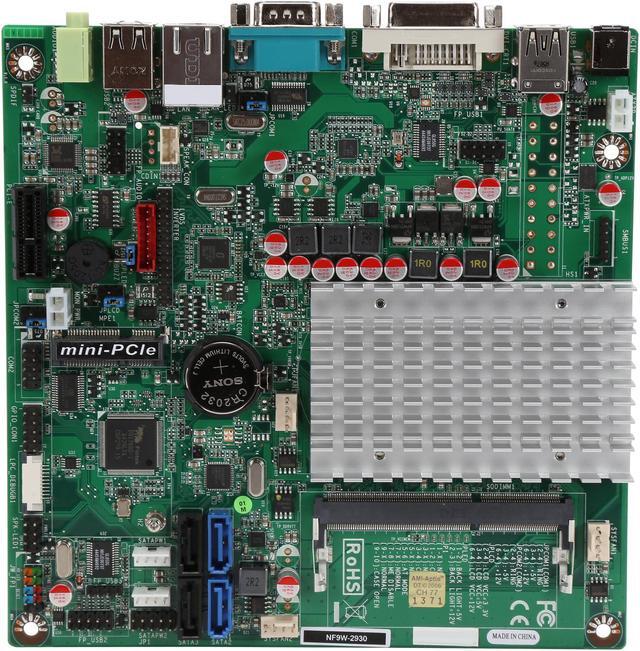

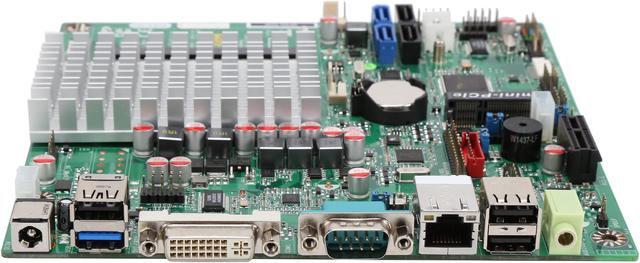

JetWay NF9W-2930 Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP Thin Mini-ITX Motherboard / CPU / VGA Combo
- Celeron
- DDR3L 1333
- Intel HD Graphics, 313MHz - 854MHz
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY NF9W-2930
| Brand | JetWay |
|---|---|
| Model | NF9W-2930 |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP |
|---|
| CPU Type | Celeron |
|---|
| Number of Memory Slots | 1x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3L 1333 |
| Maximum Memory Supported | 8GB |
| SATA | 2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset | Intel HD Graphics, 313MHz - 854MHz |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 2.1 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Video Ports | 1 x DVI-I |
|---|---|
| USB 1.1/2.0 | 3 x USB 2.0 |
| USB 3.0 | 1 x USB 3.0 |
| Audio Ports | 1 x 12V DC-In jack 1 x 3.5mm Line-out jack |
| Onboard USB | 3 x USB Pin Headers for up to 5 additional USB 2.0 Ports |
|---|---|
| Other Connectors | 1 x PCI Express x1 Slot 1 x Full size mini PCI-E Slot 1 x RS232 Serial Port Header 1 x 24-bits Dual Channel LVDS connector/Inverter 1 x AT/ATX power switch mode select jumper 1 x Chassis Intrusion Header 1 x 5-pin SMBUS(I2C) Header 1 x 8-bit GPIO Header 1 x 9-pin Audio Header 1 x 2-pin LAN LED Header 1 x 9-pin Front Panel Header 1 x 4-pin Speaker Header 3 x 4-pin Fan Headers 1 x 2-pin SPDIF Out Header 1 x 2-pin MON_PWR Out Connector 2 x 4-pin SATA Power Out Connector (Male) 1 x 2-pin +12V Alternate Power Connector (Molex 5566-2) |
| Features | Intel Celeron N2930 SoC Processor Embedded Class Planned Lifecycle through Q1.2019 Ultra Slim Design with 20mm z-height and Low Profile IO Shield 1 * External RS232/422/485 Serial Port & 1 * Internal Serial Header 12V DC-in or Alternate Internal 2-pin Power Connector ECO-design for EuP/ErP |
|---|
| Form Factor | Thin Mini-ITX |
|---|---|
| Dimensions (W x L) | 6.69" x 6.69" |

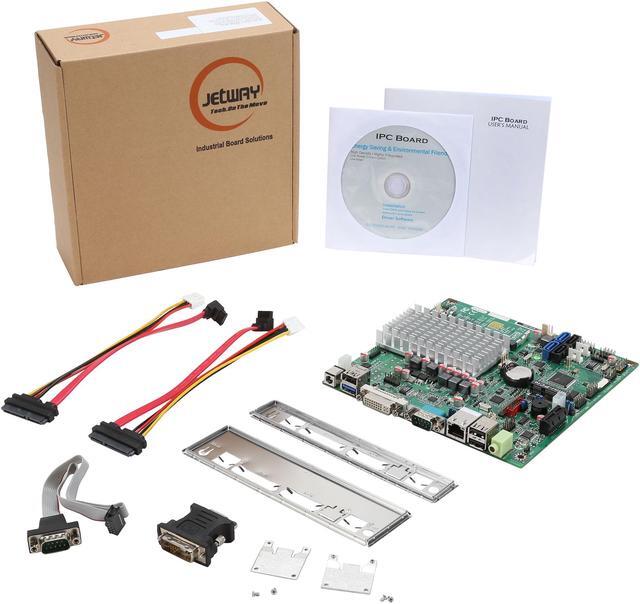

| Package Contents | Accessories Included: IO Shield for JNF9U SATA2 Cable COM Cable 30cm Y power cable DVD driver disk Manual |
|---|
| Date First Available | May 27, 2015 |
|---|
