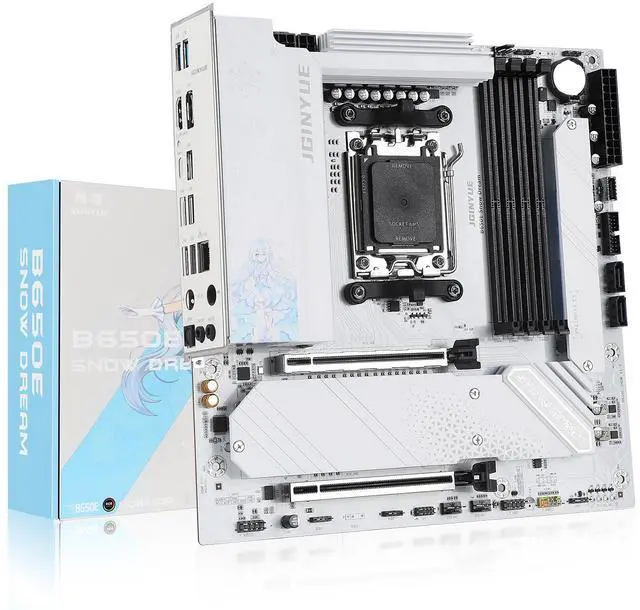

JGINYUE B650E Snow Dream AM5 AMD Ryzen9000/ 8000/ 7000 Desktop Processor Micro ATX Motherboard 3*M.2 4*DDR5 192GB WiFi-6E PCIe 5.0 2.5G Lan USB3.2 Type-C 10Gbps
- Socket AM5 supports AMD Ryzen 9000/8000/7000 series desktop processors
- 4x DDR5 UDIMM, Maximum memory capacity of 192GB, supporting DDR5 4800-7000+(OC) MT/s
- 2xSATA3.0 3xM. 2 slots/1 * PCIe 5.0x4/2 * PCIe 4.0x4
- 1xPCIe 5.0X16 slot 1xPCIe 4.0X16 slot X4 speed
- 4xARGB 5V3 pin (MCU independent control chip)
- 1xType-E slot, expandable with 1 10Gbps Type-C interface, 1xType-C slot
- 1x2.5Gbps Ethernet interface
- 1xWiFi interface (compatible with PCIE protocol)
+
+
Overview
Specs
Reviews

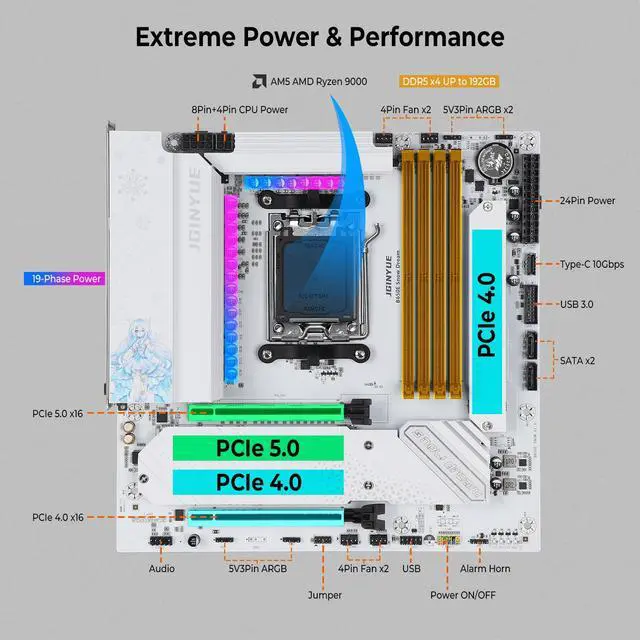

Motherboard model : B650E Snow Dream
CPU socket : AM5 supports AMD Ryzen 9000/8000/7000 series desktop processors
Chipset : AMD B650

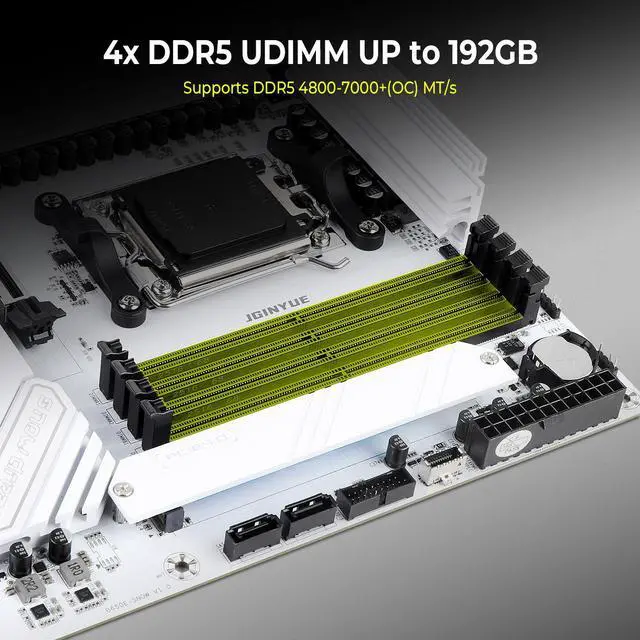

Memory slot : Supports 4x DDR5 UDIMM, maximum memory capacity of 192GB, memory support DDR5 4800-7000+(OC) MT/s, Ryzen 8000 series processor maximum overclocking frequency: maximum speed up to 7000+MT/s * [1DPC 1R dual channel with two single-sided granular memory inserts]
Storage interface : 2xSATA3.0 3xM. 2 slots/1 * PCIe 5.0x4/2 * PCIe 4.0x4

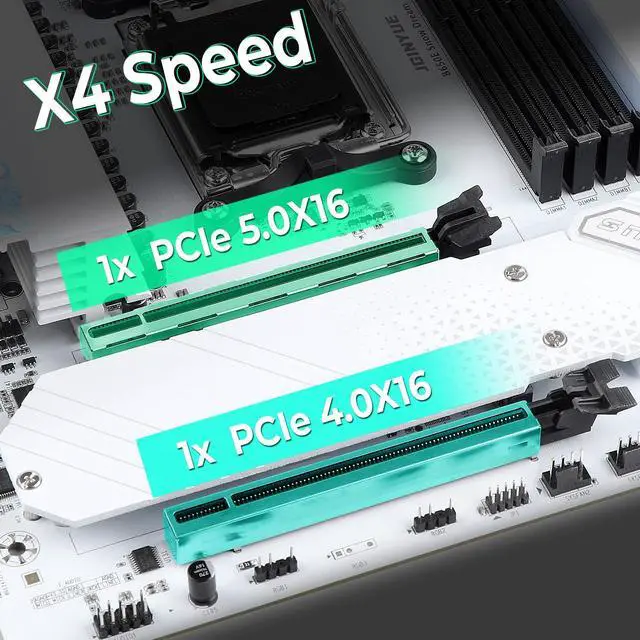

PCIe slot : 1xPCIe 5.0X16 slot 1xPCIe 4.0X16 slot X4 speed
USB interface : 4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2
ARGB needle arrangement : 4xARGB 5V3 pin (MCU independent control chip)

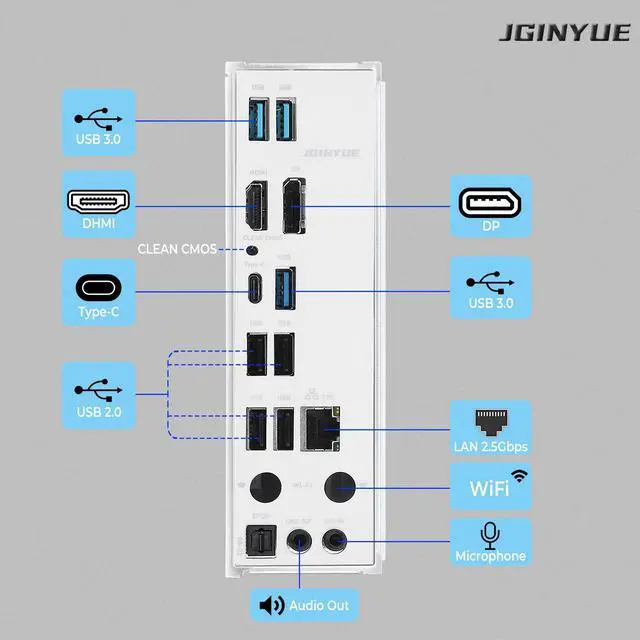

Display interface: 1xHDMI 1xDP;Type-C interface;1xType-E slot, expandable with 1 10Gbps Type-C interface, 1xType-C slot.
Fan pin : 4x4 needle arrangement
Number of power supply phases : 19 phase power supply
WiFi interface : 1xWiFi interface (compatible with PCIE protocol)
Network : RTL8125BG 2.5G Ethernet chip
Audio chip : Realtek ALC897
Specification : 24.5x24.5cm M-ATX
Other interfaces : 1xCMOS button, diagnostic light
