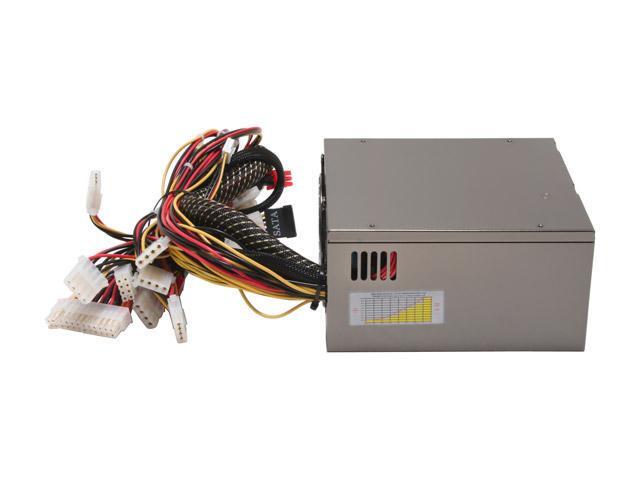

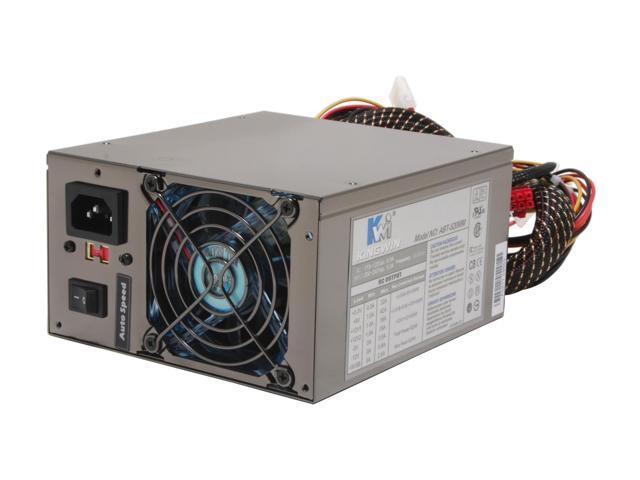

KINGWIN ABT-520MM 520 W ATX / BTX SLI Certified CrossFire Ready Power Supply

OUT OF STOCK.
  • ATX / BTX
  • 115-120V/ 200-240V 50/60 Hz
  • +3.3V@32A,+5V@42A,+12V1@18A,+12V2@18A,-12V@0.8A, -5V@0.5A,+5VSB@2.5A
Specs
Reviews

Learn more about the Kingwin Inc. ABT-520MM

General
Brand KINGWIN
Model ABT-520MM
Details
Type ATX / BTX
Maximum Power 520 W

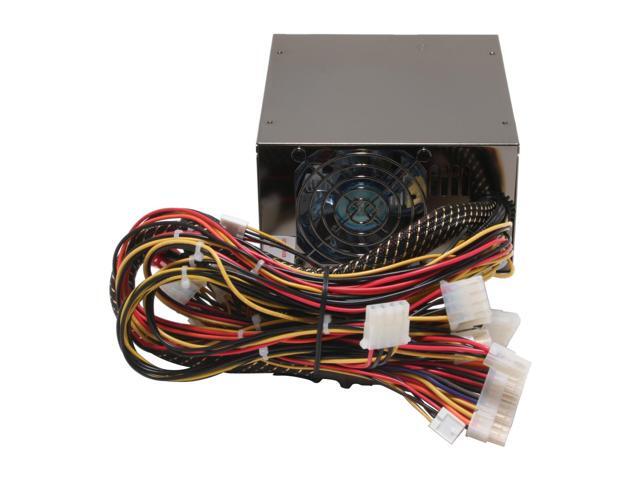

Fans Dual 80mm Blue LED fans
PFC No

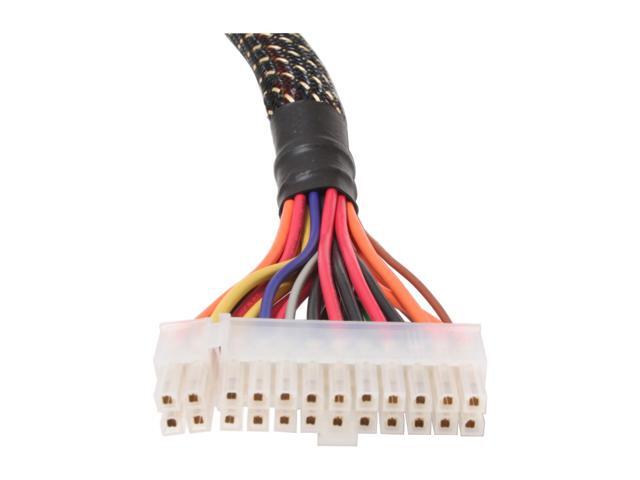

Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SLI SLI Certified
CrossFire CrossFire Ready
Modular No
Efficiency > 70%
Over Voltage Protection +5V output is between 5.7V to 6.5V/+12V output is between 13.2V to 14.4V/+3.3V output is between 3.7V to 4.1V.
Overload Protection 105%~150%
Input Voltage 115-120V/ 200-240V
Input Frequency Range 50/60 Hz
Input Current 8.8A@115V /5.0A@240V
Output +3.3V@32A,+5V@42A,+12V1@18A,+12V2@18A,-12V@0.8A,
-5V@0.5A,+5VSB@2.5A
MTBF 100,000 hours under the following conditions full-rated load, 120Vac input, and 25C ambient.
Approvals CB, CE, CSA, cUL

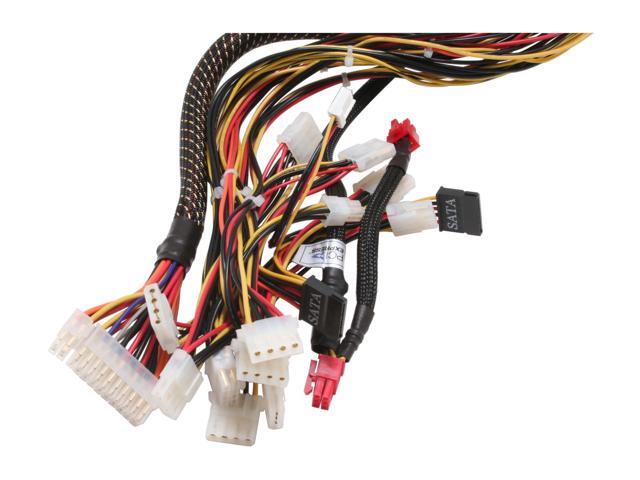

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
10 x peripheral
2 x SATA
1 x Floppy
2 x PCI-E
Features
Features Triple Window Design
Output gold-coated connector
Nickel-Plated
Input waveform: Sine wave, modified sine wave or square wave
Withstand voltage: Input to output 1800Vac 3 sec/Input to ground 1800Vac 3 sec.
Switches: ATX Logic power rocker switch.
Support EPS & Intel 945/955 chipset
Additional Information
Date First Available January 17, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
