KINGWIN Mach 1 ABT-1220MA1S 1220 W ATX / BTX SLI Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply
- ATX / BTX
- Modular
- 80 PLUS BRONZE Certified
- 50/60 Hz
- +3.3V@24A, +5V@24A, [email protected], [email protected], [email protected]
Learn more about the Kingwin Inc. ABT-1220MA1S
| Brand | KINGWIN |
|---|---|
| Series | Mach 1 |
| Model | ABT-1220MA1S |
| Type | ATX / BTX |
|---|---|
| Maximum Power | 1220 W |

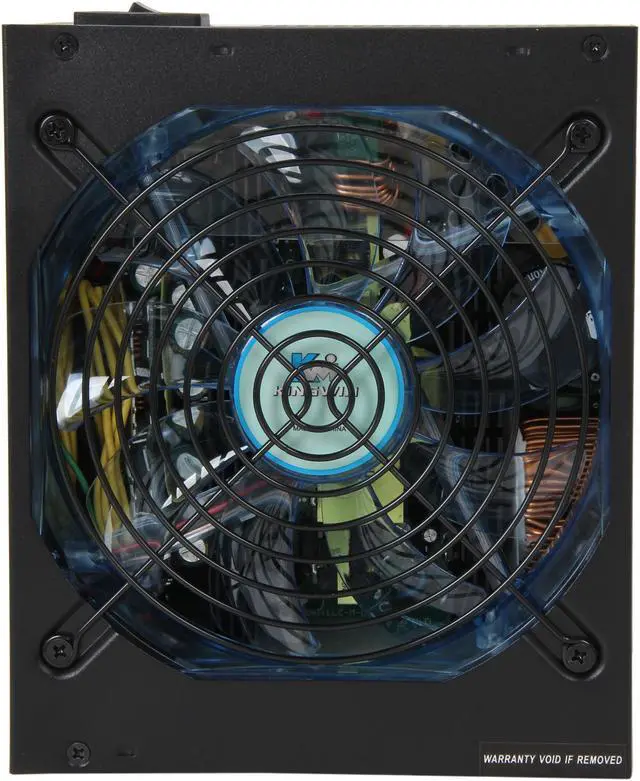

| Fans | 1 x 140mm blue LED fan |

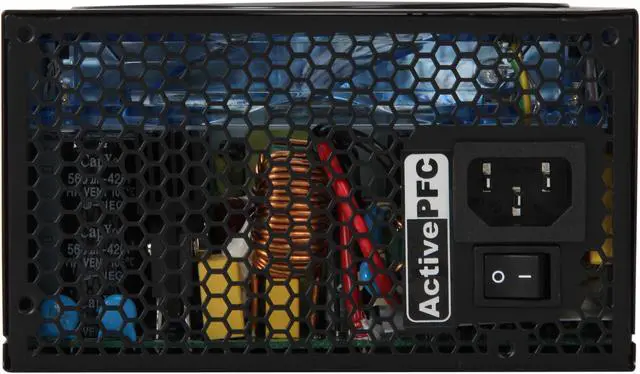

| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |

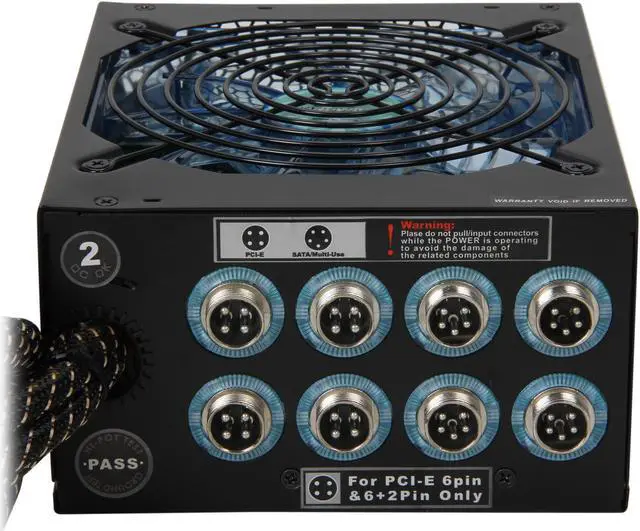

| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Ready |

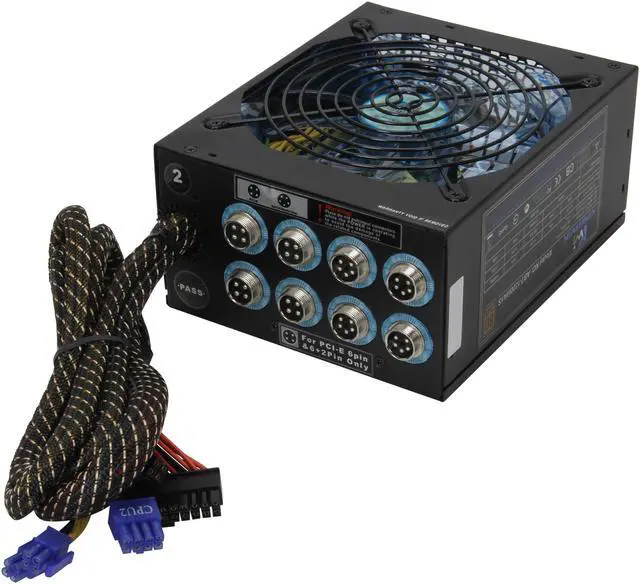

| Modular | Modular |
| Efficiency | Up to 86% |

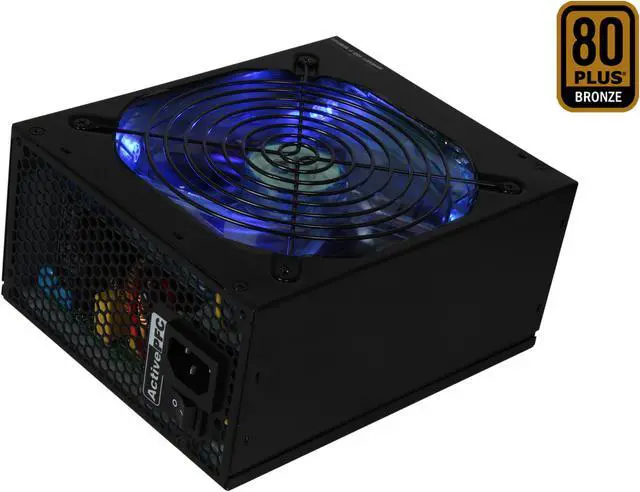

| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Frequency Range | 50/60 Hz |

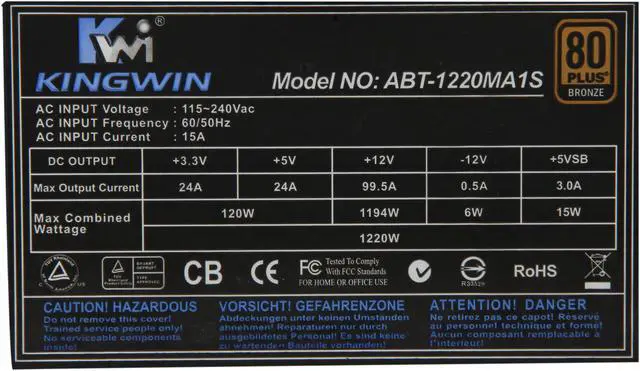

| Output | +3.3V@24A, +5V@24A, [email protected], [email protected], [email protected] |
| MTBF | >100,000 Hours |

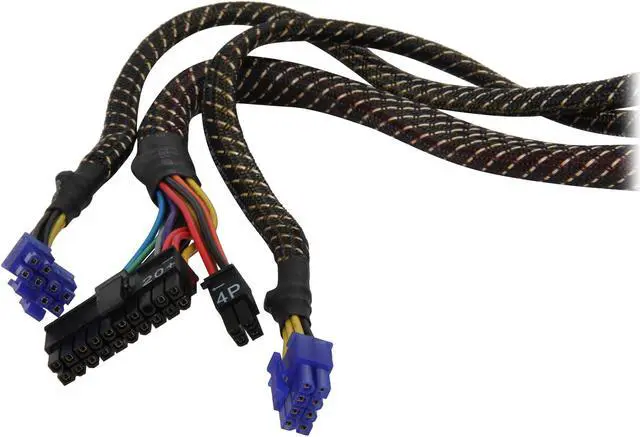

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 8 x peripheral 8 x SATA 1 x Floppy 4 x PCI-E |
| Features | Support Intel Core Duo CPU & Core 2 Duo CPU Support AMD 64 CPU & 64x2 CPU Support High Performance Nvidia SLI GPU ATX 12V Ver.2.92 Output gold-coated connector Output over / under voltage protection Black coating finish Aircraft style modular connectors Built in auto fan-speed sensor |
|---|
| Dimensions | 7.09" x 5.91" x 3.35" |
|---|---|
| Weight | 9 lbs. |
| Dimensions | 3.3" x 5.9" x 7.1" |
|---|
| First Listed on Newegg | July 08, 2008 |
|---|
