Model: USI-2535USB 2.0 to SATA & IDE adapter w/ back up buttonConnect to three different sizes of drive mechanism to USB (2.5", 3.5", and 5.25")Support both SATA & IDE types of drivesDual output power supply with standard 4 pin power output and SATA power outputAC power cableSATA II & USB 2.0 compatibleSupport OS: Win98SE/2000/ME/XP/Vista/7 Mac OS 8.6 or higherCompatibility:All 2.5"/3.5" IDE and SATA hard drivesInterface:Standard SATA and IDESupport:SATA II (3.0 GB/s)/USB 2.0 (480Mbps)Backup feature:One touch backupConnectivity:Hot plug and playWeight:1.5 lbs (681g) / Unit
The EZ-Connect is your portable, intelligent, and easy all-in-one USB solution for connecting an external SATA/IDE drive to your computer. The high performance unit offers a high speed USB 2.0 to SATA or IDE interface, and features SATA drive hot-swap capability. It also comes with an advanced one-touch backup function. In addition, it is easy to connect.
High performanceThe EZ-Connect USI-2535 is a high speed USB 2.0 to SATA/IDE adapter, letting you easily attach an external SATA or IDE drive to instantly access the drive from your PC through the USB port. This EZ-Connect adapter can support either SATA (HDD or SSD) or IDE hard drive in 2.5”, 3.5”, or 5.25” form factors of up to 3TB in disk size. The Hi-Speed USB interface offers plug-and-play capabilities with bandwidth of up to 480Mbps.
One-touch backup functionThe EZ-Connect adapter also comes with a built-in One Touch Backup (OTB) button feature for backing up your files instantly. Just plug the EZ-Connect adapter to your computer, and press the OTB button to automatically run the EZ-Connect backup software program. (*You need to install the EZ-Connect software first to your computer running Windows.)

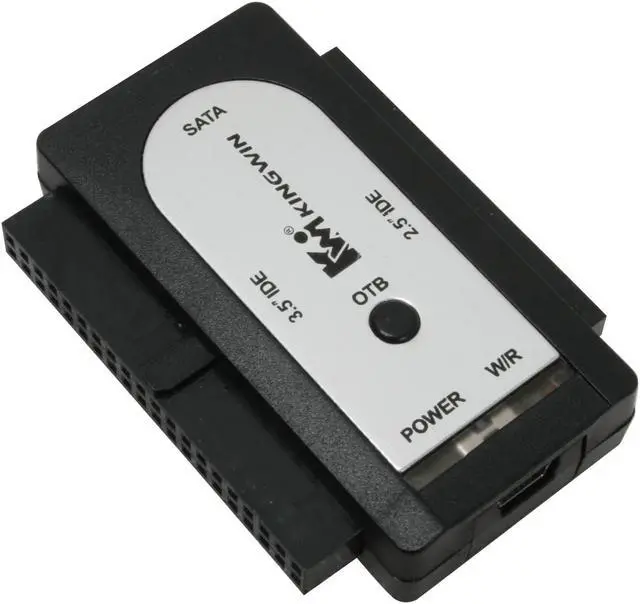

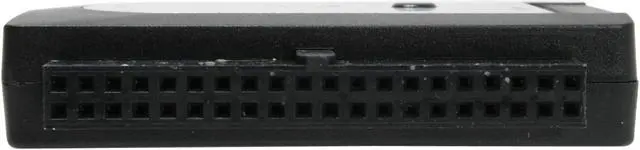

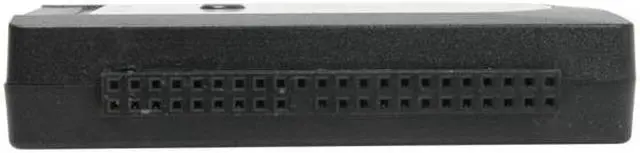

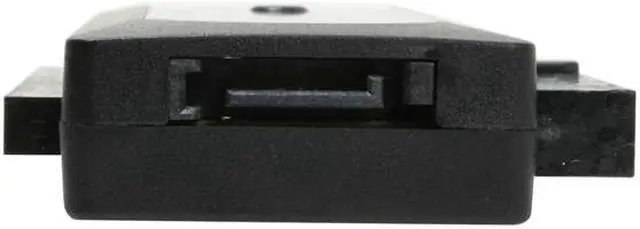

Connecting simply and easilyThe EZ-Connect adapter has a three-in-one drive connector with a 3.5” IDE connector on one side and a 2.5” IDE connector on the other side for attaching IDE drives, and a SATA connector in front to attach the SATA data cable and the 2.5”/3.5” SATA drive. External AC/DC power adapter and SATA power connector are included to supply power to the hard drive. Then simply plug the USB cable into your computer (support for Windows and Mac), and the drive is automatically recognized. No driver installation needed. (*You can only attach one drive at a time).
Learn more about the Kingwin Inc. USI-2535
Model
Brand
KINGWIN
Model
USI-2535
Details
Color
Black
Changer Type
IDE/SATA to USB
Specifications
USB 2.0 (can also plug to USB 3.0 port running at USB 2.0 speed)
2.5"/3.5" SATA I/II Hard Disk Drive (HDD) or Solid-State Drive (SSD) 2.5"/3.5" IDE Hard Drive (HDD)
Max. Transfer Rate: USB 2.0 (up to 480Mbps) SATA II (3Gbps)
HDD Capacity: Up to 3TB per drive
HDD Supported OS: Compatible with Windows and Mac (no drivers needed)
LED Indicators: 1 x Power and 1 x Drive R/W Access
Connectors
Connector A

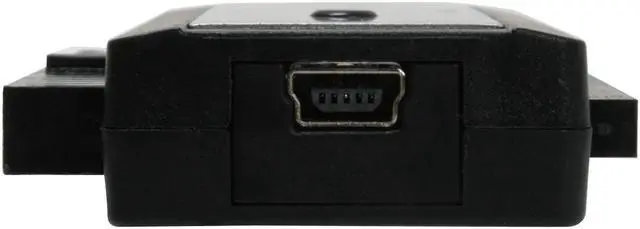

Hi-Speed USB 2.0
Connector B
SATA/IDE
Features
Features
Hi-Speed USB 2.0 to SATA or IDE Interface (up to 480Mbps)
Supports 2.5" and 3.5" SATA Drive (SSD or HDD)
SATA Drive Hot-Swap Capability
Supports 2.5", 3.5", 5.25" IDE Hard Drive
Supports Hard Drive up to 3TB disk size
Includes One Touch Backup (OTB) Button
Dual output power supply with standard 4 pin power output and new SATA power output
LED indicator for HDD Access and Power status
Screw-less and Easy-to-Connect Design
Compatible with Windows and Mac OS (No drivers needed)

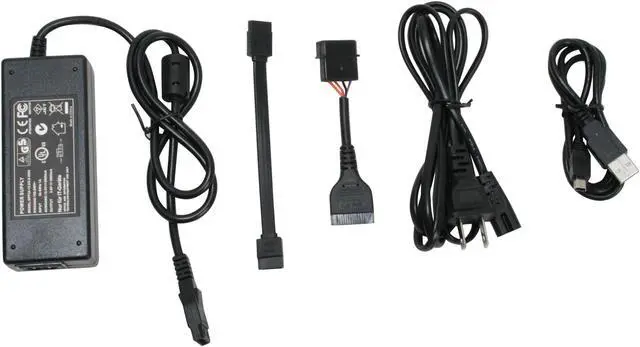

Includes EZ-Connect adapter, USB 2.0 cable, power adapter, SATA data cable, SATA power connector, and User Manual (HDD not included)
