KKmoon AC/DC Digital Clamp Meter for Measuring AC/DC Voltage, AC/DC Current, Frequency, Duty Cycle, Diode, Resistance, Continuity, Transistors Test, NCV Clamp Multimeter

In stock.
Ships from United States.
Most customers receive within 5-9 days.
  • Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.
  • It features hold result and max value buttons that makes it quicker and easier to use.
  • A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
  • LCD Display Ultra-clear display, clear reading, easy to read the values when you operate.
  • Hold and backlight button The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
  • Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.
  • Auto power off no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
  • Multifunctional Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance
Overview
Specs
Reviews

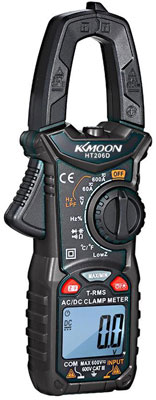

KKmoon HT206D clamp multimeter

A digital clamp multimedia engineered to make your work easier, more efficient and safer. It measures AC/DC voltage, AC/DC current, frequency, duty cycle, resistance, temperature, diode, continuity, etc. Non-contact voltage (NCV) allows you to tests the presence of AC voltage without touching the wires. Other features include a built-in flashlight, and a large, backlit display so you can check the readout at a glance.

Superb construction: Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance. It features hold result and max value buttons that makes it quicker and easier to use. A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.

LCD display: Ultra-clear display, clear reading, easy to read the values when you operate.

Data-hold and backlight button: The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring. Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.

Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.

Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc. Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.

Specifications:

  • Color: Red
  • Model: HT206D
  • Material: ABS
  • Display: LCD Display
  • Jaw Opening: 25cm
  • DC voltage: 600mV/6V/60V/600V (0.5 %reading+5)
  • AC voltage: 6V/60V/600V (1.0 %reading+5)
  • AC current: 6A/60A/600A (2.5 %reading+8)
  • Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ (1.0 %reading+5)
  • Capacitance: 10nF/100nF/1µF/10µF/100µF/1mF/10mF/100mF
  • Duty cycle: 1-99%
  • Frequency (Hz): 10Hz~10MHZ
  • Maximum count: 6000
  • Temperature: -40~1000°C / -40~1832°F
  • Power Supply: 2* 1.5V AAA Batteries (Not Included)
  • Operating Temperature Humidity: 0-40°C (<80%RH, <10? non-condensing)
  • Storage Temperature Humidity: -10-60°C (<70%RH, remove the battery)
  • MAX. Voltage between terminals and earth ground: 600V
  • Over range indication: it displays OL
  • Continuity: orange backlight on
  • Item weight: 194g/ 0.43 lbs
  • Item size: 19.3 * 7.3 * 3.4 cm / 7.6 * 2.9 * 1.3 in
  • Package weight: 395g/ 0.87 lbs
  • Package size: 22.5 * 11.5 * 4.5 cm/ 8.86 * 4.53 * 1.77 in

NOTE: The voltage over 600V cannot be measured; otherwise the instrument may be damaged. Be careful when measuring high voltage to avoid electric shock or personal injury. Test the known voltage with the meter before use, confirm the instrument function is intact. Please allow 1-3cm differences due to manual measurement.

Package list:

  • 1 * Digital clamp meter
  • 1 * User Manual (English)
  • 1 * Pair of Test Leads
  • 1 * Temperature Probe
