Klipsch R-5650-S II IN-WALL SURROUND (1014134)
- Frequency Response: 60hz-20khz 3db
- Sensitivity: 92db @ 1 Watt/1 Meter
- Power Handling: 50 Watts (200 Watts Peak)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

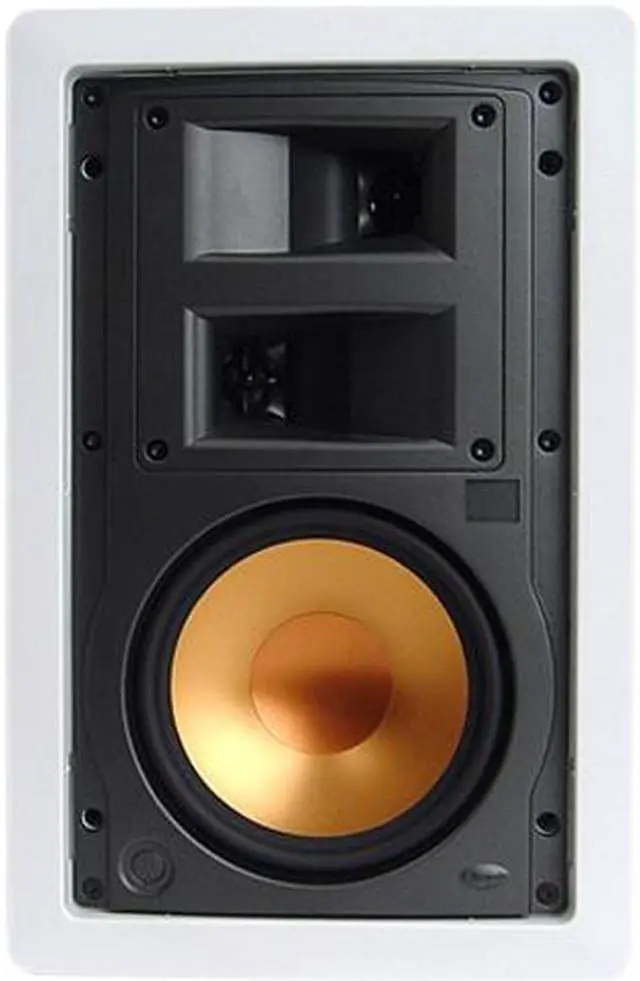

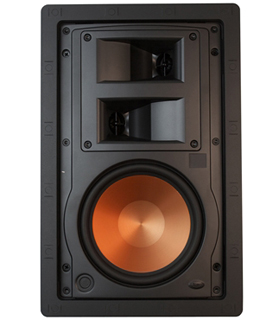

Klipsch R-5650-S II In-Wall Speaker
SURROUND SPEAKER UPDATED WITH THE LATEST TECHNOLOGY
The Klipsch R-5650-S II maintains the core technology use of dual 1” Titanium compression drivers (tweeters) mated to dual Tractrix® Horns, vertically stacked and skewed to maximize ambience, combined with a 6.5” Cerametallic™ woofer in a 2-way design. Now with a new low-profile, more elegant grill and refinements to both high frequency and low frequency reproduction, it continues as the perfect choice for surround speakers in either a 5.1 or 7.1 configuration.

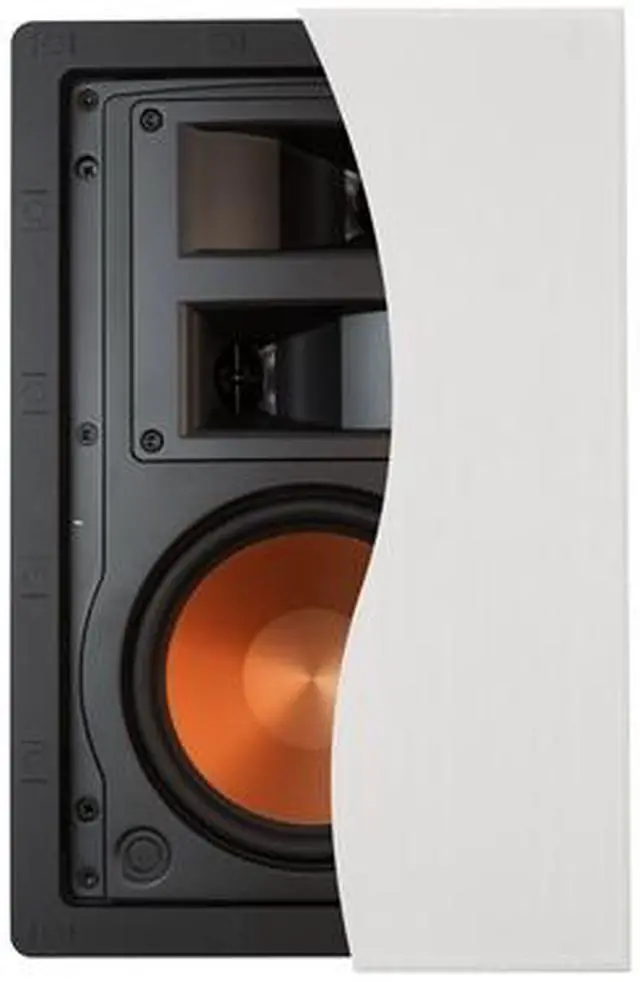

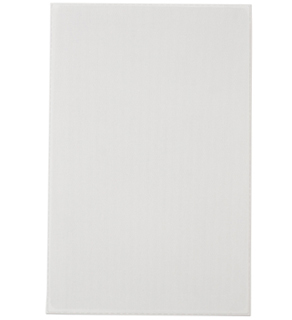

THE UPDATE FOR YOUR EYES: THE NEW SLIMTRIM™ GRILLE
With an all new grille, the visible frame size is reduced by 90% and grille depth is reduced by 80% over the previous design, for a more edge-to-edge consistent look that blends in with the wall more attractively. The new aluminum, paintable, magnetic grille attaches tightly and securely with ease to virtually eliminate resonant distortion.
KLIPSCH EXCLUSIVE WIDE DISPERSION SURROUND TECHNOLOGY (WDST™)
The precise alignment of two controlled dispersion Tractrix Horn tweeters angled opposite of one another yields an incredibly wide dispersion pattern for ambient sound. This feature, perfect for surround sound information, also allows for a speaker with flexible placement compared to competing surround speaker designs.
TITANIUM DIAPHRAGM COMPRESSION DRIVERS (TWEETERS) WITH LINEAR TRAVEL SUSPENSIONS (LTS)
Combined with the Tractrix Horns, the one-inch, solid-formed, very lightweight metallic diaphragms work in conjunction with precise phasing plugs at the horn throats to create highly efficient drivers with excellent transient response and lack of distortion. The new Linear Travel Suspension on each tweeter assures the most precise diaphragm excursion, increasing high-frequency detail and smoothness.
MACHINE-SPUN CERAMETALLIC™ WOOFERS
The solid Aluminum diaphragm, anodized to add stiffness and provide perfect damping, has a new hi-tech look that also delivers increased rigidity for even tighter, more defined bass. The new integrated dust cap further strengthens the cone and helps ventilate the voice coil for increased driver durability.
PREMIUM, HIGH DEFINITION NETWORK
The perfect blending between drivers for full bandwidth balanced response.
FRONT IR KNOCKOUT
Allows installation of standard, .5” tube-type, IR repeater device.
SURE-GRIP MOUNTING DOGS
Provide even pressure against drywall for long-term installation reliability.
Engineered to bring a new dimension of reality and convenience to a flush-mount design, the Klipsch R-5650-S II in-wall surround sound speaker features a unique patented horn array that allows system designers to create enveloping sound fields and localized effects without disrupting a home's decor.
- Two vertically stacked Tractrix® Horn-loaded tweeters maximize surround sound effects
- Horn-loaded technology increases acoustic output while significantly reducing distortion
- IR receiver knock out
- Elegant new, low-profile SlimTrim™ magnetic grille
Designed specifically for surround use in home theater applications, the R-5650-S II employs a refined 6.5-inch Cerametallic™ woofer for even tighter bass and dual 1-inch titanium compression drivers (tweeters). The addition of a Linear Travel Suspension to the tweeters increases high frequency detail and smoothness. Because of its patented horn array which is two vertically stacked Tractrix Horn-loaded tweeters pointing in opposite directions, the R-5650-S II outperforms conventional designs by maximizing diffusion clarity and efficiency while minimizing room interactions that blur sonic detail.
The R-5650-S II draws listeners into the middle of the action through the use of Klipsch's proprietary Wide Dispersion Surround Technology or WDST™. The careful alignment of the two controlled-directivity Tractrix Horn tweeters angled opposite of one another yields an incredibly wide dispersion pattern.
Available in a paintable white finish, the R-5650-S II can be paired with the Klipsch IK-650-W installation kit (sold separately). With a mud ring breakaway wire tie and color-coded brackets, it also includes perforated metal wings that easily fasten to the studs via screws staples or nails. It can also be paired with the ME-650-W fire rated speaker enclosure (sold separately) to meet local building codes and/or reduce sound transfer to adjoining rooms.
Specifications
| Frequency Response: | 60Hz-23KHz ± 3dB |
|---|---|
| SENSITIVITY: | 92dB @ 2.83V / 1m |
| POWER HANDLING: | 50W RMS / 200W Peak |
| NOMINAL IMPEDANCE: | 8 ohms compatible |
| RECOMMENDED AMPLIFIER POWER: | 100 W |
| HIGH FREQUENCY DRIVERS: | Dual 1" (2.54cm) Titanium dome compression drivers mated to a dual Tractrix® Horn array for surround sound |
| Low Frequency Driver: | 6.5" (16.51cm) Cerametallic™ cone woofer |
| CROSSOVER FREQUENCY: | 3400Hz |
| Enclosure Material/Type: | ABS/Infinite baffle, front flush with wall |
| DIMENSIONS: | 14.3" H (36.32cm) x 9.3" W (23.62cm) |
| Cutout Dimensions: | 13" H (33.02cm) x 8" W (20.32cm) |
| MOUNTING DEPTH: | 3.75" (9.5cm) |
| WEIGHT: | 7.2 lbs. (3.25kg) |
| FINISH: | White paintable frame and grill |
| FIRE RATED ENCLOSURE: | ME-650-W (sold separately) |
| INSTALLATION KIT: | IK-650-W (sold separately) |
| Wire Gauage Accommodated: | 12 ga |
| Built From: | 2012 |
