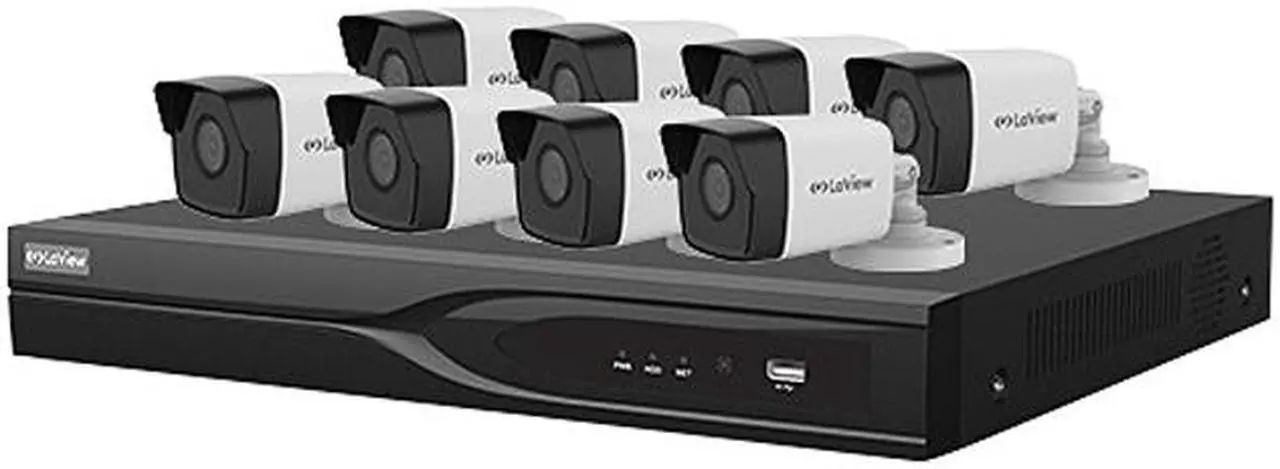

LaView 8 Channel DVR Security System with 8x Extreme HD 5MP Starlight Full Color Night Vision cameras

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 8x Extreme HD 5MP (2592 x 1960) High Definition HD cameras
  • All new Starlight Full COLOR night vision
  • 8 Channel DVR with 1TB surveillance hard drive
  • H.265+ compression saves 85% of your storage space
  • IP67 Weatherproof rated camera
  • Operating Temperature Range -22°F-140°F

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews
LaView 8 Channel DVR Security System with 6x Extreme HD 5MP

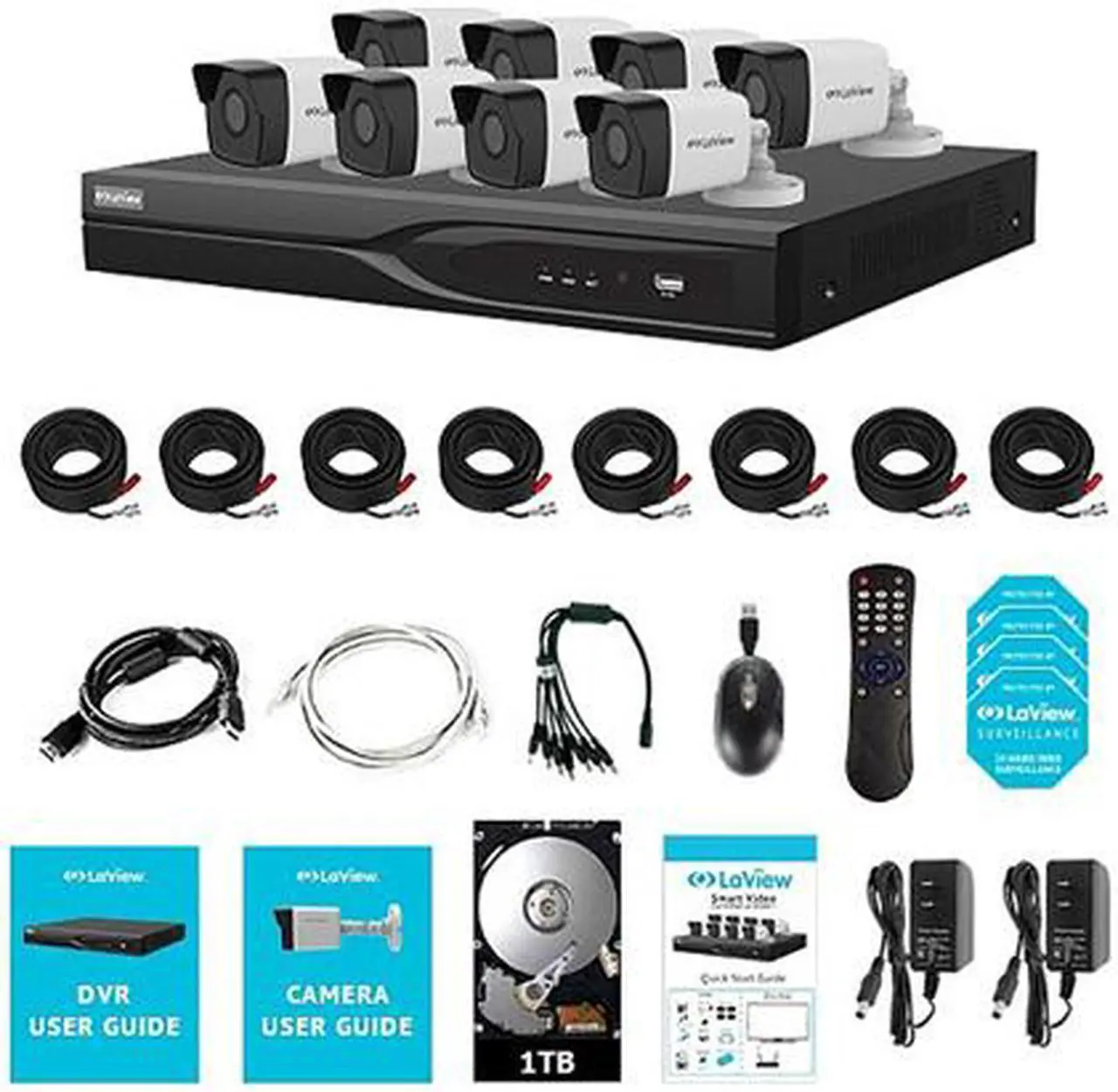

Upgrade your existing security system easily with this surveillance kit from LaView which supports existing wiring. It includes eight Extreme HD 5MP cameras that are IP67 rated for safe outdoor use and provide superior color video clarity even at night. Also included are an 8-channel DVR and a pre-installed 1TB surveillance hard drive which can have 85% more recordings saved with H.265+ compression.


Capture the Bigger Picture

The Extreme HD 5MP (2592 x 1960) camera provides 150% more pixels than the standard 1080p cameras. Enjoy clear, precise images with less pixilation when if you need to zoom in to find details that are far away.


Upgrade to Color Night Vision

Maintain color recording with all new advanced color night vision technology even when the light fades. The Matrix IR sensor is capable to capture up to 65ft in both color and in black & white display.

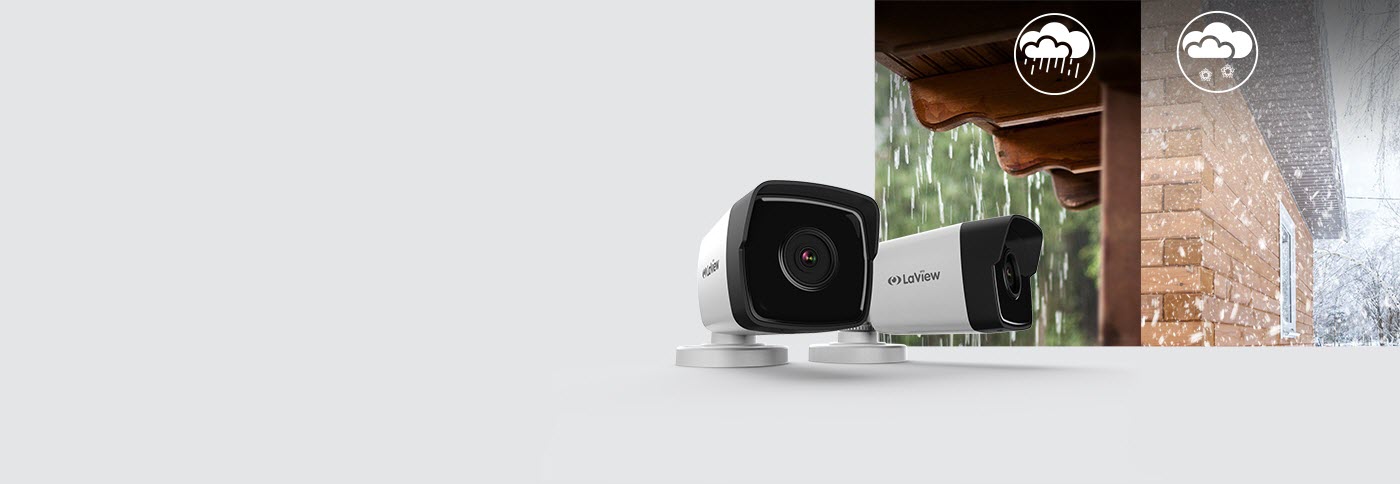

Weatherproof Durability

Rated IP67, the operating temperature can go as low as -40°F and up to 140°F. These weatherproof cameras are capable to withstand any winter snowstorms or heavy rain fall as well as the summer heat without hindering the capture quality. Place them indoor to keep an eye on your belongings inside, or place them outdoor to keep a watchful eye surrounding your property.

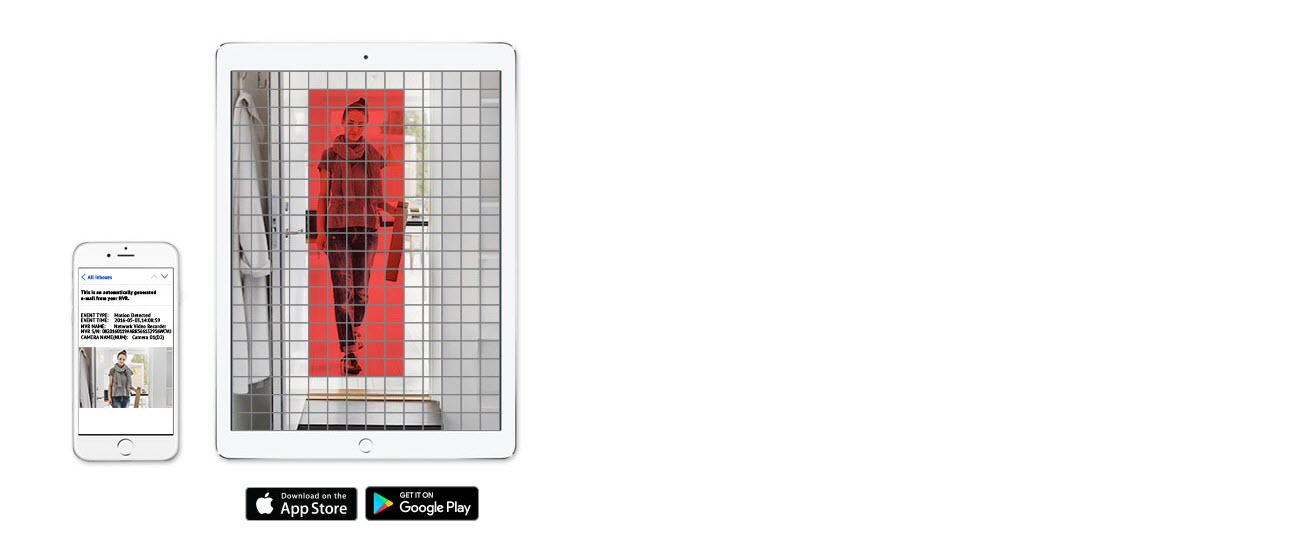

Gain Complete Awareness to Your Camera's Surroundings

Receive push notifications when motion is detected anywhere on the camera, or have the ability to customize exact areas you always want to be alerted whenever there's any movement. This is ideal if your camera must face a busy street—customize so you only get alerted to what's only important to you.

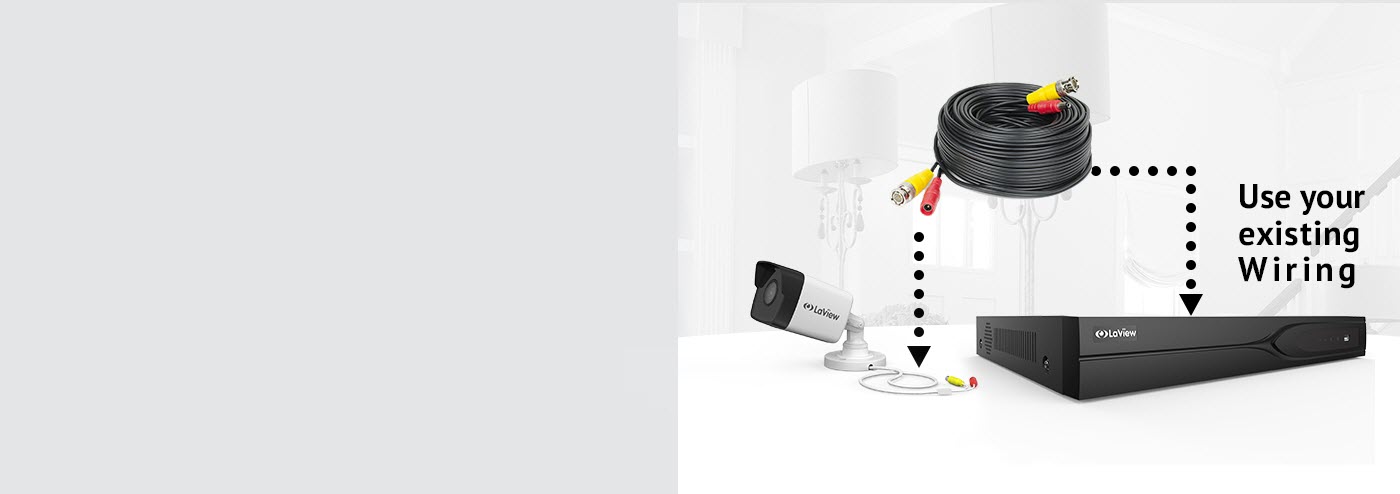

A Hassle-Free Upgrade

Update your older system to Extreme HD 5MP without having to replace your wiring. With backwards compatibility, this system can utilize your existing cables. Just simply swap out the cameras and DVR and you have an effortless upgrade.


Improved Efficiency

Quickly find specific footages you actually want to see with Smart Search. This feature included in your DVR can assist you to locate any specific recordings out of countless others. The feature can locate specific behaviors such as general movements and up to missing objects in the camera's field of view.

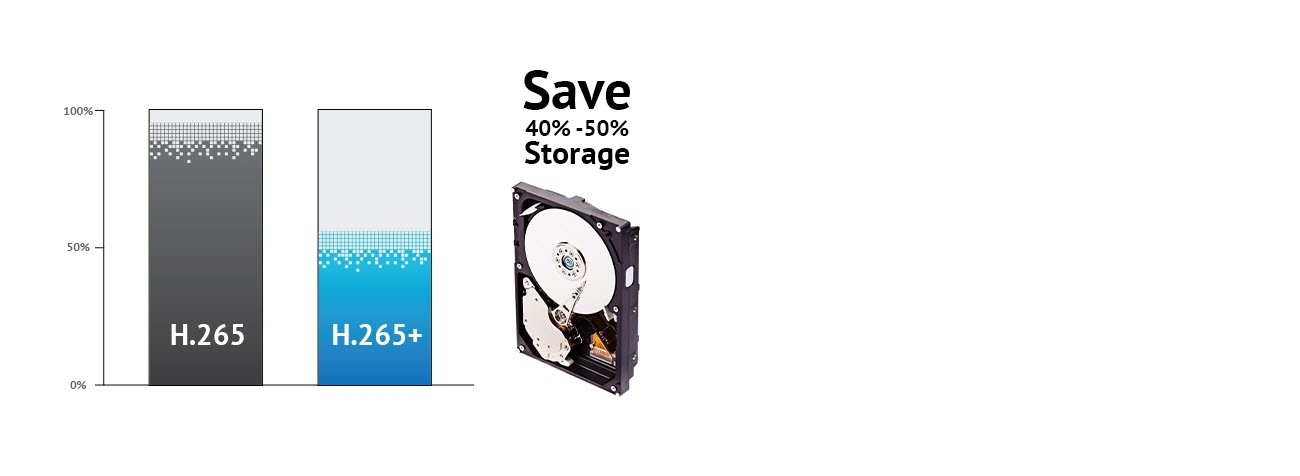

Save More, Do More with H.265+

Record more footage with new encoding technology to enjoy longer storage capabilities. With advanced compression technology, save up to 85% times more recordings on your DVR. The improvements will also allow bandwidth efficiently to view your recordings faster than ever before.


All of the Above, in One Single App

Enjoy your new window to your home even while on the go, 24/7 with our free mobile app LaVIew Net. No hidden fees or monthly fees, you are in control of your own property. Download it free from Apple Store or Google Play today.


Learn more about the LaView USA LV-KTM978KA8H5-T1

Model

|
Brand
LaView
Model
LV-KTM978KA8H5-T1
Type
Surveillance System / Security Camera Kit

Recording

|
Camera inputs
8 Channel
Video Input
HDTVI input: 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input: 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 1080p25, 1080p30, 720p25, 720p30
CVBS input: Support
IP Video input: 2ch, up to 6 MP resolution
Audio Input
1-ch, RCA (2.0 Vp-p, 1k ohms)
Recording Frame Rate
Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps, 1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

Display

|
Video Output
HDMI/VGA output
VGA: 1-ch, 192 0 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60H z, 1024 x 768/60 Hz
HDMI: 1-ch, 4K(3840 x 2160)/30Hz, 2K(2560 x 1440)/60Hz, 1920x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60 Hz

CVBS output: 1-ch, BNC (1.0 Vp-p, 1k ohms), resolution: PAL: 704 x 576, NTSC: 704 x 480
Audio Output
1-ch, RCA (Linear, 1k ohms)
Max Resolution
4K

Details

|
Built-In HDD
Yes
Storage Capacity
1TB HDD

Network

|
Network Protocol
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Bundle

|
Bundled Camera Number
8

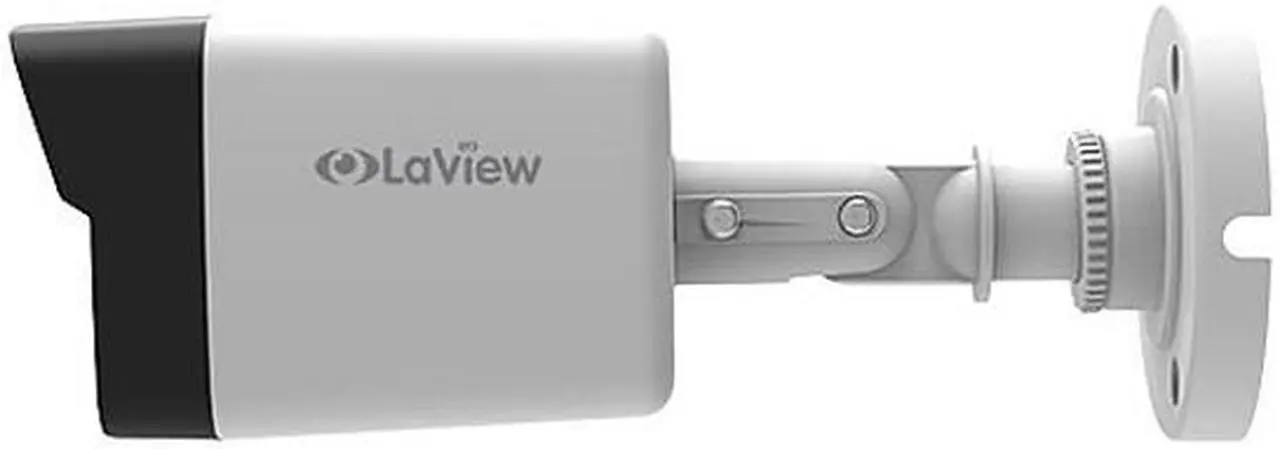

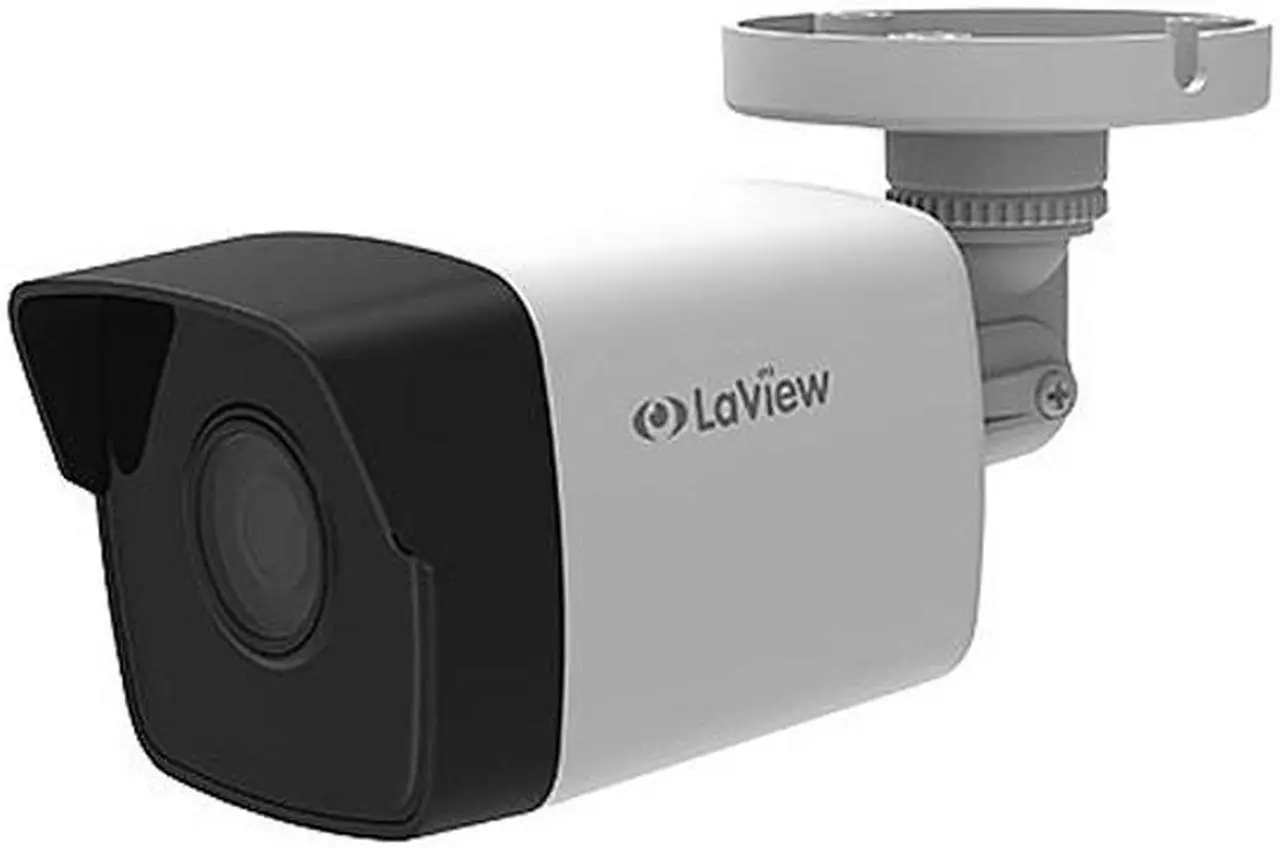

Bundled Camera Spec
Image sensor: 1/2.7" sensor
Signal System: NTSC / PAL
Effective Pixels: 2560(H)x1944(V)
Min. illumination: 0.008 Lux @ (F1.2,AGC ON), 0 lux with IR
Shutter time: 1/30 s (PAL:1/25 s) to 1/50,000 s
Lens: 3.6mm
Day & night: ICR
Synchronization: Internal Synchronization
Video Frame Rate: 2560x1944@20fps
HD Video Output: 1 HD-TVI Output
S/N Ratio: More than 62dB
Working Temperature: -40°F- 140°F(-40°C- 60°C), Humidity 90% or less(non-condensing)
Power Supply: 12V DC
Weather Proof Ratings: IP67

Dimensions & Weight

|
Dimensions
DVR: 12.40" x 9.50" x 1.80"
Camera: 2.30" x 2.40" x 6.40"
Weight
DVR: 4.40 lbs.
Camera: 0.80 lb.

Additional Information

|
Date First Available
June 02, 2020
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Works as advertised 9/18/2020 9:19:07 PM

Pros: Low cost for eight camera system.
All hardware included, though you might need different screws depending on what you're mounting the cameras on.
Documentation was useful, except for a minor thing mentioned below.
The DVR works fine and is reasonably strait-forward to use.
The mobile app is a little slow to respond, but that's not surprising. It works well and is easy to use.

Cons: The cameras each came with little black boxes (filters?) that connected between the camera's power cable and the 12V power supply. There was no mention of them anywhere in the documentation, so I assumed that they went on the camera side of the cable and not the power supply side, or that it didn't matter which side you put them on. I put them on the camera side and things worked fine.

Overall Review: I would recommend this product and the next time I install cameras for a customer, I will consider buying another of these kits.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Pretty nice 8/28/2020 9:30:48 AM

Pros: Color Night Vision
App works well
Can view on Computer, Android, IOS or locally.
Can save data to cloud
Cameras can be set to auto, color or B&W through a hidden menu.

Cons: Camera only has two IR lights but is not a problem at night.

Overall Review: Overall it is a pretty nice system though a tad confusing to setup at first.
