$1,750.00
Meet Your Seller

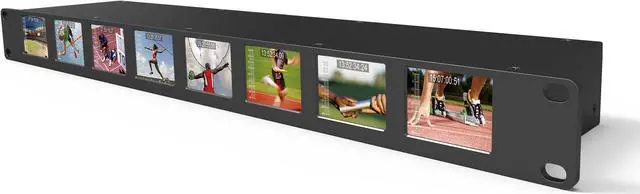

LILLIPUT RM-0208S 8×2" 1RU Rackmount Monitors with SDI equalization and re-clocking 8×3G-SDI in & 8×3G-SDI loop-out by VIVITEQ
- MODEL : RM-0208S
- 8×2" 1RU Rackmount Monitors with SDI equalization and re-clocking
- 8×2" 8bit TFT LCD, 640×240 resolution
- 32 half-width characters UMD Audio level meter & time code
- 1Rack Unit standard
+
+
Overview
Specs
Reviews
Model: RM-0208S Display Screen 8×2" 8bit TFT LCD Physical Resolution 640×240, supports up to 1920×1080 Aspect Ratio 4:3 Brightness 250cd/m2 Contrast 300:1 Viewing Angle 80°/70°(H / V) INPUT 3G-SDI 8 RS422 1 OUTPUT 3G-SDI 8 SDI FORMAT SMPTE-125M 480i( 59.94 ) 1080i(60/ 59.94 /50) 1080p(30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) SMPTE-292M 1080p(30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) SMPTE-296M 720p(60/ 59.94 /50/30/29/25/24/ 23.98 ) SMPTE-372M 720p(60/ 59.94 /50) 1080i( 29.97 /25/24/ 23.98 ) 1080p(60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 ) SMPTE-425M-AB 1080p(60/ 59.94 /50) -Level A & Level B 720p(60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 ) Level B 2x 1080i(60/ 59.94 /50) ITU-R BT. 656 576i (50) HDMI FORMAT Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i POWER Current 1500mA/15V Input Voltage DC 12-24V Power Consumption =23W ENVIRONMENT Operating Temperature -20? ~60? Storage Temperature -30? ~70? DIMENSION Dimension (LWD) 482.5 ×105×44mm Weight 1555g
What's in the package: CD drive 15V DC adapter Manual
What's in the package: CD drive 15V DC adapter Manual
