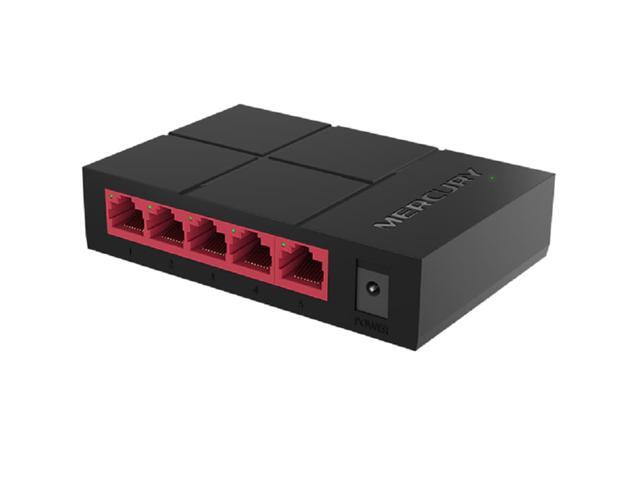

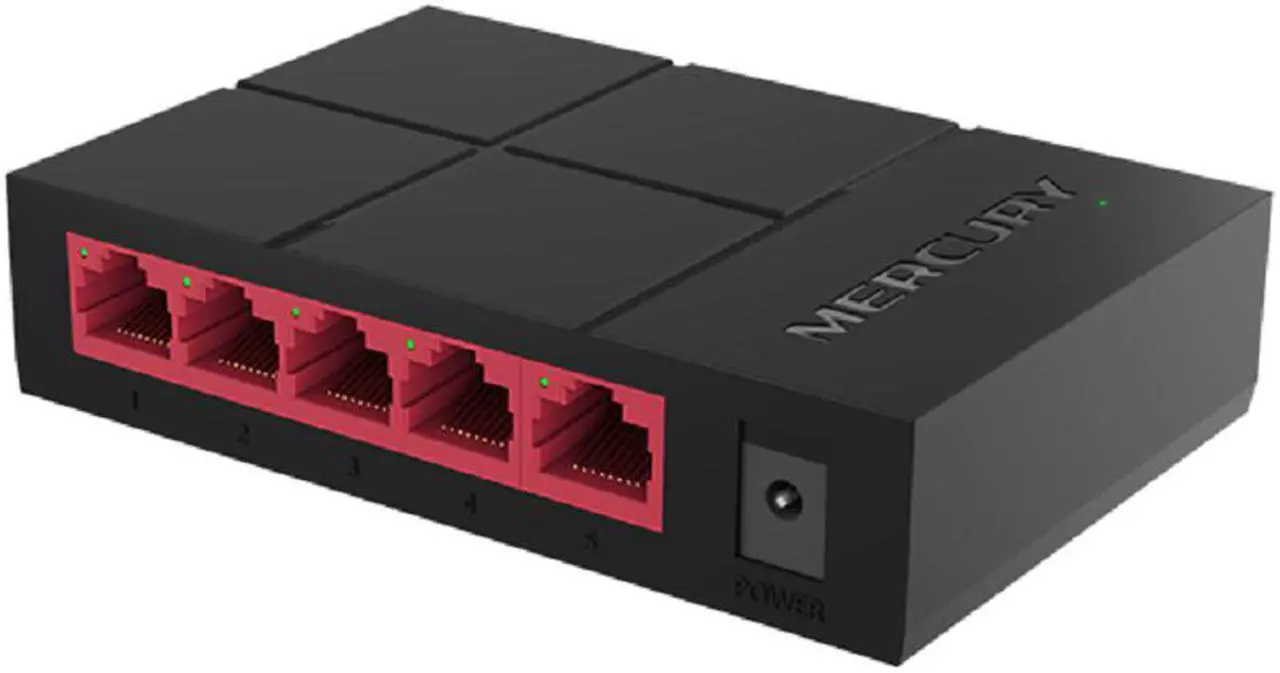

MERCURY 5 Port Gigabit Ethernet Network Switch | Ethernet Splitter | Sturdy Metal w/ Shielded Ports | Plug-and-Play | Traffic Optimization | Unmanaged (SG105M)
Limited time offer, ends 07/13 By Luom Electronics Store
- SG105M Key Features:
- (1). Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards.
- (2). The switch port connected to the computer in the off or standby state will not be powered to achieve energy saving.
- (3). Flow control mode: Full-duplex adopts IEEE 802.3x standard, and half-duplex adopts Backpressure standard.
- (4). Store-and-forward architecture.
- (5). 5* 10/100/1000M adaptive RJ45 ports, support port auto flip (Auto MDI/MDIX).
- (6). 5* ports support 10M full/half duplex, 100M full/half duplex, 1000M full duplex.
- (7). UTP port supports auto-negotiation function, automatically adjusts the transmission mode and transmission rate.
- (8). Support MAC address self-learning.
- (9). Dynamic LED indicator, providing simple working status prompts and troubleshooting.
- (10). External power supply, desktop plastic shell structure design.
+
+
Overview
Specs
Reviews
SG105M Mini 5-Port Desktop Gigabit Switch Ethernet Network Switcher LAN Hub Splitter Full Half Duplex Adaptation
Feature:
1. Green Ethernet, 5 Gigabit RJ45 ports, supports for MAC address self-learning.
2. It meets the standards of 802.3, 802.3u and 802.3ab.
3. The switch ports connected by the computer in the closed or standby state will not be supplied with power to achieve the purpose of energy saving.
4. Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Backpress standard.
5. Storage-forwarding architecture.
6. Five 10/100/1000M self-adapting RJ45 ports support automatic port flip (Auto MDI/MDIX).
7. All five ports support 10M full/half duplex, 100M full/half duplex and 1000M full duplex.
8. UTP port supports automatic negotiation function, automatic adjustment of transmission mode and transmission rate.
9. Dynamic LED indicator lamp provides simple working status hints and troubleshooting.
10. External power supply, desktop plastic shell structure design.
Specification:
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Protocol: CSMA/CD
Ports: 5 10/100/1000M adaptive network ports
For MAC Address List: 2K (Support for MAC Address Self-learning and Updating)
Support network type:
10Base-T: CAT3 or CAT3+ UTP
100Base-TX: CAT5 UTP
1000Base-T: CAT5 or CAT5+ UTP
Indicator light: power supply, status indicator light
Switching: Store-and-Forward, Line-Speed Filtering and Forward
Power supply: external power adapter (US Plug)
Filtering and forwarding rates:
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Use environment:
Operating temperature: 0 to 40 Celsius
Storage temperature: -40 to 70 Celsius
Working humidity: 10% to 90% RH non-condensable
Storage humidity: 5% to 90% RH non-condensable
Material: Plastics
Colour: Black
Size: 105x70x25mm/4.13x2.75x0.98'inch
PLUG-AND-PLAY - Easy setup with no configuration or no software needed
ETHERNET SPLITTER - Connectivity to your router or modem for additional wired connections (laptop, gaming console, printer, etc)
5 Port GIGABIT ETHERNET - 5 10/100/1000 Mbps Gigabit auto-negotiation RJ45 ports greatly expand network capacity
COST EFFECTIVE - Fanless Quiet Design, Desktop design
RELIABLE - IEEE 802.3 flow control provides reliable data transfer. Power Consumption - Maximum: 3W (220V/50Hz).
External Power Supply - External Power Adapter (Output: 9VDC / 0.6A )
UP to 80% Power Saving - Automatically adjusts power consumption according to the link status and cable length
WHAT'S YOU GET?
MERCURY 5 Port Gigabit Switch
Feature:
1. Green Ethernet, 5 Gigabit RJ45 ports, supports for MAC address self-learning.
2. It meets the standards of 802.3, 802.3u and 802.3ab.
3. The switch ports connected by the computer in the closed or standby state will not be supplied with power to achieve the purpose of energy saving.
4. Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Backpress standard.
5. Storage-forwarding architecture.
6. Five 10/100/1000M self-adapting RJ45 ports support automatic port flip (Auto MDI/MDIX).
7. All five ports support 10M full/half duplex, 100M full/half duplex and 1000M full duplex.
8. UTP port supports automatic negotiation function, automatic adjustment of transmission mode and transmission rate.
9. Dynamic LED indicator lamp provides simple working status hints and troubleshooting.
10. External power supply, desktop plastic shell structure design.
Specification:
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Protocol: CSMA/CD
Ports: 5 10/100/1000M adaptive network ports
For MAC Address List: 2K (Support for MAC Address Self-learning and Updating)
Support network type:
10Base-T: CAT3 or CAT3+ UTP
100Base-TX: CAT5 UTP
1000Base-T: CAT5 or CAT5+ UTP
Indicator light: power supply, status indicator light
Switching: Store-and-Forward, Line-Speed Filtering and Forward
Power supply: external power adapter (US Plug)
Filtering and forwarding rates:
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Use environment:
Operating temperature: 0 to 40 Celsius
Storage temperature: -40 to 70 Celsius
Working humidity: 10% to 90% RH non-condensable
Storage humidity: 5% to 90% RH non-condensable
Material: Plastics
Colour: Black
Size: 105x70x25mm/4.13x2.75x0.98'inch
PLUG-AND-PLAY - Easy setup with no configuration or no software needed
ETHERNET SPLITTER - Connectivity to your router or modem for additional wired connections (laptop, gaming console, printer, etc)
5 Port GIGABIT ETHERNET - 5 10/100/1000 Mbps Gigabit auto-negotiation RJ45 ports greatly expand network capacity
COST EFFECTIVE - Fanless Quiet Design, Desktop design
RELIABLE - IEEE 802.3 flow control provides reliable data transfer. Power Consumption - Maximum: 3W (220V/50Hz).
External Power Supply - External Power Adapter (Output: 9VDC / 0.6A )
UP to 80% Power Saving - Automatically adjusts power consumption according to the link status and cable length
WHAT'S YOU GET?
MERCURY 5 Port Gigabit Switch
