How to Use: Take out the middle frame of hard disk box, install the 3.5 inch hard disk on HDD1/HDD2/HDD3/HDD4 at an angle of 45°, then put the hard disk in the middle frame back into the hard disk box and fix it with screws.
- Item Type: Portable Hard Drive Raid Enclosure
- Support Hard Disk: 3.5 inch HDD Hard Drive
- HDD Count Supported: 4 HDDs, support per HDD Storage up to 16TB
- Internal Interface: SATA
- Transmission Interface: Type C, transfer rate up to 5Gbps
- High-Definition Multimedia Interface: HDMI
- Applications: Data Transmission, 4K Video graphing,Video editing,Home theater,Enterprise Data Management, games developing etc.

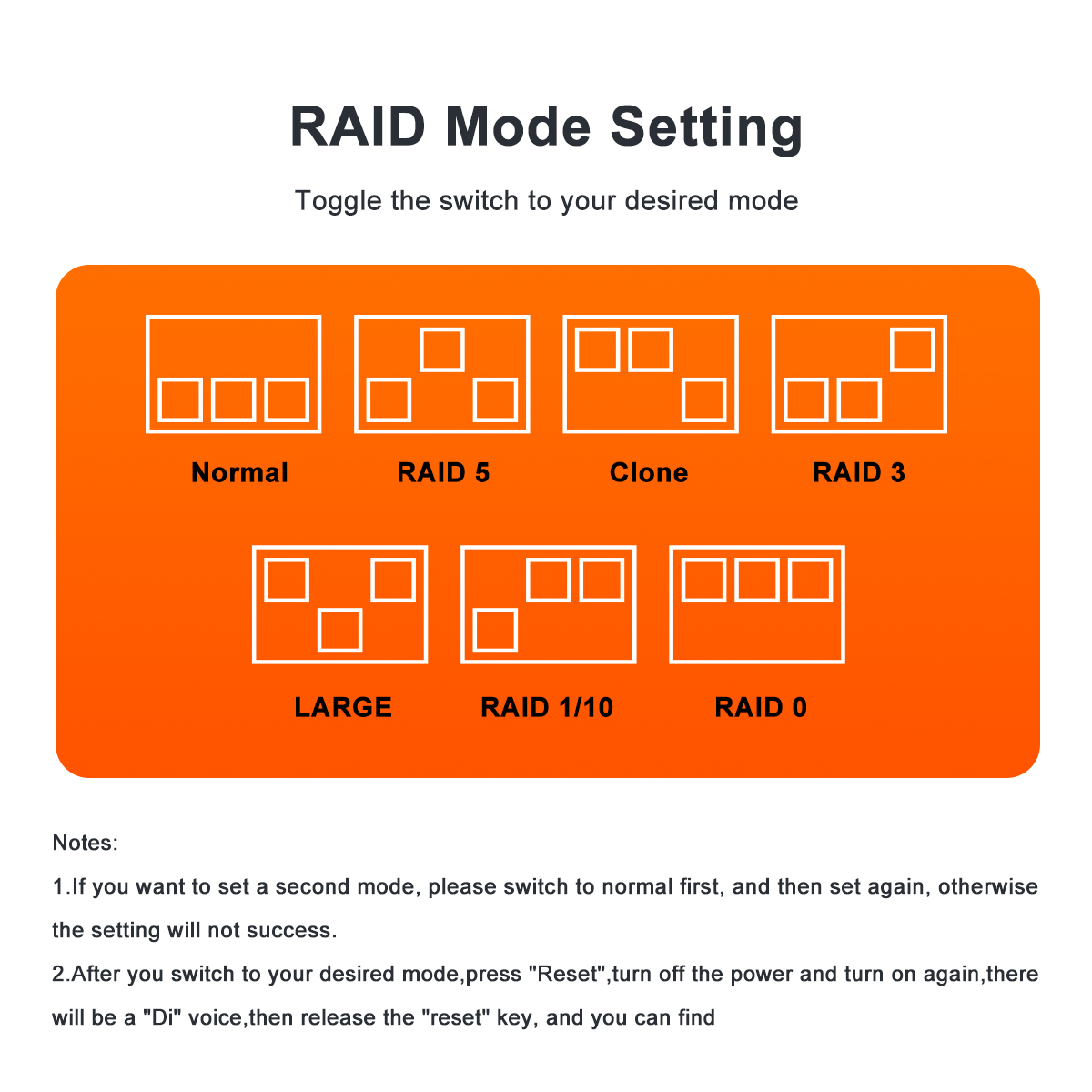

- Support 7 Modes Raid: RAID 0, RAID 1+10, RAID 3, Normal, RAID 5, Large, Clone, Support Hardware or Software to Build RAID.
- Support System: For Windows / Mac OS 10 or Above /Linux
- Package Included:
1 x Hard Drive Box
1 x Power Cable
1 x Power Adapter
1 x USB to Type-C Cable
1 x Type-C to Type-C Cable
1 x User Manual
16 x Big Screw
12 x Small Screw
1 x Screwdriver
|External Interface||Type C, HDMI|

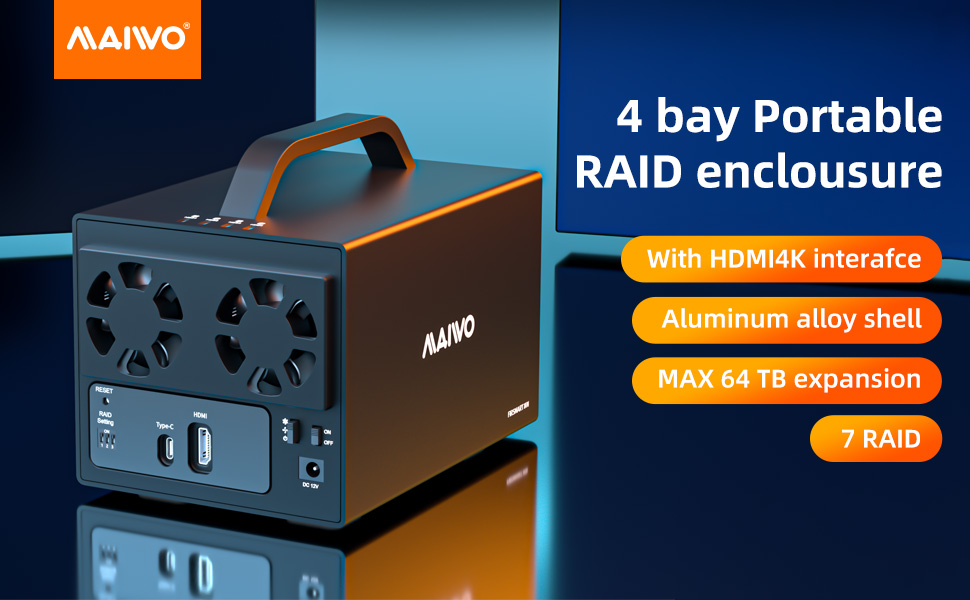

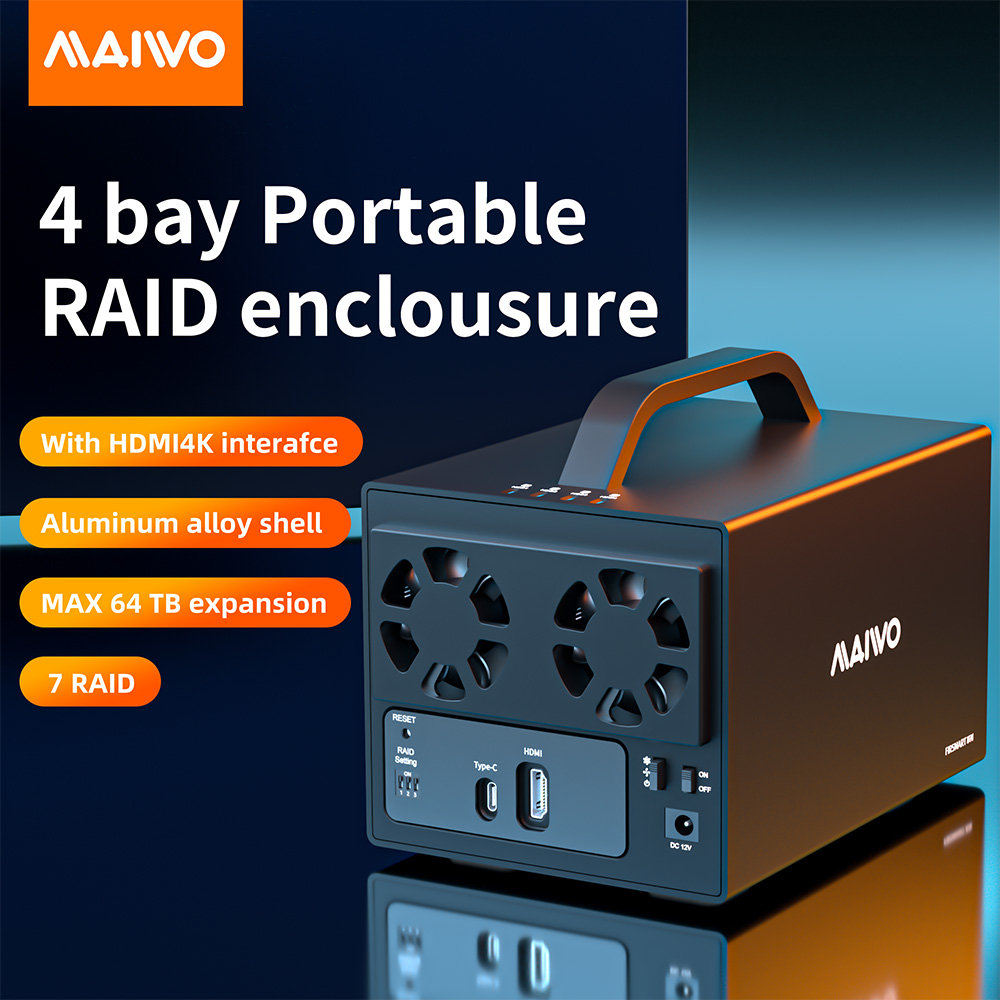

This 4 bay hard drive enclosure supports all 3.5" SATA (I / II / III) hard disks, USB3.1 to SATA high-speed transmission,speed up to 5Gb/s,support 7 Raid and equiped with 4K HMDI Interface
This 4 bay hard drive box supports 4 hard drives with a maximum capacity of 64 TB and 16 TB Expansion for single disk. A perfect external storage system for individuals or enterprise
This 4 Bay USB 3.1 SATA hard drive enclosure is all Aluminum designed. Built- in two silent fans and with front and rear cooling holes provide efficient heat dissipation to keep your drives cool during long hours of operation.
Very clear LED Indicators for every hard drive and power adapter, good for controling the working status of each disk. Blue LEDs stay bright when inserting the disk, and flash when reading&writing.
