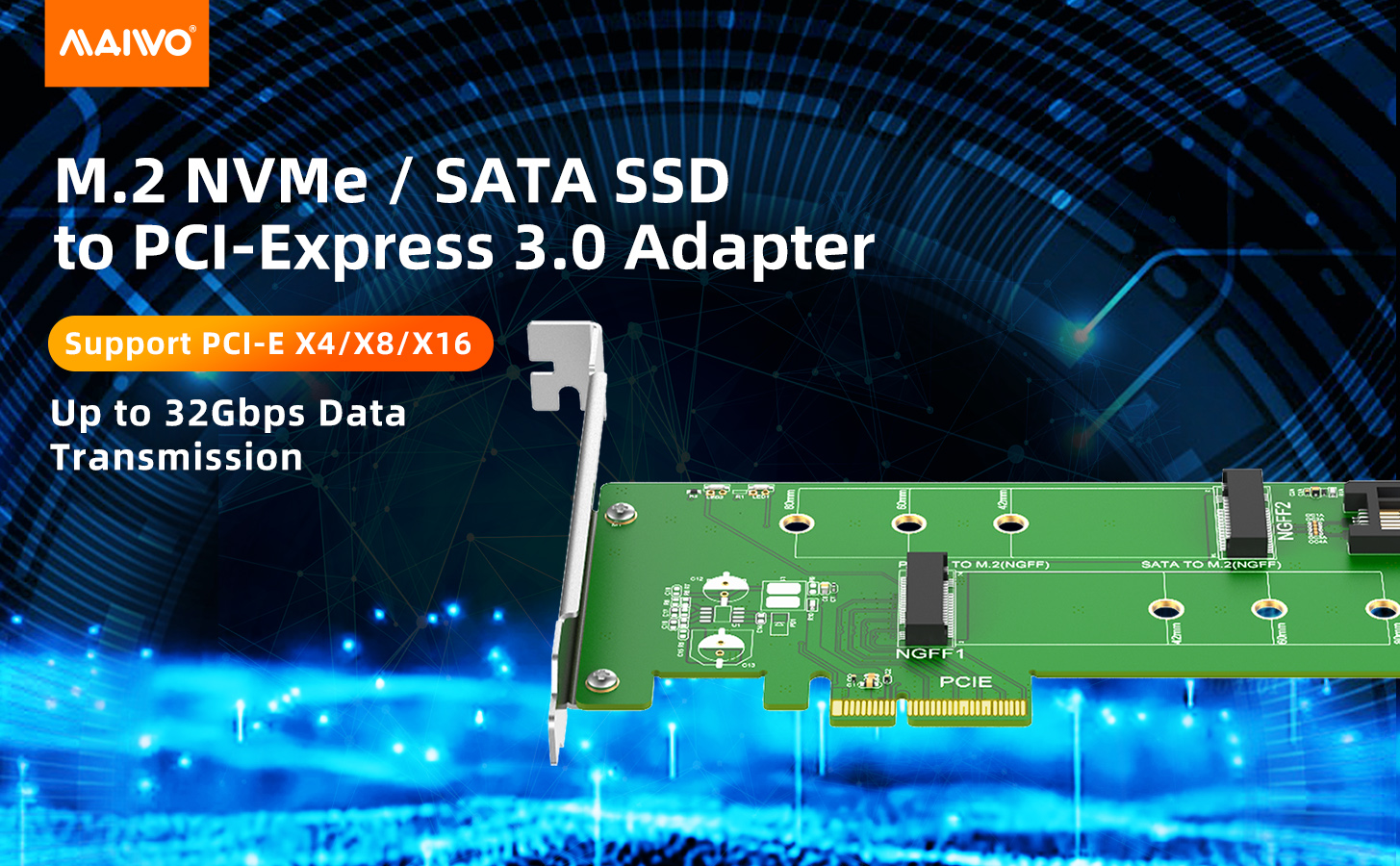

MAIWO KT015 dual M.2 PCIE Adapter for SATA or PCIE NVMe SSD with Advanced Heat Sink Solution,M.2 SSD NVME(M key) and SATA (B-key/B+M key) 2280 2260 2242 to PCI-e 3.0 x 4 Host Controller Expansion Card

2 in 1 M.2 Adapter Card
- Brand: MAIWO
- Model: KT015
- Supports M.2 PCIE NVME SSD (Key-M), PCIE 3.0 X4 full speed support.
- Supports M.2 SATA M.2 SSD (Key-B / B+M), SATA III 6 Gbps bandwidth
- Supports two M.2 SSD simultaneously Read and Write (One SATA interface and one NVMe interface)
- High-speed signal transmission with better continuity and stability

Features:

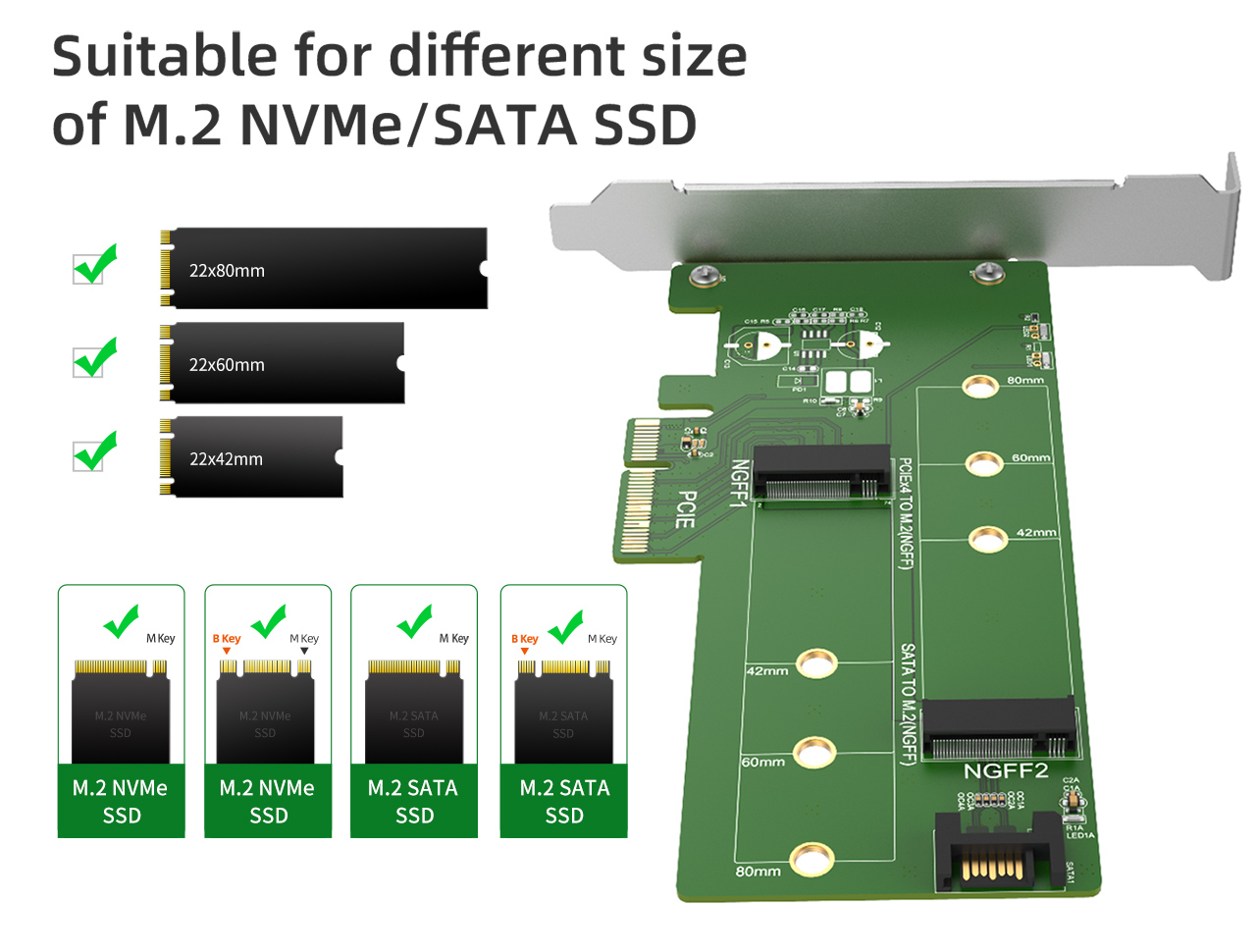

- Apply to 2280/2260/2242mm M.2 SSD
- LED Indicator for SSD states
- PCIE 3.0 X4/X8/X16 lane installation
- Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
- Supports any OS, like Windows, WinCE, Mac & Linux etc
- Dimensions: 5.83 inch * 4.72 inch * 0.87 inch
- No additional power required
- Easy installation & no driver required
- Included full profile bracket for standard PC tower

Please Kindly Note:
- 7-pin SATA cable must be connected to motherboard if you want to read the M.2 SATA SSD (Key-B / B+M) for data transfer(normally many cables prepared with motherboard)
- This adapter only support PCIe X4, X8, X16 slot. DO NOT support PCIe X1 slot

Packing list:
1 * 1x NVMe/SATA to PCIe adapter card(SSD is NOT included)
1 * Bracket
1 * Screw Kit
1 * User Manual,
1 * mini screw driver.
1 * low profile bracket
