NZXT H510i - Compact ATX Mid -Tower PC Gaming Case - Front I/O USB Type-C Port - Vertical GPU Mount - Tempered Glass Side Panel - Integrated RGB Lighting - Water-Cooling Ready - White/Black
- Front I/O USB Type-C Port, Vertical GPU Mount, Tempered glass side panel with single screw installation, and upgraded Smart Device V2
- SMART DEVICE V2: Includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
- VERTICAL GPU MOUNTING: Show off your graphic card with a built-in mounting bracket for installing your GPU vertically *PCIe riser card not included
- ENHANCED CABLE MANAGEMENT: Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive
- MOTHERBOARD SUPPORT: Mini-ITX, MicroATX, and ATX

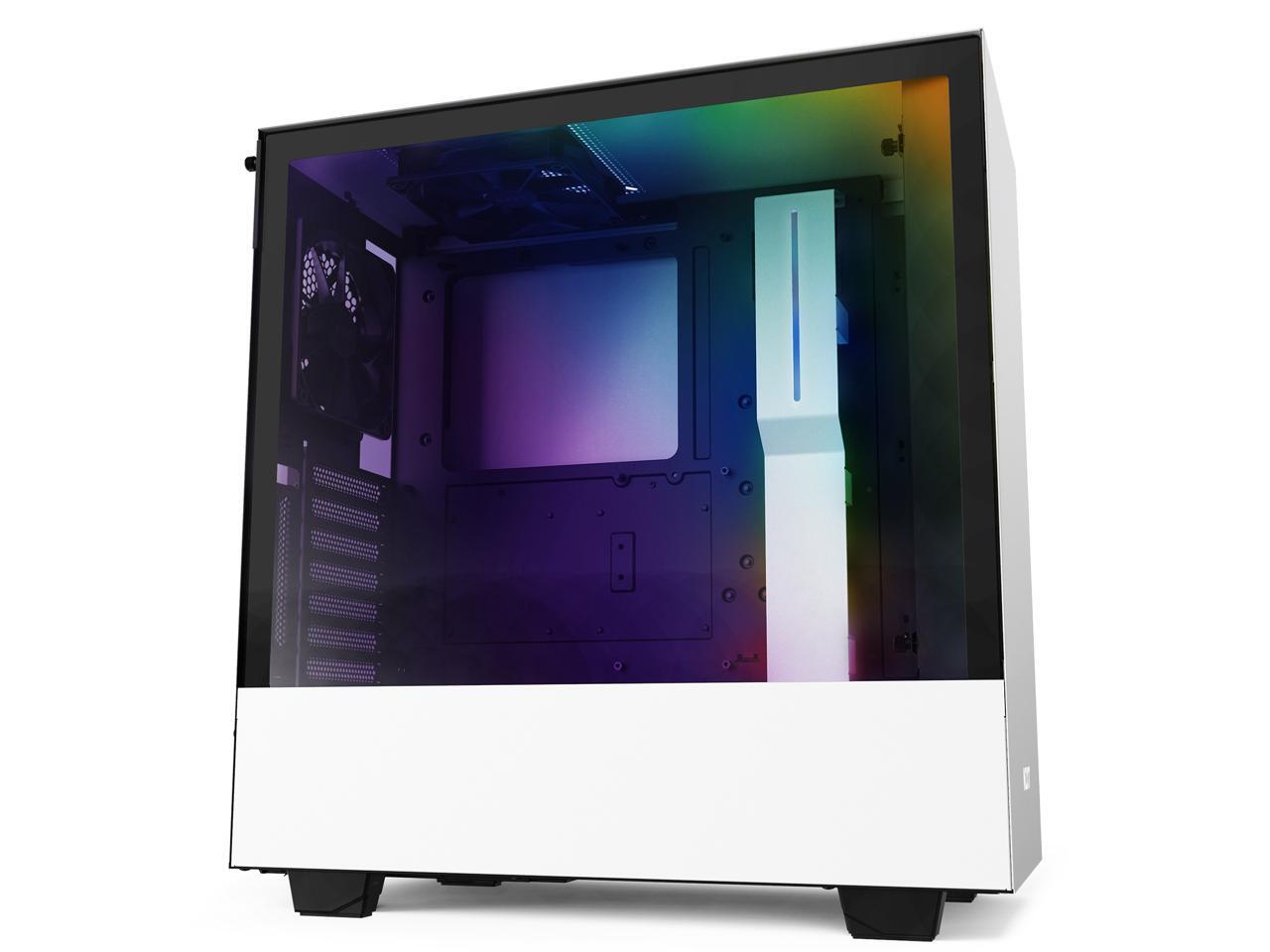

NZXT H510i
Premium Compact Mid-Tower ATX Case
The H510i compact mid-tower ATX case is stunning and an excellent value. Perfect when you want a small-footprint ATX case without sacrifice. Well-engineered airflow, removable radiator-mounting bracket, flush tempered-glass window, multiple fan filters, vertical GPU mount and a front-panel USB-C connector are just some of the key features. The H510i also includes the NZXT Smart Device v2, powering the built-in RGB light strips and case fans.
Features List
- Smart Device v2 with two HUE 2 RGB lighting and three fan channels (includes two RGB LED strips)

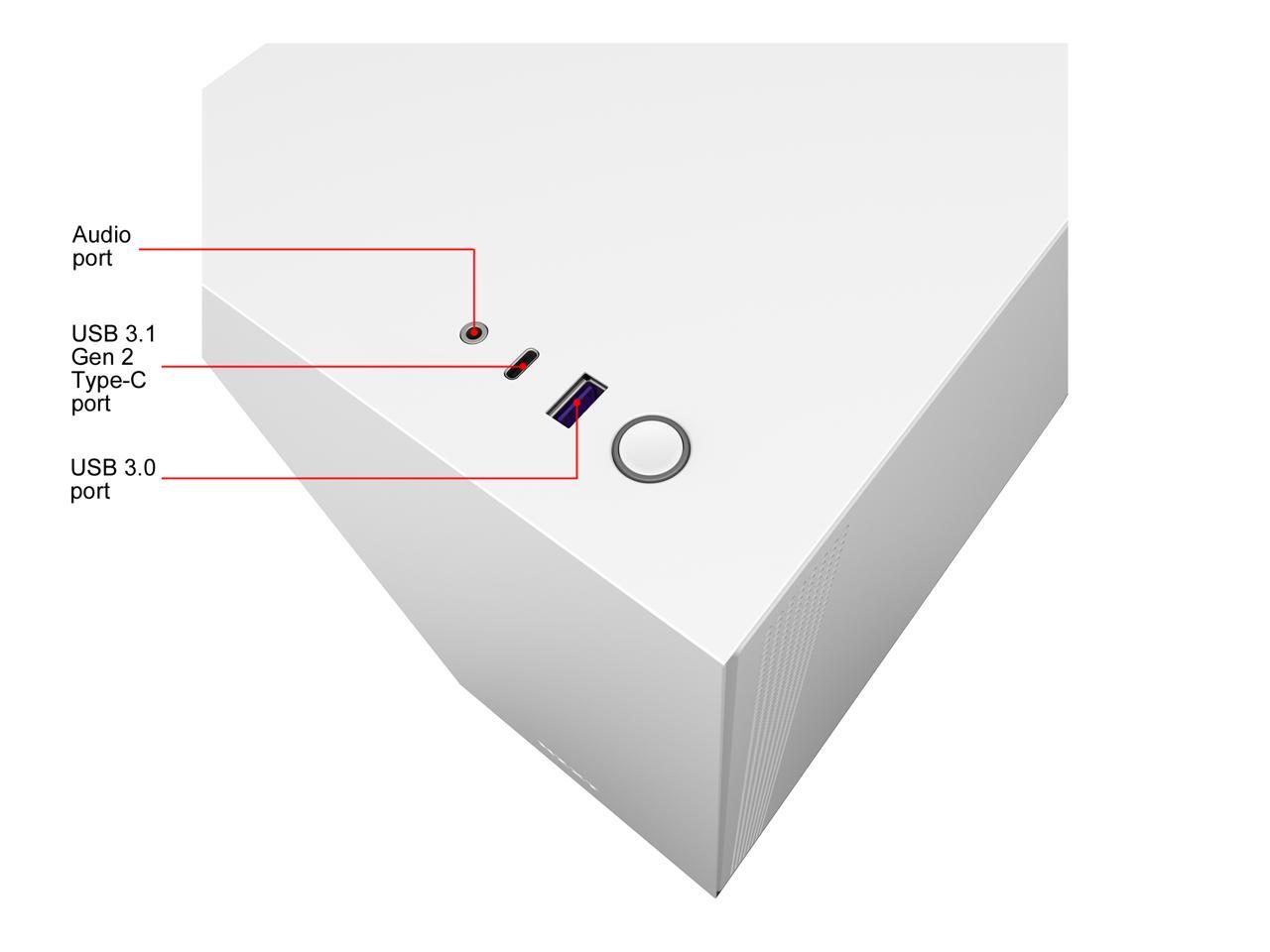

- USB 3.1 Type-A and USB 3.1 Gen 2-compatible USB-C connectors on the front panel
- Tempered-glass window installs with a single thumb-screw on the back panel
- Patented cable routing kit with pre-installed channels and straps for intuitive and easy cable management
- Removable radiator/fan mounting bracket simplifies the installation of either AIO and custom-loop liquid coolers
- An integrated GPU mount lets you display your GPU vertically (requires the purchase of a separate PCI riser card)

Smarter
The H510i features a removable radiator-mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device v2 includes a faster microprocessor providing CAM-powered control of two HUE 2 RGB lighting channels, and three fan channels that support either voltage regulated or PWM fans.

More Modern
The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage and the latest peripherals to your PC.

Still Beautiful
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel all showcase your stunning build.
![]() H710i |
![]() H510 Elite |
![]() H510i |
![]() H210i |
|

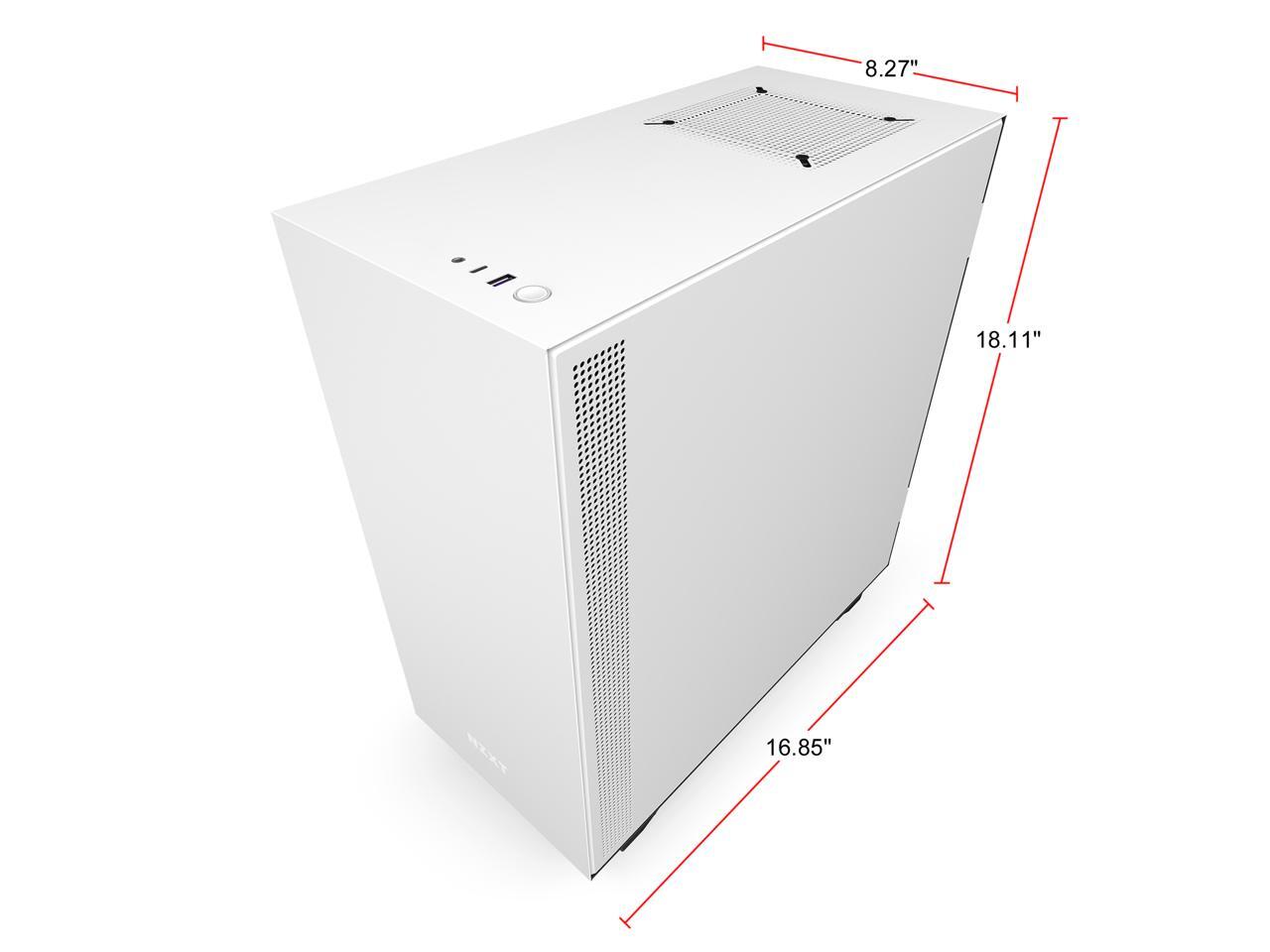

Dimensions | W: 230mm H: 494mm D: 494mm (Without Feet) |
W: 210mm H: 460mm D: 428mm (With Feet) |
W: 210mm H: 460mm D: 428mm (With Feet) |
W: 210mm H: 349mm D: 372mm (With Feet) |
---|---|---|---|---|
Weight | 12.3kg | 7.5kg | 6.8kg | 6kg |
Motherboard Support | Mini-ITX, Micro-ATX, ATX and EATX (Up to 272mm or 10.7") | Mini-ITX, Micro-ATX, ATX | Mini-ITX, Micro-ATX, ATX | Mini-ITX |
I/O Ports | 1x USB 3.1 Gen 2 Type-C 2x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack |
1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack |
1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack |
1x USB 3.1 Gen 1 Type-A 1x USB 3.1 Gen 2 Type-C 1x Headset Audio Jack |
Filters | All Air Intakes | All Air Intakes | All Air Intakes | All Air Intakes |
Smart Device V2 | 3x Fan Channels with Max 10W per Channel Output* 2x RGB LED Channel, Support Up to 4x HUE 2 Addressable LED Strips or 5x Aer RGB Fans Built-in Noise-Detection Module | 3x Fan Channels with Max 10W per Channel Output* 2x RGB LED Channel, Support Up to 4x HUE 2 Addressable LED Strips or 5x Aer RGB Fans Built-in Noise-Detection Module | 3x Fan Channels with Max 10W per Channel Output* 2x RGB LED Channel, Support Up to 4x HUE 2 Addressable LED Strips or 5x Aer RGB Fans Built-in Noise-Detection Module | 3x Fan Channels with Max 10W per Channel Output* 2x RGB LED Channel, Support Up to 4x HUE 2 Addressable LED Strips or 5x Aer RGB Fans Built-in Noise-Detection Module |

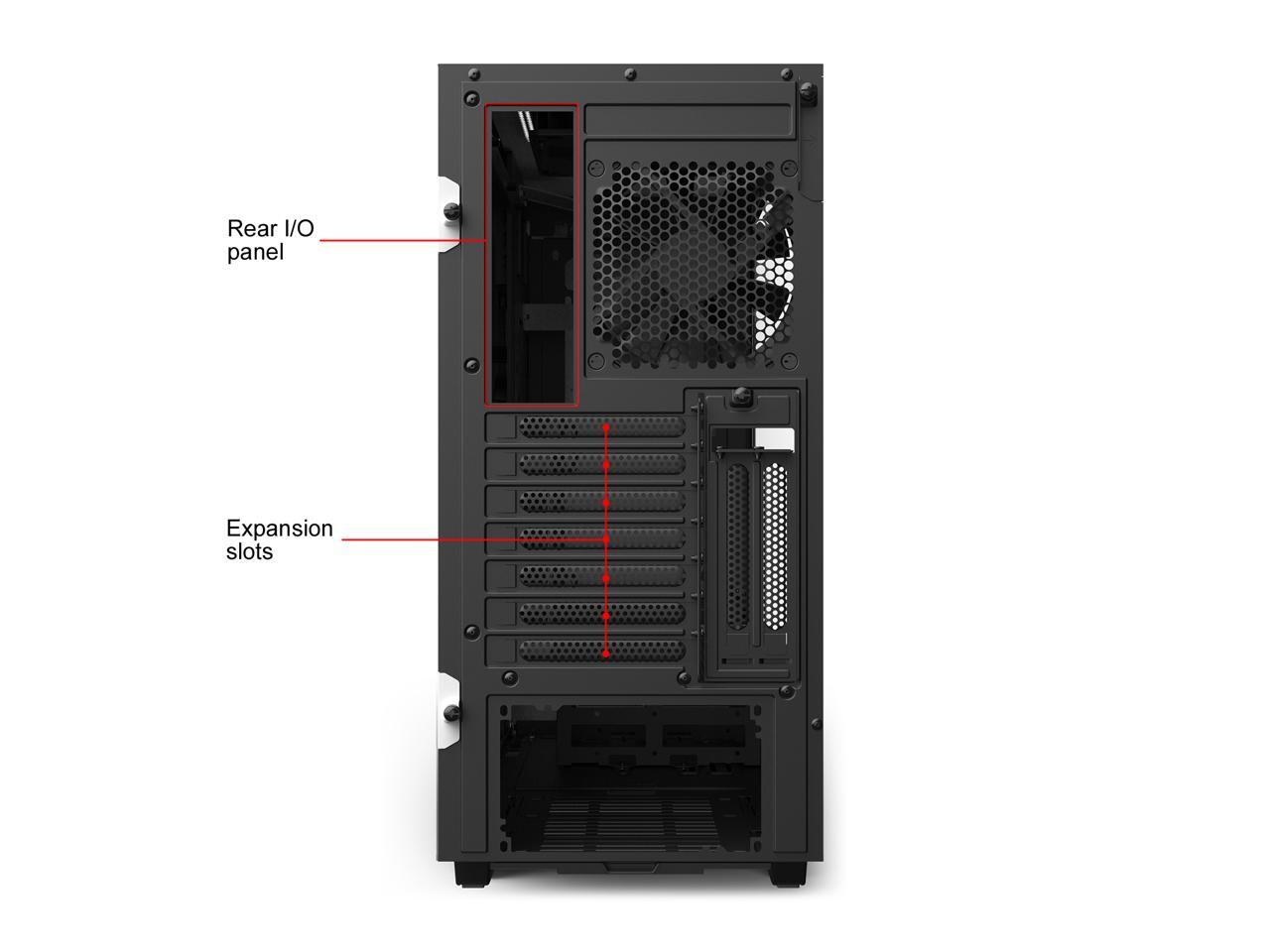

Expansion Slots | 7 | 7 | 7 | 2 |
Drive Bays | 2.5”: 7 3.5”: 2 + 1 |
2.5”: 2 + 1 3.5”: 2 + 1 |
2.5”: 2 + 1 3.5”: 2 + 1 |
2.5”: 3 + 1 3.5”: 1 |
Radiator Support | Front: 2x 140mm or 3x 120mm with Push/Pull Top: 2x 140mm or 3x 120mm Rear: 1x 120mm |
Front: 2x 140mm or 2x 120mm with Pull Rear: 1 x 120mm |
Front: 2x 140mm or 2x 120mm with Pull Rear: 1x 120mm |
Front: 2x 120mm with Push/Pull Rear: 1x 120mm |
Fan Support | Front: 3x 120mm or 2x 140mm (3x Aer F120 Case Version Included) Top: 3x 120mm or 2x 140mm Rear: 1x 140 (1x Aer F140 Case Version Included) |
Front: 2x 120mm or 2x 140mm (2x Aer RGB 2 140mm Included) Top: 1x 120mm or 1x 140mm Rear: 1x 120mm |
Front: 2x 120mm or 2x 140mm (1x Aer F120 Case Version Included) Top: 1x 120mm or 1x 140mm Rear: 1x 120mm (1x Aer F 120 Case Version Included) |
Front: 2x 120 or 2x 140mm Top: 1x 120mm (1x Aer F120 Case Version Included) Rear: 1x 120mm (1x Aer F120 Case Version Included) |
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-228-9395
- Support Email: service@nzxt.com
- Support Website
- View other products from NZXT
Pros: -Built like a tank. Steel inside and out. Real glass side panel. -Very aesthetically pleasing. Beautifully minimal. -Great price to quality ratio. Other cases in this price range pale in comparison. -Can fit two 140mm fans in the front. -Dust filters on the front intake area, top exhaust, and bottom PSU vent. Great for pet owners. -The front fan mount bracket is removable, making fan or radiator installation a breeze. -Cable management is very easy due to the metal “stripe” inside and cable channels in the back with Velcro straps. -Stock NZXT case fans work perfectly fine. -NZXT’s universal 2.5” SSD mounts are AWESOME. Tool-less to mount in the case. -Steel HDD cage. -Pre-installed motherboard stand-offs. -Great for a first-time builder.
Cons: Note: I don’t believe these cons are worthy of taking eggs off, as they are completely situational and might not matter to some people. -For a mid-tower, this case is on the small side. My R9 290X which, granted, is a large card, is only a few inches away from my front fans. And my Cryorig H7 CPU cooler almost touches the tempered glass side panel. -This is primarily an aesthetic-oriented case. The actual front is solid metal. Your front fans will be pulling air from vents on the non-glass side and bottom. If you’re looking for a case with crazy airflow, check out the Fractal Meshify C or something similar. (Don’t let this deter you too much though. My Ryzen 5 2600 idles at 27C and floats in the 40s under load.) -Tight to work in if you’re customizing or modifying. I added two RGB strips and getting them oriented perfectly where I wanted them was a pretty meticulous process. You may want to invest in some needle nose pliers or tweezers if you plan to work in the H500’s tight spaces. -Can only fit 4 fans total without modding.
Overall Review: This case is perfect for me, as my desk area is pretty small. I can still use my ATX motherboard and full sized GPU, but in a slightly smaller form factor compared to other mid-towers. We also have two cats, so I love that it has dust filters to catch any hair, and they’re removable for easy cleaning. To me, the minimal style is refreshing. It’s a nice break from a lot of towers these days that look like a Transformer sitting on your desk. I am definitely an NZXT fanboy after owning this case. I will continue to use their products because of the quality and design. If this case is even an option in your head, I say go for it!
