Mediasonic Raid 0 / 1 USB 3.2 Type C 4 Bay 3.5 SATA Hard Drive Enclosure with USB Hub Feature USB 3.2 Gen 2 10Gbps (HFR7-SU31CH)
- Hardware embedded raid controller built-in on board with one-button control, support Single Drive Mode, Raid 0 / 1.
- Built-In USB Hub provides easy access to additional USB Type A and USB Type C connection for expansion
- Transfer rate up to 10Gbps via USB 3.2 Gen 2. USB-C to USB -C with E-Mark IC cable is included. (3.3ft)
- Support 3.5 SATA I / II / III hard disk drive up to 24TB per drive, and 2.5 SATA SSD / HDD (Bracket Adapter required)

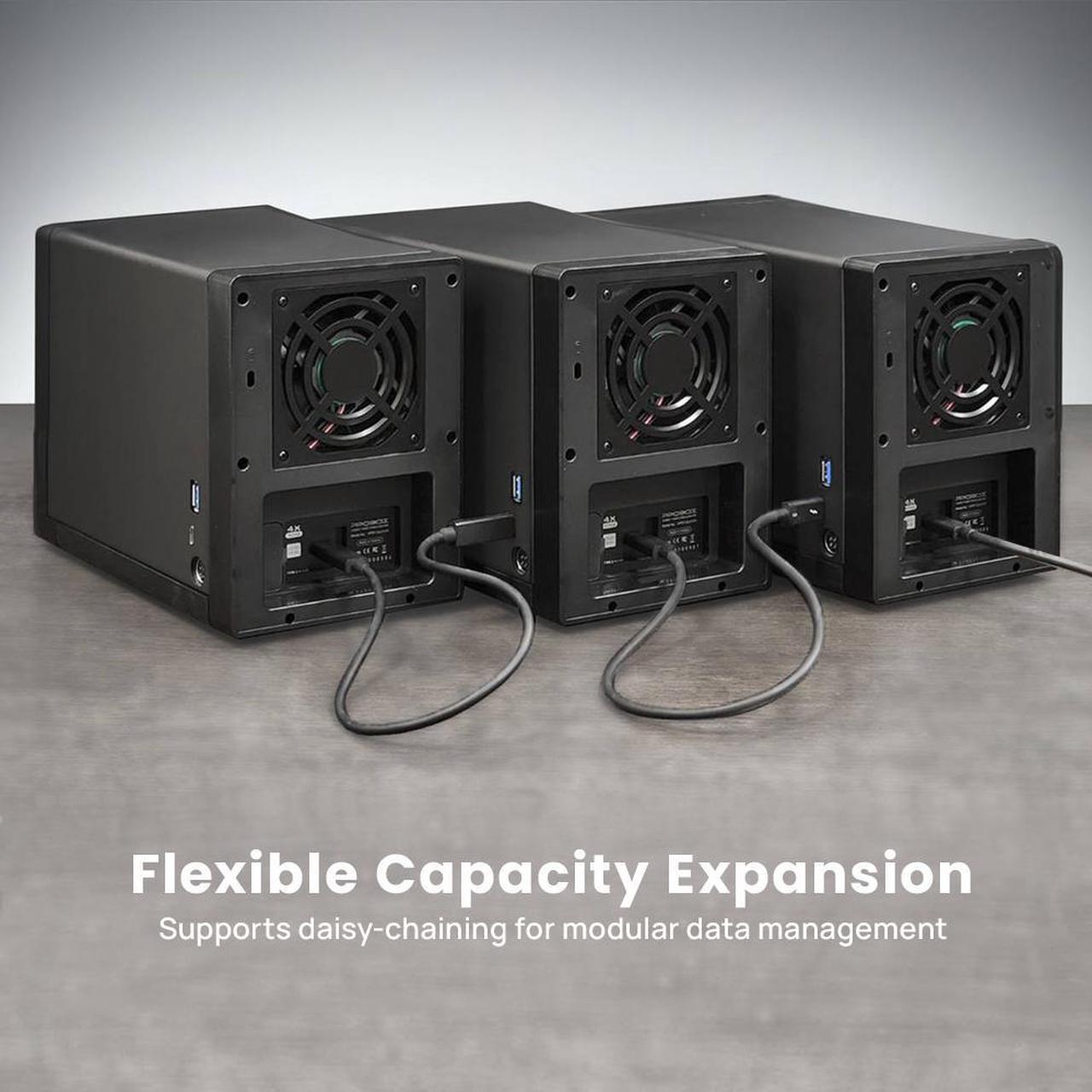

- Support Daisy Chain Up to 2 more devices: Easily expand your storage with this 4-bay hard drive enclosure, featuring USB-C connectivity and daisy chain capability to link multiple units. Supports 3.5"/2.5" SATA drives with tool-free installation, ideal for high-capacity data backup and media workflows.
- Support UASP, S.M.A.R.T, Smart Fan, and Power On / Off in synchronization with computer (Does not support auto Power-On due to power failure)
- Product Made in Taiwan
+
+
Overview
Specs
Reviews
Hard Disk Drive Support: 3.5 -inch SATA I / II / III hard disk drive up to 24TB per drive 2.5 inch SATA I / II / III hard disk drive up to 24TB per drive (bracket adapter required, not included in the package, search
Newegg Item#: 9SIA61H8X07917) Support hard drive transfer rate up to 6.0G bps.
Interface Support: USB Type C connection transfer rate up to 10.0G bps via USB 3.2 Gen 2
USB Hub Features: USB
Type A Female Connection: USB 3.2 Gen 1 5.0G bps can support Flash Drive, USB Card Reader, single bay external hard drive, charge smartphones, keyboard / mouse receivers, Bluetooth adapters, USB Fan, and USB LED light, etc.
Power Output: 5V / 1A
USB Type C Female Connection: USB 3.2 Gen 2 10Gbps can support flash drive, card reader, single bay external hard drive, and charge smartphones, etc.
Power Output: 5V / 3A
RAID Mode Features: Single
Mode: Computer will show up as four independent drives
JBOD Mode: Raid 0 Spanning mode. Raid 0 (Stripping Mode) Raid 1 (Mirroring Mode) Please check user manual for all possible configuration
Note: Mediasonic strongly recommend user to install same capacity / model / brand of hard drive if you are using Raid feature. Initial raid set up will erase all the hard drive content please back up your hard drive before the set-up.
Supporting Operating System: Window 10 / 11 (32 bit and 64bit) Mac OSX 10.12 or later
Package Content: HFR7-SU31CH x 1 USB 3.2 Type C to Type C Cable with E-Mark IC x 1 User Manual x 1 Power Adapter x 1 and Power Cord x 1 Hard Drive Handle x 4 and Hard Drive Screws x8 Screw Driver x 1 Technical Support and
Warranty Service: support@mediasonicusa.
com Warranty Period: 2 Year Warranty from Mediasonic Store
Newegg Item#: 9SIA61H8X07917) Support hard drive transfer rate up to 6.0G bps.
Interface Support: USB Type C connection transfer rate up to 10.0G bps via USB 3.2 Gen 2
USB Hub Features: USB
Type A Female Connection: USB 3.2 Gen 1 5.0G bps can support Flash Drive, USB Card Reader, single bay external hard drive, charge smartphones, keyboard / mouse receivers, Bluetooth adapters, USB Fan, and USB LED light, etc.
Power Output: 5V / 1A
USB Type C Female Connection: USB 3.2 Gen 2 10Gbps can support flash drive, card reader, single bay external hard drive, and charge smartphones, etc.
Power Output: 5V / 3A
RAID Mode Features: Single
Mode: Computer will show up as four independent drives
JBOD Mode: Raid 0 Spanning mode. Raid 0 (Stripping Mode) Raid 1 (Mirroring Mode) Please check user manual for all possible configuration
Note: Mediasonic strongly recommend user to install same capacity / model / brand of hard drive if you are using Raid feature. Initial raid set up will erase all the hard drive content please back up your hard drive before the set-up.
Supporting Operating System: Window 10 / 11 (32 bit and 64bit) Mac OSX 10.12 or later
Package Content: HFR7-SU31CH x 1 USB 3.2 Type C to Type C Cable with E-Mark IC x 1 User Manual x 1 Power Adapter x 1 and Power Cord x 1 Hard Drive Handle x 4 and Hard Drive Screws x8 Screw Driver x 1 Technical Support and
Warranty Service: support@mediasonicusa.
com Warranty Period: 2 Year Warranty from Mediasonic Store
