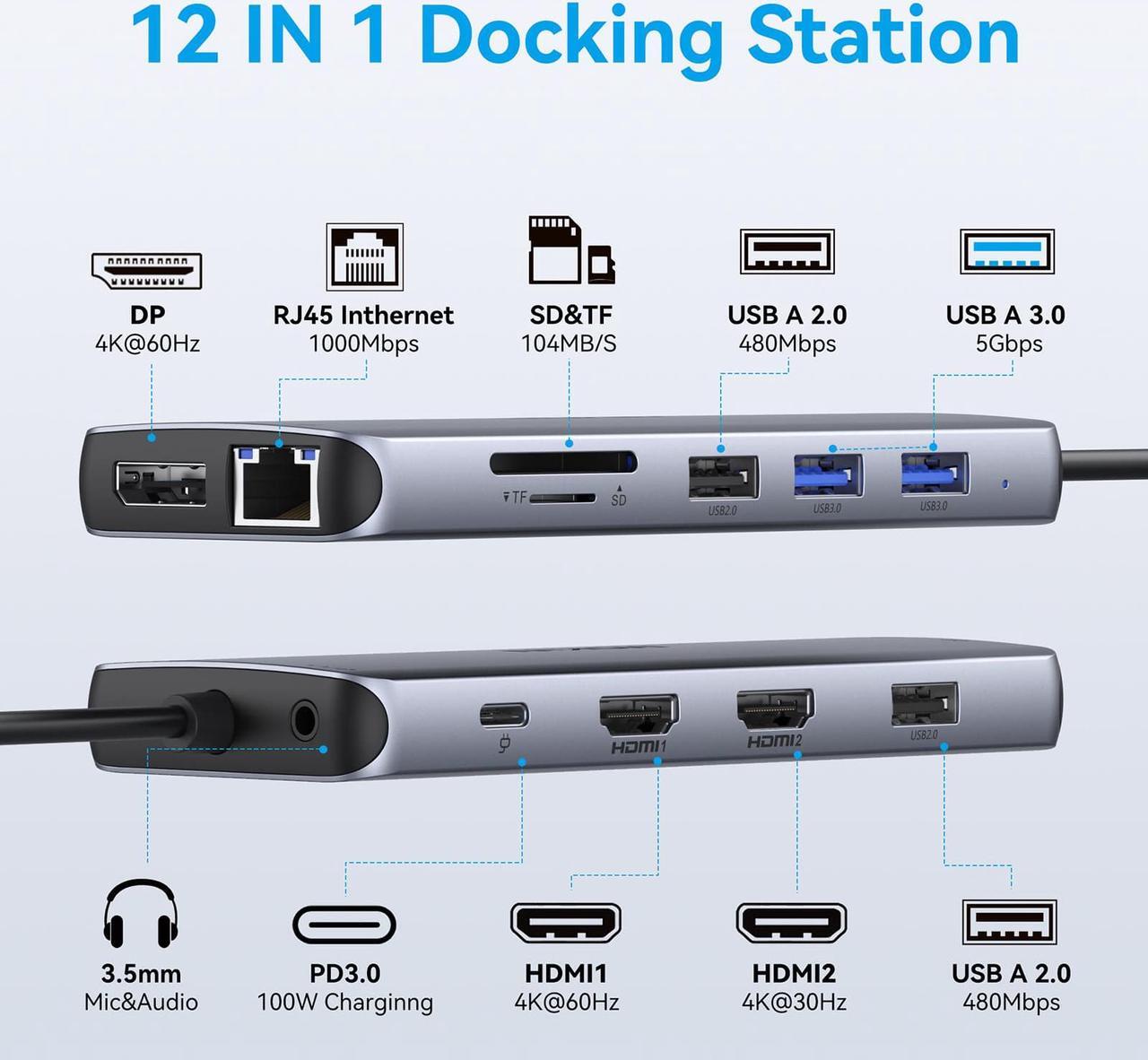

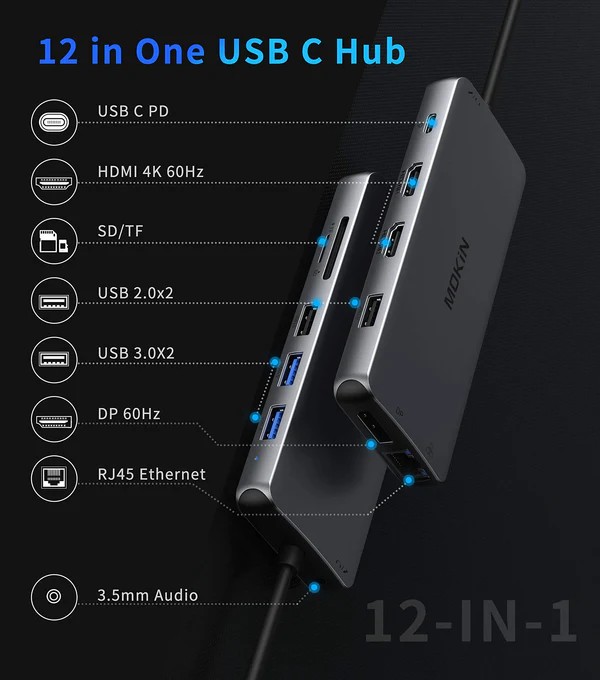

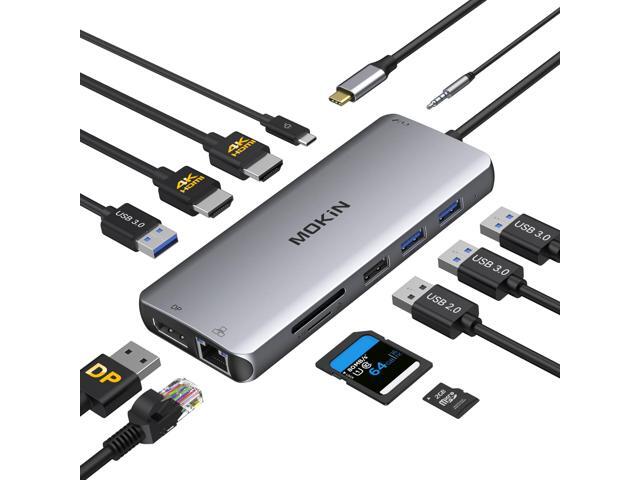

Plug and play, no need install any driver or software.
HDMI 1/DP:4Kx2K 60Hz / 3840x2160 (work separately while source is DP1.4) 4Kx2K 30Hz / 3840x2160 (work separately while source is DP1.2)
HDMI 2:4Kx2K 30Hz / 3840x2160 max
USB-C Port:Power Delivery (PD3.0),limited to 87-96W for safety
3.5mm Audio/Microphone(CTIA Standard)

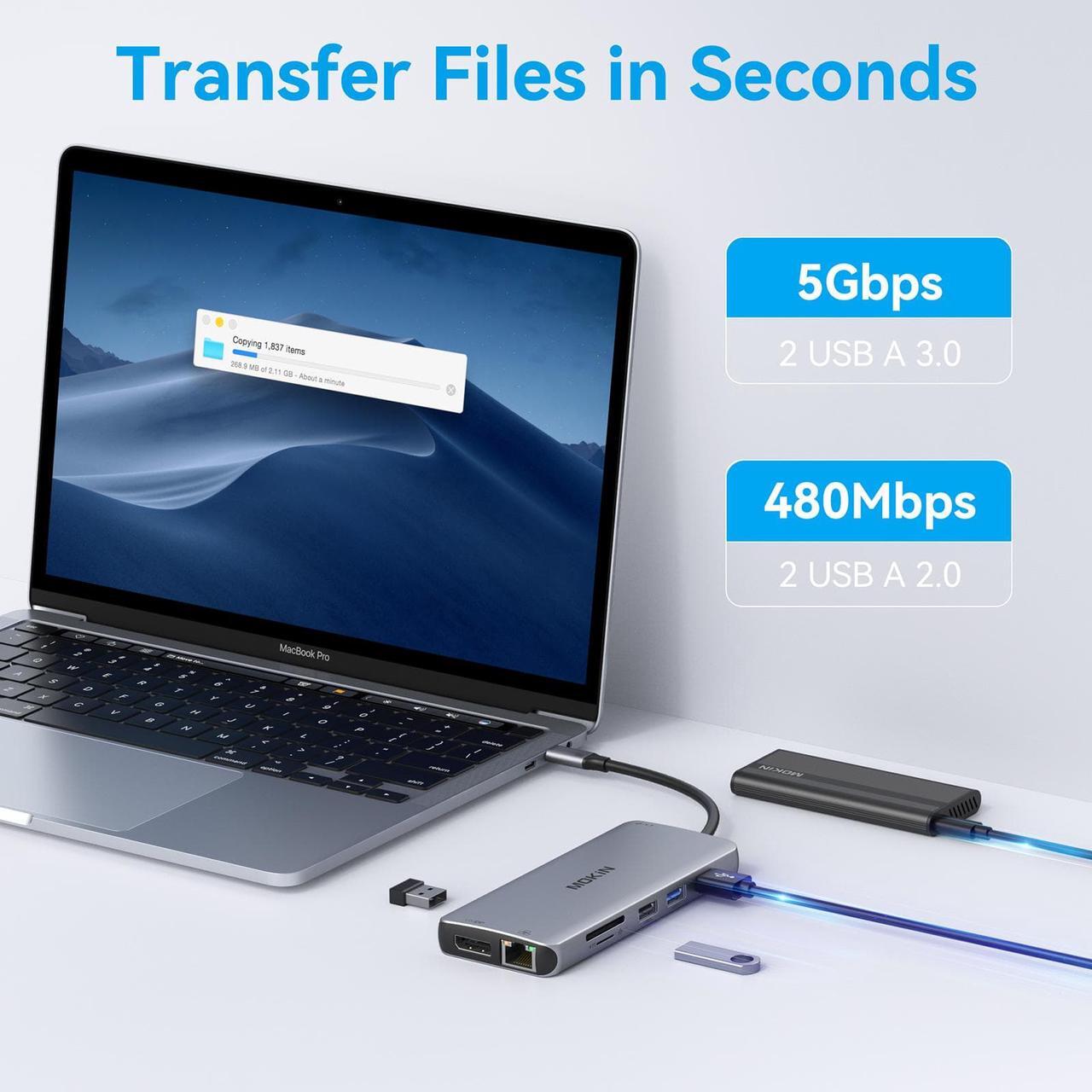

2xUSB-A 3.0, Up to 5Gbps data speed & maximum power output 5V/0.9A, backwards compatible with USB2.0/USB1.1
2xUSB-A 2.0,Up to 480Mbps data speed.
SD / TF Card Reader. Read: 50-104MB/s, Write: 30-80MB/s.
RJ45 Gigabit Ethernet: Up to 1000Mbps, stable wired access
With a simple plug and play connectivity, This USB C hub turns Thunderbolt 3 capable PC laptop into a mobile workstation!
Please ensure the Laptop has thunderbolt 3/USB-C 3.1 Gen 2/USB-C 3.1 Gen 1 (Support Power Delivery) to support multiple-display before purchase.
Support Dual or Triple Display:Thunderbolt 3: 40Gb/s I USB-C 3.1 Gen 2: 10Gb/s I USB-C 3.1 Gen 1: (Support Power Delivery).
DOES NOT SUPPORT USB C DISPLAY OUTPUT:USB-C 3.1 Gen 1: 5Gb/s (data transfer only).

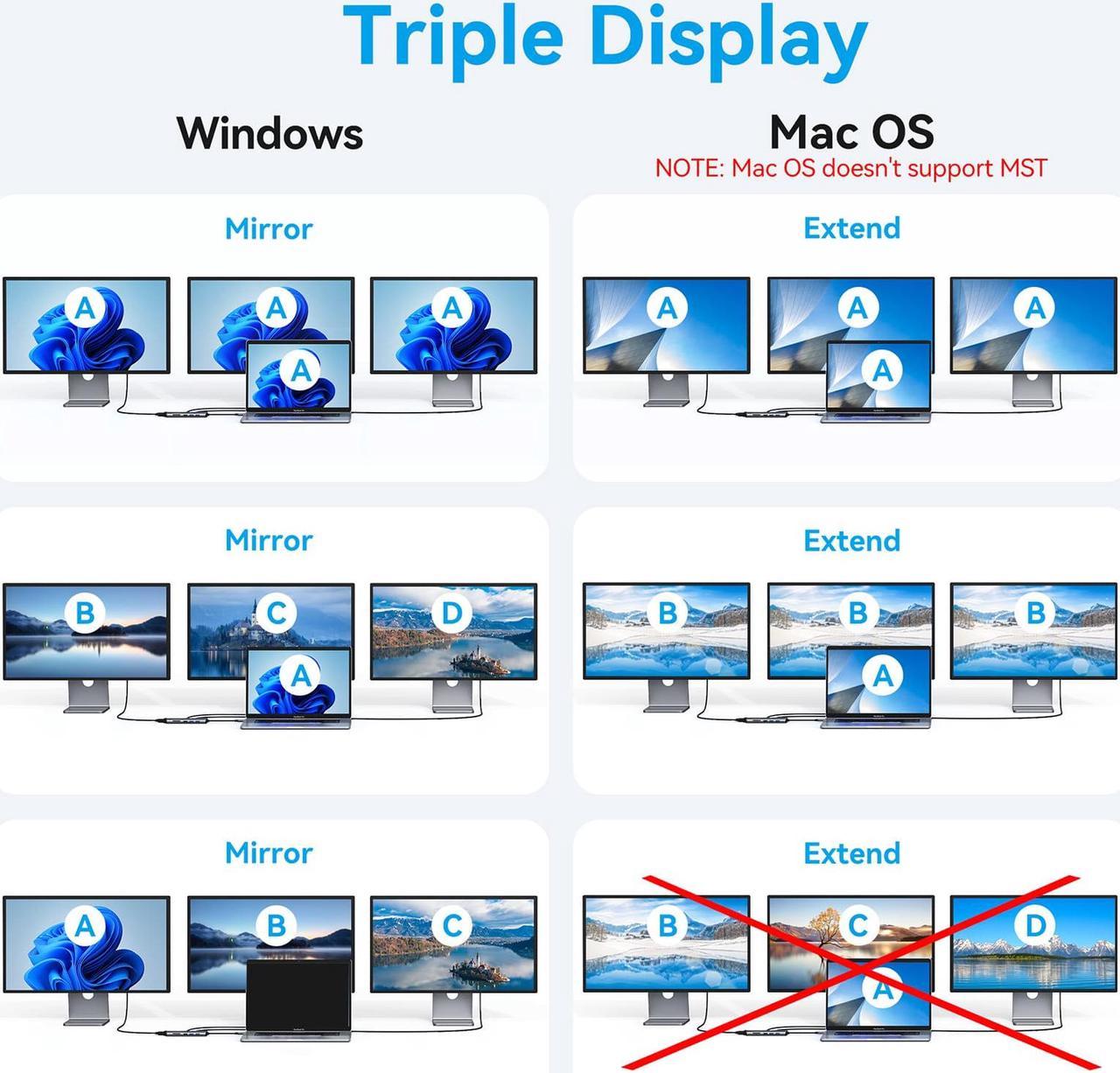

FOR WINDOWS:
- Extent Mode:
Laptop-Monitor1 : A-B
Laptop-Monitor1+2: A-B+C/A-B+B
Laptop-Monitor1+2+3: A(Black)-A+B+C/A-B+C+D
- Mirror Mode:
Laptop-Monitor1: A-A
Laptop-Monitor1+2: A-A+A
Laptop-Monitor1+2+3: A-A+A+A
Note:For Mirror mode and Extend mode 3 monitors' resolution of two of the displays are 1080P@60Hz, another one will be limited to 1080@30Hz(for Windows).
FOR MAC OS
- Extent Mode:
Mac Laptop-Monitor1 : A-B
Mac Laptop-Monitor1+2: A-B+B
Mac Laptop-Monitor1+2+3: A(Black)-B+B+B
- Mirror Mode:
Mac Laptop-Monitor1: A-A
Mac Laptop-Monitor1+2: A-A+A
Laptop-Monitor1+2+3:A-A+A+A
Note:For Mirror mode 3 monitors' resolution are 4K @30Hz(for Mac ONLY MIRROR MODE)&For Non-mirror mode 3 monitors' resolution are 4K @30Hz(for Mac).
Note:
1.Triple Display(MST) for Windows:only support the Triple display for Windows.Mac OS DOSE NOT support MST.3840x2160@30hz output only available when using HDMI or DP display or mirror the three displays.In extend mode,each will be limited to a maximum resolution of 1080P.
2.Mac OS System:For Apple laptop,its not support extend 2 different screens,displays are Mirror mode only which is limited by Mac itself.means that the two external monitors are same.But laptop screen can display different content from them.Please note:Not support dual monitor for M1,M2 chip macbook pro/air (M1,M2 chip only supports output to 1 monitor).
3.Not support some usb c devices:To use this product the host USB-C port from your device must support DisplayPort Alt Mode and Power Delivery.For using display function,please confirm the type c port on your laptop supports video output.so please let us know if your devices are not in the compatibility list of user guide.
4.4K HDMI Display:The final resolution of HDMI output depends on your host devices. (Only when your devices support 4K resolution, the video output will be 4K).Use HDMI2.0/DP1.4 or above cables for optimum performance.

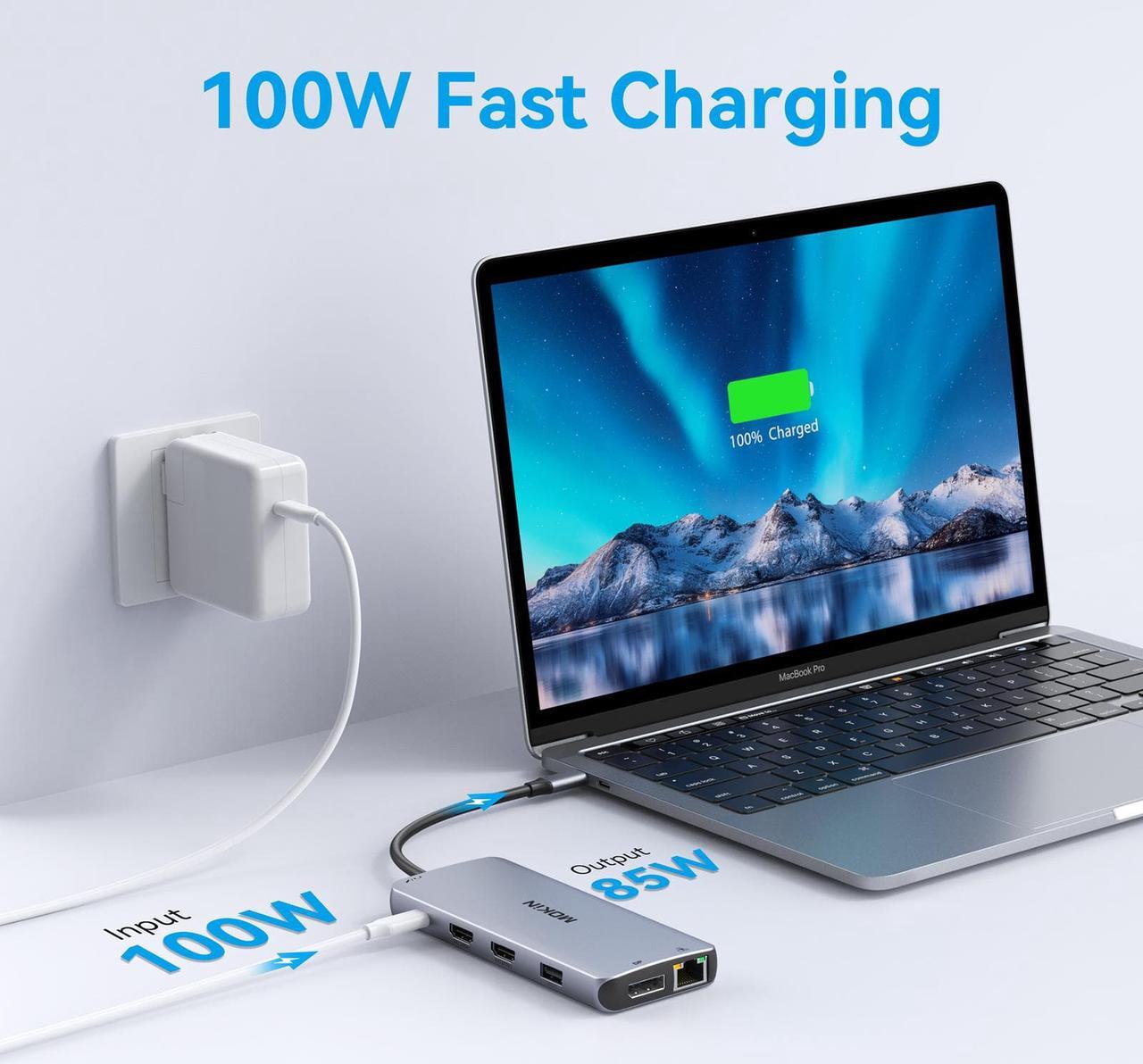

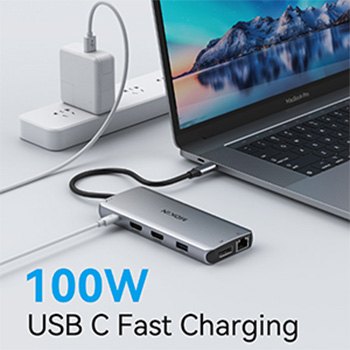

- The USB Type-C PD charging port supports a maximum of 100W power (only for charging). charging limitedto 87-96W for safety, Quickly charge laptops and use other hub functions at the same time.
- Please note: Dell xps 13 laptop's usb c port won't allow this adapter to charge your latop.
- With 2xUSB 3.0 ports (up to 5Gbp/s) connect smartphones, tablet, hard drives for effortless data transfer with USB-C port.
- 2xUSB 2.0,speed up to 480mb/s,it allows you to connect keyboard or mouse without any lag.

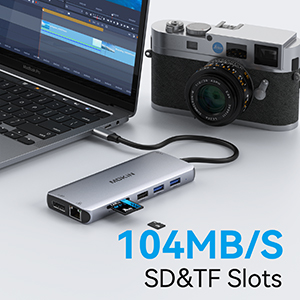

- SD TF Card reader (Speed up to 104 Mbp/s) Works with SD,SDHC,SDXC,Micro SD,MMC,SDXC:with high storage capacity up to 2TB).

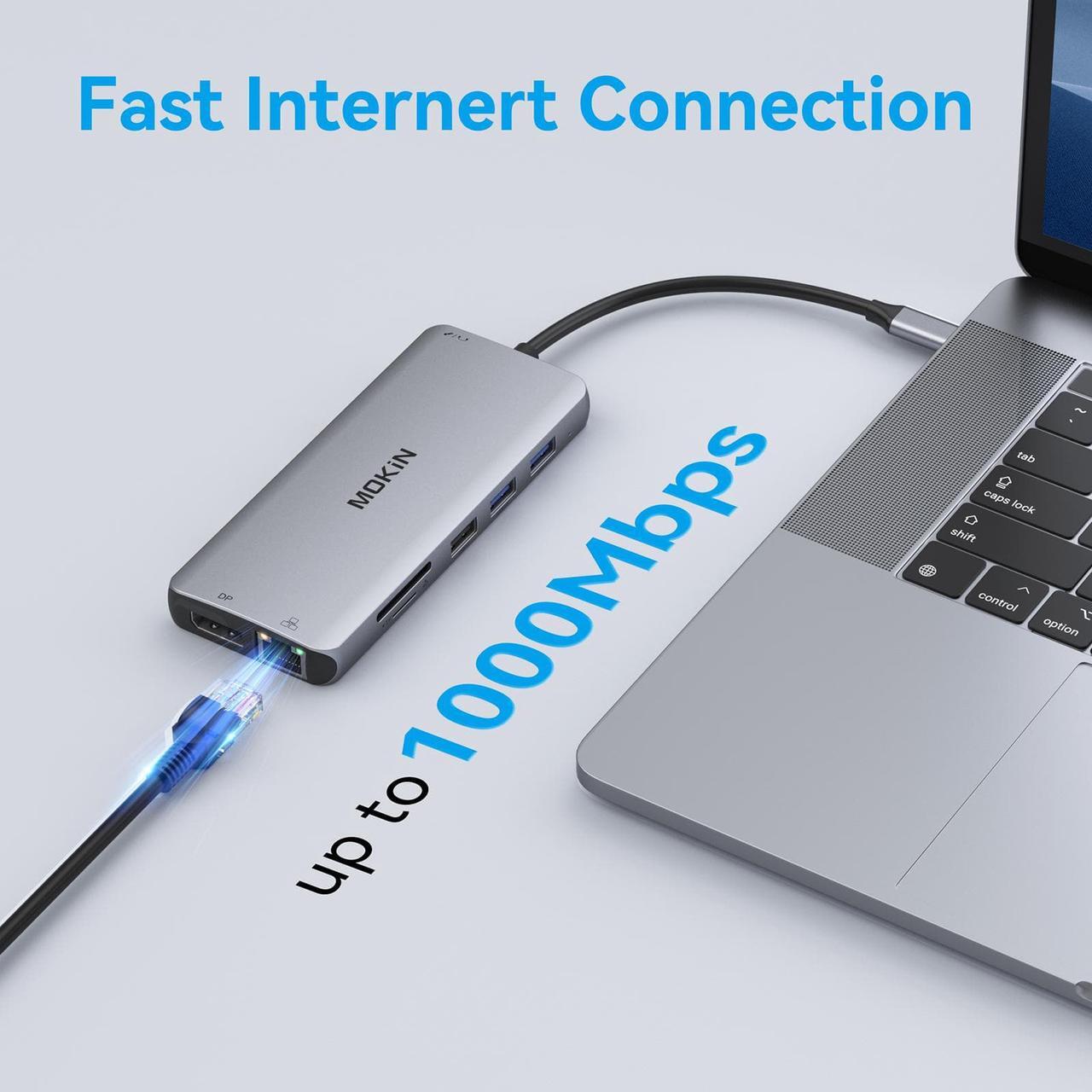

- Gigabit Ethernet Lan port:No driver is needed. Just PLUG AND PLAY. Support 10/100/1000 Ethernet and make your work effective.

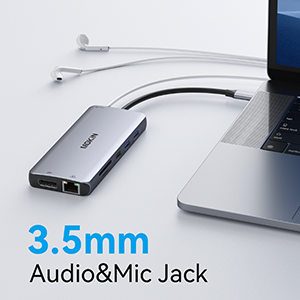

- The 3.5mm Audio Port with mic and audio-out function. Enjoy High quality sound! It will be very convenient if your laptop is lack of 3.5mm Audio port.
Compatible Devices: (Not a full list)
- For Apple:MacBook Pro/Air 2020/2019/2018/2017/2016;iPad Pro 2018/2020;Macbook Retina 12" Laptop 2015/2016; iMac,iMac Pro 2019 2018 2017,etc
- For Dell:Dell XPS 15/13,Dell XPS 12 2-in-1 9250,Dell Precision 5510,Dell Latitude 5290 2 in 1/5285/5480/7280,Dell Latitude E7470 laptop;Dell Precision;Dell Latitude 5590/5510,etc
- For Lenovo:Lenovo Yoga 900/910/920,Lenovo X1 Yoga (2nd Gen),13' Lenovo 720 laptop ,NUC,Lenovo c740-14il,Lenovo Yoga C740,Lenovo legion Y740,Lenovo Ideapad 5,Lenovo ideapad slim 7,2020 Lenovo IdeaPad 5 15 mit Ryzen 4800u,Lenovo thinkbook 14s,Think pad T590/T480/L590/E15/X1 Carbon,etc
- For HP:HP Spectre X2,HP X360,HP Elite×2 1012,HP Elitebook Folio G1,HP ZBook 15 G3,HP elitebook 840 g6;HP Chromebook;HP Notebook 15-dy1036nr;HP ENVY x360 13-ay0000;HP pavilion intel core 13;HP envy x360 model m6-aq105dx;HP Envy 17t (2020)
- For ASUS:13'' ASUS Zenbook UX330UA
- For Surface:Microsoft Surface Book 2/Surface Go/Surface Laptop 3
Incompatible devices:
- HP14s-be102TX, HP Probook 650 G2, HP Probook 455 G4, HP Pavilion-14 bf116tx, HP 14-ce1004TX 14, HP Elitebook 820 G3, HP Pavilion 15 ck009, HP EliteBook 745 G4, HP Pavilion Power Laptop 15-cb, HP Probook 430 G5, HP EliteBook 828 G4, HP Pavilion 15-cs3000, HP Pavillion Laptop Model 15-cs1014-ng, HP probook g3, HP bs049dx
- Lenovo Idea Pad 3 (17") Intel,Flex 5 14 (AMD),IdeaPad Flex 5 15 (Intel) 2 in 1, ThinkPad 11e Yoga Gen 6 (11') 2 in 1
- Dell Inspiron 15 3000, Inspiron 11 3000 2-in-1, Inspiron 17 3000
- Samsung Galaxy A20 / A20E / A50 / A70 / A80 / S6 / S7 / J6 / J7 / M20 / M30; Samsung Galaxy Tab A / 10.1 / 10.5 / S3;
- LG Google Nexus 5X/6P, LG Stylist/LG G6,LG V30, LG k10/k20.
- Oneplus 2/3/3T/5T/6T; All Motorola's phone; GoPro; Amazon Fire Tablet; Surface Dock 2;
- Acer Aspire A717-72G,Acer Aspire A515-44-R1DM, Acer Aspire a515-54 model
- Predator Helios 300 PH315-52-754M, Microsoft Surface Pro 6, Huawei MediaPad M5 Lite

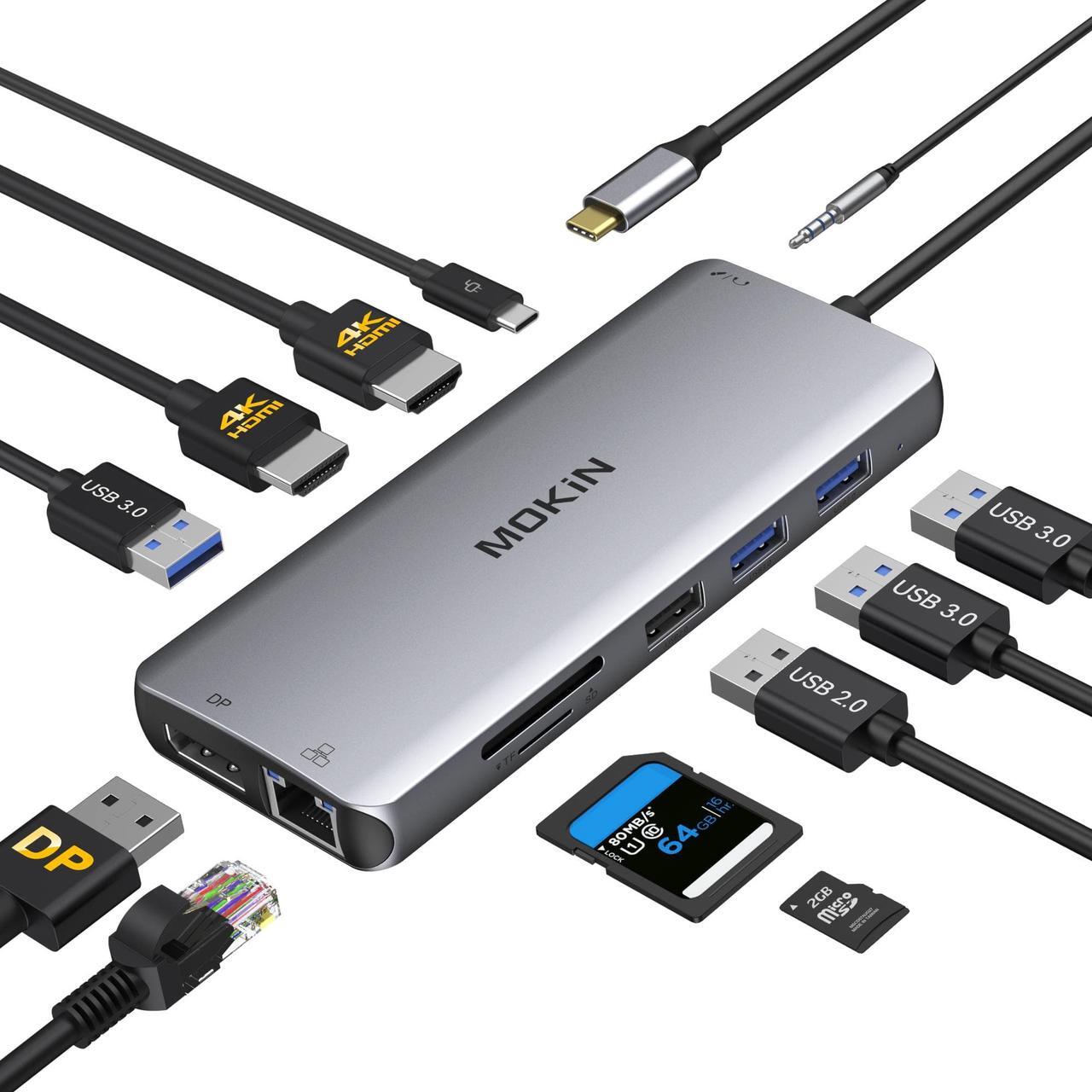

| Brand | MOKiN |
|---|---|
| Color | Gray |
| Number of Ports | 12 |
| Hardware Interface | DisplayPort, Ethernet, HDMI, 3.5mm Audio, USB 3.0, USB 2.0 |
| Product Dimensions | 5.28 x 2.17 x 0.55 inches |
| Item Weight | 0.263lbs |
| Supported Systems | Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later |
