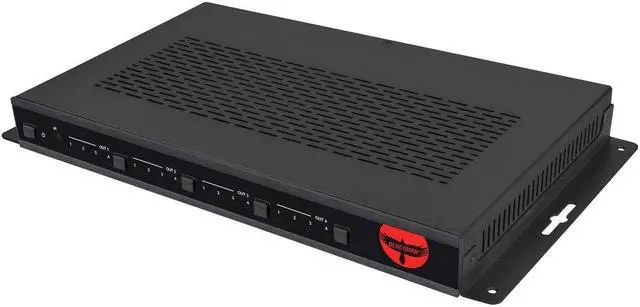

Monoprice Blackbird 4K60 Seamless HDMI 2.0 4X4 MATRIX

Blackbird by Monoprice

ProSeries 4K60 HDMI 2.0 b,
4:4: 4, 4X4 Matrix | Video Switcher Video Wall Solution

Create stunning video wall displays and achieve seamless HDMI switching with the exceptional Blackbird ProSeries 4K60 4:4 HDMI 2.0 b, 4X4 Matrix, empowering your AV productons to captivate audiences like never before.

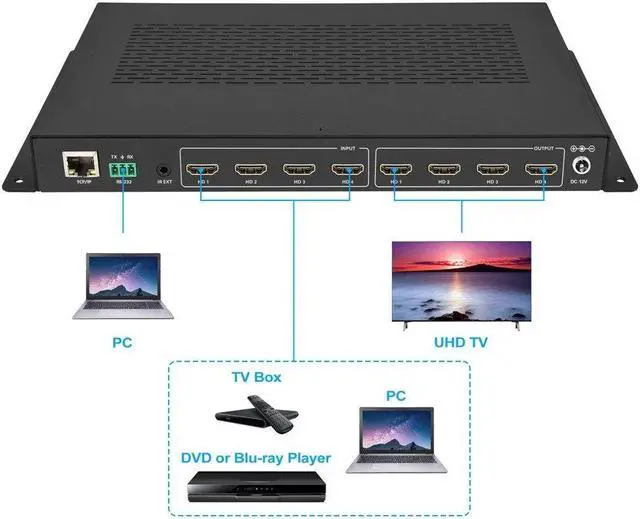

Experience seamless video switching and stunning video wall displays with the versatile Blackbird ProSeries 4K60, 4:4: 4 HDMI 2.0 b 4X4 Matrix. With two configurable output modes, it seamlessly switches between multiple sources and transforms into dynamic video walls (2x2, 4x1, 1x4). Its advanced specifications include HDMI 2.0 b compliance, HDCP 2.2 / 1.4 support, and video input compatibility up to 4K resolution. Control is effortless via frontpanel buttons, IR remote, RS232, TCP/IP, or the web browser interface module. Benefit from exceptional video quality, reliable performance, and audio support (LPCM, DolbyDigital, DTS) in corporate, control room, education, and entertainment settings. The Blackbird ProSeries unlocks your Pro AV potential, with versatility across retail, broadcast, hospitality, museums, sports arenas, and healthcare. Trust its advanced features and userfriendly interface to create immersive visual experiences, seamless switching, and captivating displays.






HDMI 2.0 b Compliant

HDCP 2.2 and HDCP 1.4 Compliant

Video inputs support all industry standard video resolutions including VGAWUXGA (up to 19201200 @60Hz) and 480i4K (3840 x 2160 @60Hz 4:4: 4, 4096 x 2160 @60Hz 4:4: 4)

HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160@60Hz 4:4: 4





Support LPCM, DolbyDigital, DolbyDigital+, DTS, Dolby TrueHD, DTS HD master passthrough

Advanced EDID management

Web interface module for control and configuration of Matrix

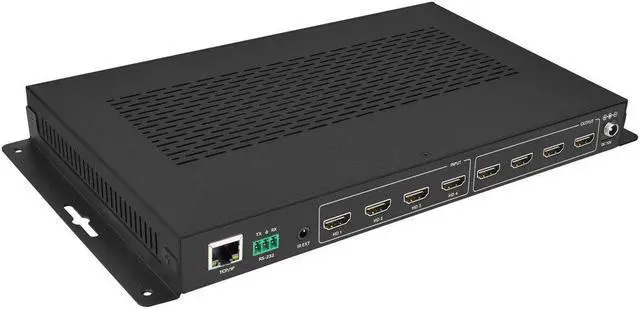

Control via front panel, IR, RS232 and TCP/IP

3rd Party drivers available for all major home control brands


















TECHNICAL EXCELLENCE



The Blackbird ProSeries 4K60 4:4 HDMI 4X4 Matrix boasts HDMI 2.0 b compliance, seamless video switching, and support for a wide range of video resolutions, ensuring exceptional performance for your production needs.



















VERSATILE OUTPUT MODES



Switch effortlessly between a 4x4 matrix switcher and a dynamic video wall solution, with configurations including 2x2, 4x1, or 1x4, allowing you to adapt to different display requirements and create captivating visual setups.



















CONVENIENT CONTROL OPTIONS

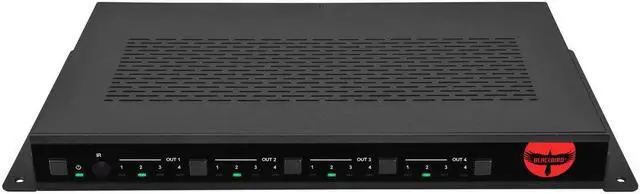

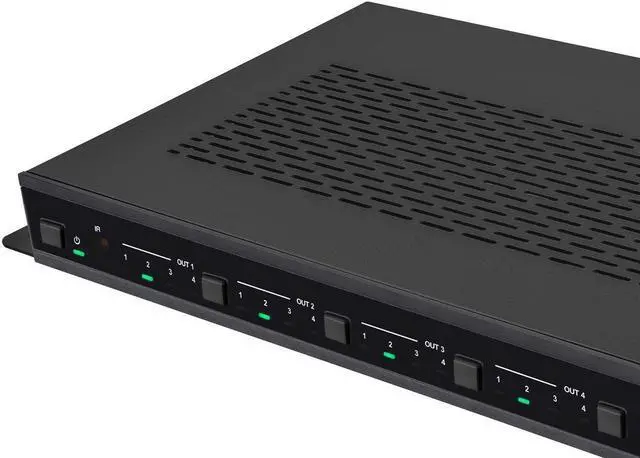

Enjoy hasslefree management with multiple control methods. Utilize the frontpanel push buttons, IR remote control, RS232 interface, or TCP/IP connectivity, enabling seamless integration with existing control systems for effortless operation.



















WEB BROWSER INTERFACE



Take advantage of the userfriendly web browser interface module, empowering you to control and configure the matrix with ease. Access and customize settings in realtime from any device with a web browser, providing ultimate convenience and flexibility.



















SUPERB VIDEO QUALITY



Display your products in stunning clarity and vibrant colors with support for 4K resolution at 60 frames per second and 4:4: 4 chroma subsampling. The Blackbird ProSeries ensures exceptional video processing, enhancing the overall shopping experience for your customers.



















RELIABLE PERFORMANCE



Trust in the Blackbird ProSeries for uninterrupted operation. Built with robust hardware and advanced technologies, it guarantees stability and signal integrity, delivering consistent and glitchfree video
