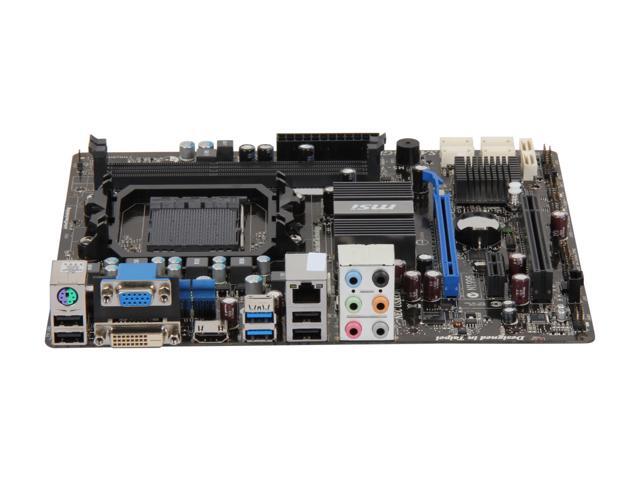

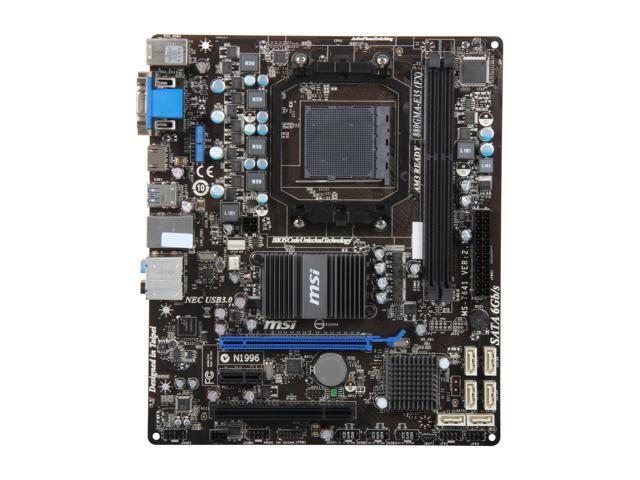

MSI 880GMA-E35 (FX) AM3 AMD 880G SATA 6Gb/s USB 3.0 HDMI Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 880G
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 800 / 1066 / 1333
Specs
Reviews

Learn more about the MSI 880GMA-E35 (FX)

Model
Brand MSI
Model 880GMA-E35 (FX)
Supported CPU
CPU Socket Type AM3
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2600 MHz
Chipsets
Chipset AMD 880G
South Bridge AMD SB850
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 800 / 1066 / 1333
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 4250
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Other Connectors 1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
CPU x 1 / System x 1 FAN connectors
1 x Front panel audio connector
1 x Front panel connector
1 x Chassis intrusion switch connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x TPM module connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.07"
Power Pin 24 Pin
Features
Features OC Genie: Easy Overclocking Technology

Unlock CPU Core: Unlock hidden CPU core and potential

Lossless 24bit/192kHz HD Audio

Supports SATA 6Gb/s & USB 3.0
Additional Information
Date First Available July 26, 2011
