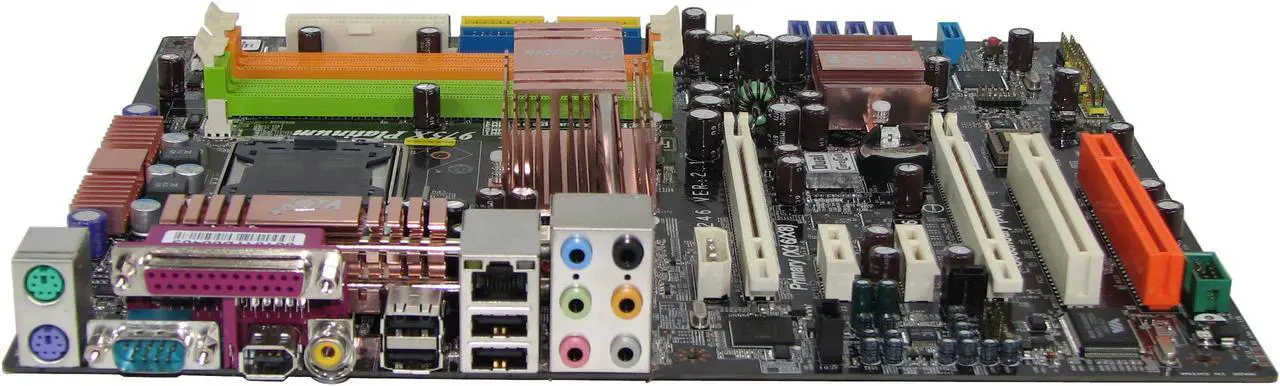

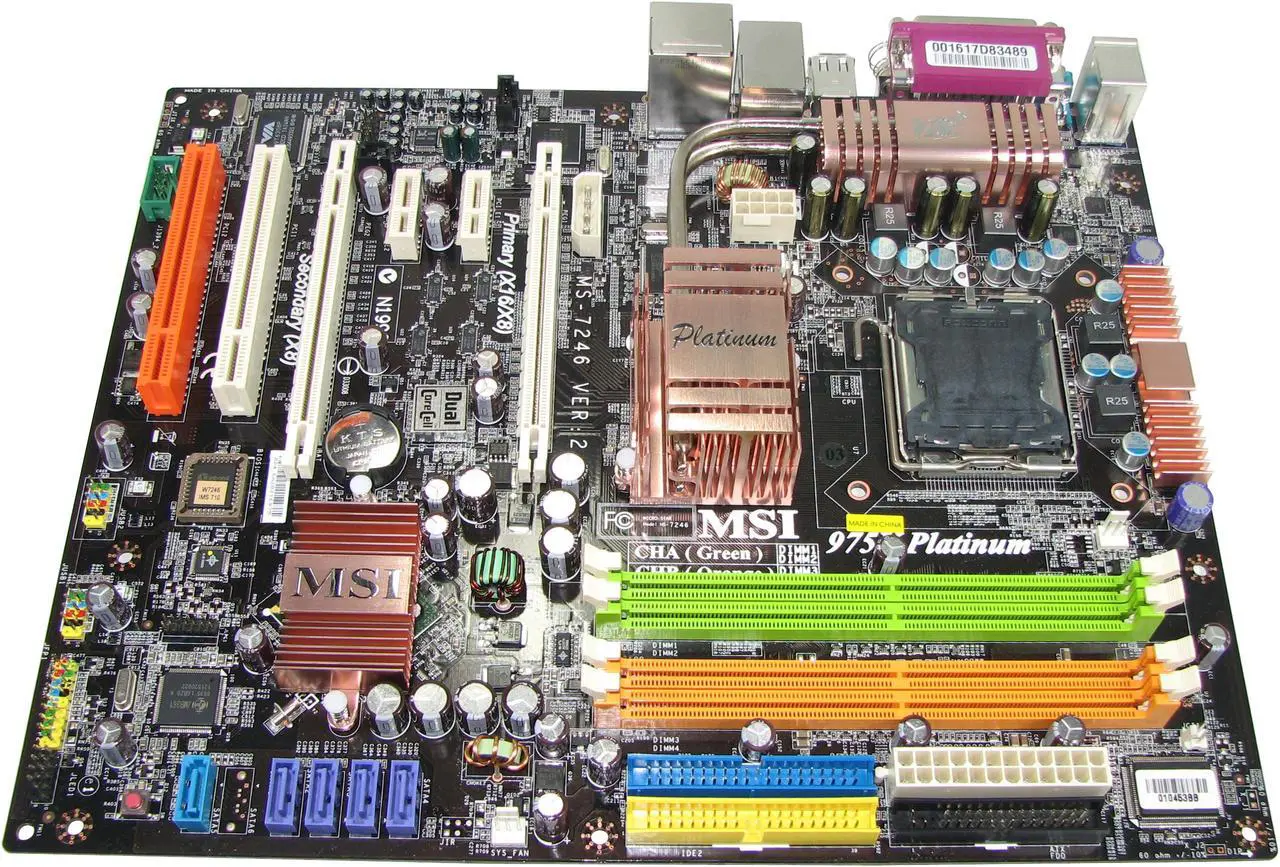

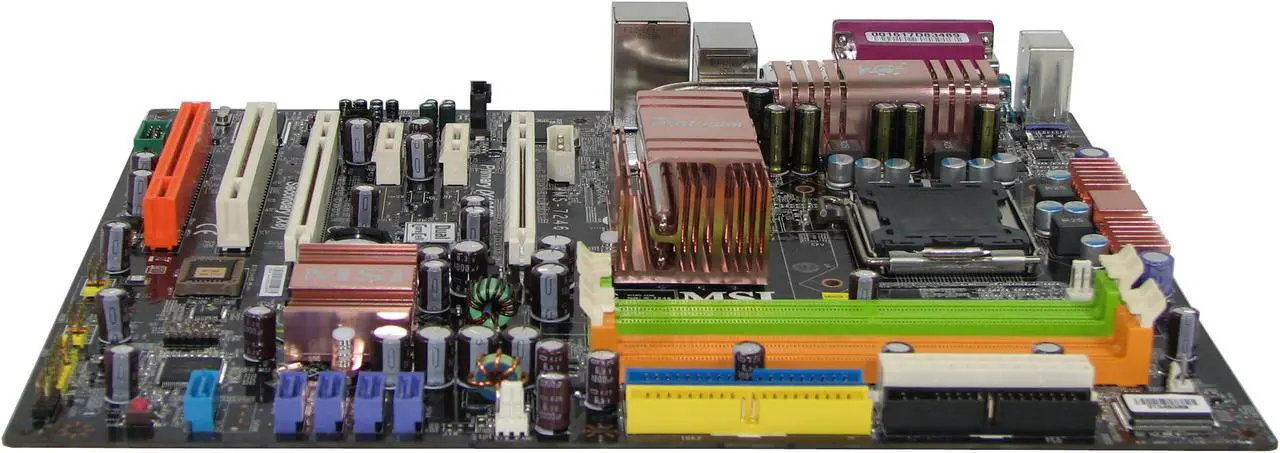

MSI 975X Platinum V.2 LGA 775 Intel 975X ATX Intel Motherboard
- LGA 775
- Intel 975X
- 4×240pin DDR2 533/667/800
Specs
Reviews (160)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI 975X Platinum V.2
| Brand | MSI |
|---|---|
| Model | 975X Platinum V.2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 975X |
|---|---|
| South Bridge | Intel ICH7 DH |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533/667/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1 |
|---|---|
| Additional RAID Controller | JMB361 |
| Audio Chipset | Realtek ALC882M |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82573 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|---|
| Onboard 1394 | 1 x 1394a connector supports 1 port |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Because of the limitations of chipset, this MB does not support Win98/ME |
|---|
| Package Contents | 975X Platinum V.2 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to SATA Power Cable USB Bracket IEEE 1394 Bracket CPU Cooler Backplate |
|---|
| First Listed on Newegg | August 03, 2006 |
|---|
