MSI A68HM-E33 V2 FM2+ FM2 MOTHERBOARD PCI-E3.0 USB3.0 SATA3.0 AMD A68H MAINBOARD DDR3 16G MATX NO A55 A58 A78 A88X
REFURBISHED Product Type
- Product design reasonable selection of superior workmanship USB3.0 SATA3 pei-e3.0 HDMI video outlet; The mainboard BIOS options are relatively complete. By default, the store upgrades all models in the store. The 850 version of the operating system supports all FM2 and FM2+ cpus. However, it does not support XP. Some customers need to use XP operating system can be upgraded to the 840 version of BIOS; However, it does not support FM2+ latest cpus
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Welcome
Pay attention!!!
1. Each motherboard is tested in good condition before shipment, 100% working normally!
2. This is a second-hand original motherboard, not new, not refurbished!
3.

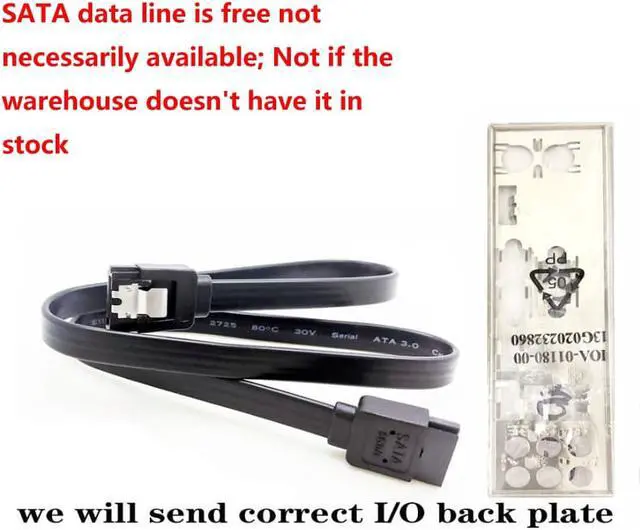

Packaging: motherboard + I/O baffle, (drivers and manuals need to be downloaded from the official website)
4. Please confirm that your CPU type and memory are supported by the motherboard! Many models of CPU do not have graphics display function, so you need to install a separate PCIE graphics card.
5. Because it is second-hand. Each piece is different, the picture is for reference only, not necessarily your order. The same model may have different versions of the motherboard, we will ship randomly! caution!
6. Please protect the pins inside the CPU socket to make sure they are not crooked. We do not support returns and exchanges if the sale is artificially damaged. Some high-end CPUs cannot be turned on after they are installed, because they need to be upgraded to the latest version of BIOS to boot normally. If you have any questions, you can contact us or go directly to the motherboard's official website to check the list of supported CPUs and other hardware parameters.

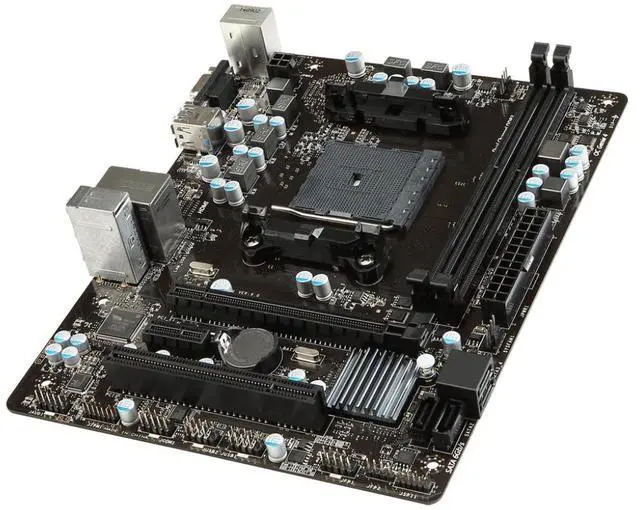

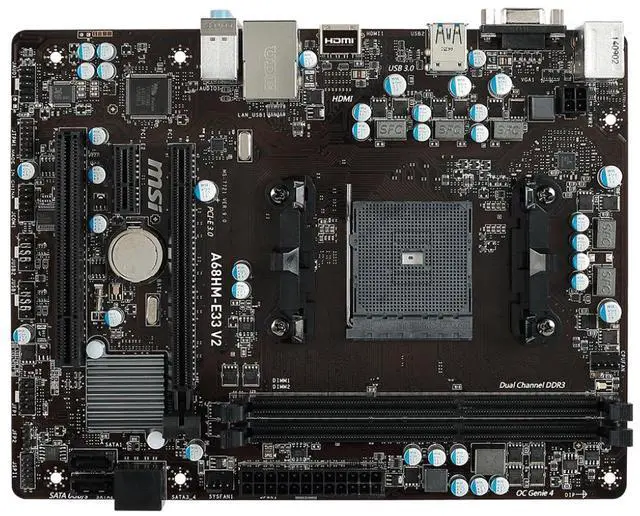

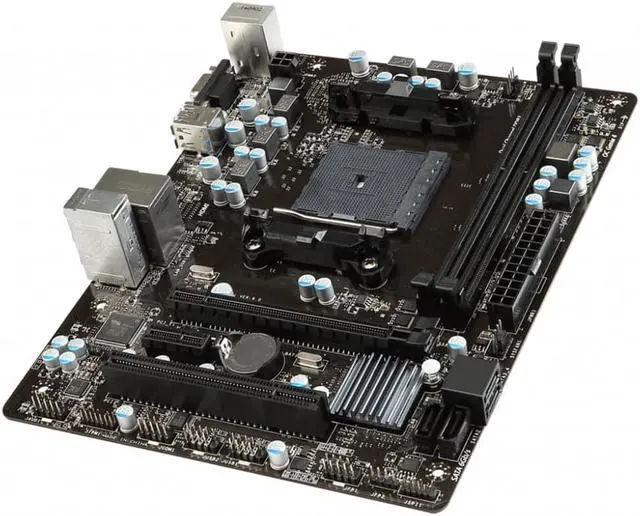

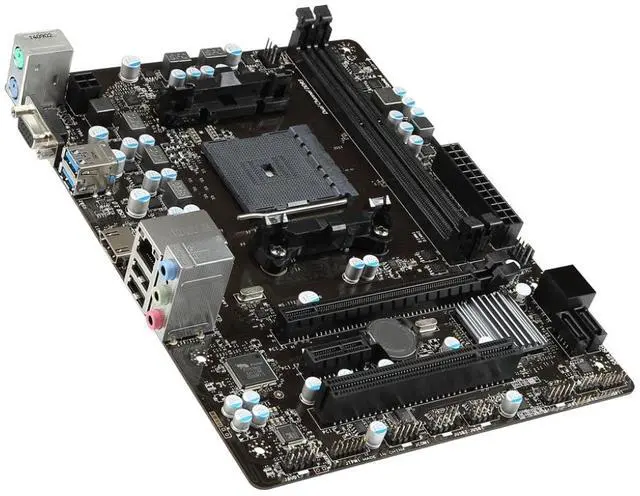

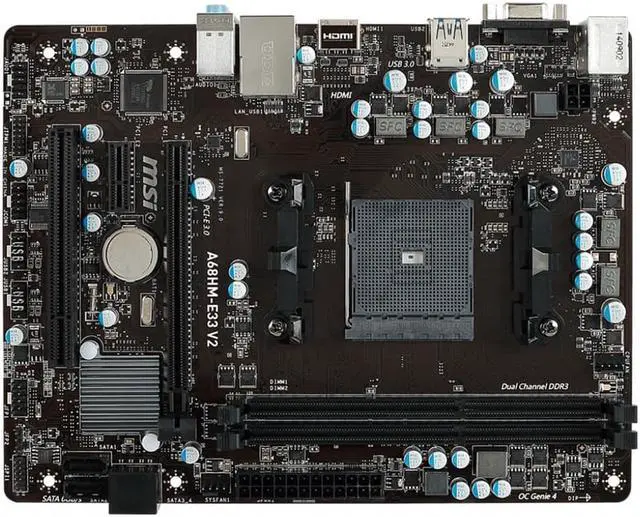

A68HM-E33 V2
processor
AMD® A-series/ Athlon processors supporting FM2+ architecture
* For CPU support, please check the CPU support status table, the above specifications are for reference only
chipset
AMD A68H chipset
Memory
2 DDR3 slots supporting up to 32GB combined
Support DDR3 2133 (OC) / 1866/ 1600/ 1333 MHz
Dual-channel memory architecture
Supports non-ECC, un-buffered memory
Supports AMD Memory Profile (AMP)
Support for Extreme Memory Profile (XMP)
slot
1 PCIe 3.0 x16 slot
1 PCIe 2.0 x1 slot
1 PCI slot
show output
1 VGA port, supports resolution up to 1920x1200 @ 60Hz, 24bpp
1 HDMI port, supports resolution up to 4096x2160@24Hz, 36bpp/ 3840x2160@30Hz, 36bpp/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
Built-in SATA
4 SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
USB
2 USB 3.0 ports on the back panel
6 USB 2.0 ports (2 on back panel, 4 supported via built-in USB ports)
Built-in sound
Realtek® ALC887 decoding chip
Built-in network
Realtek® RTL8111G Gigabit Network Controller

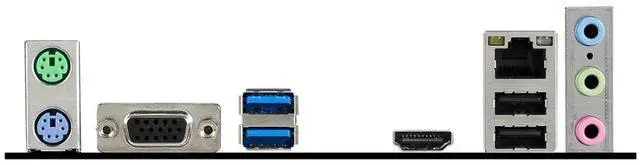

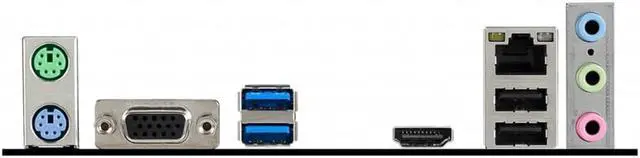

Built-in output/input interface
- 1 PS/2 keyboard composite interface
- 1 PS/2 mouse composite interface
- 1 VGA port
- 2 USB 3.0 ports
- 1 HDMI port
- 1 network (RJ45) port
- 2 USB 2.0 ports
- 3 audio interfaces
Back panel rear output/input interface
- 1 24-pin ATX main power connector
- 1 4-pin ATX 12V power connector
- 4 SATA 6Gb/s ports
- 2 USB 2.0 ports (additional 4 USB 2.0 ports can be supported)
- 1 4-pin CPU fan header
- 1 x 4-pin system fan header
- 1 audio interface
- 2 system panel connectors
- 1 chassis opening port
- 1
Pay attention!!!
1. Each motherboard is tested in good condition before shipment, 100% working normally!
2. This is a second-hand original motherboard, not new, not refurbished!
3.
Packaging: motherboard + I/O baffle, (drivers and manuals need to be downloaded from the official website)
4. Please confirm that your CPU type and memory are supported by the motherboard! Many models of CPU do not have graphics display function, so you need to install a separate PCIE graphics card.
5. Because it is second-hand. Each piece is different, the picture is for reference only, not necessarily your order. The same model may have different versions of the motherboard, we will ship randomly! caution!
6. Please protect the pins inside the CPU socket to make sure they are not crooked. We do not support returns and exchanges if the sale is artificially damaged. Some high-end CPUs cannot be turned on after they are installed, because they need to be upgraded to the latest version of BIOS to boot normally. If you have any questions, you can contact us or go directly to the motherboard's official website to check the list of supported CPUs and other hardware parameters.
A68HM-E33 V2
processor
AMD® A-series/ Athlon processors supporting FM2+ architecture
* For CPU support, please check the CPU support status table, the above specifications are for reference only
chipset
AMD A68H chipset
Memory
2 DDR3 slots supporting up to 32GB combined
Support DDR3 2133 (OC) / 1866/ 1600/ 1333 MHz
Dual-channel memory architecture
Supports non-ECC, un-buffered memory
Supports AMD Memory Profile (AMP)
Support for Extreme Memory Profile (XMP)
slot
1 PCIe 3.0 x16 slot
1 PCIe 2.0 x1 slot
1 PCI slot
show output
1 VGA port, supports resolution up to 1920x1200 @ 60Hz, 24bpp
1 HDMI port, supports resolution up to 4096x2160@24Hz, 36bpp/ 3840x2160@30Hz, 36bpp/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
Built-in SATA
4 SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
USB
2 USB 3.0 ports on the back panel
6 USB 2.0 ports (2 on back panel, 4 supported via built-in USB ports)
Built-in sound
Realtek® ALC887 decoding chip
Built-in network
Realtek® RTL8111G Gigabit Network Controller
Built-in output/input interface
- 1 PS/2 keyboard composite interface
- 1 PS/2 mouse composite interface
- 1 VGA port
- 2 USB 3.0 ports
- 1 HDMI port
- 1 network (RJ45) port
- 2 USB 2.0 ports
- 3 audio interfaces
Back panel rear output/input interface
- 1 24-pin ATX main power connector
- 1 4-pin ATX 12V power connector
- 4 SATA 6Gb/s ports
- 2 USB 2.0 ports (additional 4 USB 2.0 ports can be supported)
- 1 4-pin CPU fan header
- 1 x 4-pin system fan header
- 1 audio interface
- 2 system panel connectors
- 1 chassis opening port
- 1
