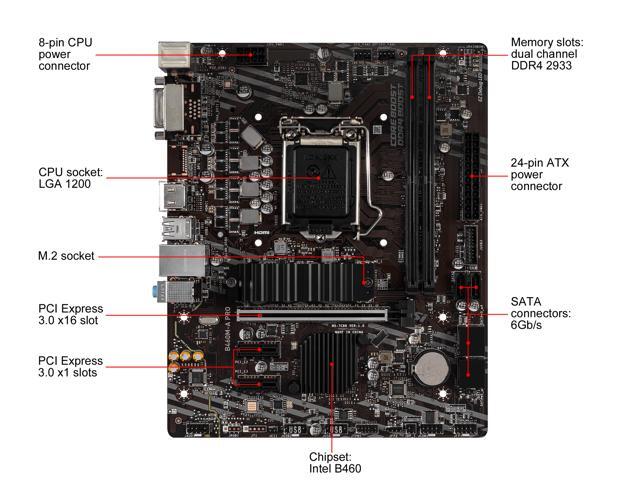

MSI PRO B460M-A PRO LGA 1200 Intel B460 SATA 6Gb/s Micro ATX Intel Motherboard

In stock.
Ships from China.
Most customers receive within 4-17 days.
  • Intel B460
  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
  • Intel Core i7/i9
  • Supports up to DDR4 2933 MHz
  • Intel Core i5 and below
  • Supports up to DDR4 2666 MHz
Specs
Reviews

Learn more about the MSI B460M-A PRO

Model
Brand MSI
Series PRO
Model B460M-A PRO
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket1 2

1 Please go to www.intel.com for more compatibility information.
2 Onboard graphics output are disabled when using F SKU processors.
Chipsets
Chipset Intel B460
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:

1 x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

* Maximum shared memory is 1GB
Memory
Number of Memory Slots 2×288pin
Memory Standard Intel Core i7/i9
Supports up to DDR4 2933 MHz

Intel Core i5 and below
Supports up to DDR4 2666 MHz
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices1
1 SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.
Intel Optane Ready Intel Optane Memory Ready2
2 Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 Type-A
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
4 x EZ Debug LED
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.3" x 7.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933(Max) MHz

Core Boost: With premium layout and digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Additional Information
Date First Available October 19, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
