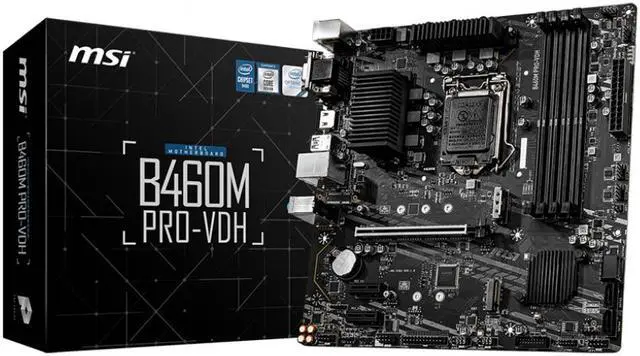

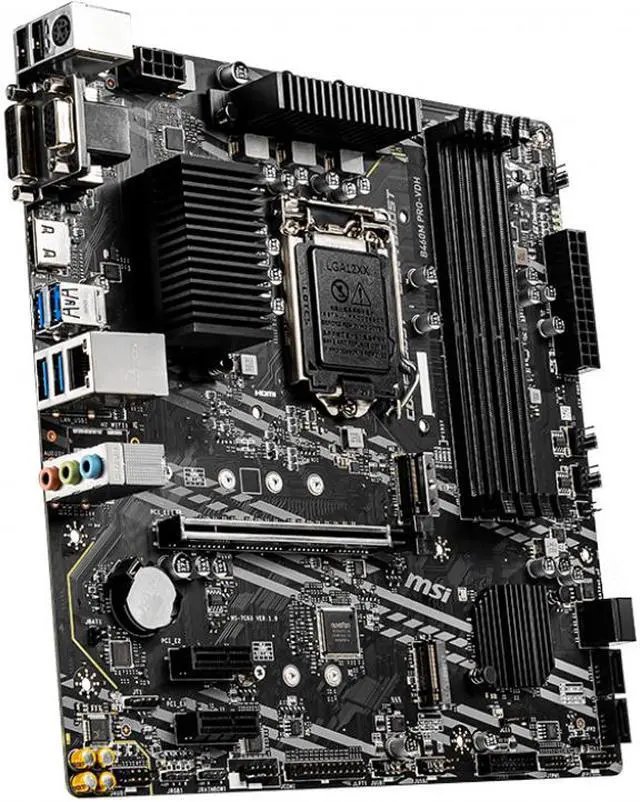

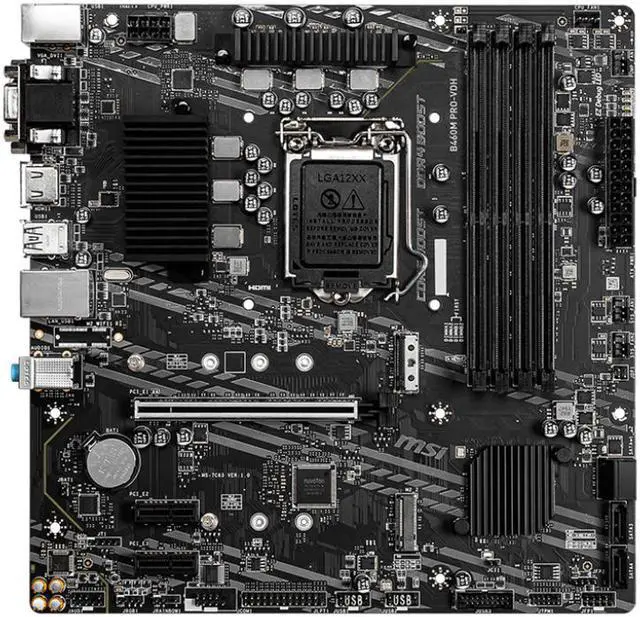

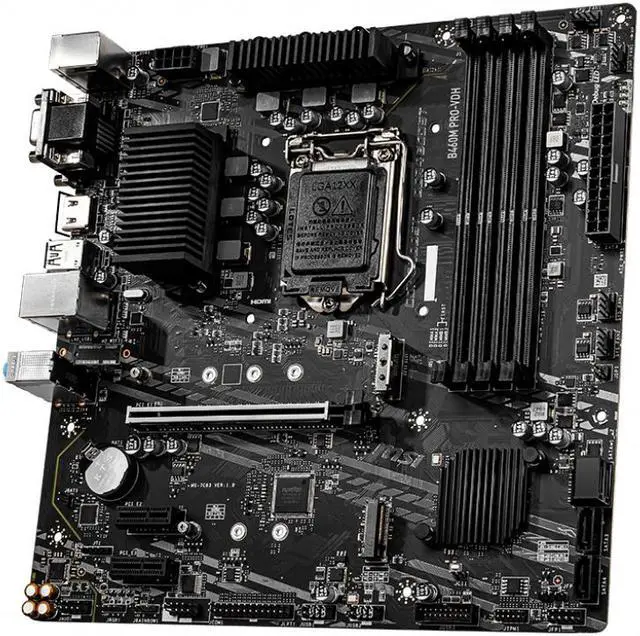

MSI B460M PRO-VDH LGA 1200 Intel B460 Micro ATX Intel Motherboard
REFURBISHED Product Type
- Intel B460
- Supports 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 2933 (Intel Core i9 / i7)
- DDR4 2666 (Intel Core i5 (Below))
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI B460M PRO-VDH
| Brand | MSI |
|---|---|
| Model | B460M PRO-VDH |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core processors Supports Intel Pentium Gold / Celeron processors * Please go to intel.com for compatibility information. * Onboard graphics output are disabled when using the F SKU processors. |
| Chipset | Intel B460 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2933 (Intel Core i9 / i7) DDR4 2666 (Intel Core i5 (Below)) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): - M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices* - M2_2 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices - Intel Optane Memory Ready for the M2_2 slot only ** - Supports Intel Smart Response Technology for Intel Core processors * SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892/ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

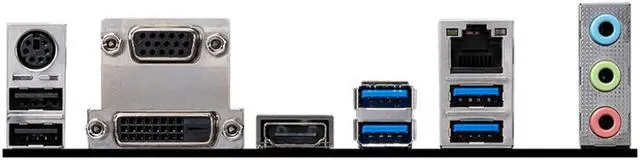

| Back I/O Ports | 1 x D-Sub 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 2 x USB 2.0/1.1 4 x USB 3.2 Gen 1 Type-A 3 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump connector 2 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x parallel port connector 1 x serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 1 x TPM module connector |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 2933 (Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
| Date First Available | March 31, 2025 |
|---|
