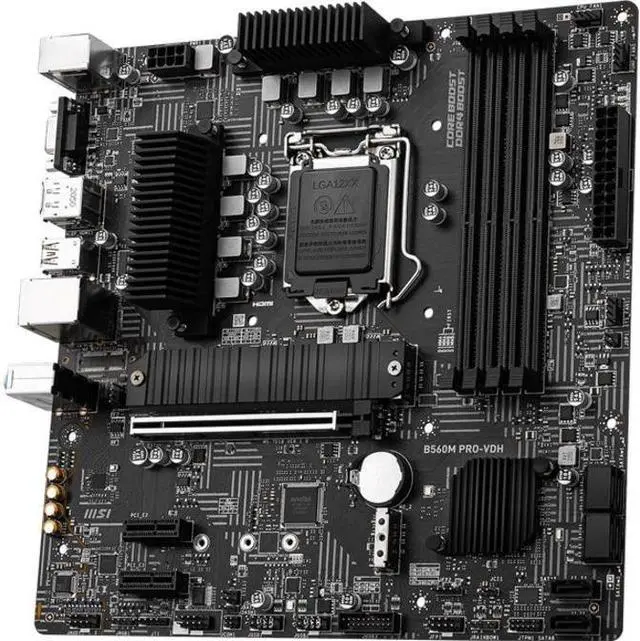

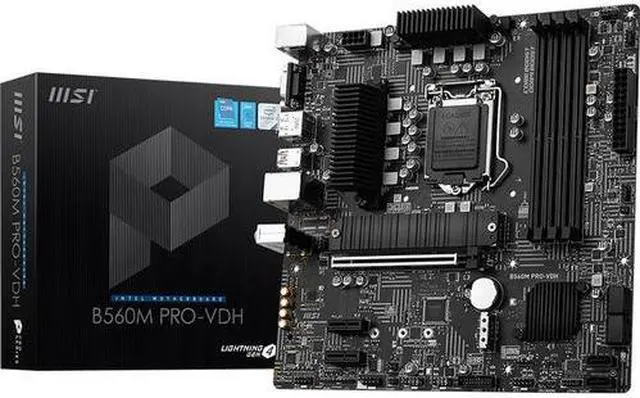

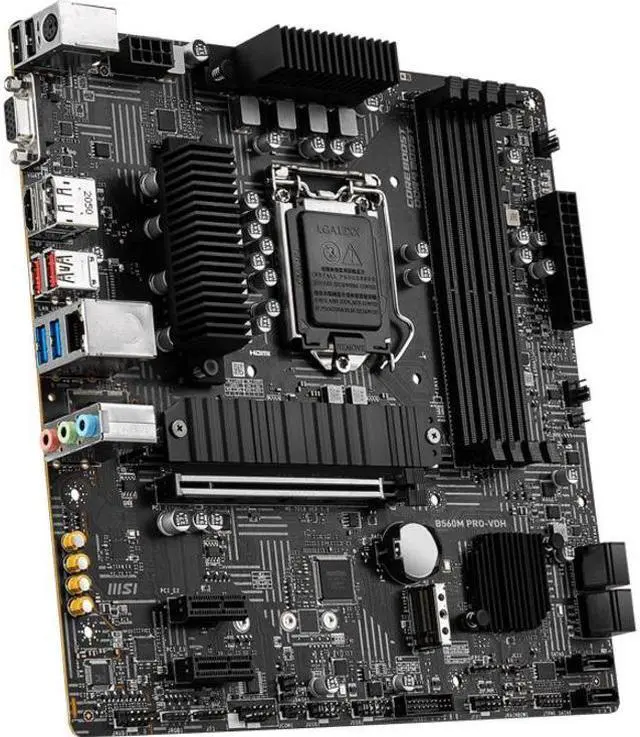

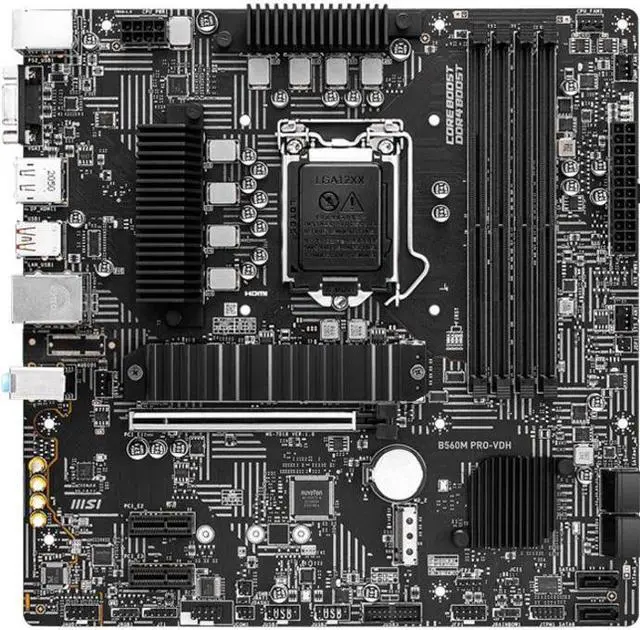

    MSI B560M PRO-VDH LGA 1200 Intel B560 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    Comes with I/O shield, no other accessories.
    • Intel B560
    • Supports 11th / 10th Gen Intel Core Processors
    • Supports Intel Pentium Gold and Celeron Processors
    • Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
    • Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
    • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5066
    • 1DPC 2R Max speed up to 4600+
    • 2DPC 1R Max speed up to 4266+
    • 2DPC 2R Max speed up to 4000+
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the MSI B560M PRO-VDH

    Model
    Brand MSI
    Model B560M PRO-VDH
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 11th / 10th Gen Intel Core Processors
    Supports Intel Pentium Gold and Celeron Processors
    Chipsets
    Chipset Intel B560
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
    Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)

    Max overclocking frequency:
    1DPC 1R Max speed up to 5066
    1DPC 2R Max speed up to 4600+
    2DPC 1R Max speed up to 4266+
    2DPC 2R Max speed up to 4000+
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

    * Actual support may vary by CPU.
    PCI Express x1 2 x PCIe 3.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 2 x M.2 slot (Key M):

    M2_1 slot:
    Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
    Supports up to PCIe 3.0 x4 for 10th Gen Intel CPU (From B560 chipset)
    Supports up to SATA 6Gb/s (From B560 Chipset)*
    Supports 2242/ 2260/ 2280/ 22110 storage devices

    M2_2 slot** (from B560 chipset):
    Supports up to PCIe 3.0 x4
    Supports 2242/ 2260/ 2280 storage devices
    Intel Optane Memory Ready*

    * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
    ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
    Intel Optane Ready Yes
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8125B
    Max LAN Speed 2.5Gbps

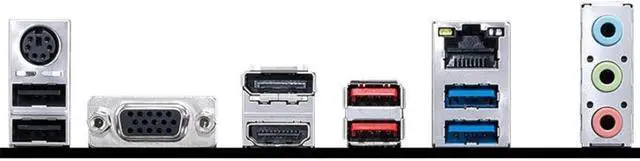

    Rear Panel Ports
    Back I/O Ports 1 x DisplayPort
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45)
    1 x PS/2 Keyboard/Mouse Combo
    2 x USB 2.0/1.1
    2 x USB 3.2 Gen 1 Type-A
    2 x USB 3.2 Gen 2 Type-A
    3 x Audio Jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
    2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    Other Connectors 1 x 4-pin CPU fan connector
    1 x 4-pin water-pump fan connector
    2 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x TPM module connector
    1 x Serial port connector
    1 x Tuning Controller Connector
    1 x 4-pin RGB LED connector
    1 x 3-pin RAINBOW LED connector
    4 x EZ Debug LED
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX
    LED Lighting RGB
    Dimensions (W x L) 9.6" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket.

    Supports DDR4 Memory, up to 5066(OC) MHz.

    Core Boost: With premium layout and digital power design to support more cores and provide better performance.

    DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

    Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr.

    2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

    Audio Boost: Reward your ears with studio grade sound quality.

    Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
