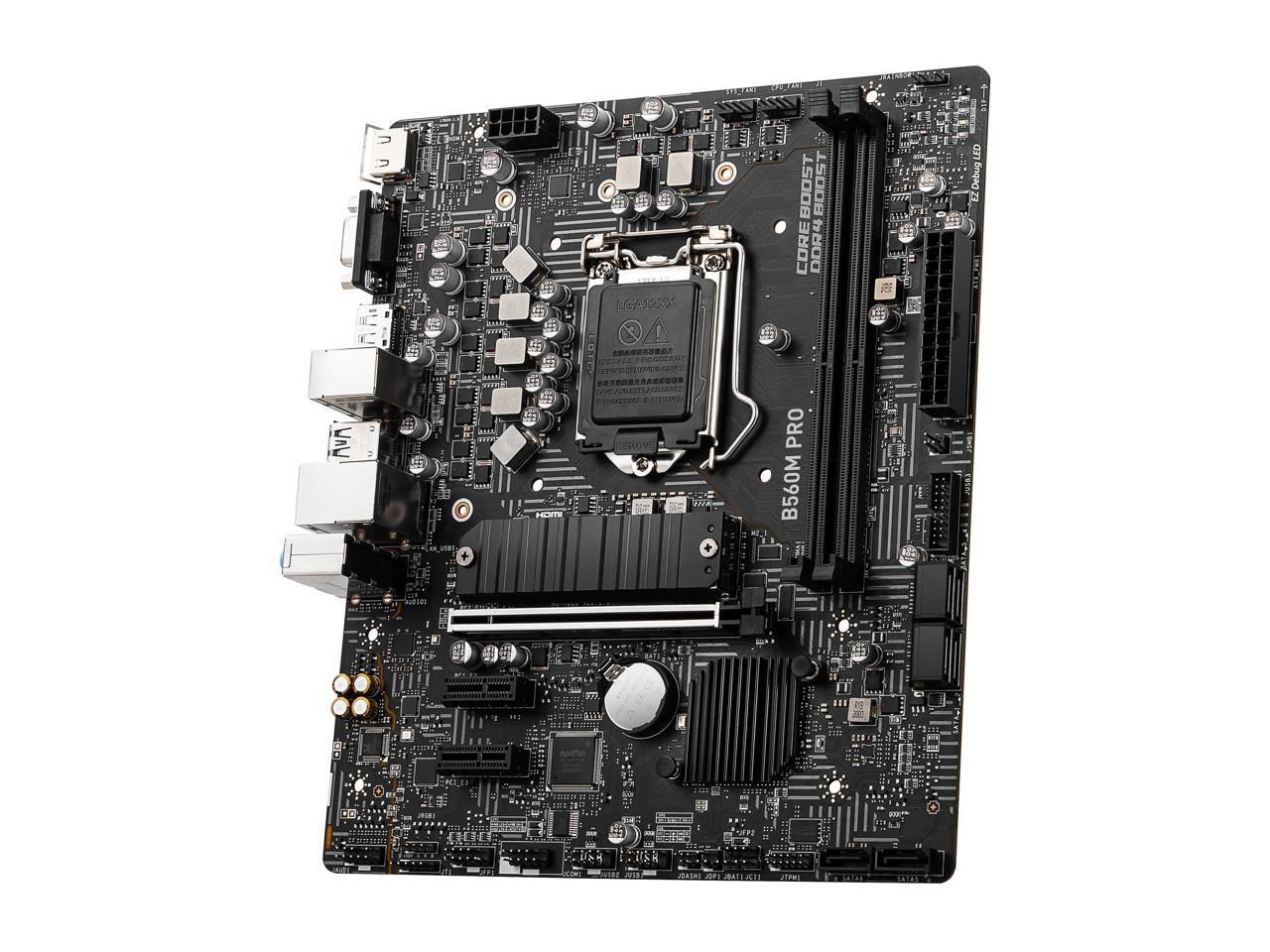

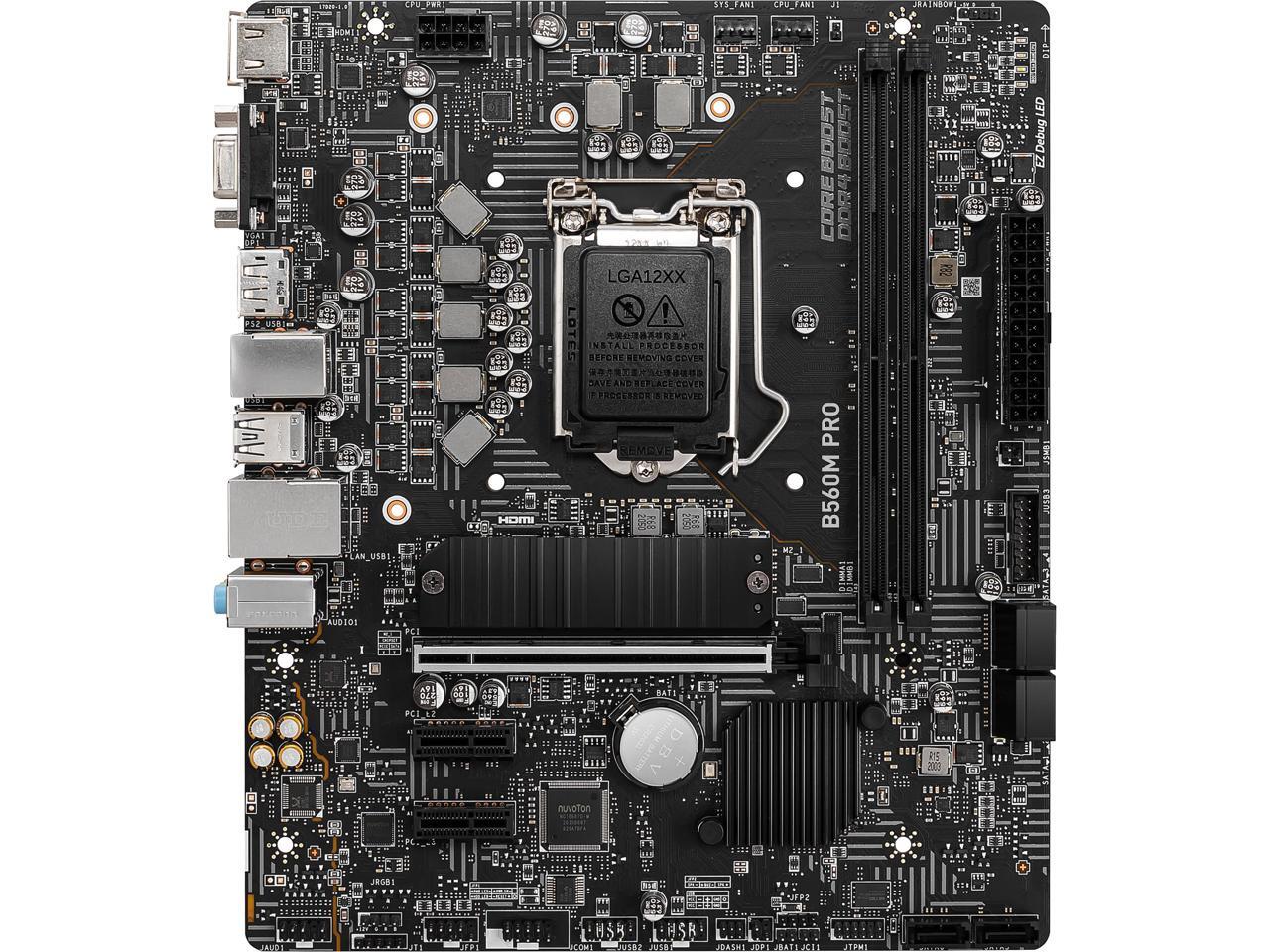

MSI PRO B560M PRO LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

(1) Write a Review

See more "b560 motherboard"

In stock.

Ships from United States.

Intel B560
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
DDR4 2133 / 2666 / 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
DDR4 2133 / 2666 / 2933 / 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5200 MHz
1DPC 2R Max speed up to 4700+ MHz

Specs

Reviews

Learn more about the MSI B560M PRO

Model
Brand	MSI
Series	PRO
Model	B560M PRO

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Chipsets
Chipset	Intel B560

Memory
Number of Memory Slots	2×288pin
Memory Standard	DDR4 2133 / 2666 / 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) DDR4 2133 / 2666 / 2933 / 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCIe x 16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI Express x1	2 x PCIe 3.0 x1 slots (From B560 chpiset)

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1-Channel High Definition Audio

Onboard LAN
LAN Chipset	1 x Realtek 8125B 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps

Rear Panel Ports

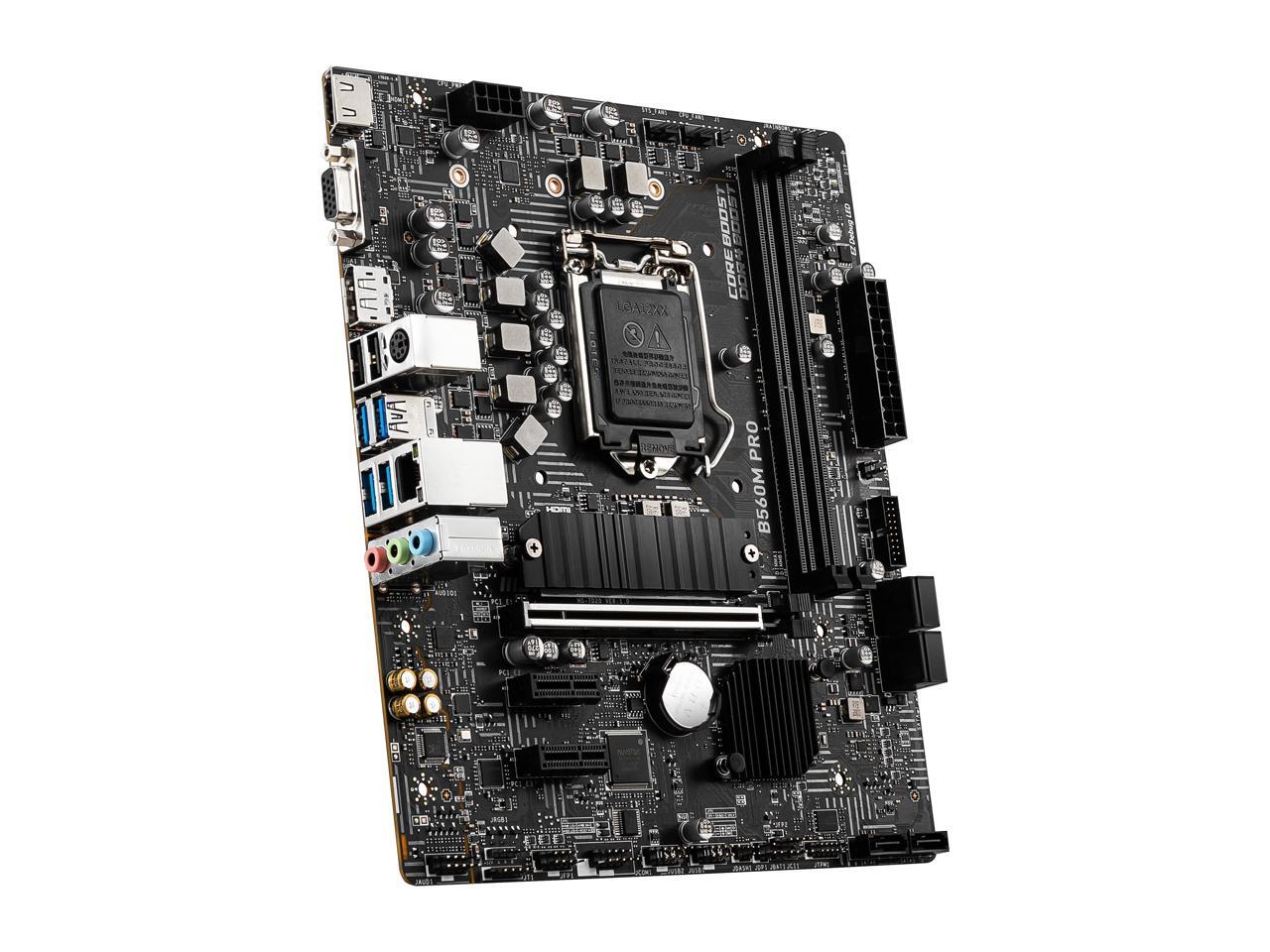

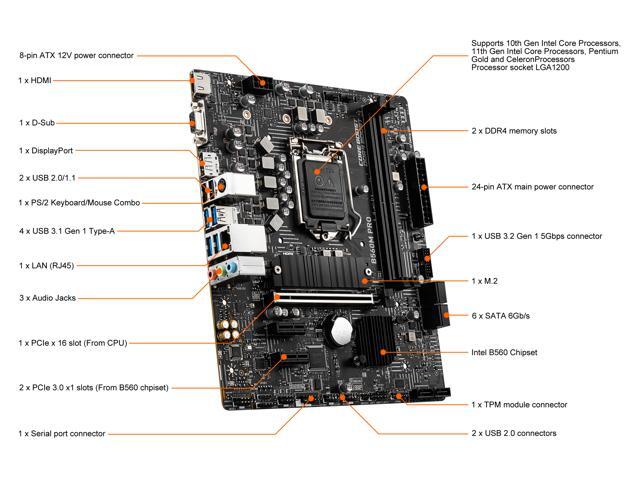

Back I/O Ports	1 x DisplayPort / 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 Type-A
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	6 x SATA 6Gb/s connectors 1 x M.2 slot (M-Key) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning Controller Connector

Physical Spec
Form Factor	Micro ATX

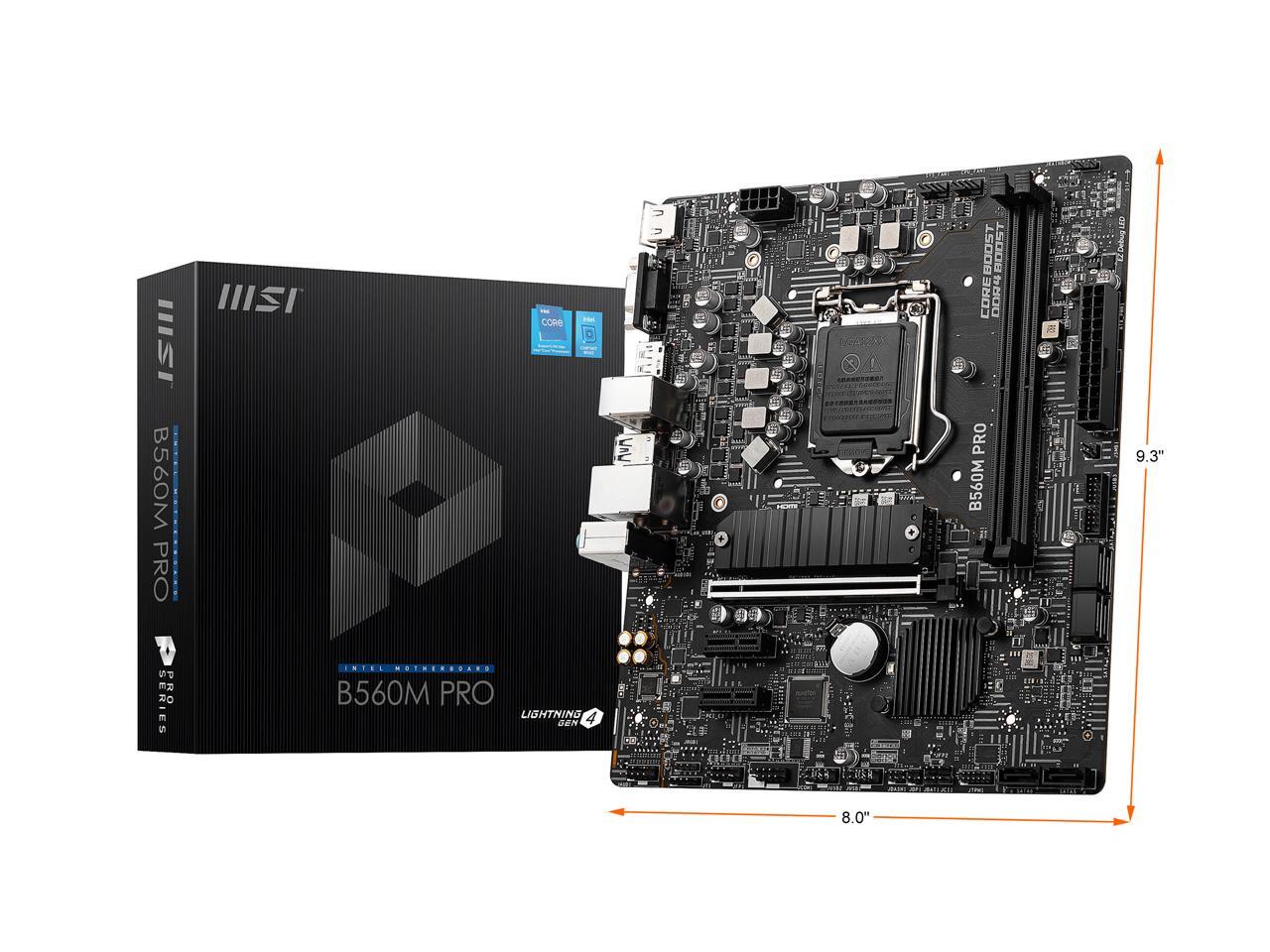

Dimensions (W x L)	9.3" x 8.0"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Packaging

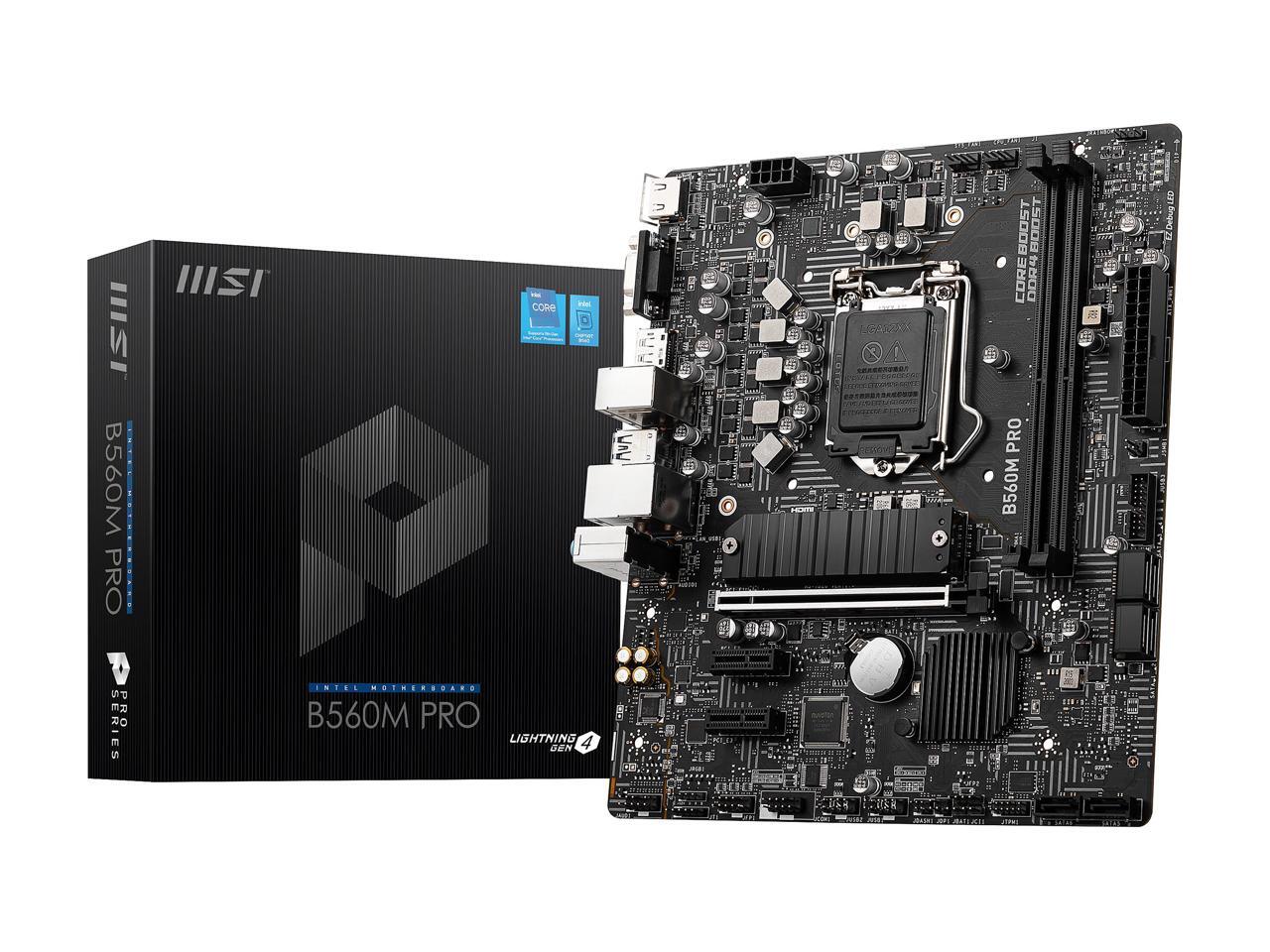

Package Contents	MSI B560M PRO MSI Case Badge M.2 Screw / Standoff Set 2 x SATA Cables Driver DVD I/O Shield Product Registration Quick Installation Guide

Additional Information
Date First Available	May 07, 2021
