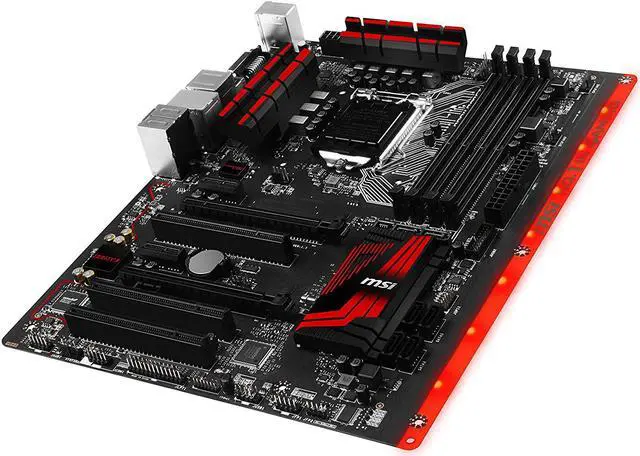

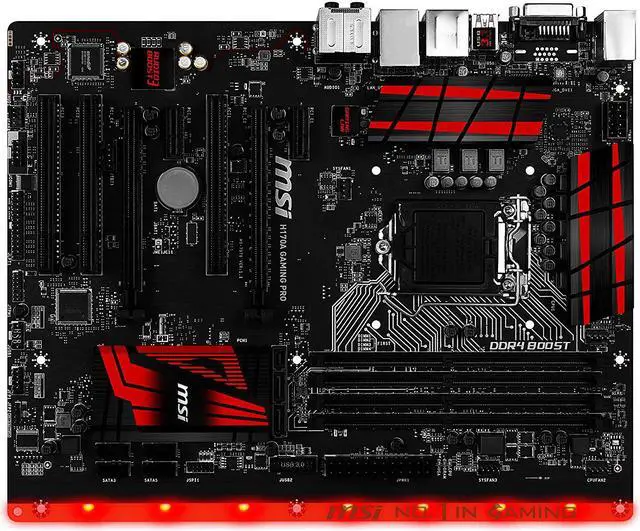

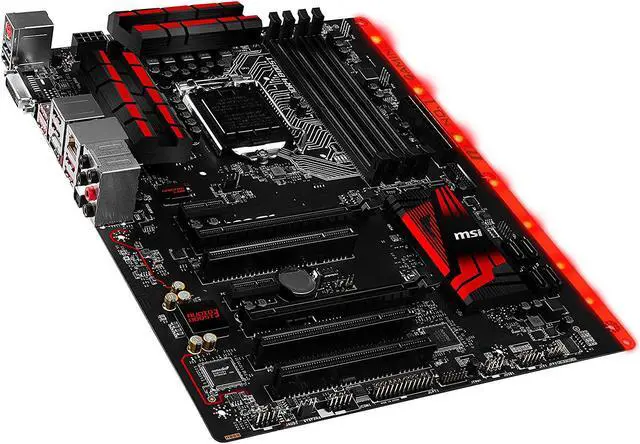

MSI MSI Gaming H170A Gaming Pro LGA 1151 Intel H170 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard
Learn more about the MSI H170A Gaming Pro
Model
Brand
MSI
Series
MSI Gaming
Model
H170A Gaming Pro
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipsets
Chipset
Intel H170
Onboard Video
Onboard Video Chipset
Intel HD 5000/4000 Series
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
2 x PCIe 3.0 x16 slots** The PCI_E4 slot will only run PCIe 3.0 x1 speed when the PCI_E1 or PCI_E3 slot is installed a device.
PCI Express x1
2 x PCIe 3.0 x1 slots
PCI Slots
3 x PCI Slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s ports** SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.
SATA Express
1 x SATAe port (PCIe 3.0 x2)**** SATAe port is backward compatible with SATA.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1150
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Rear Panel Ports

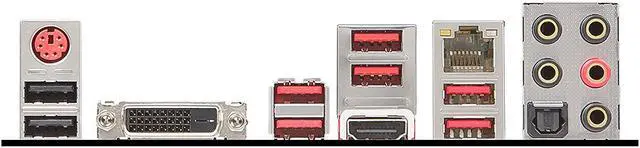

Back I/O Ports
1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 6 x USB 3.1 Gen 2 Type-A
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen2 ports4 x USB 3.1 Gen1 ports
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 x OFC audio jacks
Internal I/O Connectors
Onboard USB
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x 4-pin CPU fan connectors3 x 4-pin system fan connectors1 x Front panel audio connector2 x Front panel connectors1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper1 x Serial port connector1 x Parallel port connector
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socketSupports DDR4-2133 Memory. Supports ECC, un-buffered memoryDDR4 Boost: Give your DDR4 memory a performance boostUSB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connectionUSB 3.1 Gen2 Type-A + SATA EXPRESS 10 Gb/s + SATA 6Gb/sMystic Light: Customize and set up your own color scheme with GAMING APP to make your PC look & feel brand new!GAMING LAN powered by Intel: The best online gaming experience with lowest latencyLAN Protect: 15KV Anti-surge protection with stylish red LEDAudio Boost 3: Reward your ears with studio grade sound qualityMilitary Class 5: The latest evolution in high quality components featuring the brand new Titanium ChokesGuard-Pro: Improved Protection and Power EfficiencyMULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD CrossfireOBS Streaming software: Share your gaming achievements with the world!EZ Debug LED: Easiest way to troubleshootOvercurrent Protection: Prevent Unforeseen DamageGAMING Hotkey: Launch your favorite games with a single buttonClick BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable fontSteelSeries Certified: Optimized for SteelSeries gaming gearGAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
