Q: Will this card support 3840x2160 on both the hdmi 2.0 and display port 1.2 ports at the same time? (looking at dual 40" UHD setup

The specifications are: Display Support: 5120x3200Maximum Digital Resolution* 2048x1536Maximum VGA Resolution Dual Link DVI-I, HDMI 2.0, 3x DisplayPort 1.2 Standard Display Connectors 4 displaysMulti Monitor YesHDCP Internal * 5120x3200 at 60Hz with dual DisplayPort connectors.

Q: Does this come with a 6-pin adapter for the PSU?

No, it just comes with a small pamphlet and an installation CD you probably don't need.

Q: Will this work with my motherboard? GIGABYTE GA-B85M-DS3H-A LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Yes it will. I have the exact same motherboard and I am using this GPU with good performance. My benchmarks for 3DMark are 6713. The board and the card are both PCIE 3.0x16, so you will milk every last drop of performance out of this card. A great combination!

Q: Can anyone confirm if this card has dual support for legacy and UEFI bios? MSI claims that it does but I am wary of purchasing a product just to have to RMA it a few days later. EVGA's GTX 950 model, by comparison, is strictly UEFI. Currently using an MSI 760GM-P34 motherboard (part of a pre-built system) that does not support UEFI, only legacy BIOS. Assuming this card has dual support, I'd like to use it with my current motherboard until I am able to upgrade my case and motherboard.

if msi says it does can`t argue with that

Q: I am trying to overclock this card using Afterburner. I cannot adjust core voltage. The promotional information says this has "GPU Boost 2.0 Technology" & "Unlock voltage". Anyone else have same problem and find a solution?

Disclaimer: Overclocking will void your warranty and may damage your card if done improperly, proceed with caution! I wouldn't increase the voltage unless your overclock isn't stable. Even then, only increase by the smallest possible amount and see if it holds stable. In the afterburner settings, about half way down in the compatibility settings section, you'll need to make sure that all check boxes are checked, EXCEPT "Force Consistent Voltage". check/uncheck what you need, click ok. and reboot the computer. if that still doesn't work, you can edit the afterburner.cfg file in C:\Program Files (x86)\MSI Afterburner you'll need to close the Afterburner application first. then edit the config file. look for the entry: UnofficialOverclockingEULA = 0 you should change it to this: UnofficialOverclockingEULA = I confirm that I am aware of unofficial overclocking limitations and fully understand that MSI will not provide me any support on it save the cfg file and reboot your computer.

Q: How bis is the fan?

Hello, Thank you for contacting us in regards to your question. The best way to confirm specs is actually by checking the manufacturer's website (that's where we get them). Click on the Warranty & Returns tab on the item page, and you'll find a link to the item on the manufacturer's own site with the most up-to-date details. Thank you, Newegg Support

Question 1

will this fit in my Dell Optiplex 780 (desktop) mobo ?

Accepted Answer

Okay from what I can find online it will fit. Only if your case is big enough. I found this; "NOTE: MT supports full height card, DT supports l ow profile card or full height card with optional ri ser. SFF
supports low profile card."
So depending on which version you have the card might be too high for the case.
If you just google your computer "Optiplex 780" on google on dells website you can read all about the computer

You would also need to upgrade your power supply if you want this card. 180W-400W is not enough.

Question 2

Does this card have a backplate?

Accepted Answer

I ve not installed it yet, it is a double card and takes up two slot spaces. I have a 2.0 pci bus so i wont get the all the  speed and all the functions. Ive looked at the spects and it looks like a great grapics card It does have a vented rear plate and fan. there is a picture. just roll your mouse over the small  picture  and it will enlarge

Question 3

I bought this video card at Newegg, to use with my new UHD TV. Problem is, I don't see the 4096 or 3840 resolution option when trying to set it up, the highest the dropdown menu goes is to 1920.
My PC runs Windows 10 Home, downloaded the latest drivers from NVIDIA website, my TV is a Samsung UN65JU6500 and I tried connecting it with both HDMI 2.0 and Display Port.
Can I get some advise from MSI or Newegg on this please?
Thank you!

Accepted Answer

I am not an expert but this is what I found. Make sure your HDMI cable is a High Speed 2.0 HDMI cable. That may make a difference. If your tv will accept a pc monitor cable you can use that as well. When I make display changes I find that windows settings are basic and limited so I use the Nvidia Control panel.  Right click the desktop and select Nvidia control panel and expand the display selection. My HD TV shows it at 1080P (native) which is right for my cheap tv.  There is a customize button below which allows you to set the resolution you want.  Click the customize button. In the popup window click enable resolutions not exposed... and create custom resolution. A warning will appear and after ok you will be able to set a custom resolution.  A higher res. may not work with an older hdmi cable. Search for connecting pc to uhd tv and you will find several articles. I looked at the Cnet one. Hope this helps.

Question 4

Has anybody tried to overclock this card.  What were your settings?

Accepted Answer

I have been able to OC just a little bit... currently my most stable on MSI AFTERBURNER is:
Core Voltage: Unable to change
Power Limit: 117
Temp Limit: 80      <-- Not linked and priority is set to temp
Core Clock: +150
Memory Clock: +300
Fan Speed: Auto

And i haven't found a fix for the voltage unlock.... :(

Question 5

Will this card support 3840x2160 on both the hdmi 2.0 and display port 1.2 ports at the same time? (looking at dual 40" UHD setup

Accepted Answer

The specifications are:
Display Support:
5120x3200Maximum Digital Resolution*
2048x1536Maximum VGA Resolution
Dual Link DVI-I, HDMI 2.0, 3x DisplayPort 1.2 Standard Display Connectors
4 displaysMulti Monitor
YesHDCP
Internal

* 5120x3200 at 60Hz with dual DisplayPort connectors.

Question 6

Does this come with a 6-pin adapter for the PSU?

Accepted Answer

No, it just comes with a small pamphlet and an installation CD you probably don't need.

Question 7

Will this work with my motherboard? GIGABYTE GA-B85M-DS3H-A LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Accepted Answer

Yes it will. I have the exact same motherboard and I am using this GPU with good performance. My benchmarks for 3DMark are 6713. The board and the card are both PCIE 3.0x16, so you will milk every last drop of performance out of this card. A great combination!

Question 8

Can anyone confirm if this card has dual support for legacy and UEFI bios? MSI claims that it does but I am wary of purchasing a product just to have to RMA it a few days later. EVGA's GTX 950 model, by comparison, is strictly UEFI.

Currently using an MSI 760GM-P34 motherboard (part of a pre-built system) that does not support UEFI, only legacy BIOS. Assuming this card has dual support, I'd like to use it with my current motherboard until I am able to upgrade my case and motherboard.

Accepted Answer

if msi says it does can`t argue with that

Question 9

I am trying to overclock this card using Afterburner.  I cannot adjust core voltage.  The promotional information says this has "GPU Boost 2.0 Technology" & "Unlock voltage".  Anyone else have same problem and find a solution?

Accepted Answer

Disclaimer: Overclocking will void your warranty and may damage your card if done improperly, proceed with caution!

I wouldn't increase the voltage unless your overclock isn't stable. Even then, only increase by the smallest possible amount and see if it holds stable.

In the afterburner settings, about half way down in the compatibility settings section, you'll need to make sure that all check boxes are checked, EXCEPT "Force Consistent Voltage".

check/uncheck what you need, click ok. and reboot the computer.

if that still doesn't work, you can edit the afterburner.cfg file in C:\Program Files (x86)\MSI Afterburner

you'll need to close the Afterburner application first. then edit the config file.
look for the entry:
UnofficialOverclockingEULA = 0

you should change it to this:
UnofficialOverclockingEULA = I confirm that I am aware of unofficial overclocking limitations and fully understand that MSI will not provide me any support on it

save the cfg file and reboot your computer.

Question 10

How bis is the fan?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.

The best way to confirm specs is actually by checking the manufacturer's website (that's where we get them). Click on the Warranty & Returns tab on the item page, and you'll find a link to the item on the manufacturer's own site with the most up-to-date details.

Thank you,
Newegg Support

Brand	MSI
Model	GTX 950 2GD5 OC

Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce GTX 900 Series
GPU	GeForce GTX 950
Core Clock	1076 MHz
Boost Clock	1253 MHz

Effective Memory Clock	6610 MHz
Memory Size	2GB
Memory Interface	128-Bit
Memory Type	GDDR5

DirectX	DirectX 12
OpenGL	OpenGL 4.5

Multi-Monitor Support	4
HDMI	1 x HDMI (1.4a/2.0)
DisplayPort	1 x DisplayPort 1.2
DVI	1 x Dual-link DVI-I 1 x Dual-link DVI-D

Meet Your Seller

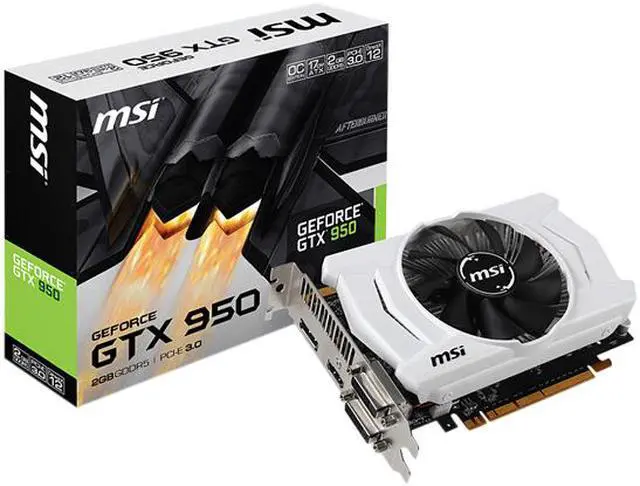

MSI GeForce GTX 950 2GB GDDR5 PCI Express 3.0 x16 SLI Support Graphics Card GTX 950 2GD5 OC

Learn more about the MSI GTX 950 2GD5 OC

Customer Reviews of the MSI GTX 950 2GD5 OC

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

RAMDAC	400MHz
Max Resolution	4096 x 2160
3D VISION Game Ready	Yes
SLI Support	2-Way SLI
Cooler	Single Fan
Thermal Design Power	90W
System Requirements	Power consumption: 90W Recommended Power Supply: 350W
Power Connector	6-Pin
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Form Factor & Dimensions
Card Dimensions (L x H)	6.69" x 4.37"
Slot Width	2 Slots
