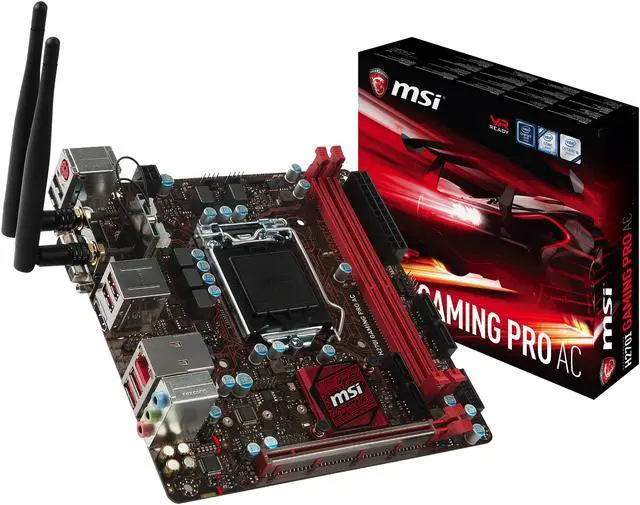

MSI H270I GAMING PRO AC LGA 1151 Intel H270 HDMI USB 3.1 Mini ITX Motherboards - Intel
- Intel H270
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- 7th Gen processors support DDR4 2400/ 2133
- 6th Gen processors support DDR4 2133
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI H270I GAMING PRO AC
| Brand | MSI |
|---|---|
| Model | H270I GAMING PRO AC |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel H270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | 7th Gen processors support DDR4 2400/ 2133 6th Gen processors support DDR4 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| Other Slots | 1 x M.2 Wi-Fi/ Bluetooth module vertical slot (Key E) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s ports* * The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_2 slot. |
|---|---|
| M.2 | 1 x M.2 slot (Key M slot on the bottom of the motherboard) - Supports up to PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260 /2280 storage devices - Intel Optane Memory Ready |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi/ Bluetooth expansion module with Intel Dual Band Wireless-AC 8265 chip - Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed. |
| Bluetooth | Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 |

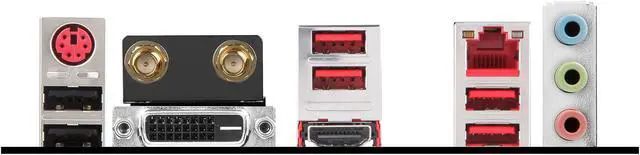

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 Type-A ports |
| USB 1.1/2.0 | 2 x USB 2.0 Type-A ports |
| Audio Ports | 3 x audio jacks |
| Antenna Connectors | 2 x antenna connectors |
| Onboard USB | 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED connecotr 1 x Clear CMOS jumper |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| Features | Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-2400 Memory (Max.) DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency Lightning Fast Game experience: Turbo M.2, Intel Optane Memory Ready Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience GAMING LAN: The best online gaming experience with lowest latency and bandwidth management Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| First Listed on Newegg | January 31, 2017 |
|---|
