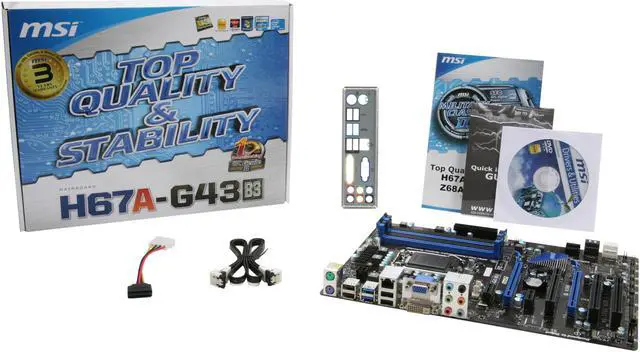

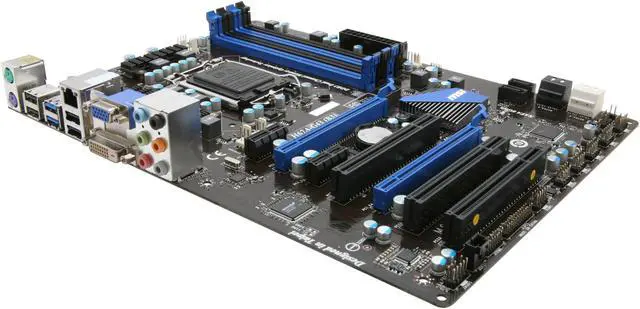

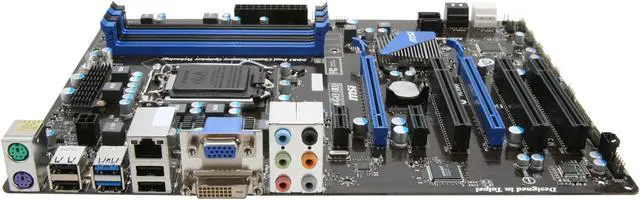

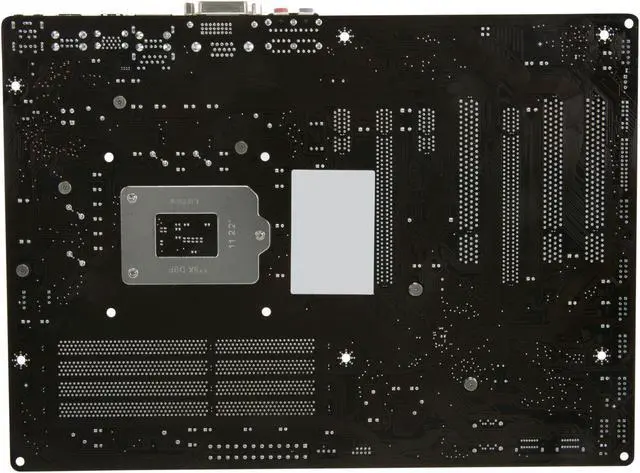

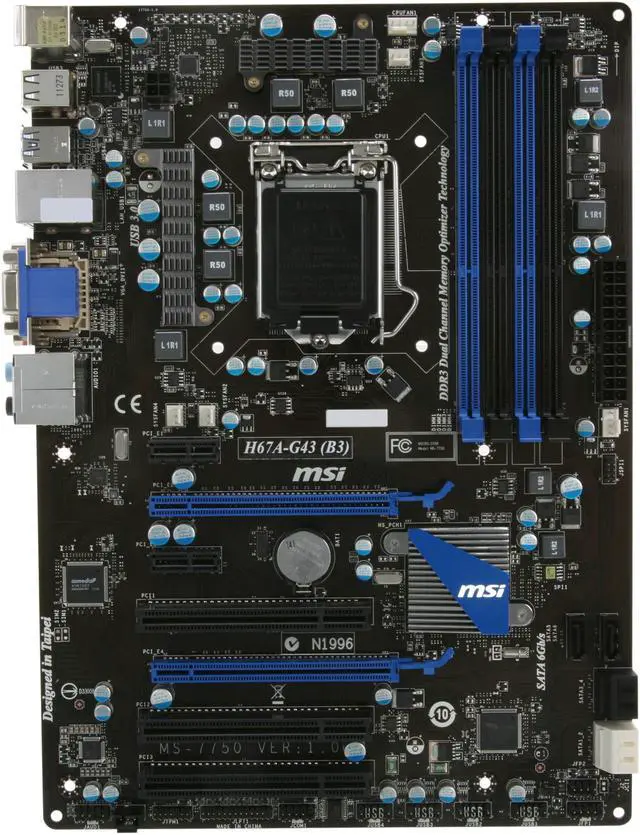

MSI H67A-G43 (B3) LGA 1155 Intel H67 USB 3.0 ATX Intel Motherboard

(34) Write a Review
  • Intel H67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1066 / 1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (34)

Learn more about the MSI H67A-G43 (B3)

Model
Brand MSI
Model H67A-G43 (B3)
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset Intel H67
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1066 / 1333
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Other Connectors ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU x 1 / System x 3 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x SPDIF-out connector
1 x TPM module connector
1 x Serial port connector
1 x Parallel port connector
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.66"
Power Pin 24 Pin
Features
Features OC Genie II: Auto OC to boost performance in 1 sec

THX TruStudio PRO: deliver the fullest audio experience for games, music and movies

IGP Supports DirectX 10.1, Shader Model 4.1 and OpenGL 3.0

Support USB 3.0 & SATA 6Gb/s
Additional Information
Date First Available August 05, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
