Brand | MSI |
---|---|
Series | Hetis |
Model | 865GV-E |
CPU Type | Intel Pentium 4 / Celeron |
---|---|
CPU Socket | Intel Socket 478 |
FSB | 800/533 MHz |
North Bridge | Intel 865GV |
---|---|
South Bridge | ICH5 |
Memory slot | 2 x 184Pin DIMM |
---|---|
Memory Type Supported | DDR 400/333 |
Max Memory Supported | 2GB |
PCI | 2 |
---|
IDE ATA | 2 x ATA 100 |
---|---|
Serial ATA | 2 x SATA 1.5Gb/s |
Onboard Video | Intel Extreme Graphics 2 |
---|---|
Video Memory | Shared |
Onboard Audio | Realtek ALC650 |
---|---|
Channel | 6-CH |
First LAN | 10/100/1000 LAN |
---|---|
Max LAN Speed | 10/100/1000Mbps |
3.5" Internal bays | 1 |
---|---|
3.5" External bays | 1 |
5.25" External bays | 1 |
Front USB | 4 |
---|---|
Front IEEE 1394 | 1 |
Front Audio Ports | 2 jacks |
Front S/PDIF Out | Yes |

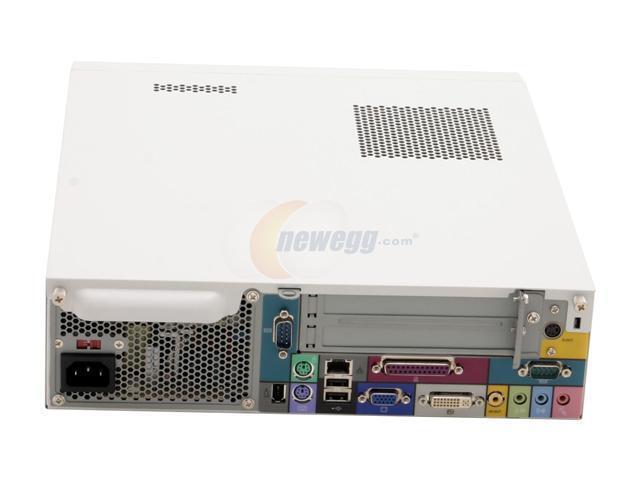

PS/2 | 2 |
---|---|
COM | 2 |
LPT | 1 |
VGA | 1 x D-sub 1 x DVI |
TV-Out | S-Video + RCA |
Rear USB | 2 |
Rear IEEE 1394 | 1 |
RJ45 | 1 |
Rear Audio Ports | 3 jacks |

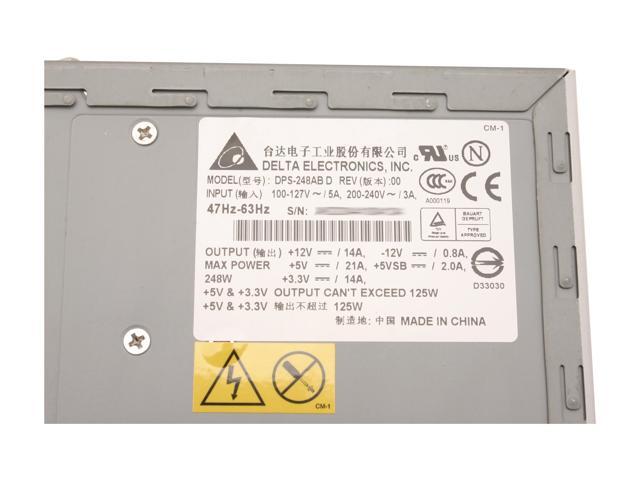

Power Supply | 245 ~ 250W Max |
---|
Dimensions | 3.2" x 12.2" x 13.6" |
---|

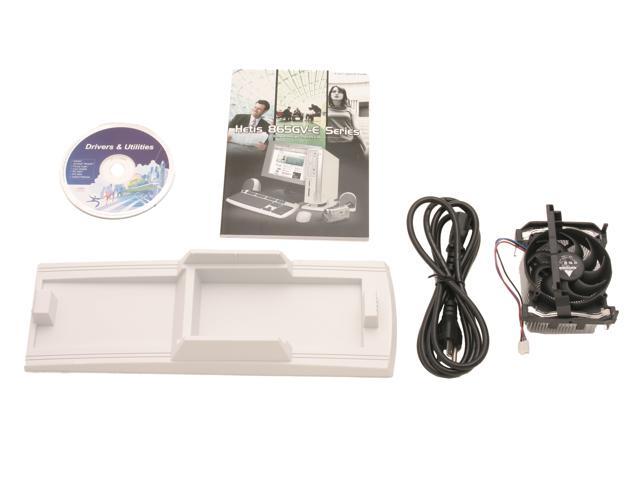

Package Contents | 865GV-E Driver Disk User Manual Vertical Stand Power Cord CPU Heatsink & Fan |
---|
Date First Available | February 09, 2005 |
---|
Pros: Really a beauty. Compact, yet easy to handle and install everything. Paired with a celeron prescott 2.1GHz, works like a charm for Media Center, even with the integrated 865G Intel video, as long as you turn off the "check for media center compliancy". Even tried with 720p video, smooth as silk.
Cons: Not really any that i can see, apart from only 2 PCI, no AGP. Although is worth mentioning that the included CPU fan is effective, but a tad hard to install. And the video memory allocation is limited to only 16 MB. But as said earlier, works fine in MCE 2005.
Overall Review: If i had to buy again, i would. The Intel 865 chipset was and still is a great performer.
