Brand | MSI |
---|---|
Model | K8N NEO3-F |
CPU Socket Type | 754 |
---|---|
CPU Type | Athlon 64 / Sempron |
FSB | 800 MHz |
Chipset | NVIDIA nForce4 4X |
---|
Number of Memory Slots | 2x184pin |
---|---|
Memory Standard | DDR 400 |
Maximum Memory Supported | 2GB |
AGP Slots | One AGR (Advanced Graphics Riser) slot The AGR slot is a special design that only supports compatible AGP VGA cards |
---|---|
PCI Express x16 | 1 x PCI Express x16 |
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 3 x PCI Slots |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
PATA RAID | NV RAID 0/1/0+1 JBOD |
SATA 1.5Gb/s | 4 x SATA 1.5 Gb/s |
SATA RAID | NV RAID 0/1/0+1 JBOD |
Onboard Video Chipset | None |
---|
Audio Chipset | Realtek ALC655 |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | Marvell 88E1111 PHY |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
LPT | 1 |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 3 x USB 2.0 connectors suppot 6 ports |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 11.7" x 7.3" |
Power Pin | 24 Pin |

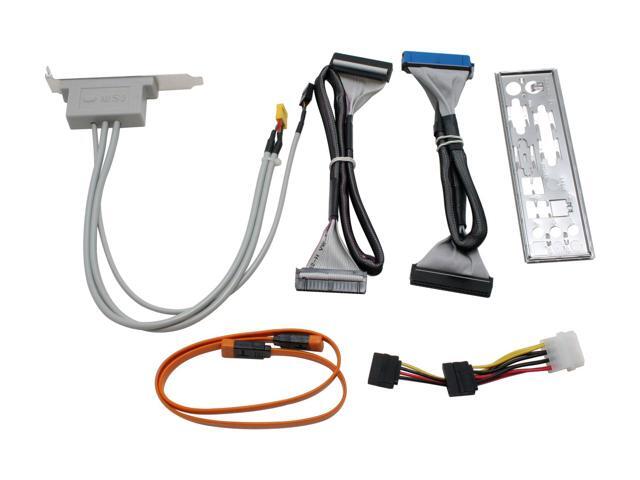

Package Contents | K8N NEO3-F User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Floppy Drive Diskette USB Bracket |
---|
Date First Available | April 18, 2005 |
---|
Pros: running at 202fsb with two sticks of double sided ram, 1 ultra 512 + 1 supertalent 512. Had to manually up the fsb a little in the bios to get away from 333. Chaintech fx5200 agp, not listed and works flawlessly.
Cons: none that I can see so far
Overall Review: agp and pci express together, what a concept. Havent tried the pci express yet but if it works like the rest of the board im sure it will be fine
