MSI MAG B550M BAZOOKA AM4 AMD B550 Micro ATX AMD Motherboard
REFURBISHED Product Type
- AMD B550
- Supports AMD Ryzen 5000 / 4000 G / 3000 Series processors
- * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
- DDR4 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (A-XMP OC MODE)
- DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (JEDEC)
- 1DPC 1R max speed 4400
- 1DPC 2R max speed 3733
- 2DPC 1R max speed 3866
- 2DPC 2R max speed 3466
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MAG B550M BAZOOKA
| Brand | MSI |
|---|---|
| Model | MAG B550M BAZOOKA |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 / 4000 G / 3000 Series processors * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (A-XMP OC MODE) DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (JEDEC) 1DPC 1R max speed 4400 1DPC 2R max speed 3733 2DPC 1R max speed 3866 2DPC 2R max speed 3466 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): M2_1 slot (from AMD processor): Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices M2_2 slot (from AMD B550 chipset): Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC892/ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111HN |
|---|---|
| Max LAN Speed | 1Gbps |

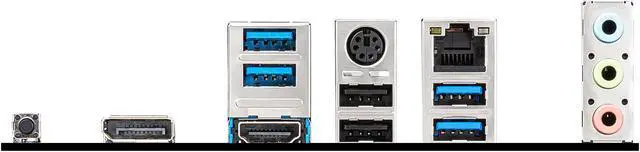

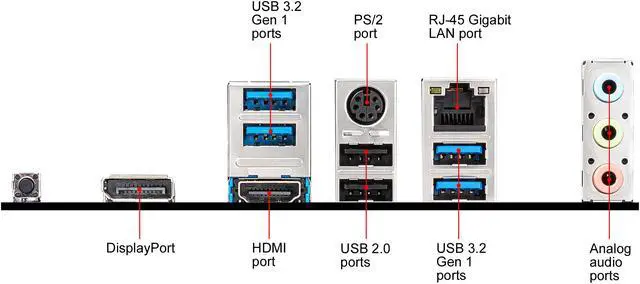

| Back I/O Ports | 1 x Flash BIOS Button 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 3 x Audio Jacks 2 x USB 2.0/1.1 4 x USB 3.2 Gen 1 Type-A |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors Supports DDR4 Memory, up to 4400+(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience Gigabit LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Enhanced Power Design: 4+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions |
|---|
| First Listed on Newegg | December 14, 2021 |
|---|
