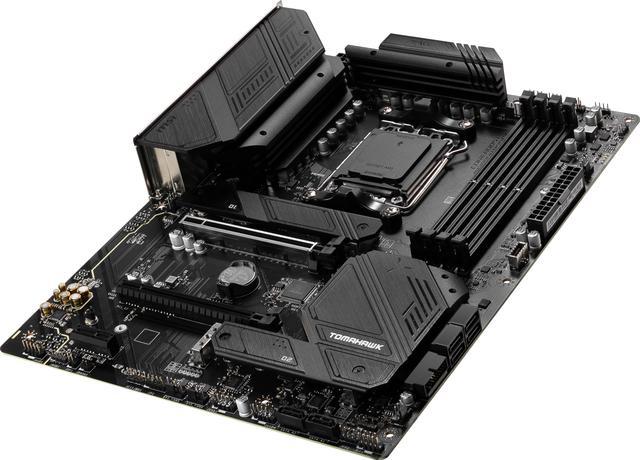

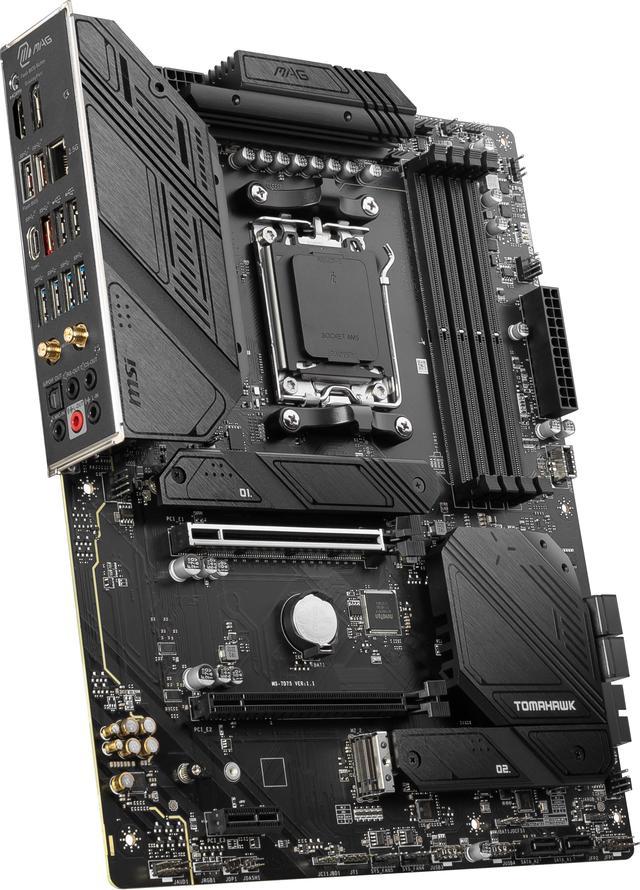

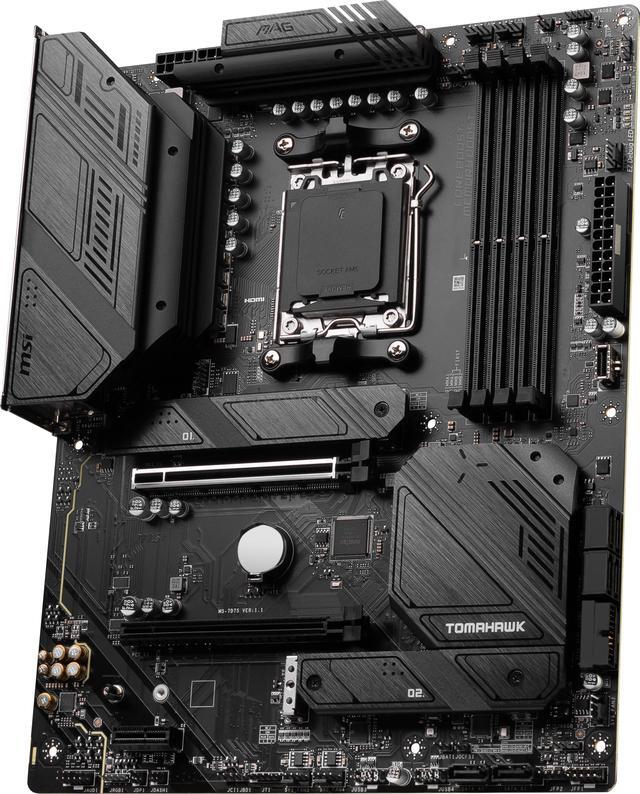

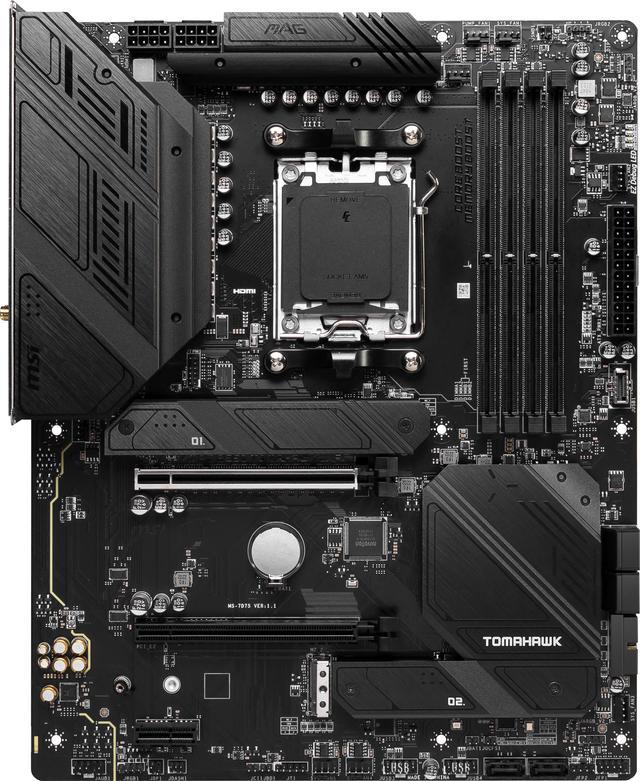

MSI MAG B650 TOMAHAWK WIFI AM5 AMD B650 SATA 6Gb/s DDR5 Ryzen 7000 ATX Motherboard

REFURBISHED Product Type
(9)(2) Write a Review
  • Supports AMD Ryzen 7000 Series Processor
  • Bios update MAY required when used with 9000 Series processor
  • 4 DIMMs, Dual Channel DDR5 Support
  • Premium Thermal Design for High Performance
  • Lightning Gen4 Solution for Speed
  • M.2 Shield FROZR for SSD Safety
  • Wi-Fi 6E for Fast Wireless Connection
  • 2.5G Network Solution for Better Connectivity
  • Lightning USB 20G for Fast Data Transfer
  • Audio Boost 5 for Immersive Gaming
  • Memory Boost for Best Performance
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (9)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI MAG B650 TOMAHAWK WIFI

Model
Brand MSI
Model MAG B650 TOMAHAWK WIFI
Supported CPU
CPU Socket Type AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processor
Chipsets
Chipset AMD B650
South Bridge Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC)
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Supports non-ECC, un-buffered memory
Supports ECC UDIMM memory (non-ECC mode)
Expansion Slots
PCI Express 4.0 x16 2x PCIe x16 slots
Supports x16/x2
PCI_E1 slot (From CPU)
- Supports up to PCIe 4.0 x16
PCI_E2* (From B650 chipset)
- Supports up to PCIe 4.0 x2

* PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.
PCI Express x1 1x PCIe x1 slot
PCI_E3 slot (From B650 chipset)
- Supports up to PCIe 3.0 x1
Storage Devices
Serial ATA (SATA) 6x SATA 6Gb/s ports (From B650 chipset)
- SATA_1_2/ SATA_3_4 (From B650 chipset)
- SATA_A1_A2 (From ASM1061)
M.2 3 x Key M (PCIe) + 1 x Key E (WiFi/BT)

3x M.2 slots (Key M)
M2_1 & M2_2 slot (From CPU)
- Supports up to PCIe 4.0 x4
- M2_1 supports 2280/ 22110 storage devices
- M2_2 supports 2260/ 2280 storage devices
M2_3 slot (From B650 chipset)
- Supports up to PCIe 4.0 x4*
- Supports 2260/ 2280 storage devices

* M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1 & SATA_A2 do not support RAID function.
Onboard Audio
Audio Chipset Realtek ALC4080
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 1x Realtek 8125B 2.5Gbps LAN controller
Max LAN Speed 2.5Gbps
Wireless LAN AMD Wi-Fi 6E RZ616
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands*
- Supports 802.11 a/ b/ g/ n/ ac/ ax

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11.
Bluetooth Supports Bluetooth 5.2*
* Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.

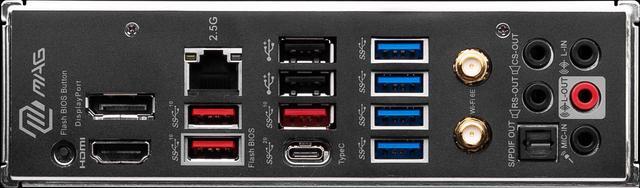

Rear Panel Ports
Back I/O Ports 1x Flash BIOS button
1x DP port
1x HDMI port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset)
2x USB 2.0 Type-A ports (From B650 chipset)
1x LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x audio jacks
1x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB 1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 connectors
- Supports additional 4 USB 2.0 ports
Other Connectors Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin System fan connectors

System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector

Jumpers
1x Clear CMOS jumper

LED Features
2x 4-pin RGB LED connector
2x 3-pin ARGB_V2 LED connectors
4x EZ Debug LED
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1x 24-pin ATX main power connector
2x 8-pin EPS 12V power connectors
Software Feature
Windows 11 Supported
Features
Features MSI Center Features
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic Light
- Ambient Link
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis

Thermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad / Extra choke pad
- Fan headers (CPU + PUMP + SYSTEM)

Performance
- Core Boost
- VRM Power Design
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E / M.2 Slot
- Front USB Type-C
- Server Grade PCB
- 2oz Copper thickened PCB

DIY Friendly
- PCI-E Steel Armor
- Pre-installed I/O Shield
- EZ M.2 Clips
- EZ DEBUG LED
- EZ LED Control
- Flash BIOS Button

RGB Support
- Mystic Light
- Mystic Light Extension (RGB)
- Mystic Light Extension (ARGB_V2)
- Ambient Devices Support

BIOS Features
- 1x 256 Mb flash
- UEFI AMI BIOS
- ACPI 6.4, SMBIOS 3.4
- Multi-language
Additional Information
Date First Available March 18, 2024
