Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
Extended Heatsink Design: MSI extended PWM heatsink, and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
5G Network solution: Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.
DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
Extended Heatsink Design: MSI extended PWM heatsink, and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
5G Network solution: Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.
DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

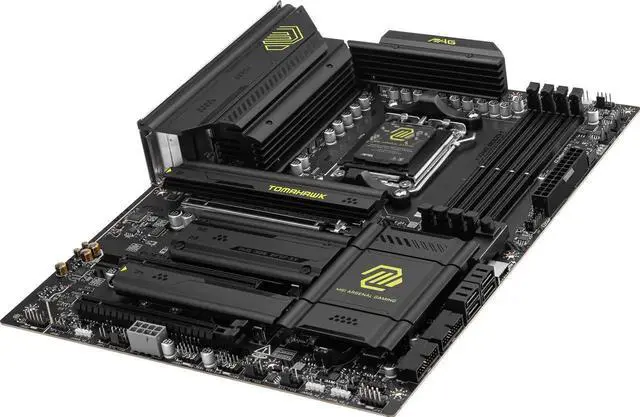

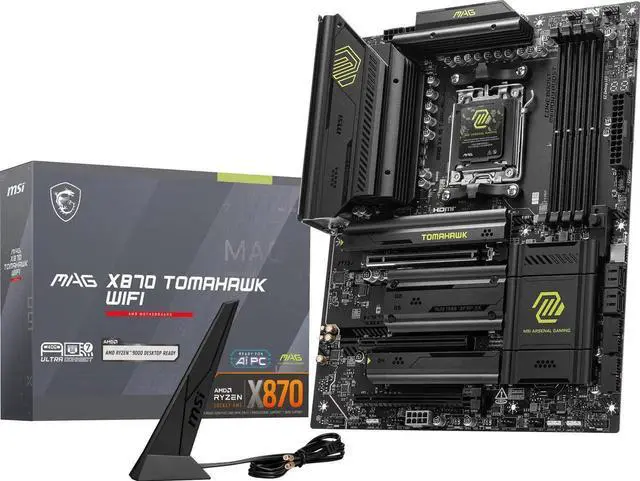

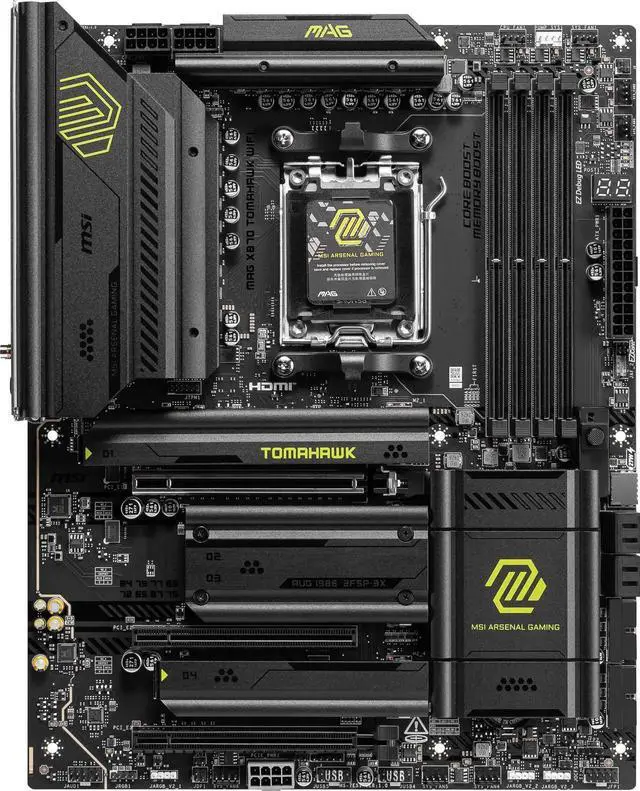

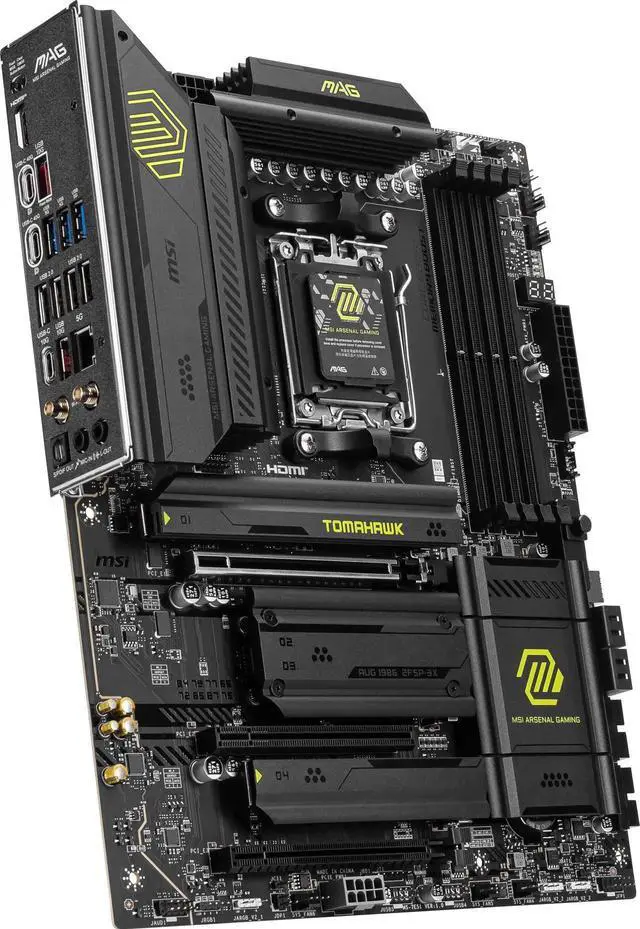

Learn more about the MSI MAG X870 TOMAHAWK WIFI
Model
Brand
MSI
Model
MAG X870 TOMAHAWK WIFI
Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen Series
Chipsets
Chipset
AMD X870
Memory
Number of Memory Slots
4x288pin (DDR5)
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Expansion Slots
PCI Express 5.0 x16
PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16
PCI Express x4
PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4
PCI Express x1
PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
M2_1 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2280/110 storage devices M2_2 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2260/80 storage devices M2_3 slot (From Chipset) - Supports up to PCIe 4.0 x2 - Supports 2260/80 storage devices M2_4 slot (From Chipset) - Supports up to PCIe 4.0 x4 - Supports 2260/80 storage devices * The M2_2 slot will be unavailable when using Ryzen 5 8500G processor. ** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot
SATA RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset
Realtek ALC4080
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek 8126-VB
Max LAN Speed
5Gbps
Wireless LAN
Wi-Fi 802.11 be
Bluetooth
Bluetooth 5.4

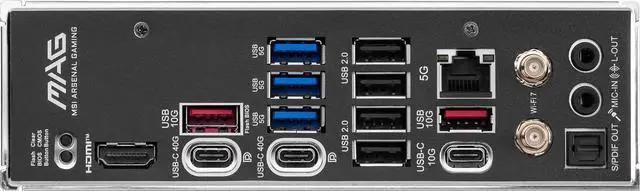

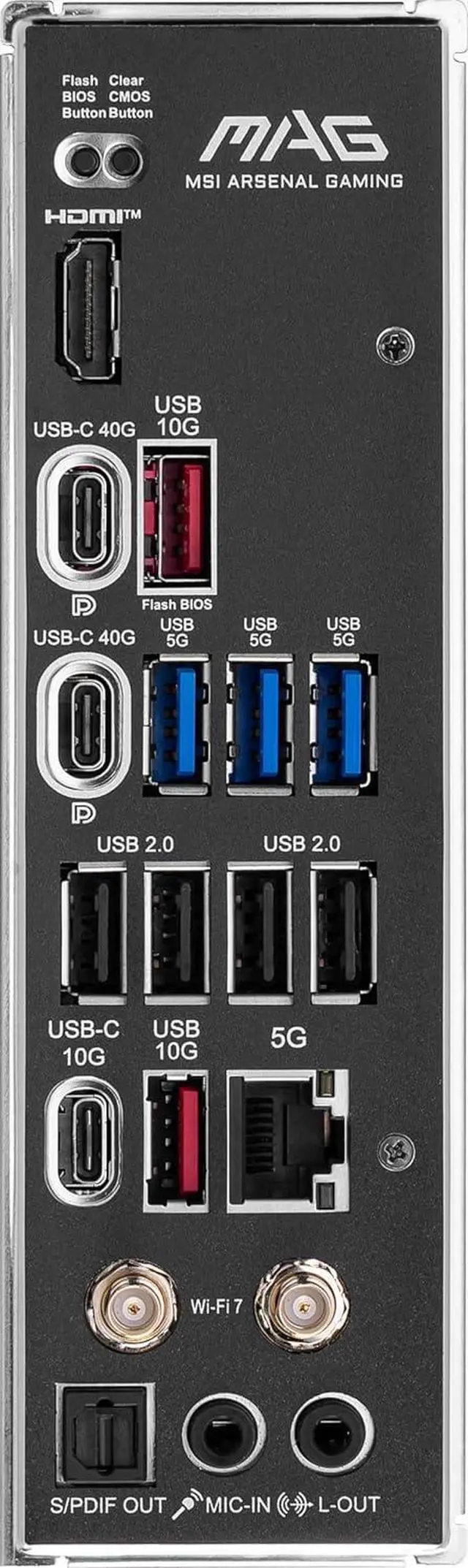

Rear Panel Ports
Back I/O Ports
1 x Flash BIOS button 1 x Clear CMOS button 1 x HDMI port 1 x USB 10Gbps Type-A (From CPU) 1 x USB 10Gbps Type-A (From X870 chipset) 1 x USB 10Gbps Type-C (From X870 chipset) 2 x USB 40Gbps Type-C (From ASM4242) 3 x USB 5Gbps Type-A (From GL3523) 4 x USB 2.0 Type-A ports (From GL850) 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi Antenna connectors 2 x audio jacks 1 x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB
AMD X870 Chipset - 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging - 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports - 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports
Other Connectors
Fan Connectors - 1x 4-pin CPU fan connector - 6x 4-pin system fan connectors - 1x 4-pin water-pump/ system fan connector - 1x EZ Conn-Header V2 (JAF_2 with 11-Pin)
System Connectors - 1x Front panel audio connector - 2x System panel connectors - 1x Chassis Intrusion connector - 1x TPM module connector
1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED 1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Power Connector (ATX_PWR) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR)
Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player (BlueStacks) Norton 360
Features
Features
MSI Center Features - MSI AI Engine - Game Highlights - Frozr AI Cooling - Hardware Monitoring - Live Update - MSI Companion - System Diagnosis - Cooling Wizard - LAN Manager - Mystic Light - Ambient Link - True Color - User Scenario - Super Charger +
Thermal Features - K7 MOSFET thermal pad / K5 Extra choke pad - Extended Heatsink Design - Fan headers (CPU + Combo+PUMP + SYSTEM) - M.2 Shield Frozr
Performance - Lightning Gen 5 PCI-E Slot / M.2 - Lightning Gen 4 PCI-E Slot / M.2 - Front USB Type-C - USB with PD - Supplemental PCIe Power Connector - Core Boost - Dual CPU Power - Memory Boost - Server Grade PCB - 2oz Copper thickened PCB
DIY Friendly - EZ M.2 Sheild Frozr II - EZ M.2 Clip II - EZ PCIe Release - Flash BIOS Button - Clear CMOS Button - Pre-installed I/O Shield - EZ Antenna - EZ Front Panel Cable - EZ Conn-Design - PCI-E STEEL ARMOR II - EZ Digi-Debug LED - EZ LED Control
Audio - Audio Boost 5
RGB Support - Mystic Light - Mystic Light Extension (RGB) - Mystic Light Extension (ARGB V2) - Ambient Devices Support
BIOS - Click BIOS X - AI Boost - Performance Preset
