Exclusive to MEG class Z490 models, an active cooling design is ready to spin up when the VRM is loaded with power.
MOSFET backplates are constructed from solid metal for heat dissipation.
The stacked fin array has increased surface for heat dissipation. A 7W/mK thermal pad provides better heat transfer to the heatsink.
Connects the two MOS heatsinks to enlarge the heat dissipation surface.
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling with a double-sided sandwiching thermal design.
Connect Thunderbolt devices via USB Type-C and transfer at speeds up to 40 Gb/s.
Featuring the latest wireless solution, delivering speeds up to 2400Mbps and supports MU-MIMO and BSS color technology.

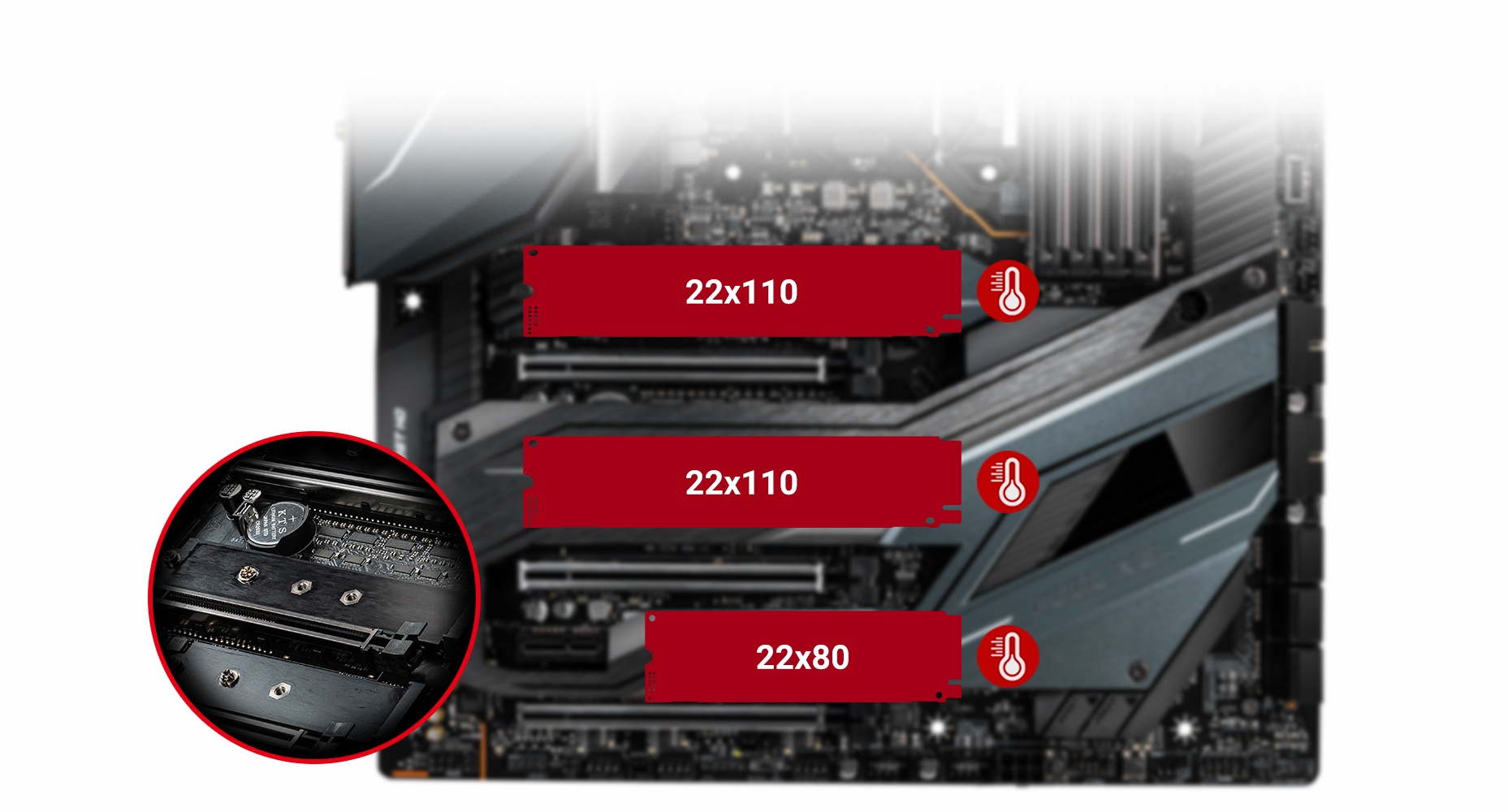

3 x M.2 slots running at PCI-E Gen3 x4 bandwidth for ultra-fast NVMe based SSDs.
Onboard 10G Super LAN, 2.5G LAN, and Wi-Fi 6 deliver responsive online experiences without lag.
Add two extra M.2 slots for ultra-fast SSDs and sustain maximum transfer speeds with the smart fan cooling design.
A rigid black metal backplate reinforces the motherboard against bending and twisting.
8 layer PCB improves signal transmission for extreme performance capabilities across the motherboard.
GODLIKE is built with 16 phases of 90A smart power stages to reliably drive the CPU during heavy workloads.
A dynamic OLED screen panel can display the status of the GODLIKE motherboard and more.
Reinforced and shielded slots for strength and protecting the point of connection from interference.
Onboard power and reset buttons.
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
- Customize colors
- Customize effects
GODLIKE features a dynamic OLED screen panel that can display the status of the GODLIKE motherboard – view a hardware monitor, read debug codes, and find other useful information. Furthermore, you can customize the display with GIF animations.
Stacked Fin Array, VRM Heatpipe, Frozr Heatsink, and MOSFET Baseplate keep temperatures in check and let the CPU power delivery system sustain extreme performance.
Sustain maximum M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a double-sided sandwiching thermal design that includes a heatsink that extends across the motherboard.
The power delivery system on MEG Z490 GODLIKE is built with an ISL Digital PWM, 16+1+1 phases with 90A Smart Power Stages, and dual CPU power connectors. Exclusive to MEG class models is Mirrored Power Arrangement on the Vcore phases for releasing true power.

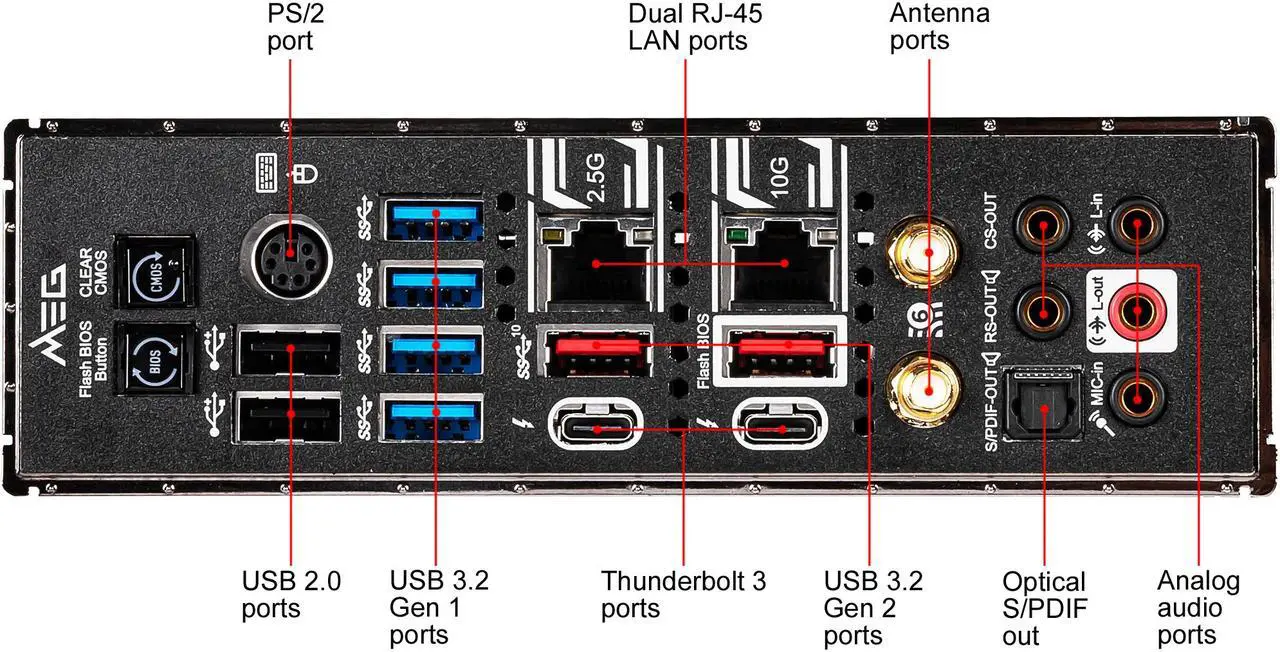

Two Thunderbolt 3 Type-C ports on GODLIKE each deliver unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices. Additionally, built in DisplayPort 1.4 output allows for compatible display devices to be attached.
MEG Z490 GODLIKE features a rigid metal backplate that reinforces the motherboard's edges along the connectors, preventing bending and twisting during installation that could potentially damage or dislodge surface mounted components.
Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The patent-pending design is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.
Crush enemies on the battlefield with MSI LAN Manager. Onboard 10G Super LAN, 2.5G LAN, and Wi-Fi 6 deliver responsive online experiences without lag. Work faster to play sooner with increased bandwidth to quickly transfer 4K video, raw images, and other large files.
Connect to a high-speed WIFI 6 network with onboard Wi-Fi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

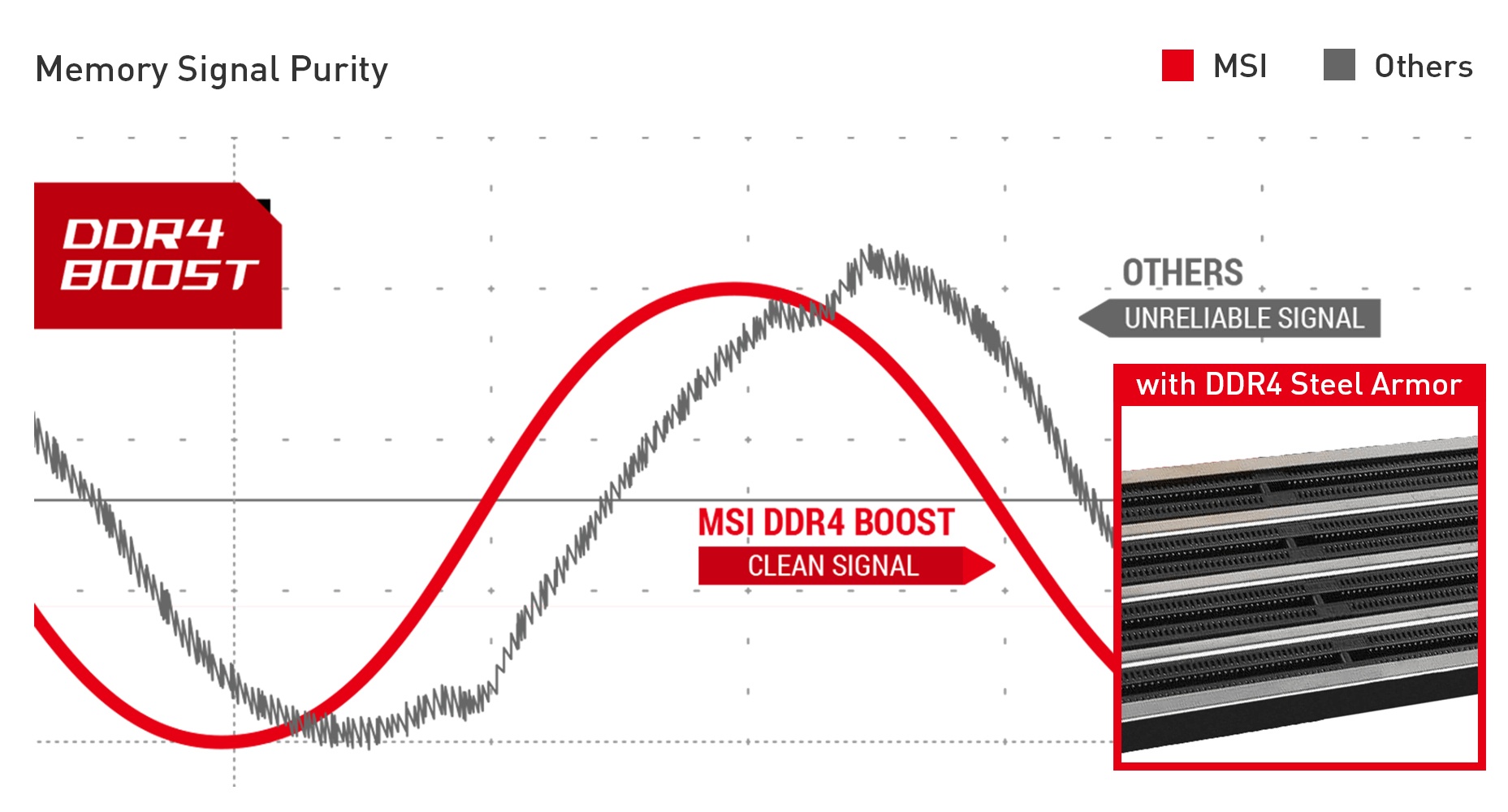

MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.

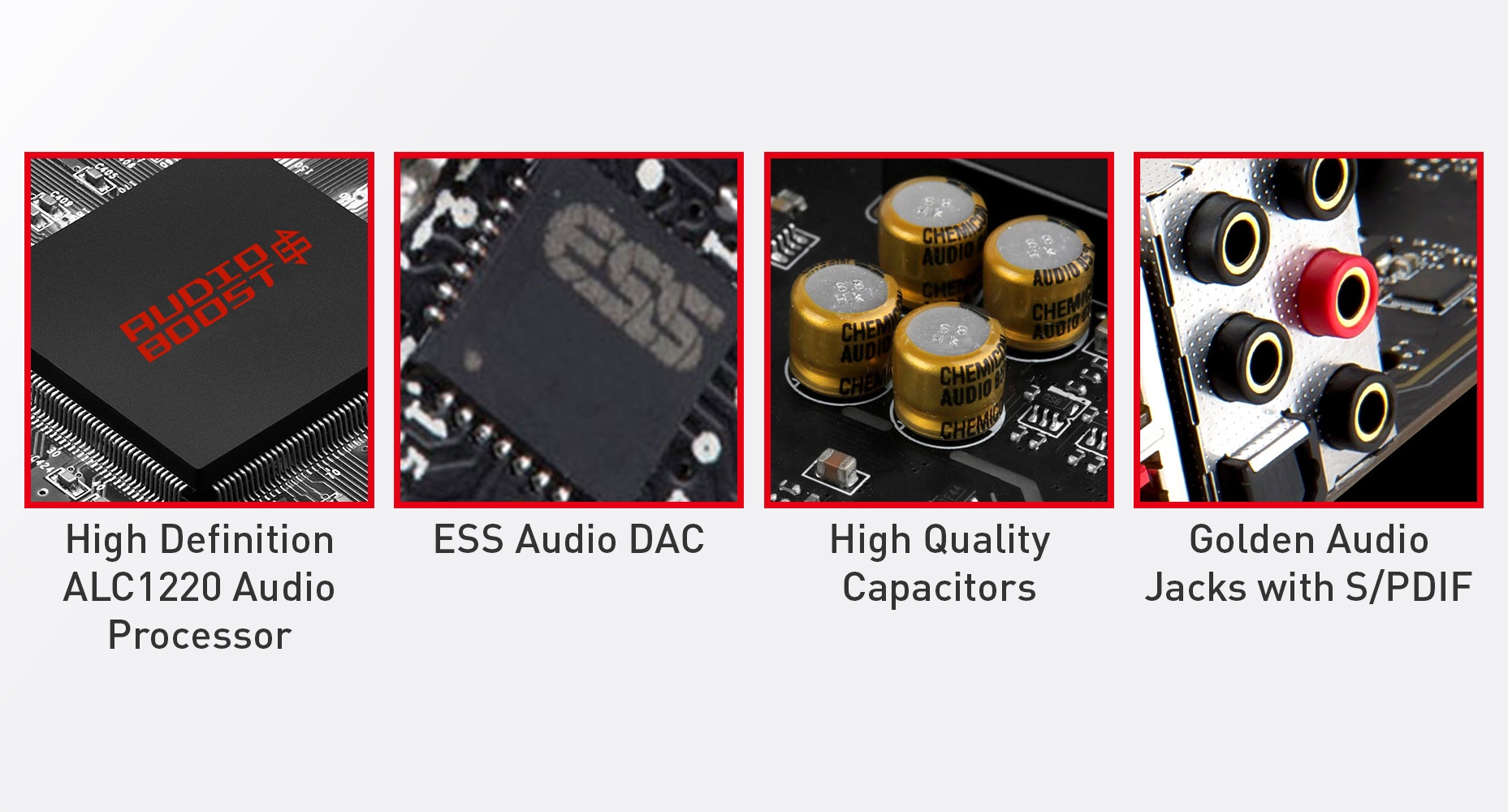

A dedicated audio processor, ESS audio DAC, and headphone amplifier have been integrated into isolated audio circuitry to output game-changing studio grade sound.
MEG Z490 GODLIKE supports both NVIDIA® SLI™ and AMD® CrossFire™ multi GPU technologies. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
