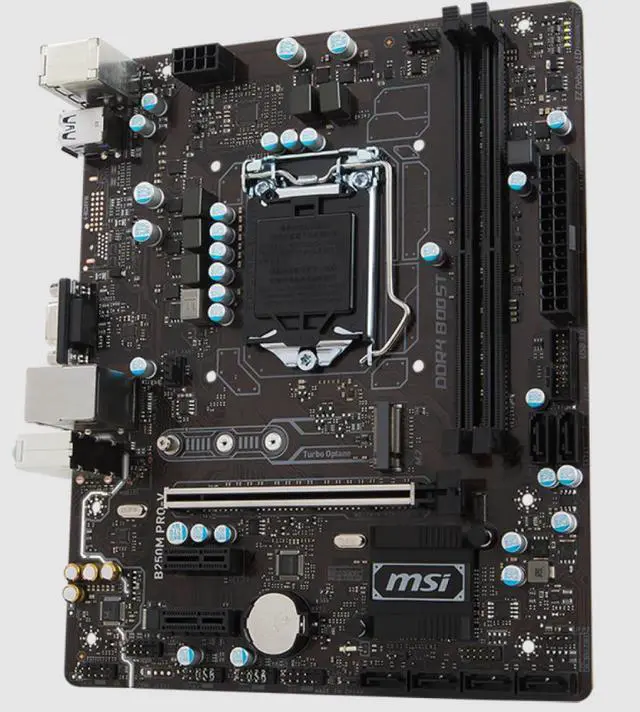

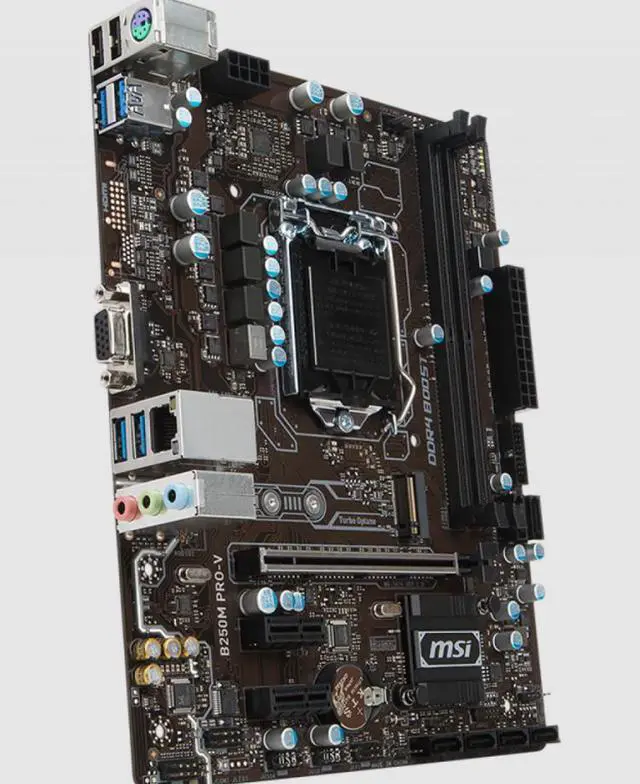

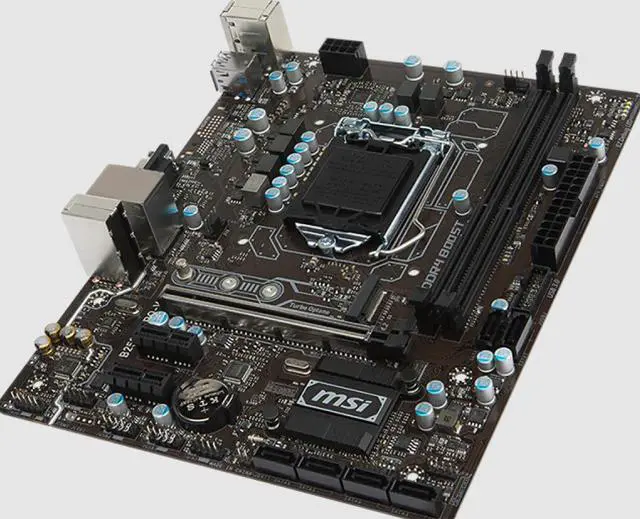

MSI B250M PRO-V LGA1151 DDR4 Motherboard, Support 7th /6th 1151-pin Intel Core TM / Pentium / Celeron processor

• Supports 6th/7th generation Intel ® Core™ i3/i5/i7 processors, and Intel ® Pentium ® and Celeron ® processorswith pin LGA1151 Chipset • Intel ® B250 chipset Memory • 2 DDR4 memory slots, up to a total capacity of 32GB -7th generation processors support DDR4 2400/ 2133 MHz* -6th generation processors support DDR4 2133 MHz* • Dual channel memory architecture • Support non-ECC, un -buffered memory • Support Intel ® Extreme Memory Profile (XMP) * For memory update information, please
visit http: //www. msi. com ** In XMP mode, DDR4 memory modules can only be used on 7th generation processors. Can run at 2400 MHz, and can only run at 2133MHz on the 6th generation processor Expansion slots • 1 PCIe 3.0 x16 slot • 2 PCIe 3.0 x1 slots Onboard graphics card • 1 x VGA port, supports the highest resolution 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz Storage • Intel ® B250 chipset • 6 SATA 6Gb/s ports • 1 M. 2 slot (Key M) * -Supports up to PCIe 3.0 x4 and SATA 6Gb/s -Slot supports 2242 2260/ 2280 storage devices -Intel ® Optane™ Memory Ready -Support PCIe 3.0 x4 NVMe U. 2 SSD through Turbo U. 2 main control card** * When M. 2 slot is equipped with M. 2 SATA SSD module, SATA2 interface will be invalid ** The Turbo U. 2 main control card is not included in the product package and needs to be purchased separately USB • Intel ® B250 Chipset -6 USB 3.1 Gen1 (SuperSpeed ??USB) ports (4 ports on the back panel, 2 through the onboard USB ports) -6 USB 2.0 (High-speed USB) ports (2 The interface is located on the backplane, and 4 ports are provided through the on-board USB interface) Sound Effect • Realtek ® ALC887 decoder chip - 7.1 channel high-quality sound Network • 1 x Realtek ® RTL8111H Gigabit network card Built-in output/input interface -1 24-pin ATX main power interface -1 8-pin ATX 12V power interface -6 SATA 6Gb/s interfaces -2 USB 2.0 interfaces (supports additional 4 USB 2.0 interfaces) - 1 USB 3.1 Gen1 port (supports additional 2 USB 3.1 Gen1 ports) -1 4-pin CPU fan port -1 4-pin system fan port -1 panel audio port -2 system panel ports -1 Chassis opening interface -1 serial interface -1 clear CMOS function jumper Rear output/input ports on the back panel -1 PS/2 mouse/keyboard port -2 USB 2.0 ports -1 VGA port -1 LAN (RJ45) port -4 USB 3.1 Gen1 ports -3 audio ports Dimensions • 8.9 x 7.3 inches ( 22.6 x 18.5 cm) • Micro-ATX specifications
