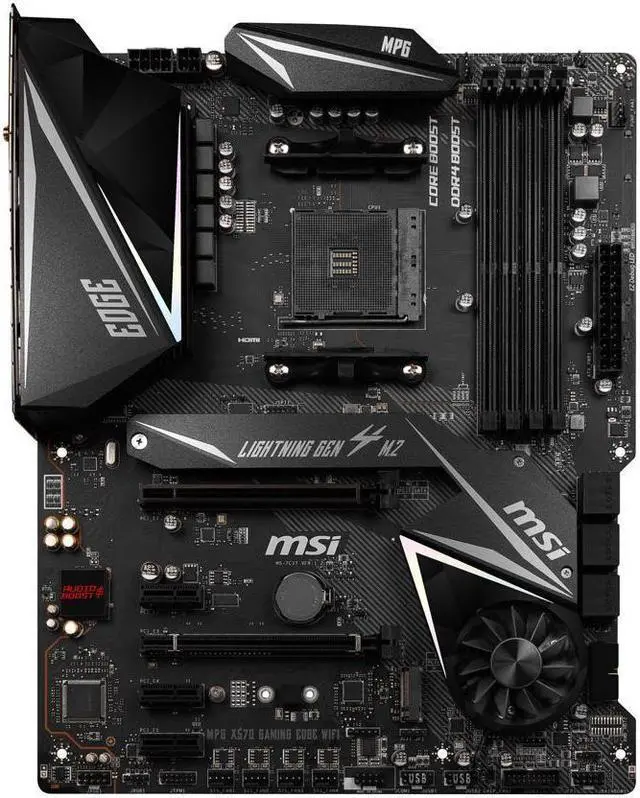

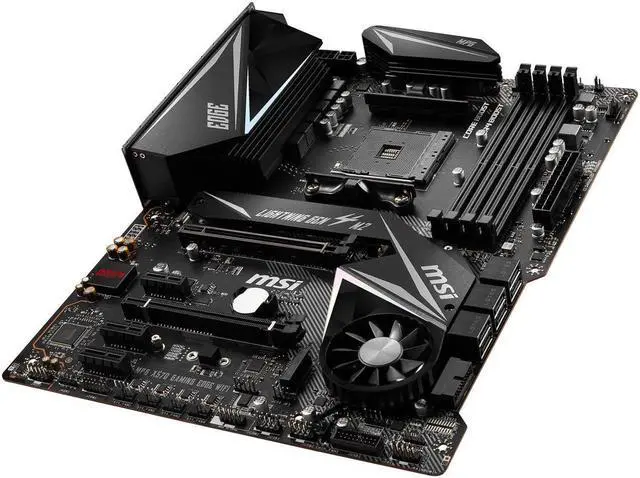

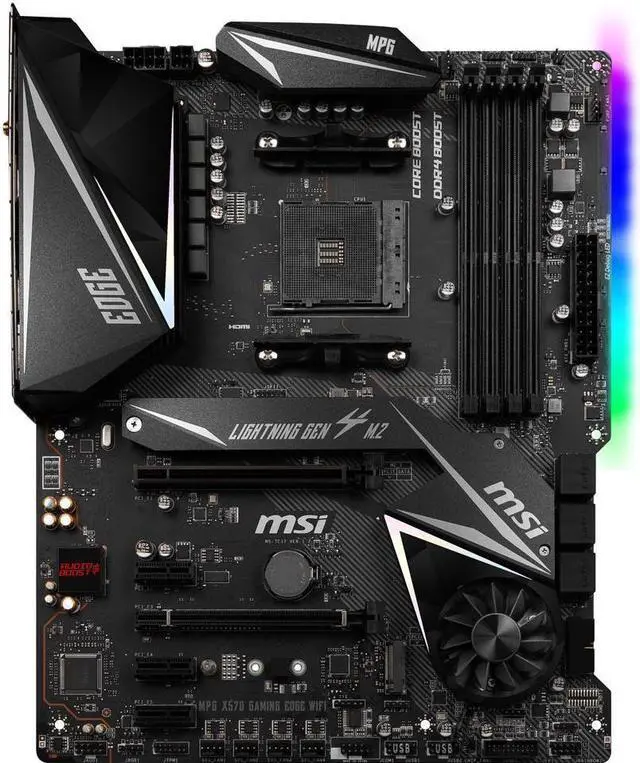

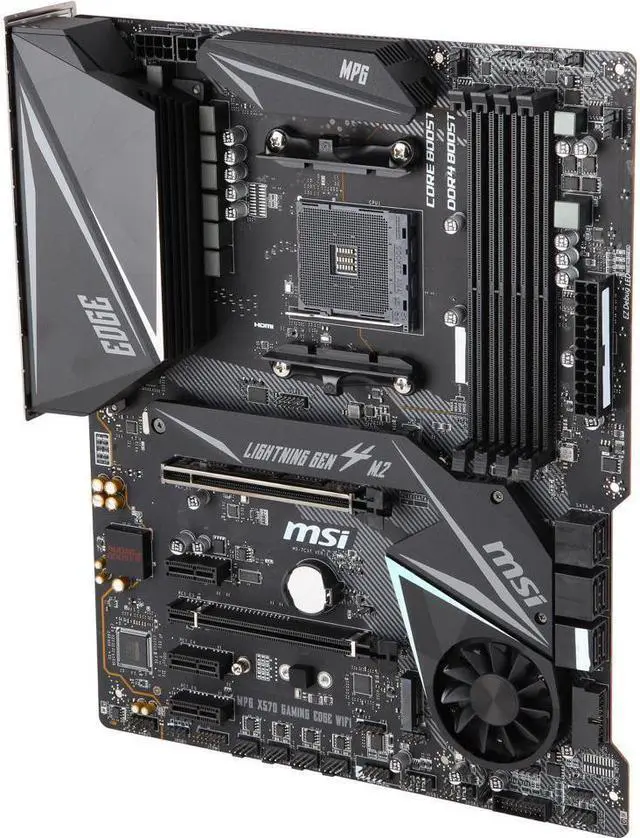

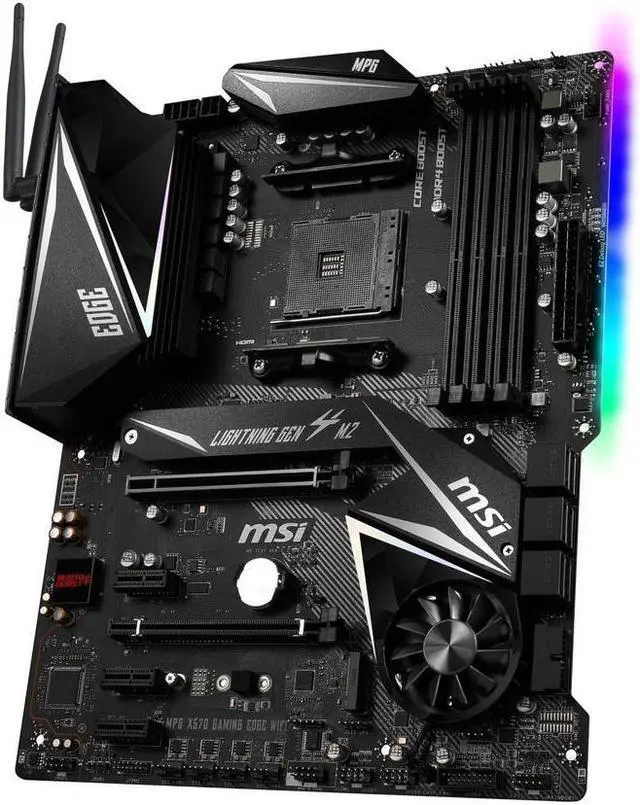

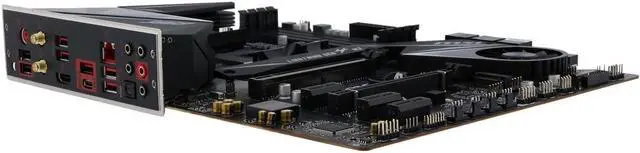

MSI MPG X570 GAMING EDGE WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 HDMI ATX

REFURBISHED

(2) Write a Review

AMD X570
Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

Model
Brand	MSI
Model	MPG X570 GAMING EDGE WIFI

Supported CPU
CPU Socket Type	AM4
CPU Type	Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update

Chipsets
Chipset	AMD X570

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot (PCIE_1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * PCI_E4 supports 3.0 x1 only.
PCI Express x16	1 x PCI Express x16
PCI Express x1	3 x PCIe 3.0 x1 slots* * The speeds may vary for different devices
Other Slots	1 x M2_3 Socket with E key

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M): M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/2260/2280 storage devices
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors Maximum shared memory of 2048MB

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-Channel High Definition Audio Supports S/PDIF output

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 1x1 802.11 AC by Intel 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 433 Mbps speed
Bluetooth	Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Rear Panel Ports

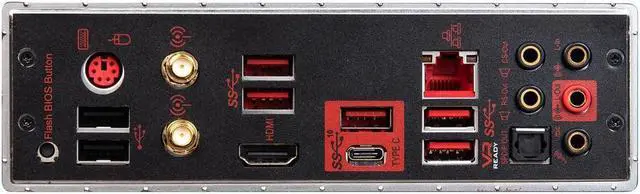

Back I/O Ports	1 x Flash BIOS Button 1 x WiFi/Bluetooth module 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 ports 1 x HDMI port 2 x USB 3.2 Gen1 ports 1 x LAN (RJ45) port 3 x USB 3.2 Gen2 Type A ports 1 x USB 3.2 Gen2 Type C port 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector
USB 3.0	4 x USB 3.0

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Software Feature
Windows 11	Supported

Features
Features	Multi-GPU Support: Supports 2-Way AMD CrossFire Technology I/O Controller: NUVOTON NCT6797 Controller Chip Hardware Monitor: CPU/System/Chipset temperature detection CPU/System/Chipset fan speed detection CPU/System/Chipset fan speed control BIOS Features: Single BIOS 1 x 256MB flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language Special Features: Audio - Nahimic 3 - Audio Boost 4 Network - Intel Wi-Fi Storage - Lightning Gen 4 M.2 - Turbo M.2 Fan - Pump Fan - GAMING Fan Control - FROZR Heatsink Design LED - Mystic Light 3 - Mystic Light Extension (RGB) - Mystic Light Extension (RAINBOW) - Mystic light SYNC - EZ DEBUG LED Protection - PCIe Steel Armor - M.2 Shield Frozr - Pre-installed IO shielding Performance - Multi GPU-CrossFire Technology - DDR4 Boost - Core Boost - GAME Boost - USB with type A+C - AMD Turbo USB 3.2 Gen 2 BIOS - Click BIOS 5 - Flash BIOS Dragon Center Features: DRAGON OPTIMIZATION OC Performance Hardware Monitor True Color Mystic Light Live Update Software: Drivers DRAGON CENTER Nahimic Audio CPU-Z MSI GAMING MSI App Player (BlueStacks) Google Chrome, Google Toolbar, Google Drive Norton Internet Security Solution

Additional Information
First Listed on Newegg	May 28, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by C.N.E Technology Return Policy

Manufacturer Contact Info
