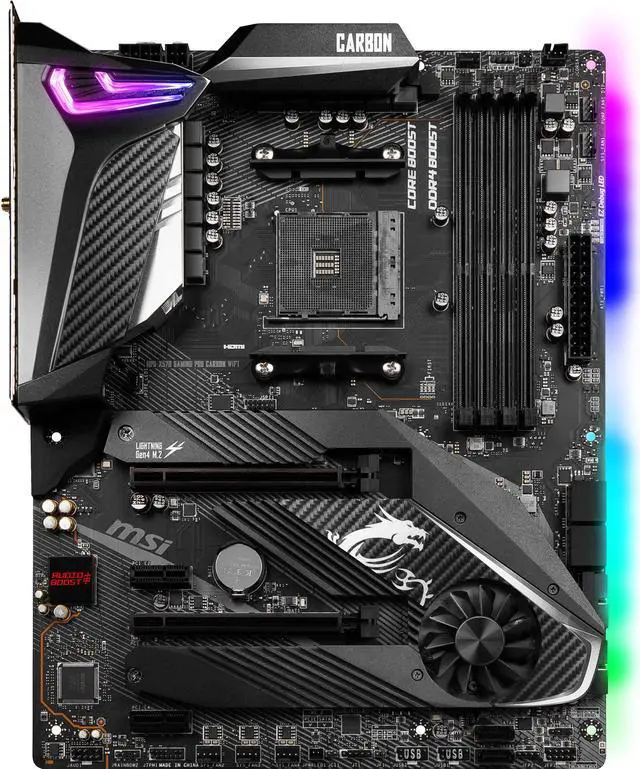

MSI MPG X570 GAMING PRO CARBON WIFI AM4 AMD X570 ATX AMD Motherboard
REFURBISHED Product Type
- AMD X570
- Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket
- 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
- 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
+
+
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MPG X570 GAMING PRO CARBON WIFI
| Brand | MSI |
|---|---|
| Model | MPG X570 GAMING PRO CARBON WIFI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket |
| Chipset | AMD X570 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0/3.0 x16 slot (PCI_E1): 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | AMD X570 Chipset: 4 x SATA 6Gb/s ports (SATA1-SATA4) ASMedia ASM1061: 2 x SATA 6Gb/s ports (SATA5, SATA6) |
|---|---|
| M.2 | 2 x M.2 slots (Key M)* M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/2260/2280/22110 storage devices * The speeds may vary for different devices |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN Chipset | Intel i211AT |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX200: The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4 GHz - 5 GHz (160 MHz) up to 2.4 Gbps |
| Bluetooth | Supports Bluetooth 5.1 |
| Back I/O Ports | 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks |
|---|
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR connector 1 x 2-pin LED Demo Connect 4 x EZ Debug LEDs |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 4400+(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2 MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4-pin CPU power connector, Game Boost, DDR4 Boost AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface |
|---|
| First Listed on Newegg | June 18, 2025 |
|---|
