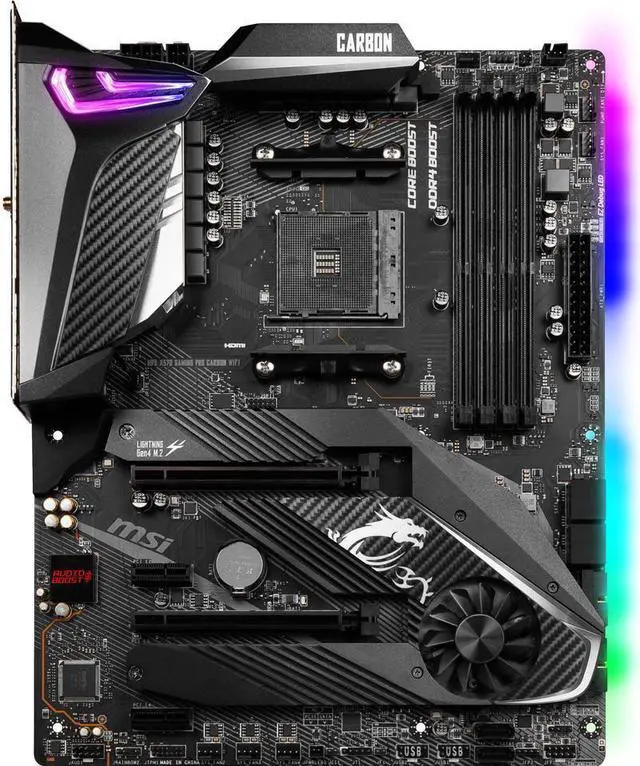

Main image of MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

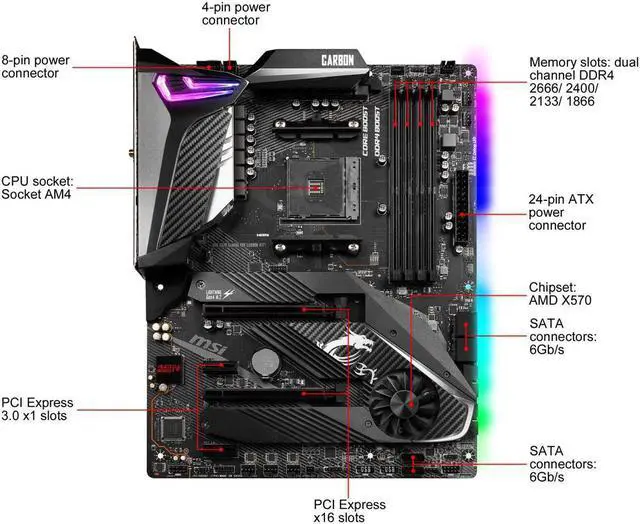

Alt view image 2 of 5 - MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

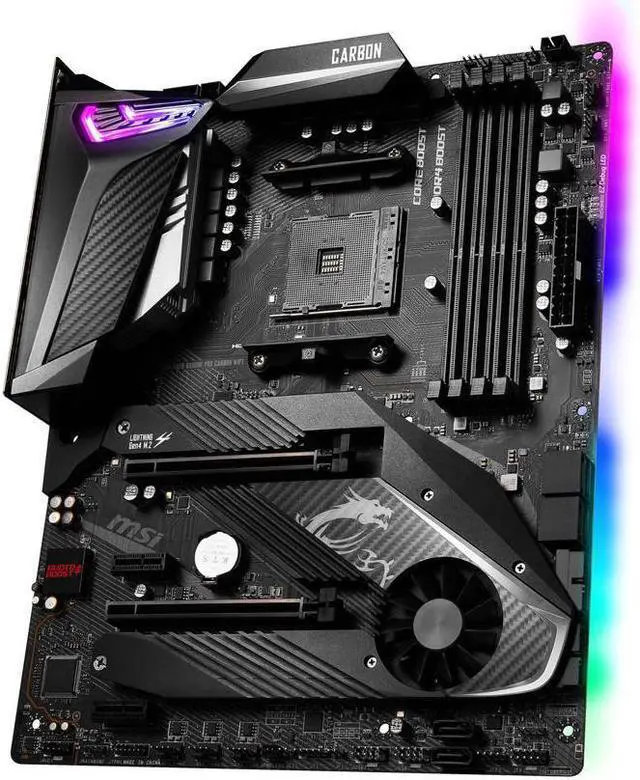

Alt view image 3 of 5 - MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

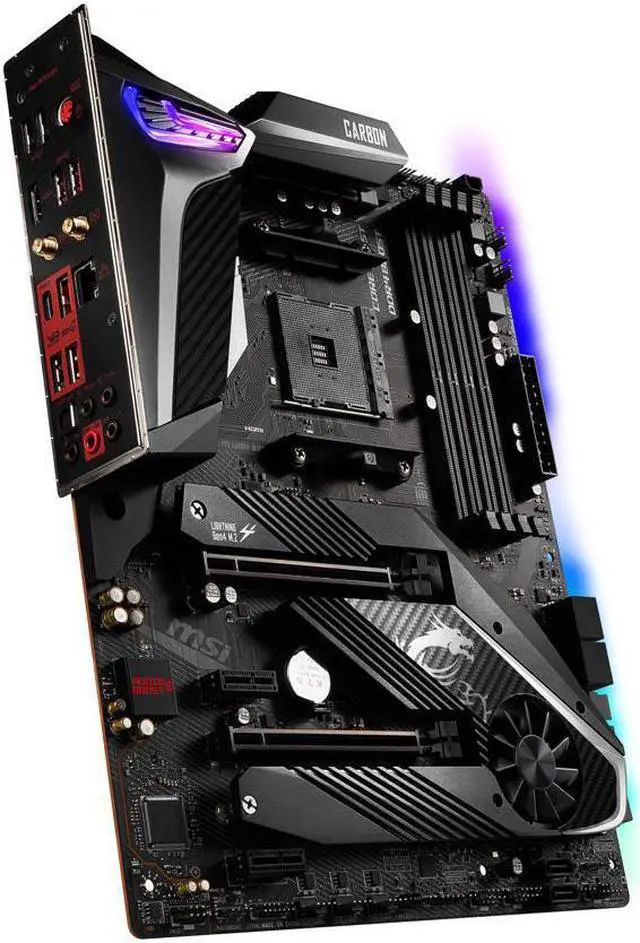

Alt view image 4 of 5 - MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

Alt view image 5 of 5 - MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

Shop All MSI Products | Visit PC Power Marketplace Store

MSI MPG X570 GAMING PRO CARBON WIFI Gaming Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Gen 2 Wi-Fi 6 HDMI ATX

REFURBISHED

Be the first to review this product...

AMD X570
Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

NULLNULL

Model
Brand	MSI
Model	MPG X570 GAMING PRO CARBON WIFI

Supported CPU
CPU Type	Support for 3rd Gen AMD Ryzen Processors and futu

Chipsets
Chipset	AMD X570

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot (PCI_E1): 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
PCI Express x1	2 x PCIe 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M): M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/2260/2280/22110 storage devices The speeds may vary for different devices

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-Channel High Definition Audio Supports Optical S/PDIF output

Onboard LAN
LAN Chipset	Intel i211AT
Max LAN Speed	1Gbps
Wireless LAN	Intel Wi-Fi 6 AX200: The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4 GHz - 5 GHz (160 MHz) up to 2.4 Gbps
Bluetooth	Supports Bluetooth 5.1

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR connector 1 x 2-pin LED Demo Connect 4 x EZ Debug LEDs

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Software Feature
Windows 11	Supported

Features
Features	Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 4400+(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2 MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4-pin CPU power connector, Game Boost, DDR4 Boost AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface

Additional Information
First Listed on Newegg	March 15, 2024
