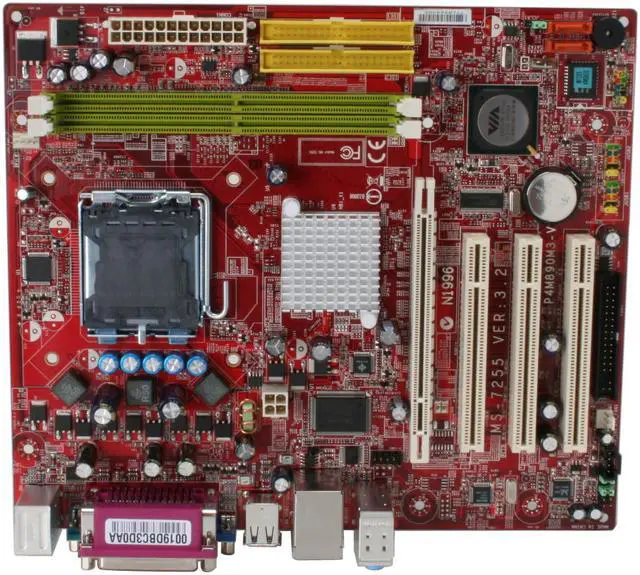

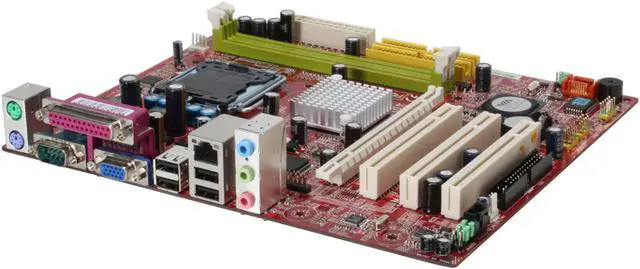

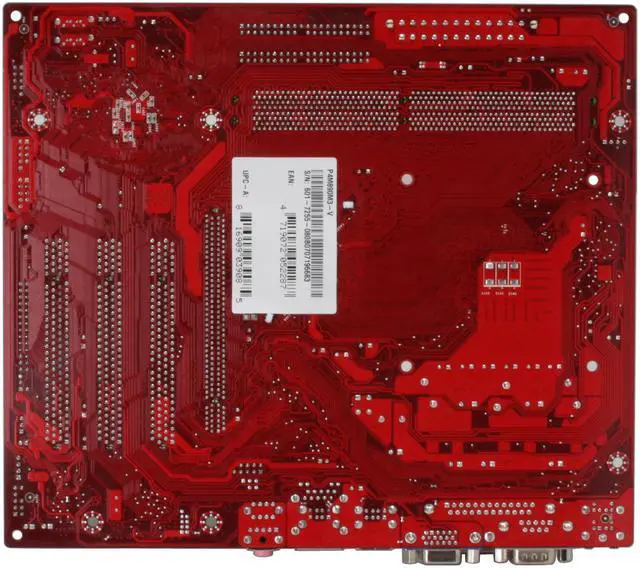

MSI P4M890M3-V LGA 775 VIA P4M890 Micro ATX Intel Motherboard
- VIA P4M890
- Celeron D 3XX, P4 5XX, 6XX, P4EE, Pentium D 8XX, 9XX & Core 2 Duo processors. (without Pentium EE 840)
- DDR2 533
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI P4M890M3-V
| Brand | MSI |
|---|---|
| Model | P4M890M3-V |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Celeron D 3XX, P4 5XX, 6XX, P4EE, Pentium D 8XX, 9XX & Core 2 Duo processors. (without Pentium EE 840) |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA P4M890 |
|---|---|
| South Bridge | VIA VT8237R |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL |
|---|---|
| Max LAN Speed | 100Mbps |

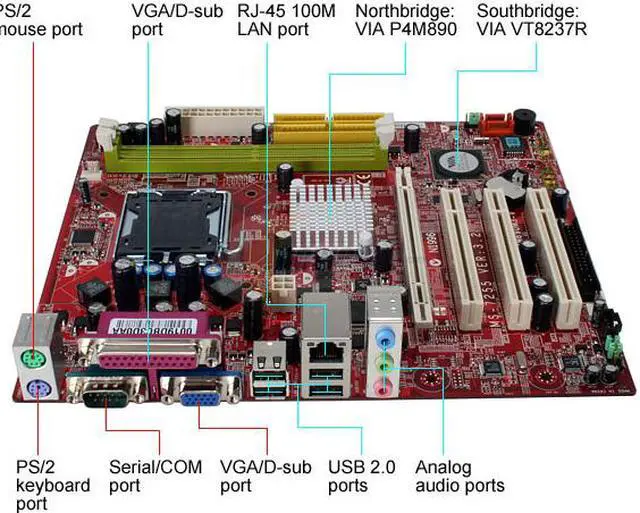

| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.8" x 8.3" |
| Power Pin | 24 Pin |
| First Listed on Newegg | July 26, 2007 |
|---|
