Brand | MSI |
---|---|
Model | P67A-GD65 |
CPU Socket Type | LGA 1155 |
---|---|
CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) |
Chipset | Intel P67 |
---|
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR3 2133(OC)/ 1600(OC)/ 1333/ 1066 |
Maximum Memory Supported | 32GB |
Channel Supported | Dual Channel |
PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
---|---|
PCI Express x1 | 3 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
Serial ATA (SATA) | 2 x SATAIII ports (SATA1~2) by P67 PCH 2 x SATAIII ports (SATA7~8) by Marvell SE9128 |
---|---|
SATA RAID | SATA1~6 support Intel Matrix Storage Technology (AHCI/ RAID 0/ 1/ 5/ 10) by Intel P67 PCH SATA7~8 support RAID 0/ 1 mode by Marvell SE9128 |
Audio Chipset | Realtek ALC892 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Realtek 8111E |
---|---|
Max LAN Speed | 1Gbps |

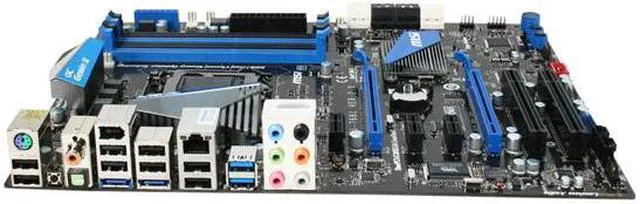

Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 2 x USB 3.0 / 8 x USB 2.0/1.1 |
---|---|
PS/2 | 1 x PS/2 keyboard/ mouse combo port |
USB 3.0 | 2 x USB 3.0 ports by 1 NEC uPD720200F1 |
USB 1.1/2.0 | 8 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394 portby VIA VT6308P |
eSATA | 2 x eSATA ports by JMicron JMB362 |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 2 x USB 3.0 ports by 1 NEC uPD720200F1 2 x USB 2.0 |
---|---|
Onboard 1394 | 1 x IEEE 1394 connector |
Other Connectors | ATX 24-Pin power connector 8-pin ATX 12V power connector CPU x 1 / System x 4 FAN connectors CD-in connector Front panel audio connector Front panel connector 1 x chasis intrusion connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector 1 x Serial port connector 1 x Voltage Check Point 1 x Power button 1 x Reset button 1 x OC Genie button |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12" x 9.65" |
Power Pin | 24 Pin |
Features | All Solid Cap design Active Phase Switch feature to save power dynamically M-Flash included USB 3.0 USB Safeguard USB charger V check point |
---|
First Listed on Newegg | January 08, 2011 |
---|
