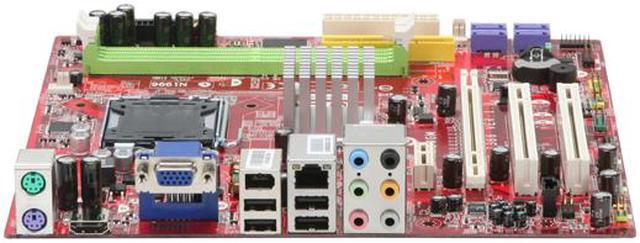

MSI P6NGM-FIH LGA 775 NVIDIA GeForce 7150 HDMI Micro ATX Intel Motherboard
- NVIDIA GeForce 7150
- Core 2 Quad / Core 2 Duo / Pentium D / Celeron
- DDR2 800
Specs
Reviews (16)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI P6NGM-FIH
| Brand | MSI |
|---|---|
| Model | P6NGM-FIH |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Duo / Pentium D / Celeron |
| FSB | 1333/1066 MHz |
| Chipset | NVIDIA GeForce 7150 |
|---|---|
| South Bridge | nForce 630i |
| Onboard Video Chipset | NVIDIA GeForce 7150 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211BL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.5" x 8.8" |
| Power Pin | 24 Pin |

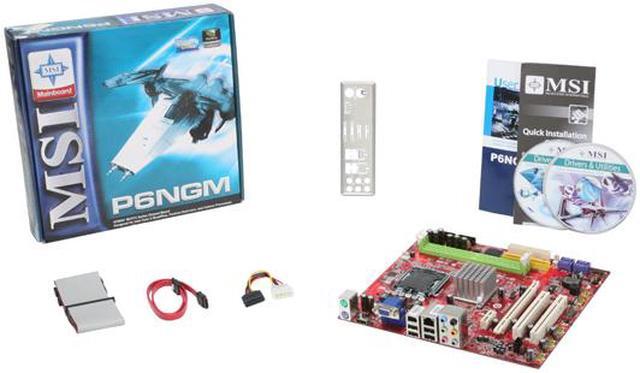

| Package Contents | P6NGM-FIH Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4Pin to SATA Power Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | December 21, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-913-0828
- Support Website
- View other products from MSI
