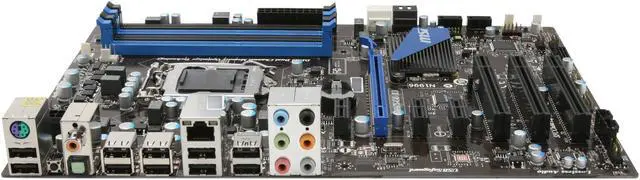

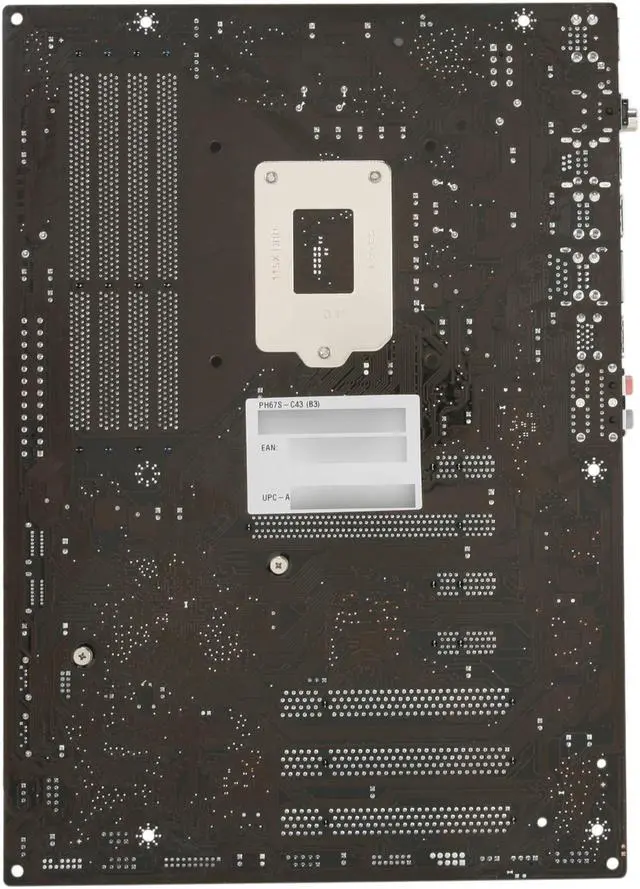

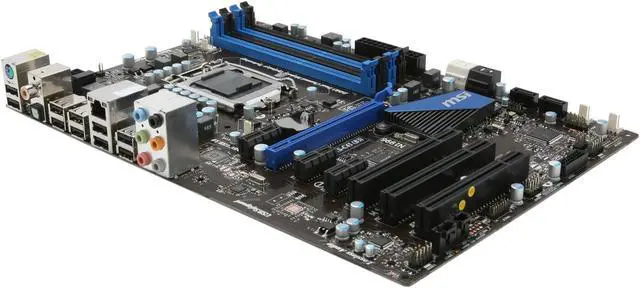

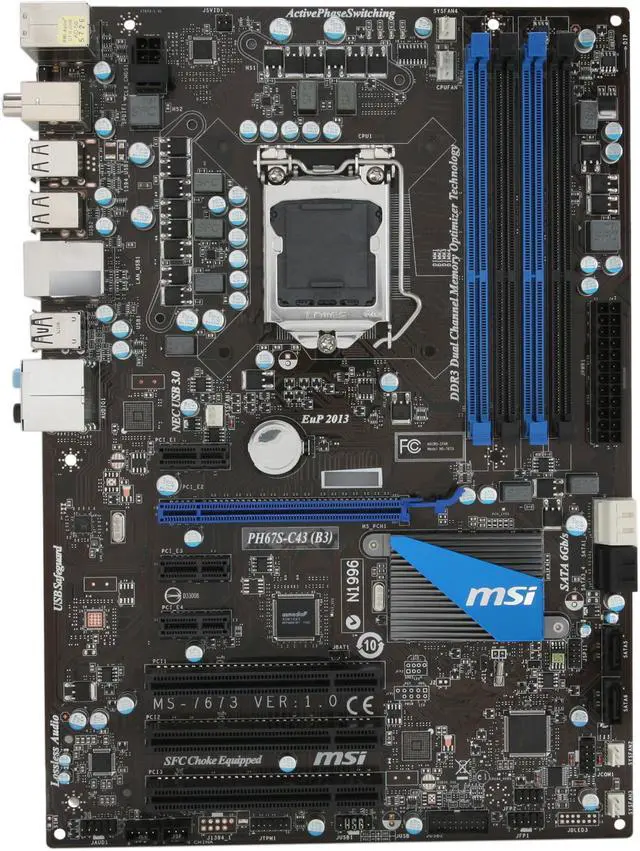

MSI PH67S-C43 (B3) LGA 1155 Intel H67 ATX Intel Motherboard
- Intel H67
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium
- DDR3 1333
Specs
Reviews (11)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI PH67S-C43 (B3)
| Brand | MSI |
|---|---|
| Model | PH67S-C43 (B3) |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium |
| Chipset | Intel H67 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | SATA3~6 ports support RAID 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| USB 1.1/2.0 | 10 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.47" |
| Power Pin | 24 Pin |
| First Listed on Newegg | April 22, 2011 |
|---|
