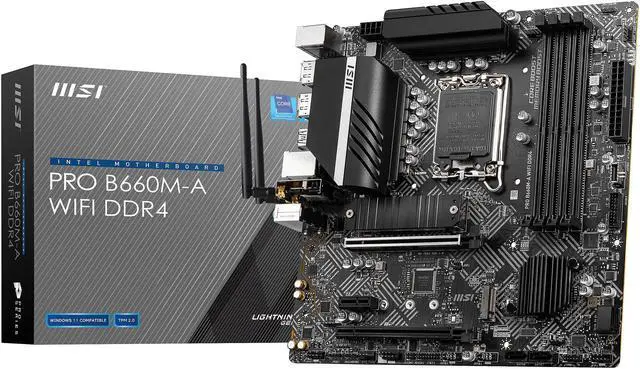

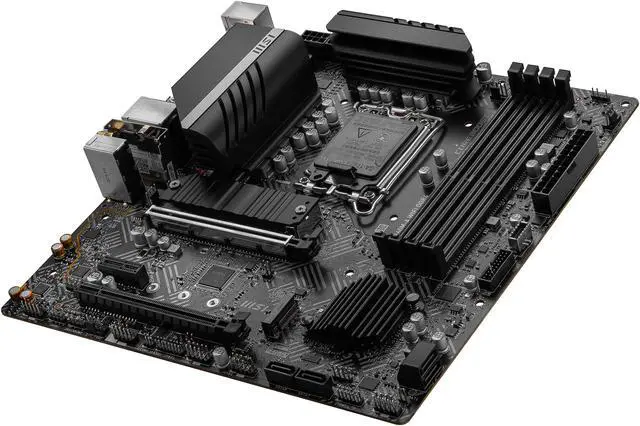

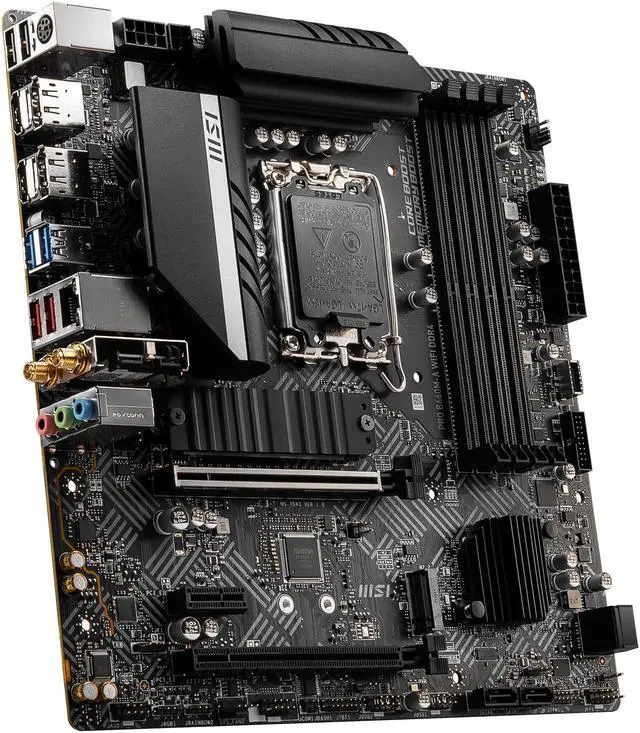

MSI PRO B660M-A WIFI DDR4 LGA 1700 * Dedicated LGA1700 mounting bracket is required. Intel B660 Micro ATX Intel Motherboard
REFURBISHED Product Type
- Intel B660
- Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
- DDR4 4800+ (OC)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI PRO B660M-A WIFI DDR4
| Brand | MSI |
|---|---|
| Model | PRO B660M-A WIFI DDR4 |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4800+ (OC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 1 x Key E(CNVi) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 Gen4 x4 64 Gbps slot |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel WI-FI 6 |
| Bluetooth | Bluetooth 5.2 |

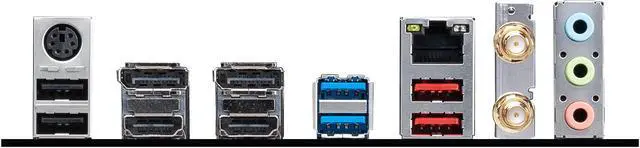

| Back I/O Ports | 1 x LAN (RJ45) 2 x Antenna Bracket 2 x DisplayPort 2 x HDMI 1 x PS/2 Keyboard/Mouse Combo 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 2 x USB 3.2 Gen 2 Type-A 3 x Audio Jacks |
|---|
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| First Listed on Newegg | June 02, 2025 |
|---|
