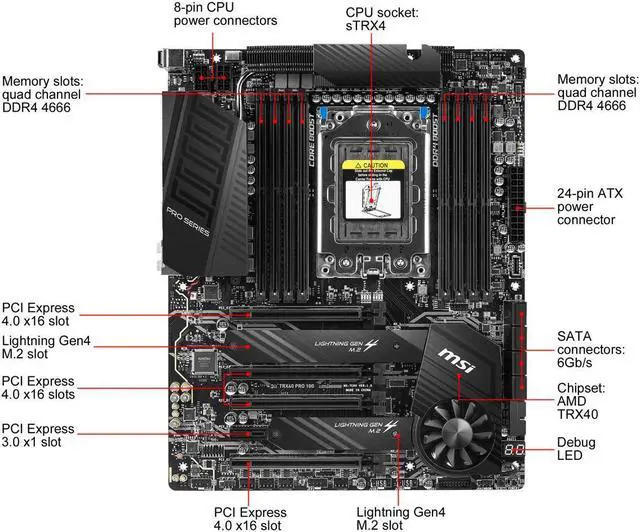

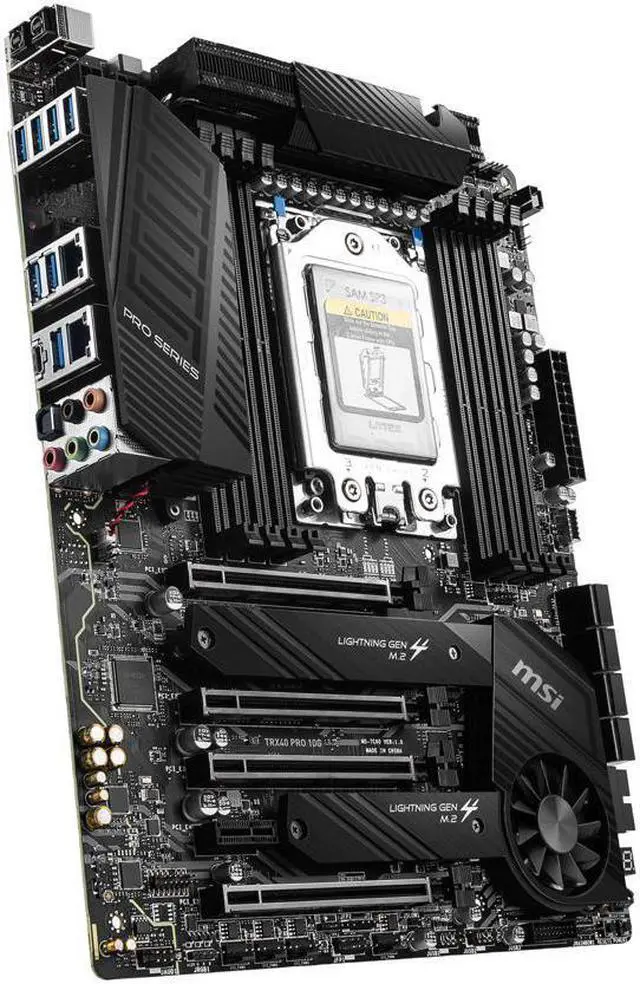

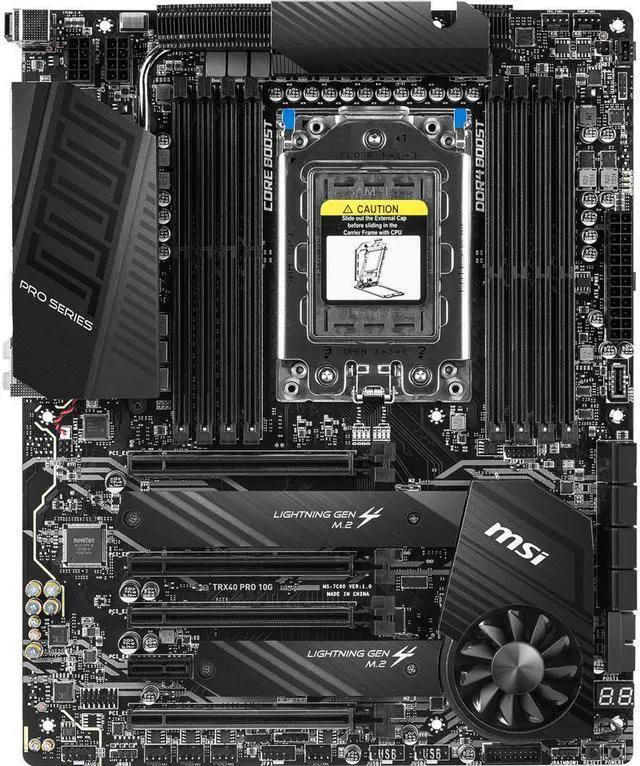

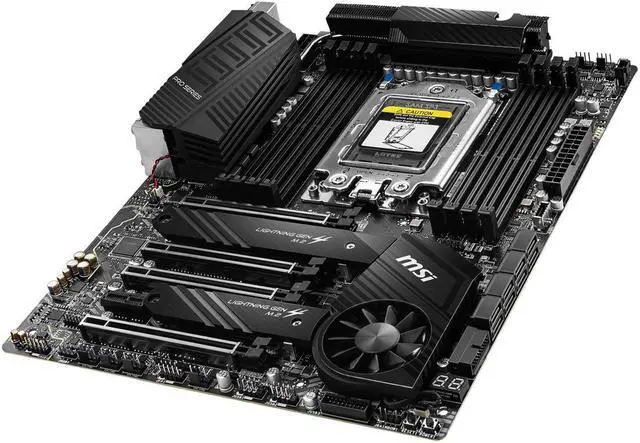

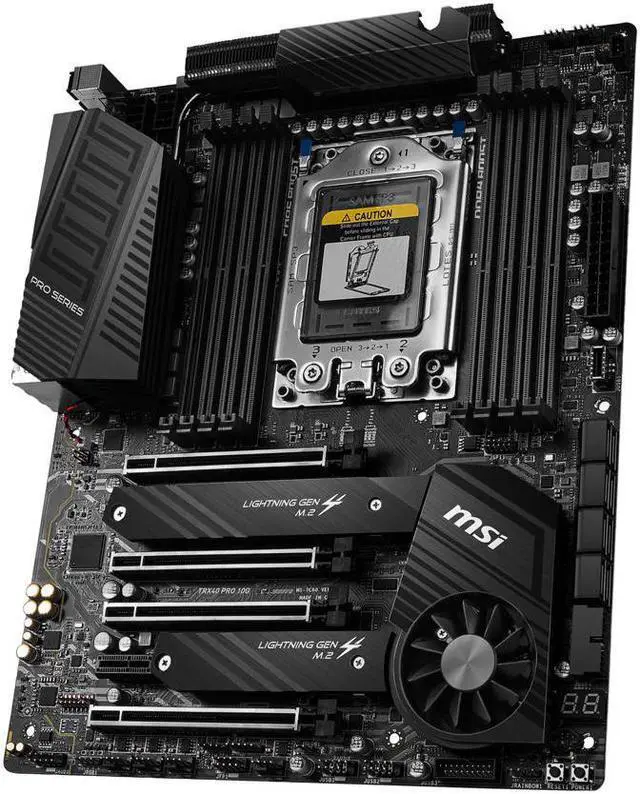

MSI PRO TRX40 PRO 10G sTRX4 AMD TRX40 SATA 6Gb/s ATX AMD Motherboard

Brand MSI
Series PRO
Model TRX40 PRO 10G
Supported CPU
CPU Socket Type sTRX4
CPU Type Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4
Chipsets
Chipset AMD TRX40
Memory
Number of Memory Slots 8×288pin
Memory Standard Supports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Maximum Memory Supported 256GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 4.0 x16 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
PCI Express x1 1 x PCIe 3.0 x1 slot
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices
SATA RAID 0/1/10
Onboard Audio
Audio Chipset 1 x Realtek ALC1220 Codec
1 x Realtek ALC4050H Codec
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel i211AT
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports

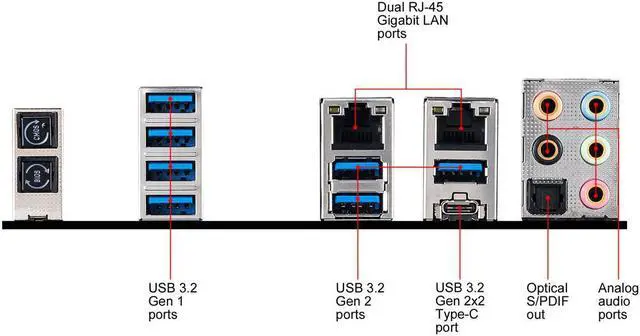

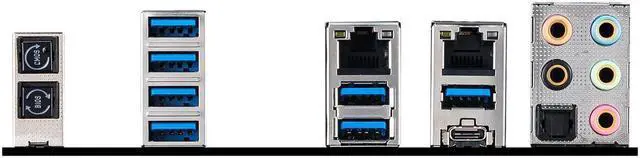

Back I/O Ports 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin 5050 RGB LED connector
2 x 3-pin ARGB LED connectors
1 x 3-pin CORSAIR LED connector
1 x Slow mode booting jumper
1 x Power button
1 x Reset button
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
Features Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4

Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz

Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2

Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8-pin CPU power connectors, DDR4 Boost

Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers

Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs

M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed

Dual LAN onboard: Premium network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency

Audio Boost 4: Reward your ears with studio grade sound quality

Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
