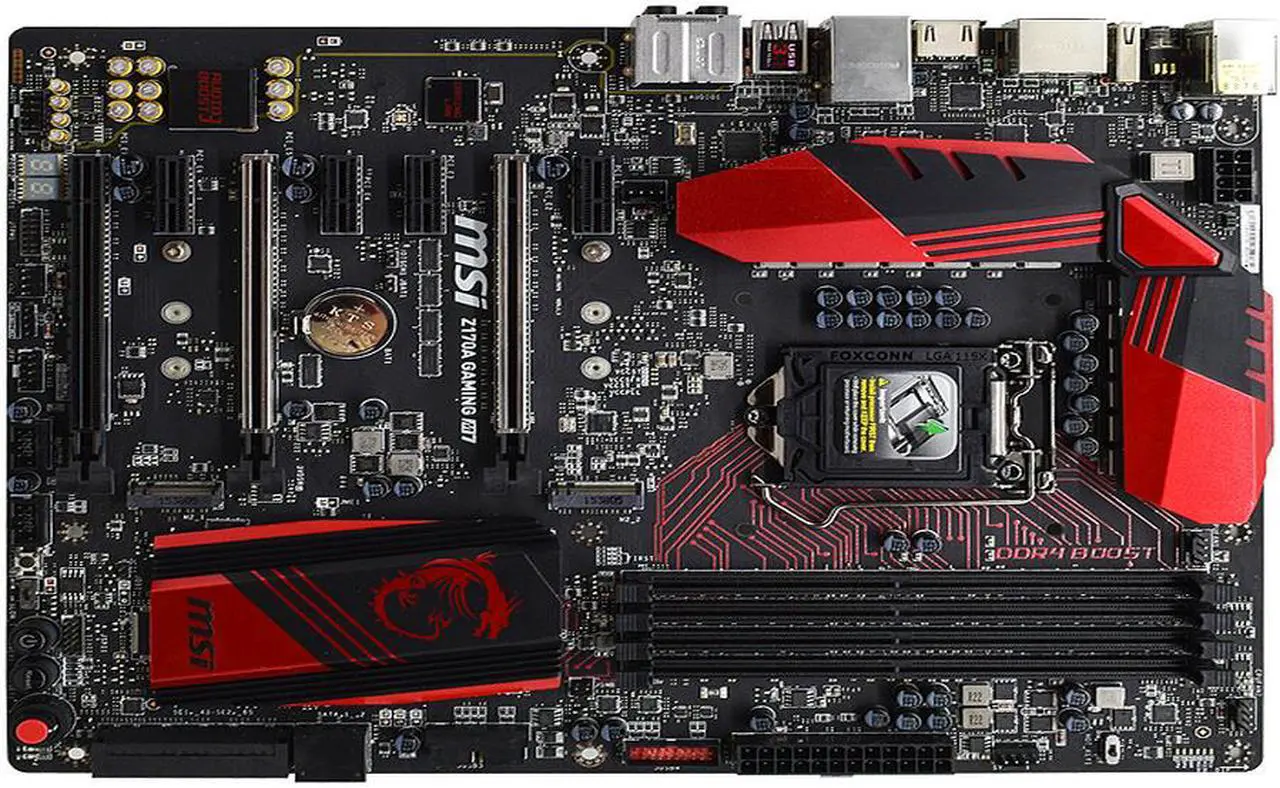

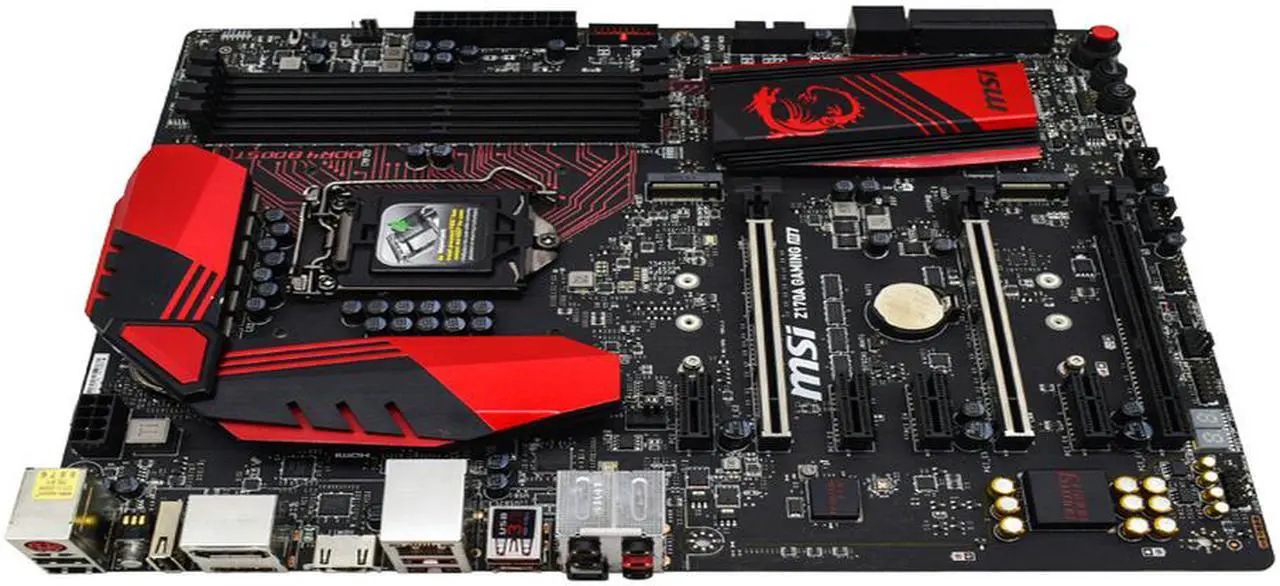

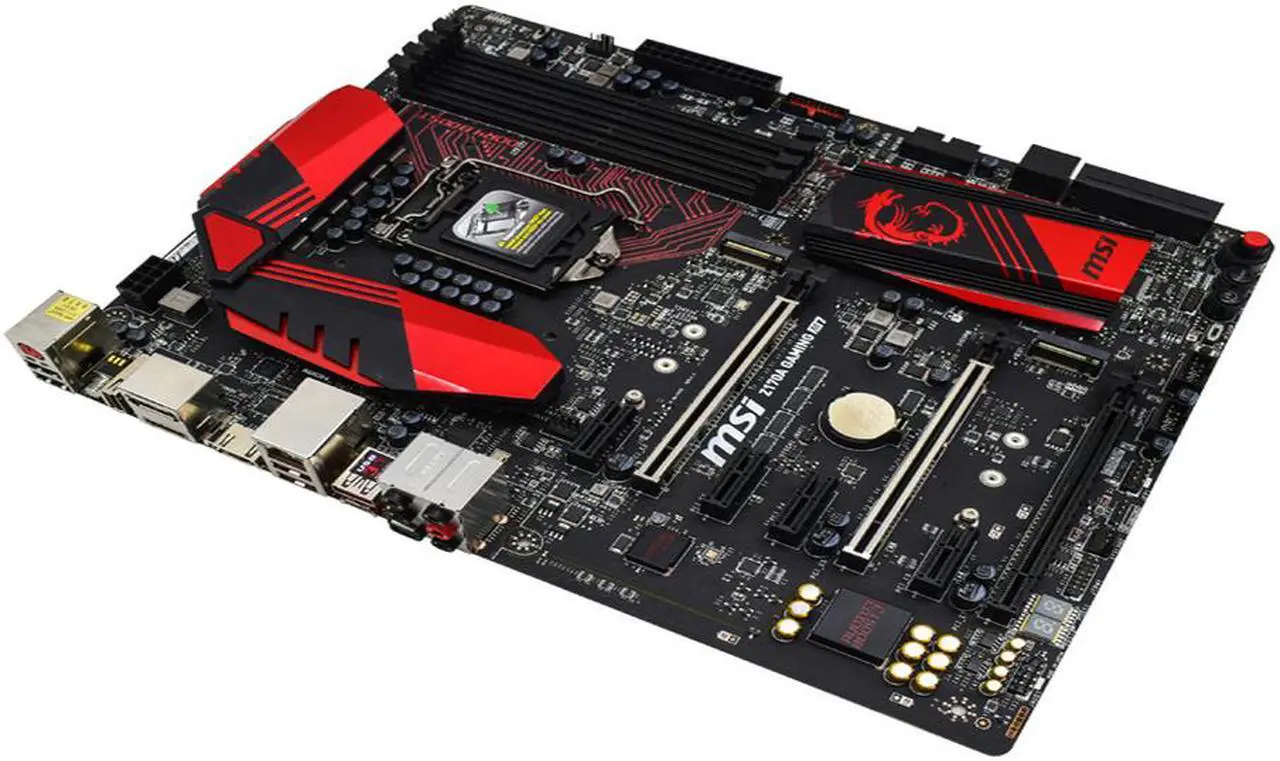

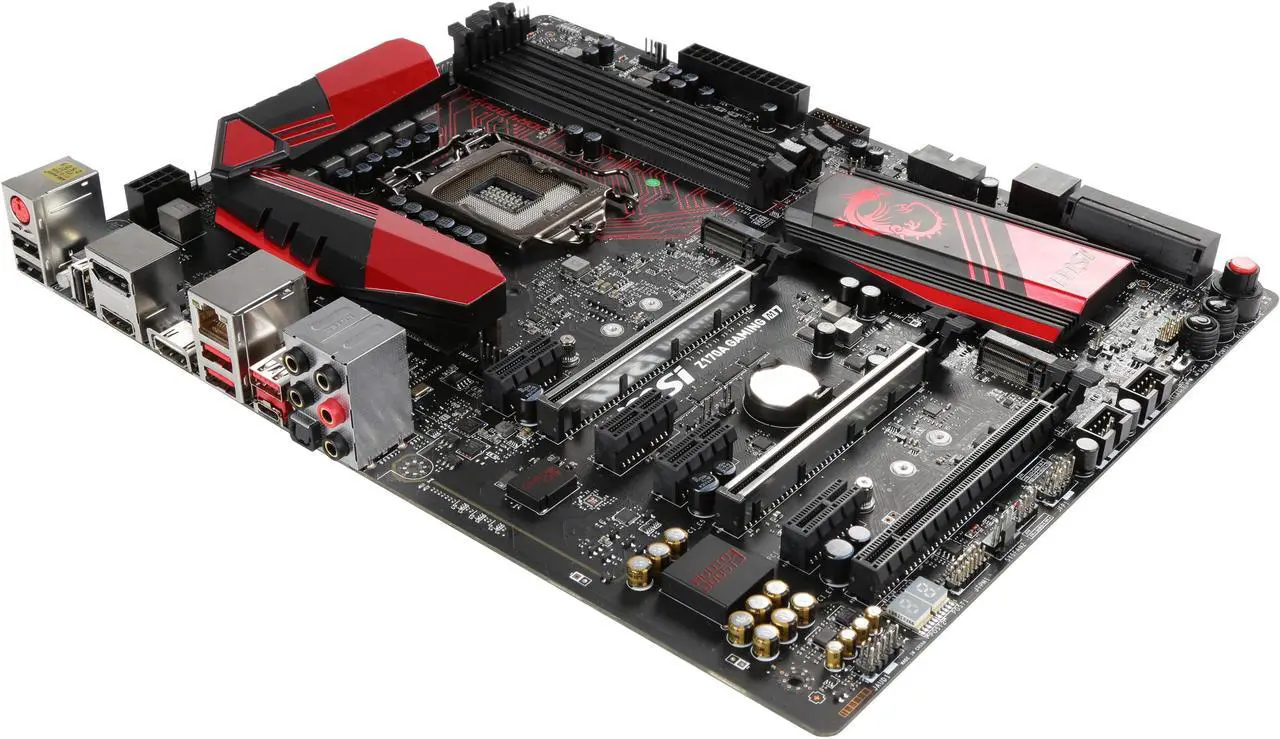

MSI Gaming Intel Z170A LGA 1151 DDR4 USB 3.1 ATX Motherboard (Z170A Gaming M7)
REFURBISHED Product Type
- Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
- Supports DDR4-3600+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
- Twin Turbo M.2 64Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-C + Type-A combo + SATA 6Gb/s
- GAMING LAN with LAN Protect, powered by Killer: The best online gaming experience with lowest latency
- Audio Boost 3: Reward your ears with studio grade sound quality
- Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality
- Game Boost: This one goes up to eleven; 1-seconds of easy overclocking
- GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button
- Designed for overclocking: with OC Essentials and OC Engine 2
- XSplit Gamecaster v2: 1 year free premium license to show off your skills and achievements to the world
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI Z170A GAMING M7
| Brand | MSI |
|---|---|
| Model | Z170A GAMING M7 |

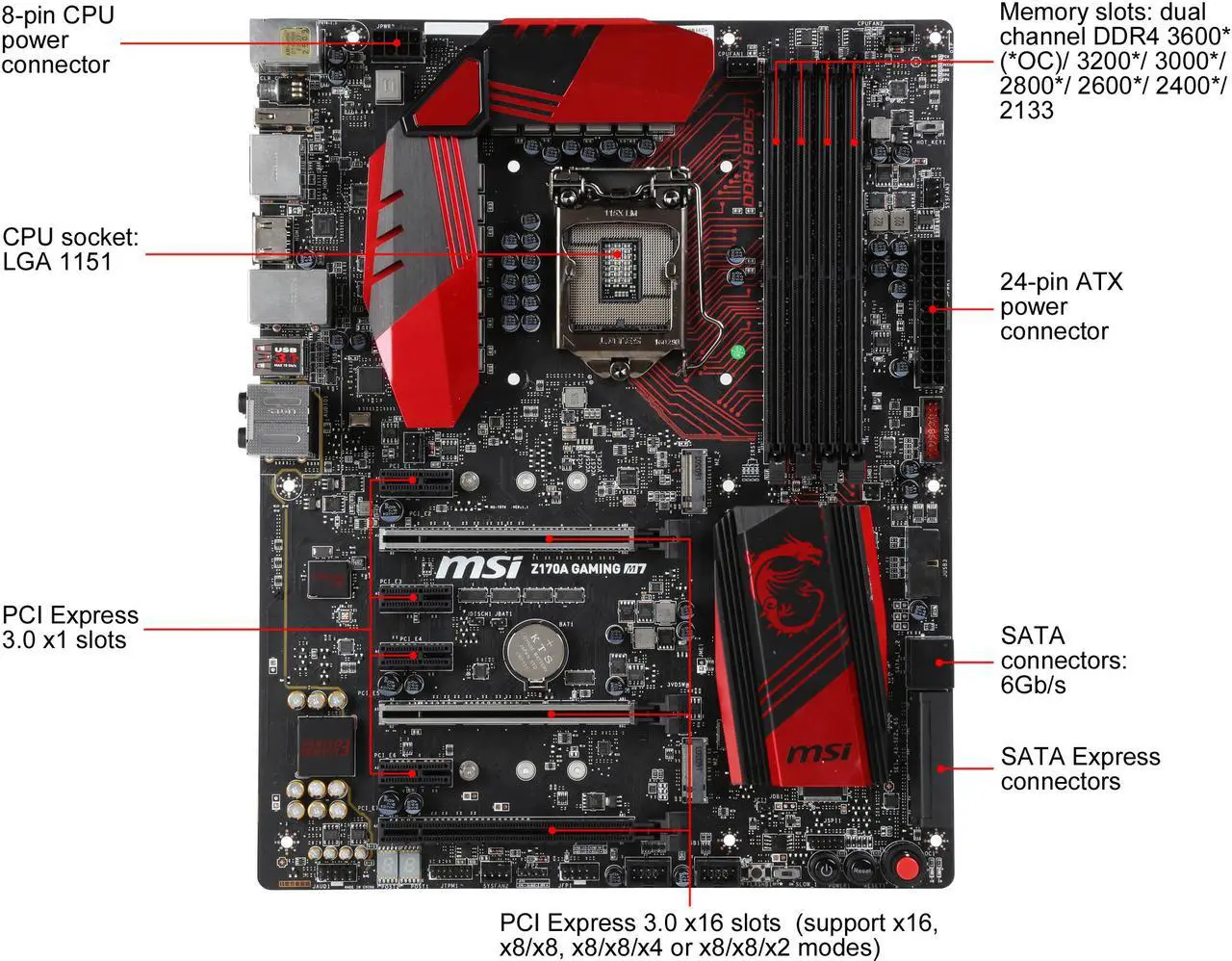

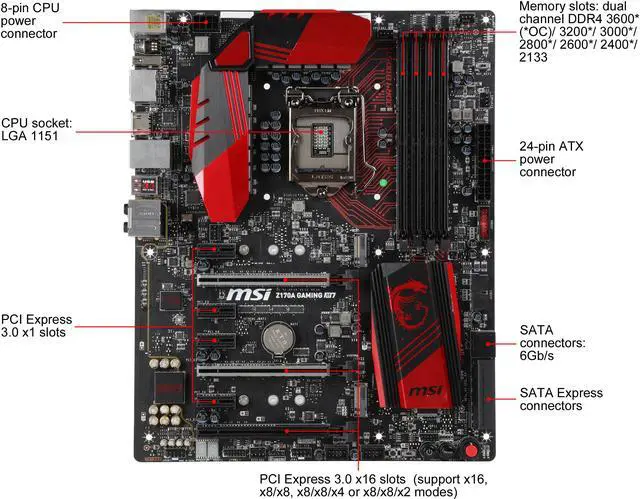

| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium |
| Chipset | Intel Z170 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600*(*OC)/ 3200*/ 3000*/ 2800*/ 2600*/ 2400*/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/x8/x2 modes) |
|---|---|
| PCI Express x1 | 4 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA Express | 2 x SATAe ports (PCIe 3.0 x2) |
| M.2 | 2 x M.2 ports, supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length SSD cards* * * M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs. Please refer to M.2 slots with examples of various combination possibilities |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Qualcomm Killer E2400 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 and Windows 8/ 8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. |
|---|---|
| Max LAN Speed | 1Gbps |

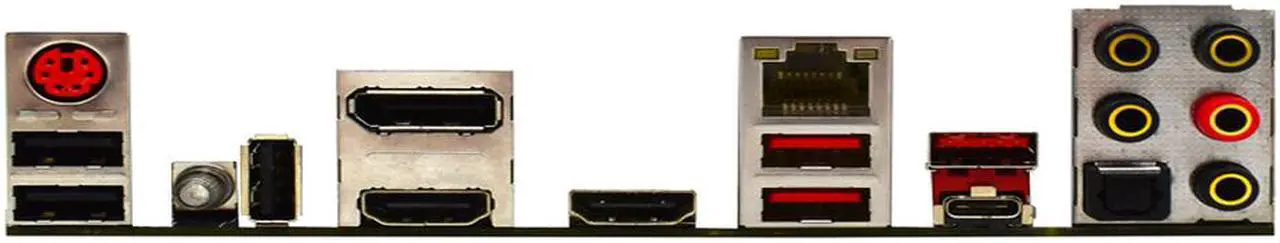

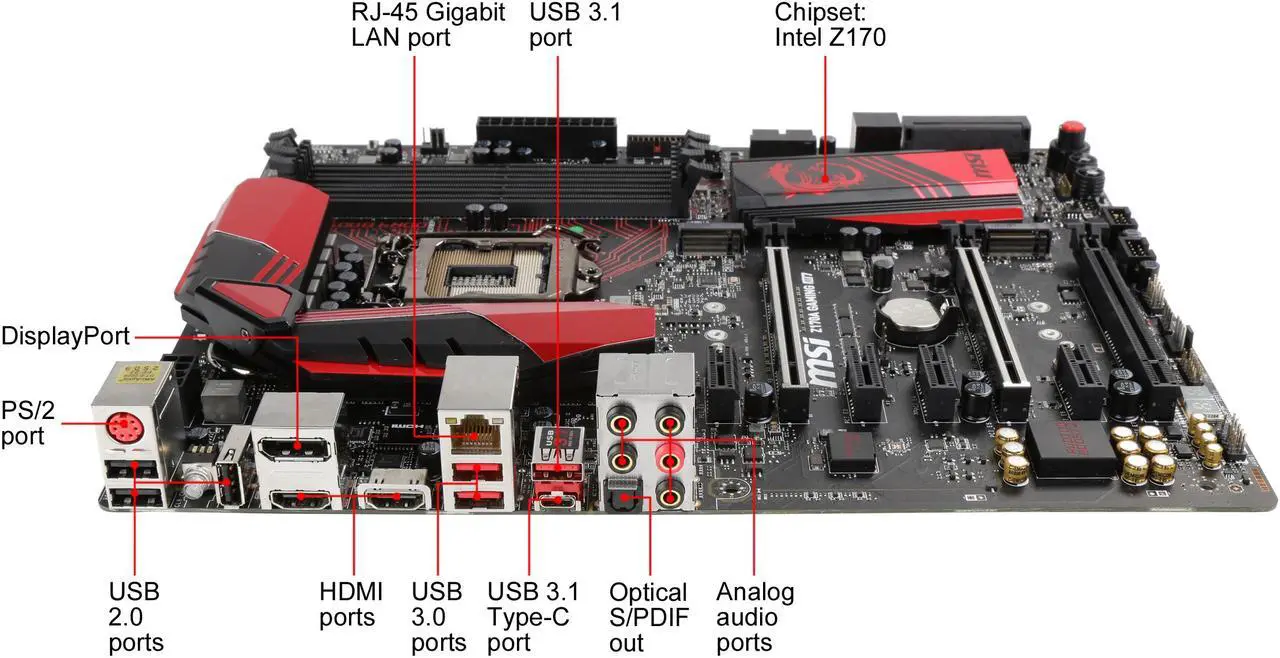

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| HDMI | 2 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 2 x USB 3.1 Gen1 (SuperSpeed USB) ports 2 x USB 3.1 Gen2 (SuperSpeed USB 10 Gbps) ports |
| USB 1.1/2.0 | 3 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 (SuperSpeed USB) connectors |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Game boost button 1 x Power button 1 x Reset button 1 x Flash BIOS button 1 x Hot key switch 1 x Slow mode switch 1 x 2-Digit Debug Code LED |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Onboard Graphics - 2 x HDMI ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - 1 x DisplayPort, support a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz Multi-GPU Support - Supports 3-Way AMD CrossFire Technology* - Supports 2-Way NVIDIA SLI Technology * Supports Windows 7 and Windows 8/ 8.1 I/O Controller - NUVOTON NCT6793 Controller Chip Hardware Monitor - CPU/System temperature detection - CPU/System fan speed detection - CPU/System fan speed control BIOS Features - 1x 128MB flash - UEFI AMI BIOS - ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0 - Multi-language Special Features - DDR4 Boost Support - PCI Express 3.0 Support - USB USB 3.1 Gen2 (SuperSpeed USB 10 Gbps) Ready - Twin Turbo M.2 Ready - SATA Express Support - NVMe / AHCI Driver Support - Mini-SAS HD Support (Optional) Enthusiast GAMING features - Audio Boost 3 - Game Boost - GAMING LAN - GAMING APP - Optimized Thermal Design - Nahimic - XSplit MSI Exclusive features - Click BIOS 5 - Military Class 5 - Command Center - RAM Disk - Live Update 6 - M-Cloud - ECO Center - USB Audio Power - USB Redrivers - BIOSFlashback+ |
|---|

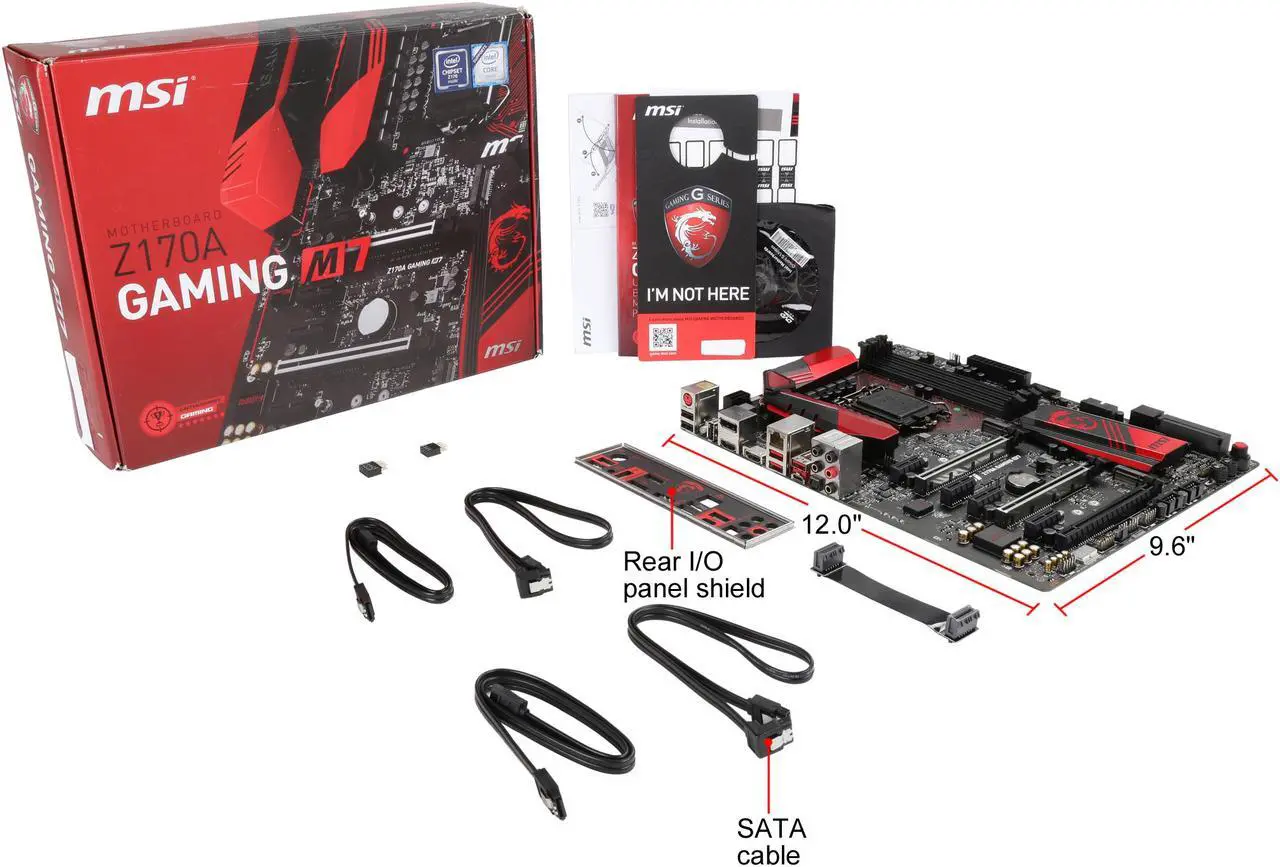

| Package Contents | Only Motherboard and IO shield |
|---|
| Date First Available | April 11, 2025 |
|---|
