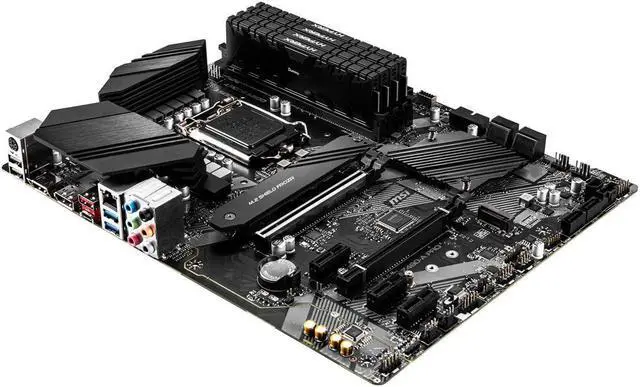

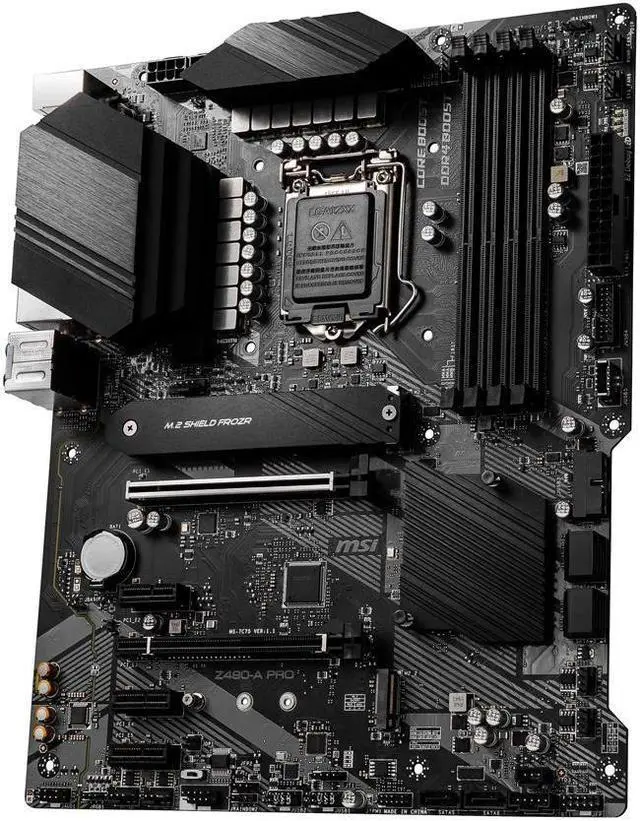

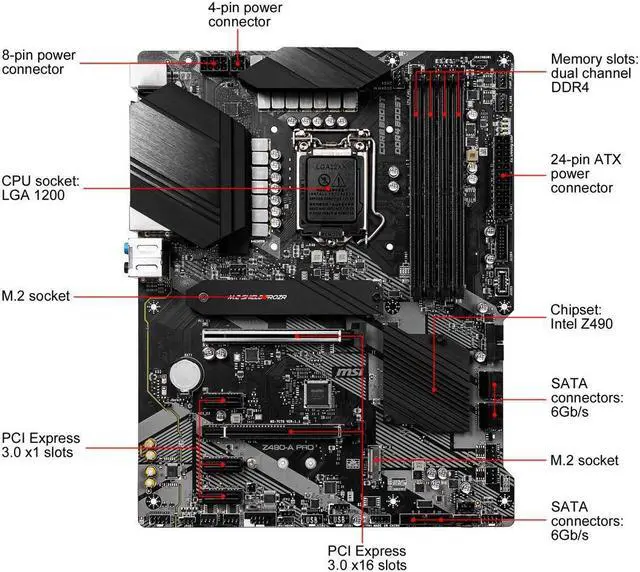

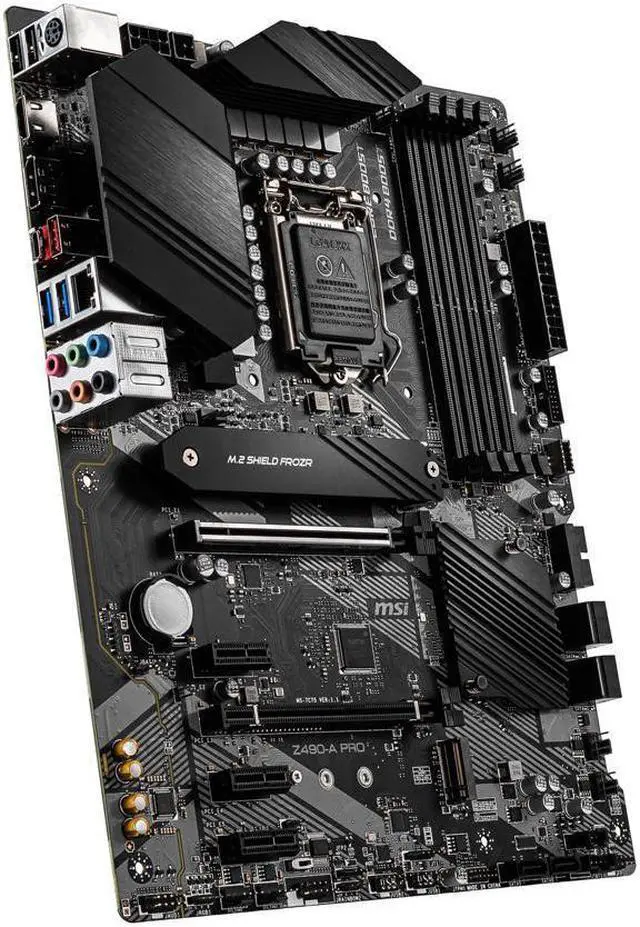

    MSI PRO Z490-A PRO LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

    Used - Like New Product Type
    • Intel Z490
    • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2
    • 1. Please go to intel.com for compatibility information.
    • 2. Onboard graphics output are disabled when using the F SKU processors.
    • Supports 1R 2933/ 2666/ 2133 MHz
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4266+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the MSI Z490-A PRO

    Model
    Brand MSI
    Series PRO
    Model Z490-A PRO
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2
    1. Please go to intel.com for compatibility information.
    2. Onboard graphics output are disabled when using the F SKU processors.
    Chipsets
    Chipset Intel Z490
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic:
    1 x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
    1 x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard Supports 1R 2933/ 2666/ 2133 MHz
    1DPC 1R Max speed up to 4800+ MHz
    1DPC 2R Max speed up to 4266+ MHz
    2DPC 1R Max speed up to 4400+ MHz
    2DPC 2R Max speed up to 4000+ MHz
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot (from CPU)
    1 x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
    PCI Express x1 3 x PCIe x1 slots (from PCH)
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s ports 1
    1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
    M.2 2 x M.2 slots (Key M)
    M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices 1
    M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices 2
    1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
    2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
    Intel Optane Ready Intel Optane Memory Ready 3
    3. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8125B-CG
    Max LAN Speed 2.5Gbps
    Rear Panel Ports
    Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 5Gbps Type-C port
    2 x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
    2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    Other Connectors 1 x 4-pin CPU fan connector
    1 x 4-pin water pump connector
    6 x 4-pin system fan connectors
    1 x front panel audio connector
    2 x system panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x 4-pin RGB LED connector
    2 x 3-pin RAINBOW LED connectors
    1 x serial port connector
    1 x TPM module connector
    1 x TBT connector *
    * Thunderbolt card need support RTD3
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Features
    Features Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket

    Supports DDR4 Memory, up to 4800(OC) MHz

    Ready 4 the Future: Support Lightning Gen 4 Solution for the future

    Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

    Ready 4 the Future: Support Lightning Gen 4 Solution for the future

    2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

    Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

    Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

    Audio Boost: Reward your ears with studio grade sound quality

    Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire
