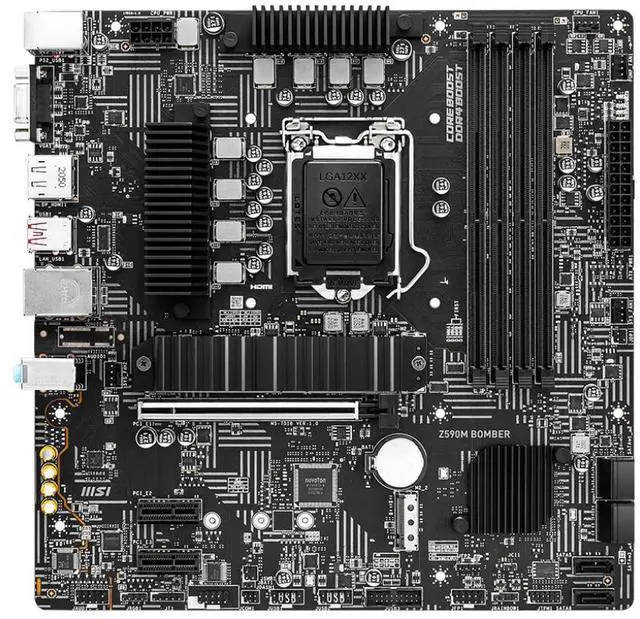

MSI Z590M BOMBER DDR4 LGA1200 Intel Z590 mATX Motherboard , with PCIe 4.0, USB 3.2 Gen 2,2.5Gbps LAN controller

CPU
Supports 10th Gen Intel Core® Processors, 11th Gen Intel Core® Processors, Pentium Gold and Celeron Processors®®1

Processor socket LGA1200

Please go to intel. com for compatibility information
Chipset
Intel Z590 chipset®

Memory
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)®
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)®
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) ®
Please refer www. msi. com for more information on compatible memory.
See supported memory

Expansion Slot
1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU®
Support up to PCIe 3.0 for 10th Gen Intel CPU®
2x PCIe 3.0 x1 slots (From Z590 chpiset)
Onboard Graphics
1x HDMI 2.0 b with HDR port, supports a maximum resolution of 4K 60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz12
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
AudioRealtek AL897 Codec ®
7.1 -Channel High Definition Audio
LAN1x Realtek 8125B 2.5G bps LAN controller®
Storage
6x SATA 6Gb/s ports (From Z590 chipset)
2x M. 2 slot (Key M)
M2_1 slot
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) ®
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From Z590 chipset) ®1
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot2 (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready®1
Supports Intel Smart Response Technology for Intel Core® processors
SATA2 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel Z590 Chipset®
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Form Factor
Miro-ATX Form Factor
9.6 in. x 9.6 in. ( 24.4 cm x 24.4 cm)
BIOS Features
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M. 2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning Controller Connector

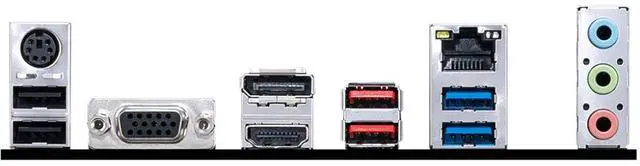

Back panel Connectors
Keyboard / Mouse
VGA
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
