Question 1

I currently have two sticks of 1866 RAM. Will this mobo support two actual sticks of 1866? What does the 1866 (OC) mean??

Accepted Answer

The (OC) means it has an overclocking profile to take it up to 1866 safely.  The OC Genie will up it to 1866 when you turn it on.  W/o OC Genie on you will likely run at 1600.

For reference I am using 2400 RAM which runs at 1600 w/o OC Genie on and 2400 with it on.

Question 2

My RAM has some tall heatsinks on them... Will the Cooler Master EVO CPU cooler fit on this motherboard without intfering with my RAM? I only have 2 DIMMs so if I have to put them in the black channel that is fine.

Accepted Answer

Yes that cooler should be able to fit without moving your RAM. I have the same motherboard while using Cooler Master EVO 212 Plus and it fits - granted it is a tight one. you should be just fine, however, be careful.

Question 3

Does this board have a button to turn it on without a case?

Accepted Answer

No. But like any motherboard you can easily turn it on by plugging a button on to,or shorting the 2-pin power header.

Question 4

does this thing have onboard wifi?

Accepted Answer

thanks man

Question 5

Does this motherboard support RAID options through on-board SATA ports?

Accepted Answer

I just went through the BIOS on mine and I don't see anything regarding that, so the most you could do is a software RAID.

Question 6

Can I use Intel Xeon CPU's on this motherboard?

Accepted Answer

Yes, Haswell Cores labelled E3-1220 v3 to E3-1285 v3 including L variants.

Question 7

Will this board work with a G3258 Haswell Dual-Core 3.2GHz  cpu?

Accepted Answer

Yes, it will work with any LGA 1150 socket cpu

Question 8

Does this MB include an USB 3.0 header to 2.0?

Accepted Answer

Actually it has 2.0 headers and a 3.0 header on board.  Spec total is 10x USB 3.0 and 8x USB 2.0

Cheers

Question 9

what are the size dimensions of this board?

Accepted Answer

From the MSI website: 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor.
I measured 12 in. x 9 in. edge to edge on the board but a GTI560Ti Gfx card plugged into it measures 9.6 in.

Question 10

Can I use 3 monitors with the HDMI, DVI, and VGA ports?

Accepted Answer

From the MSI website: This platform supports dual-display and triple-display function -  VGA+DVI-D, DVI-D+HDMI, HDMI+VGA, HDMI+VGA+DVI-D

Brand	MSI
Model	Z97-G55 SLI

CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)

Number of Memory Slots	4x240pin
Memory Standard	DDR3 3300(OC)/3200(OC)/ 2800(OC)/2600(OC)/2200(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	3 (x16, x8/x8, x8/x4/x4 modes)
PCI Express x1	3 x PCI Express x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2

Meet Your Seller

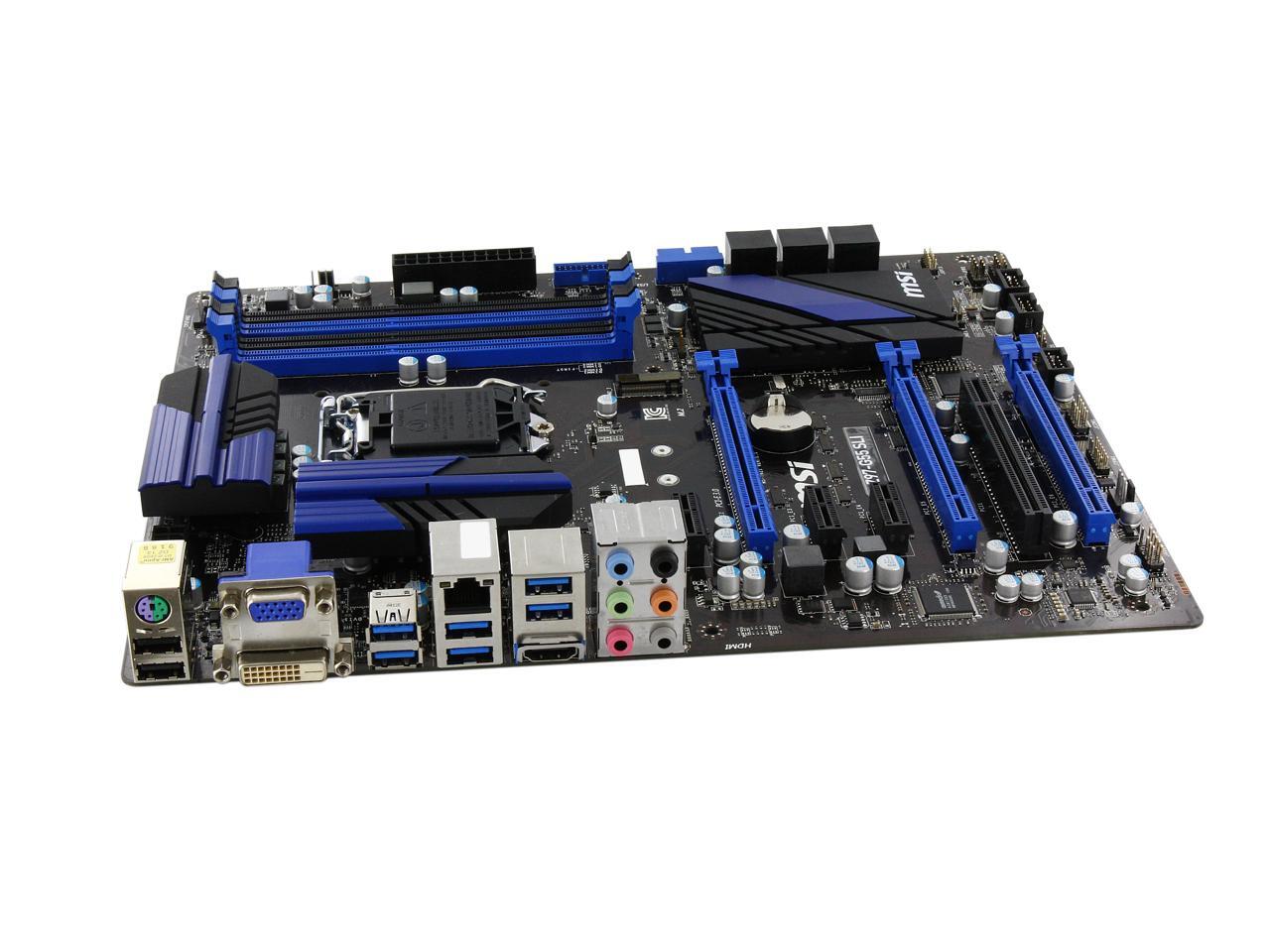

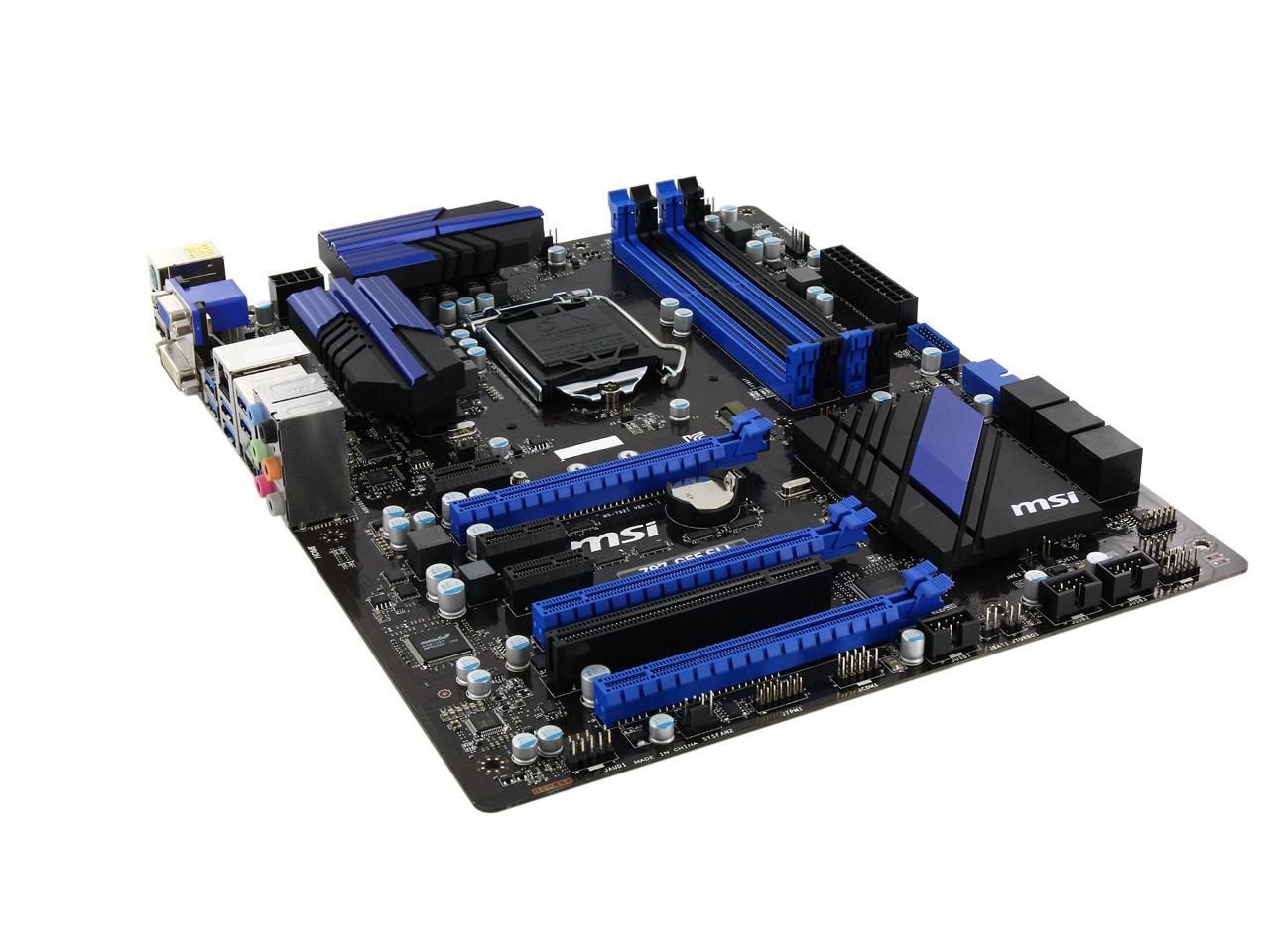

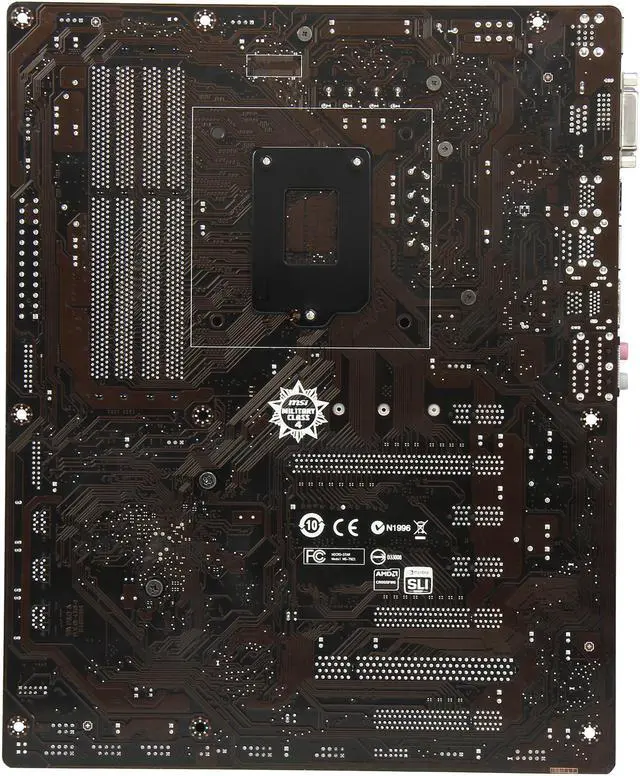

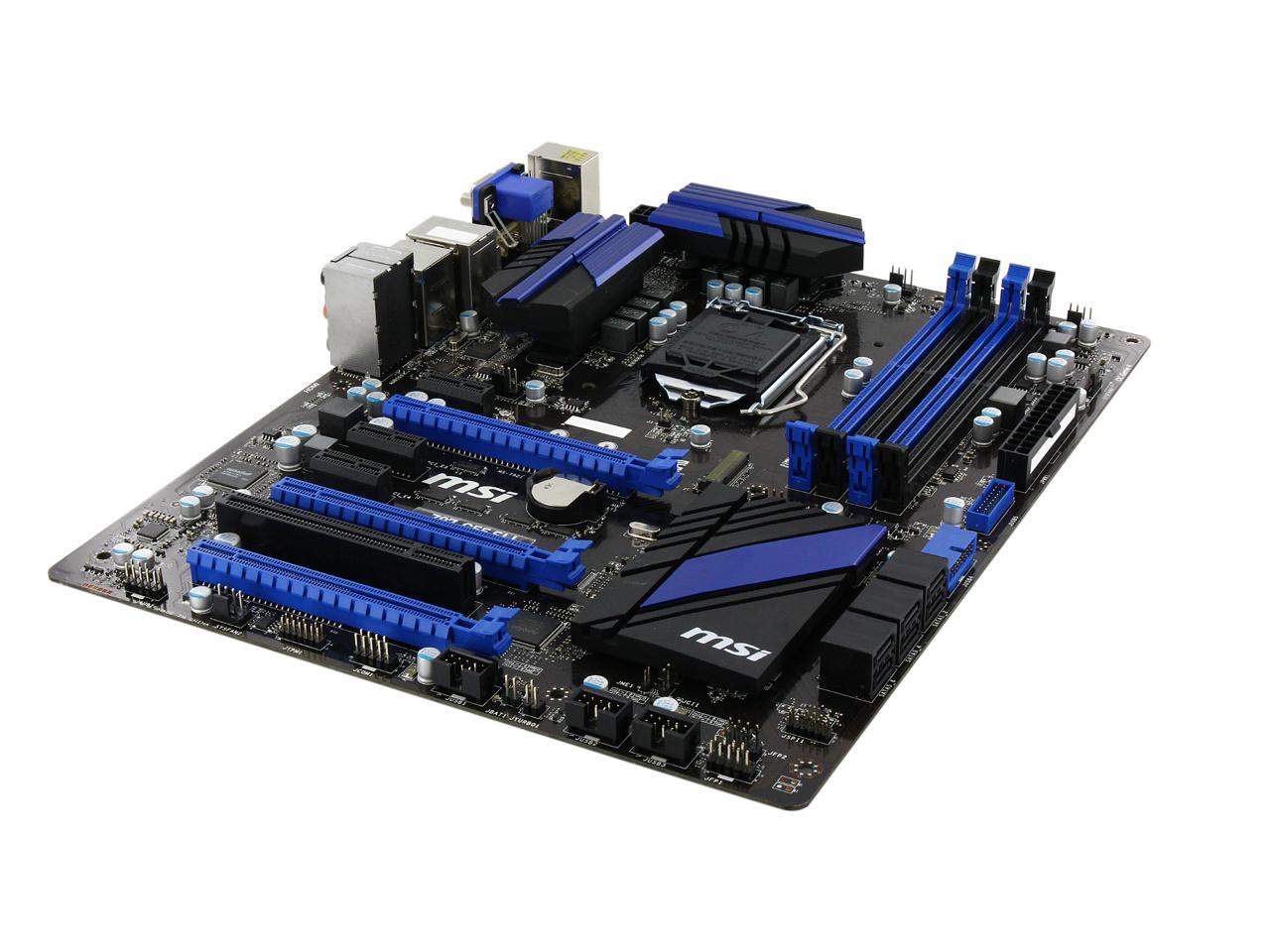

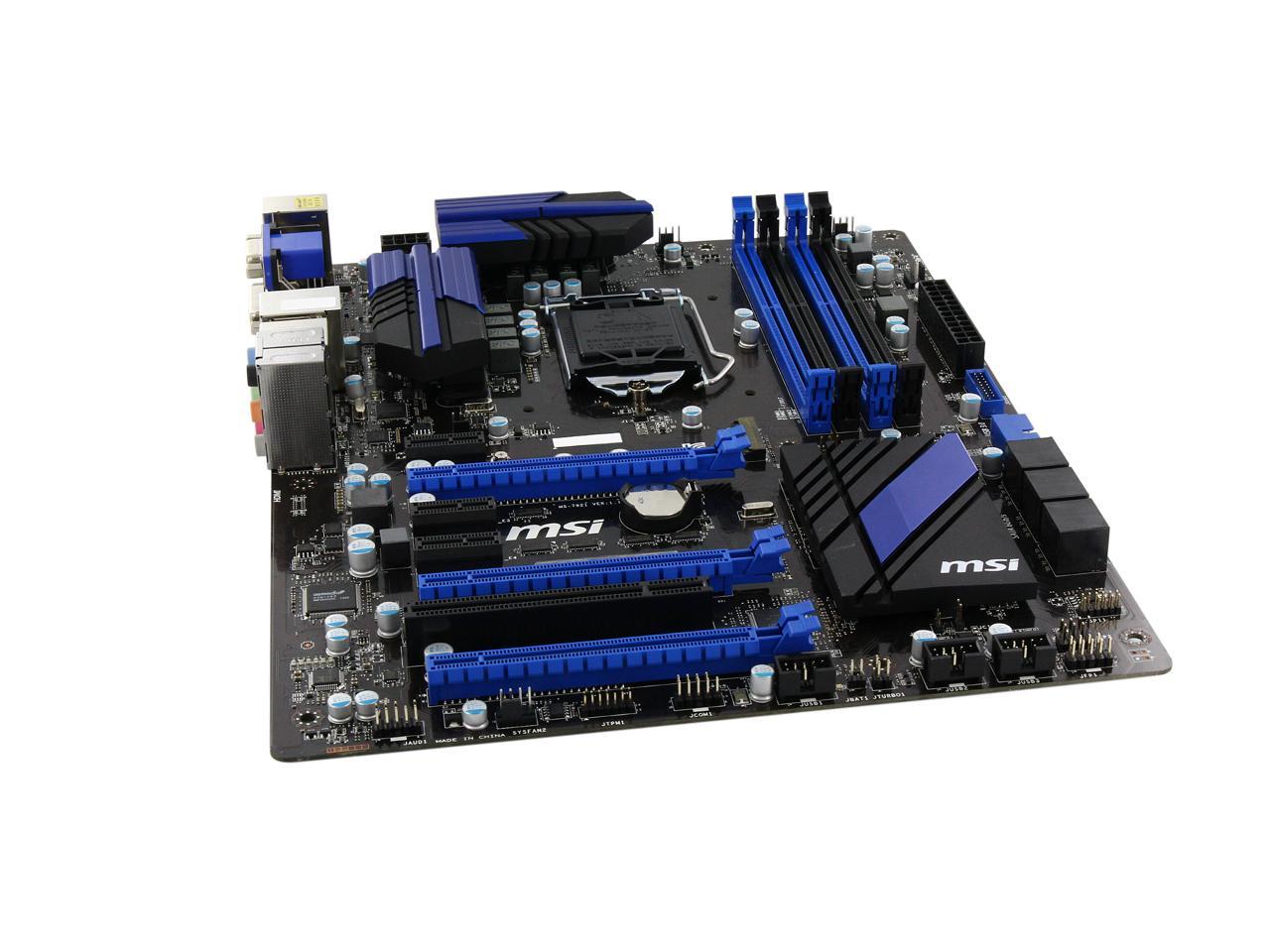

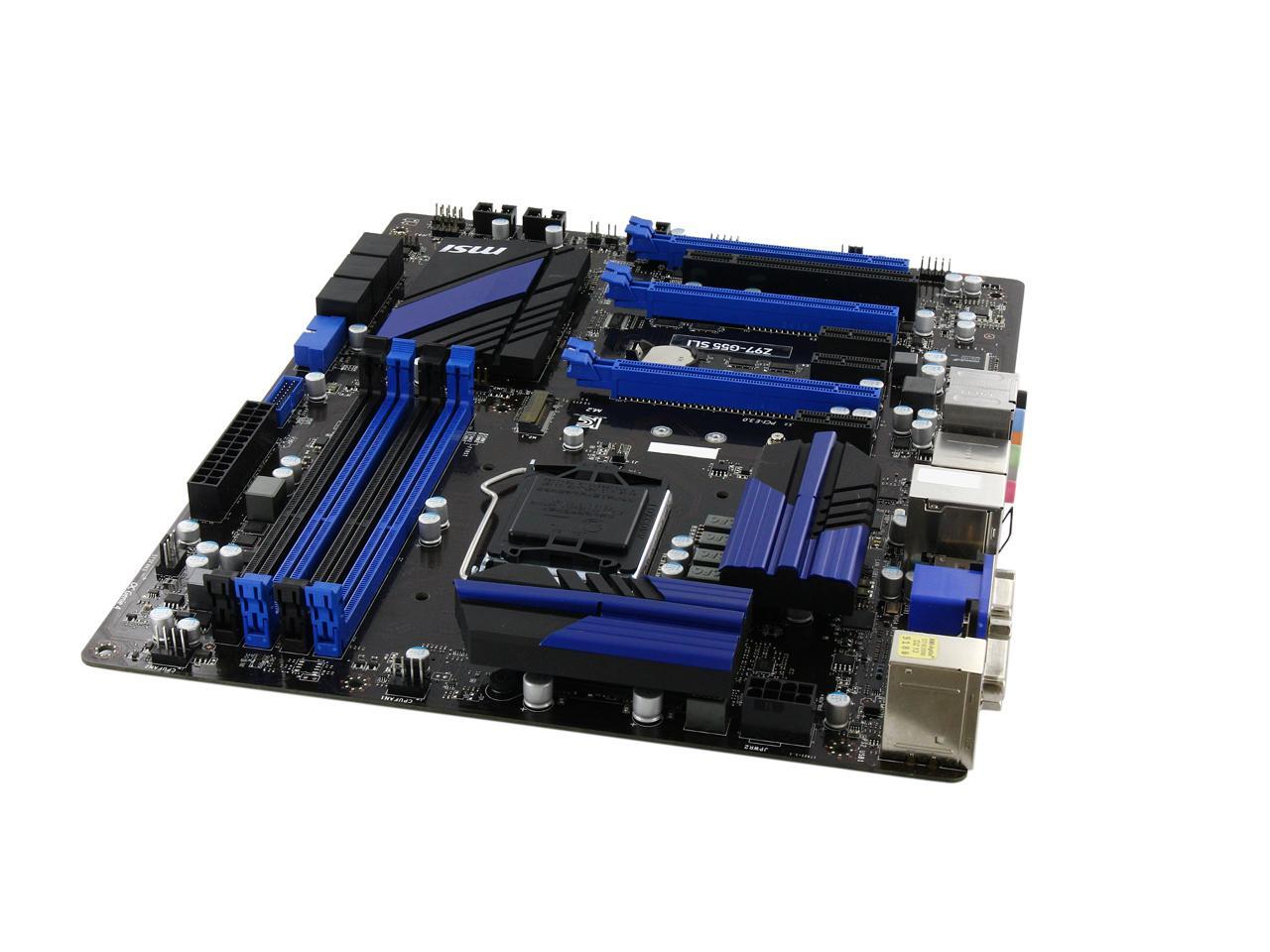

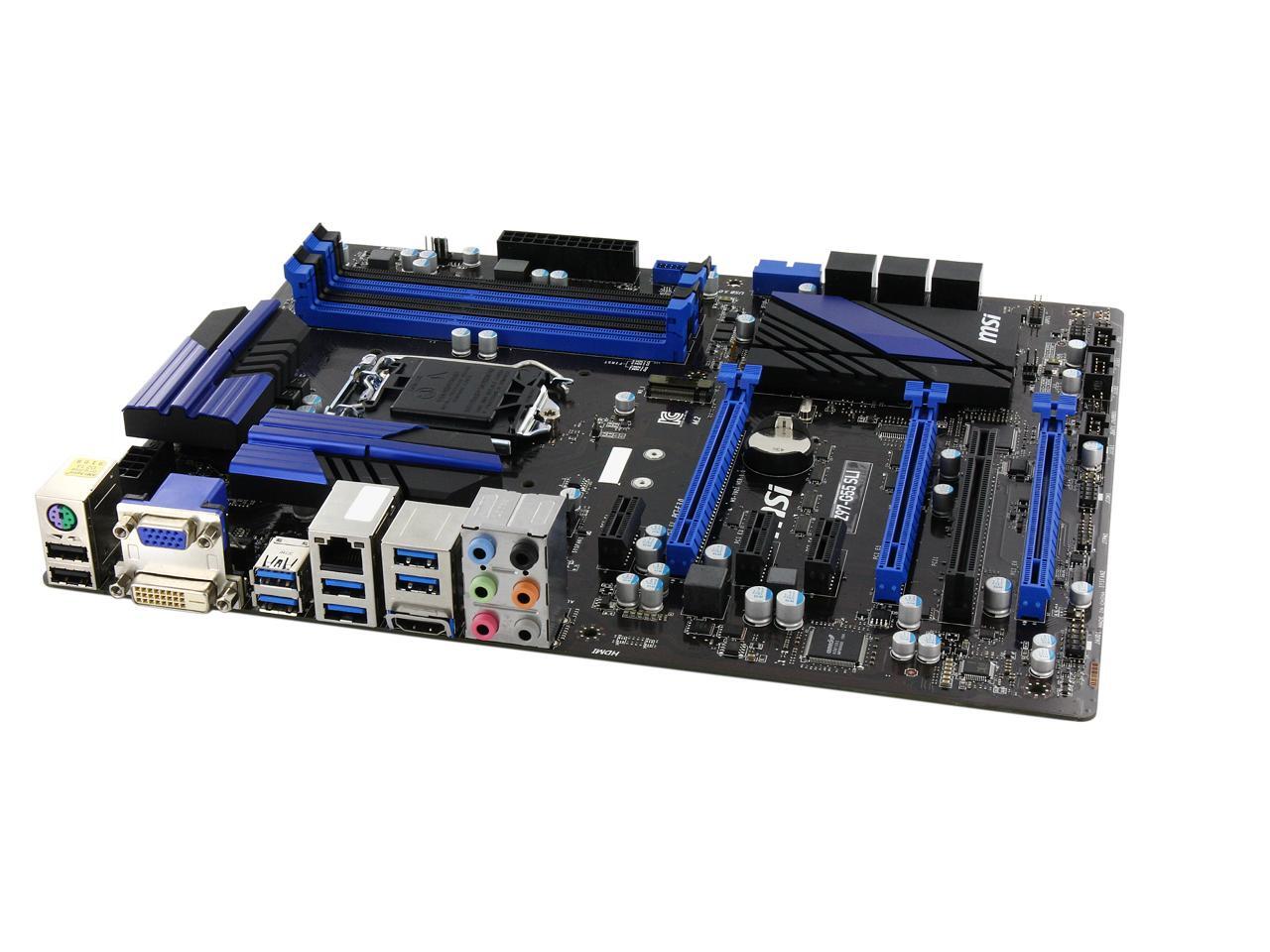

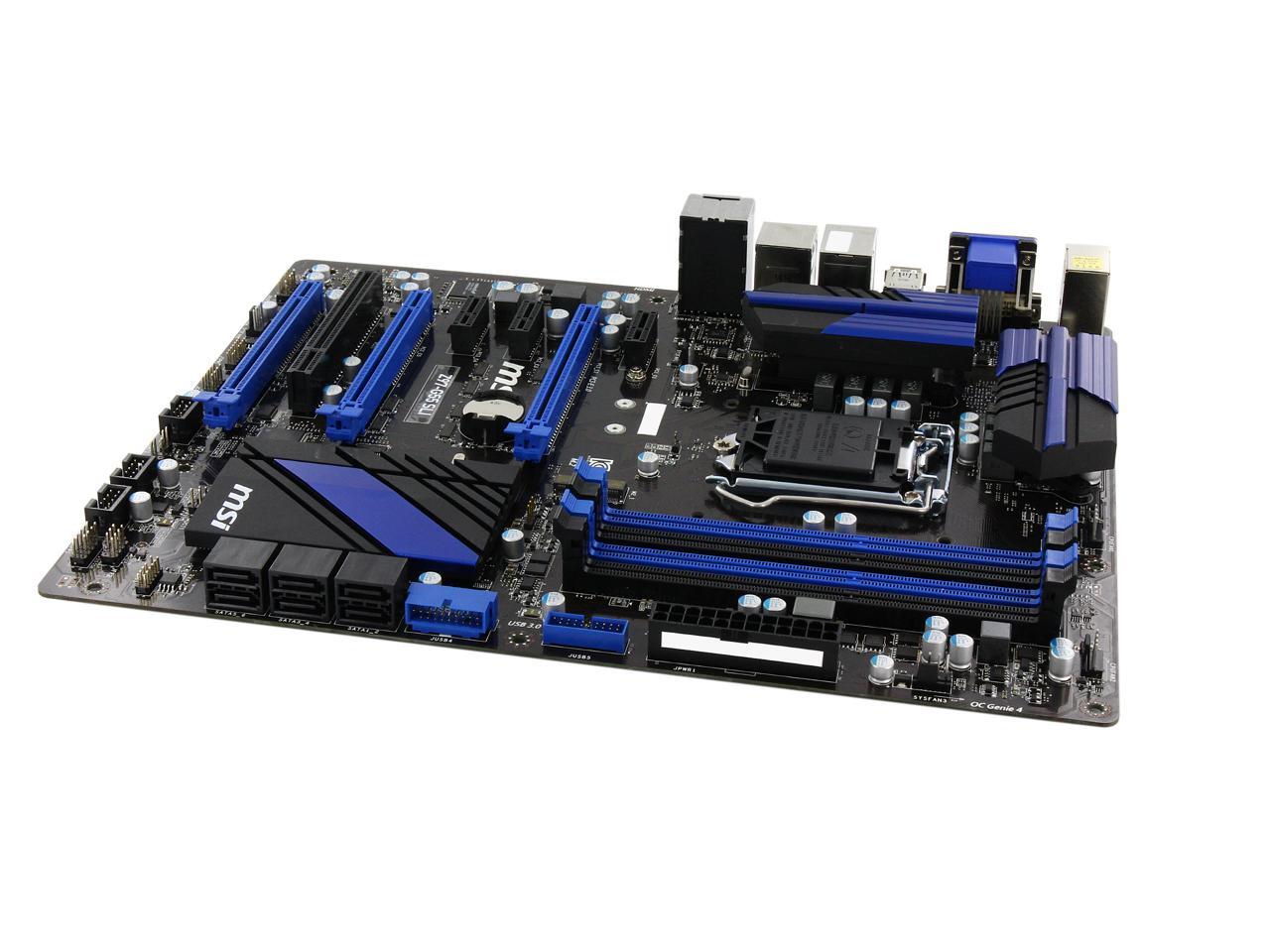

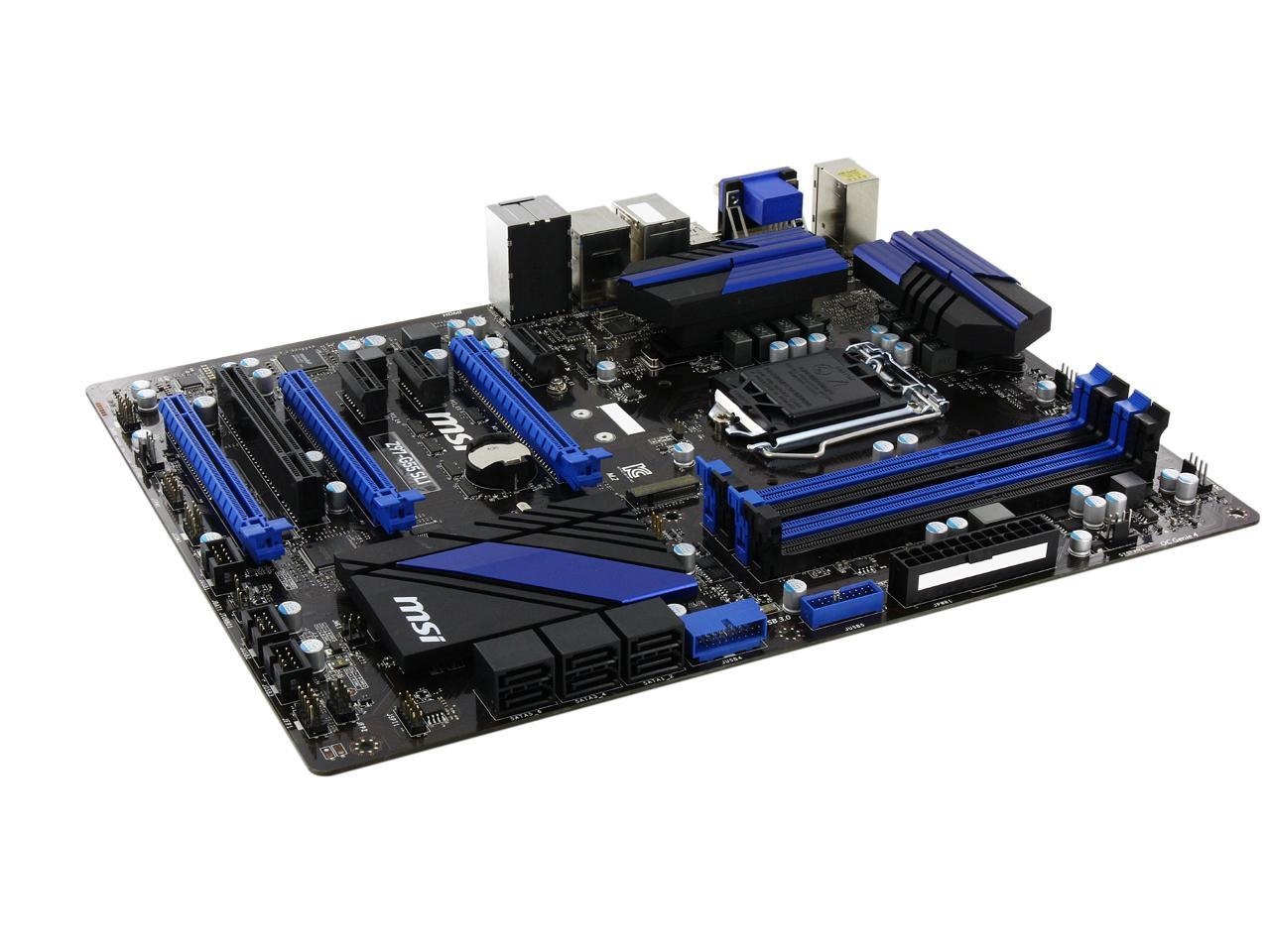

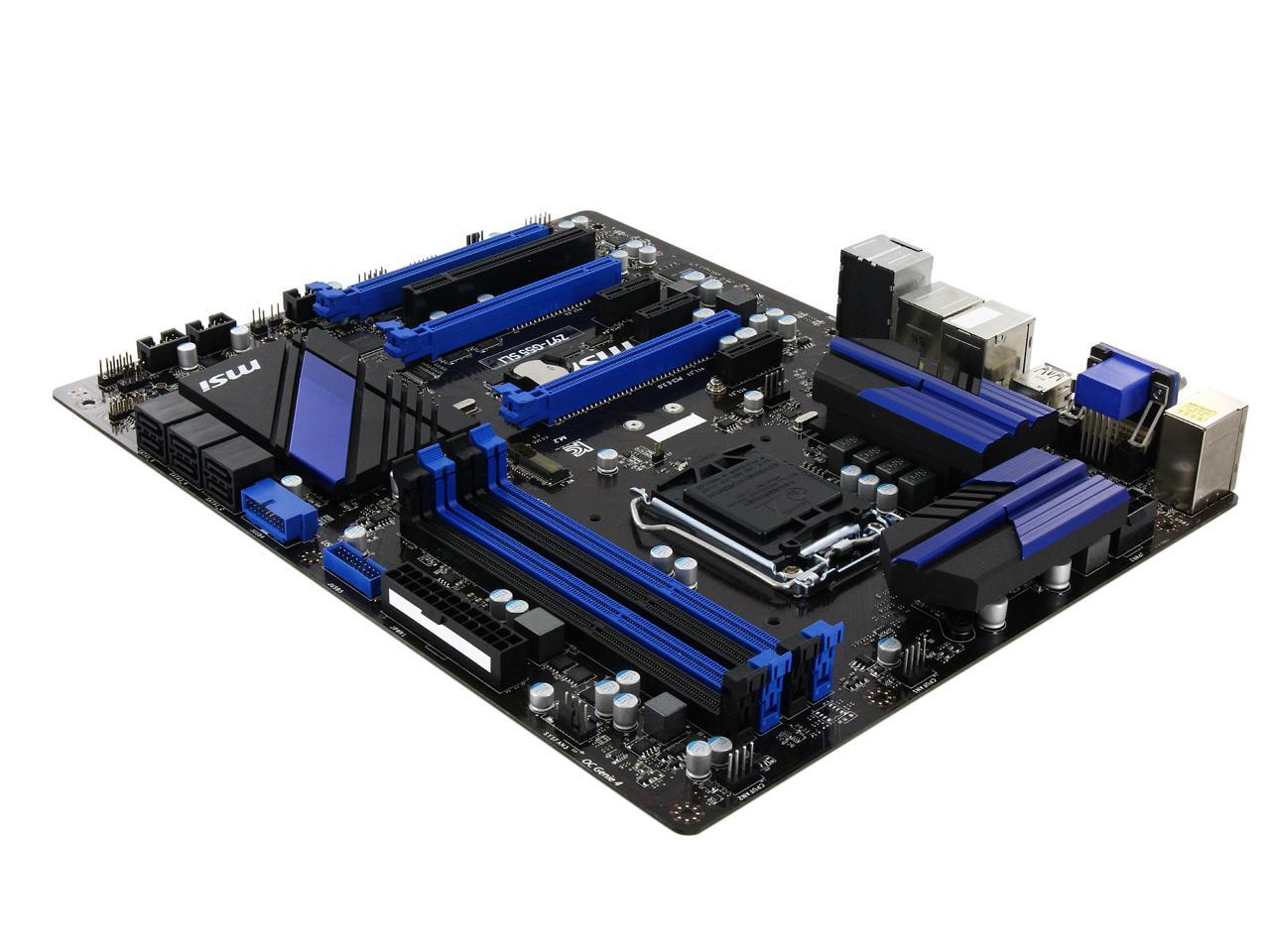

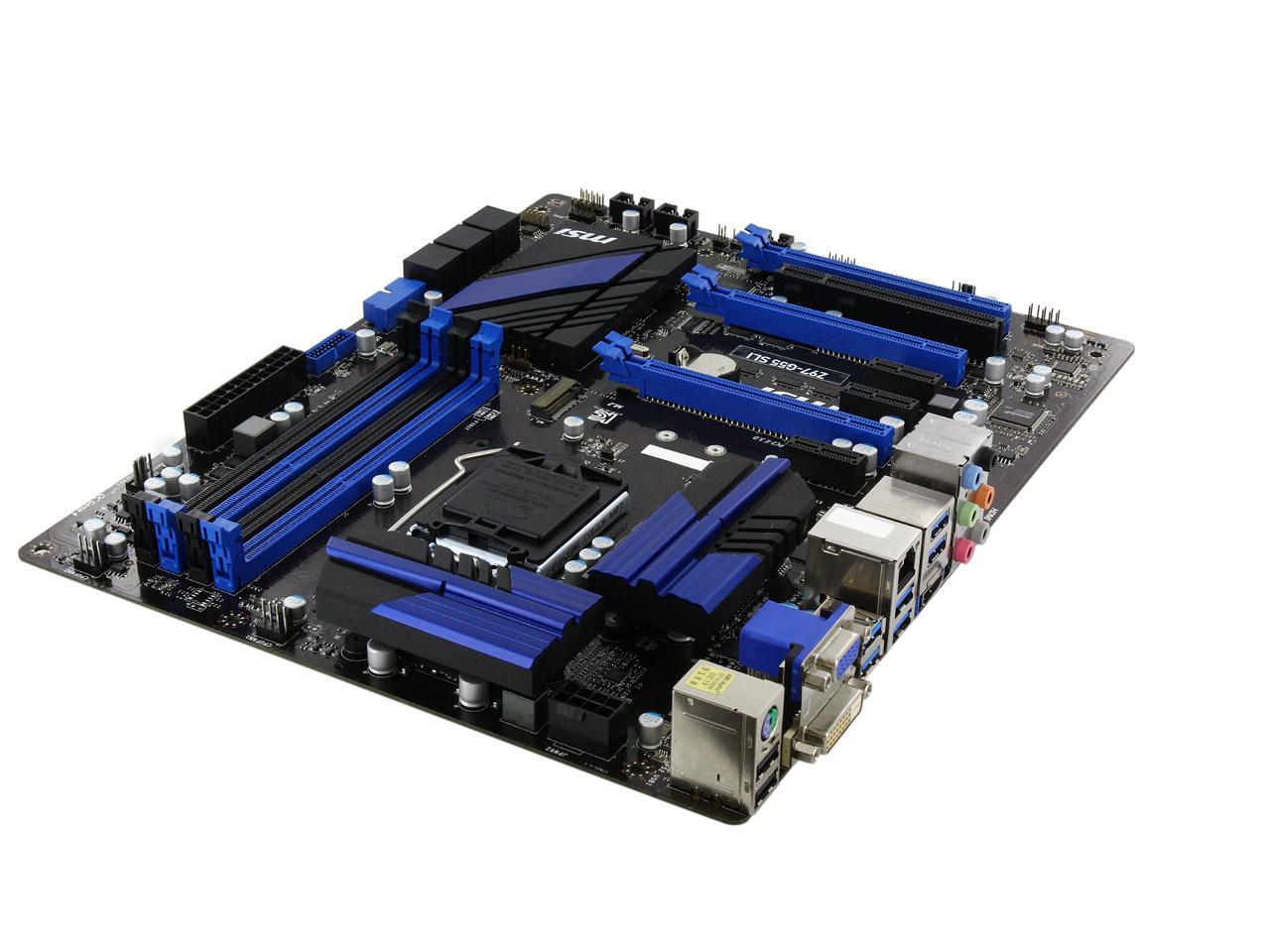

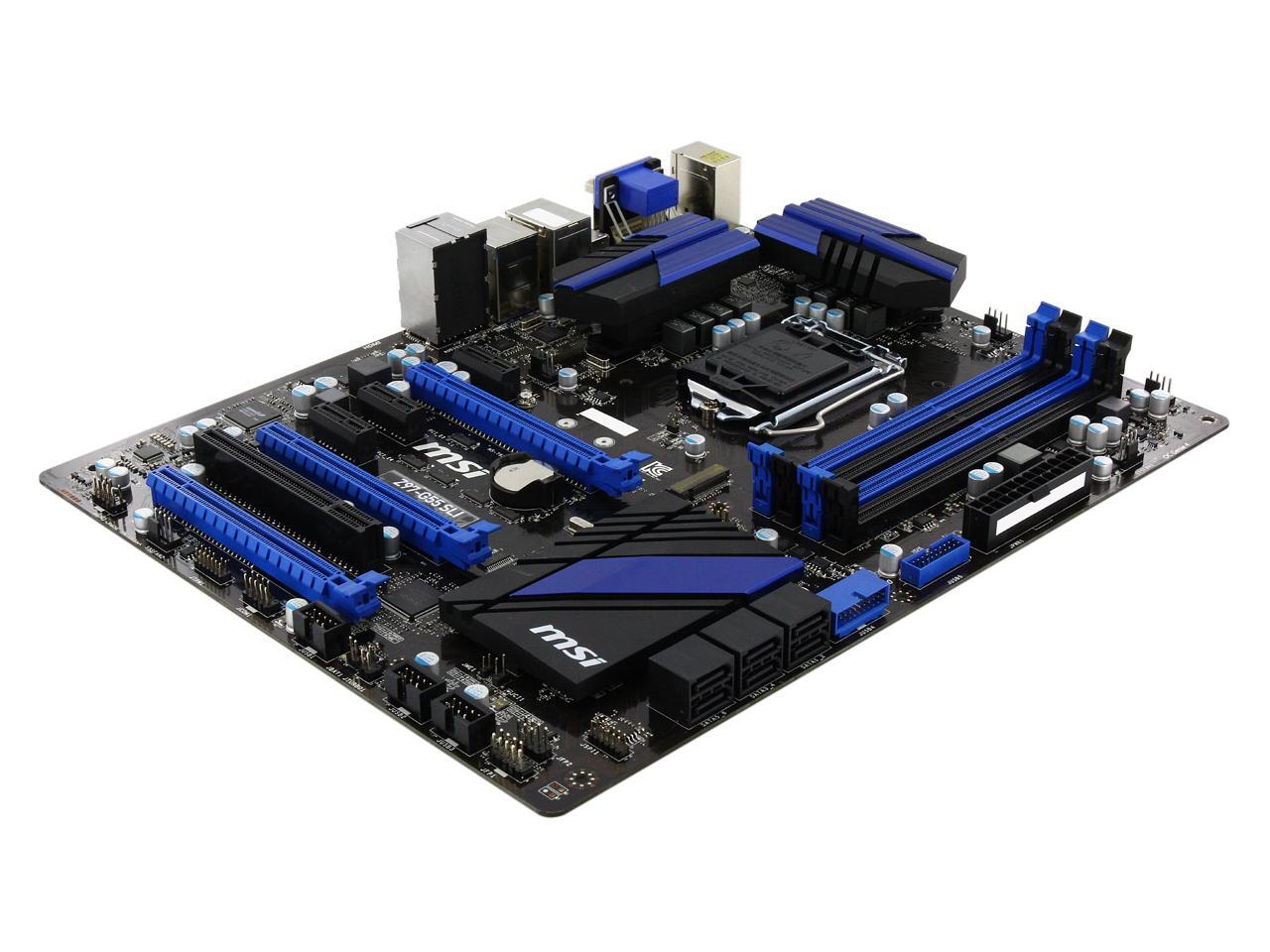

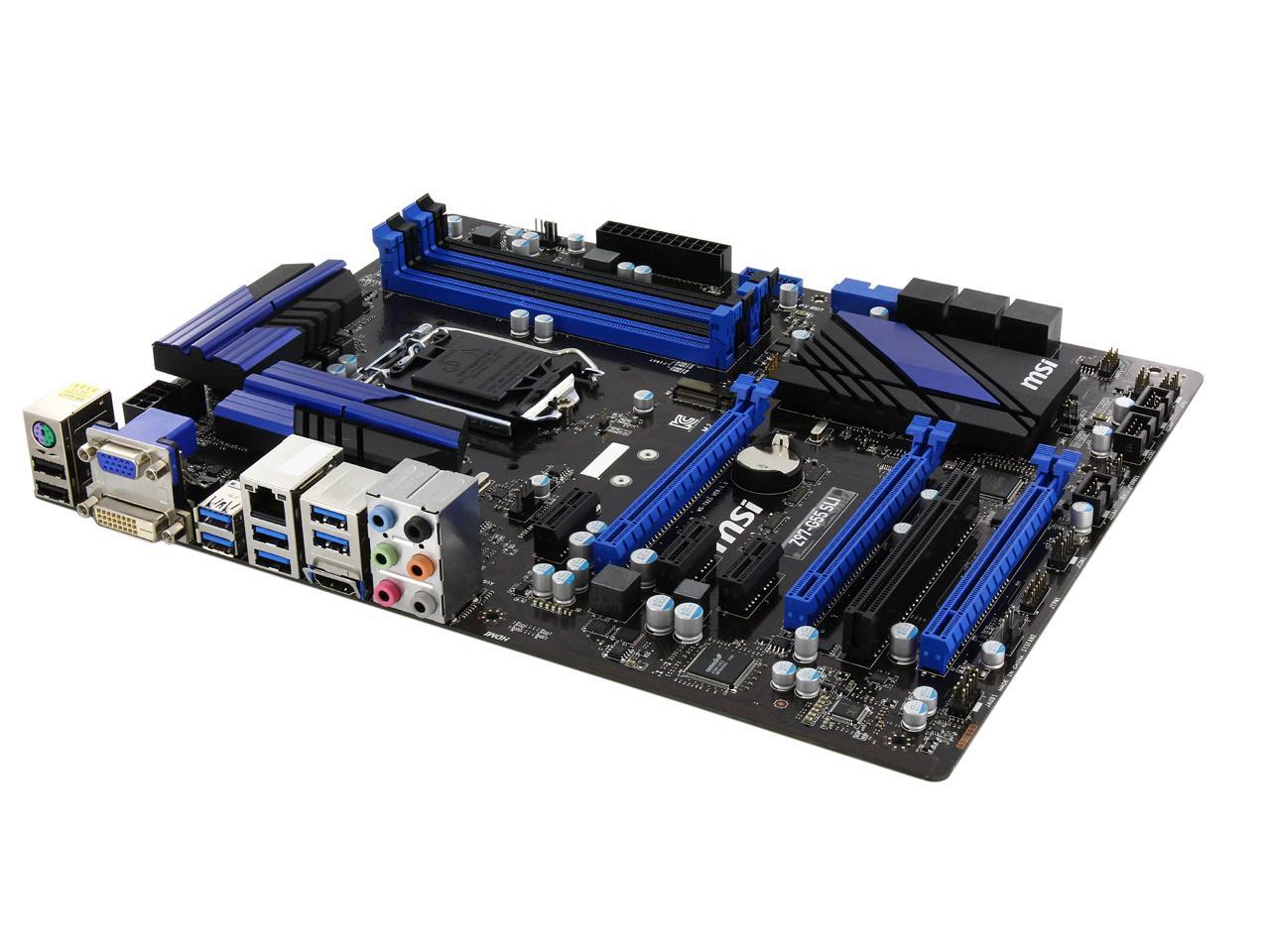

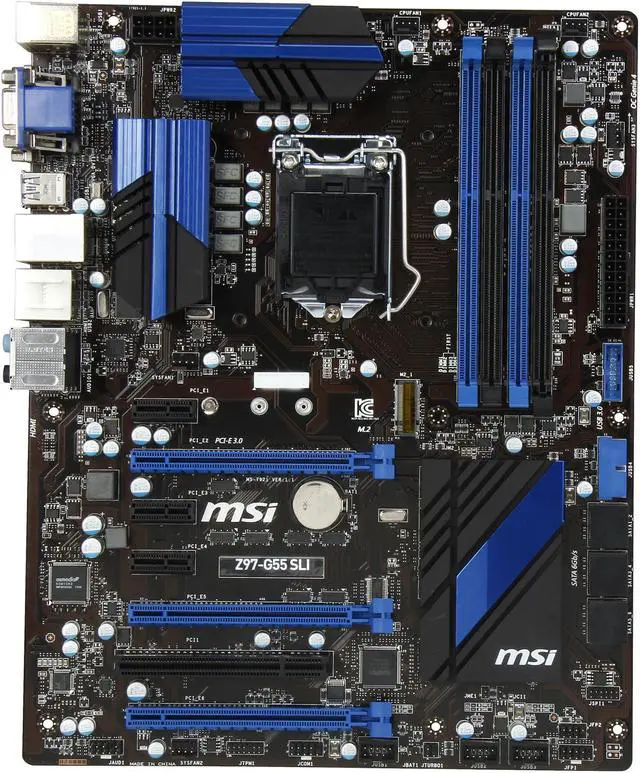

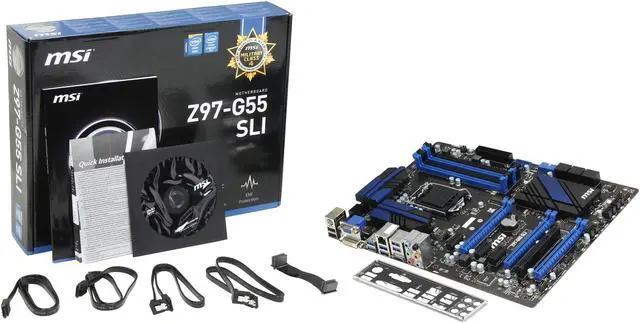

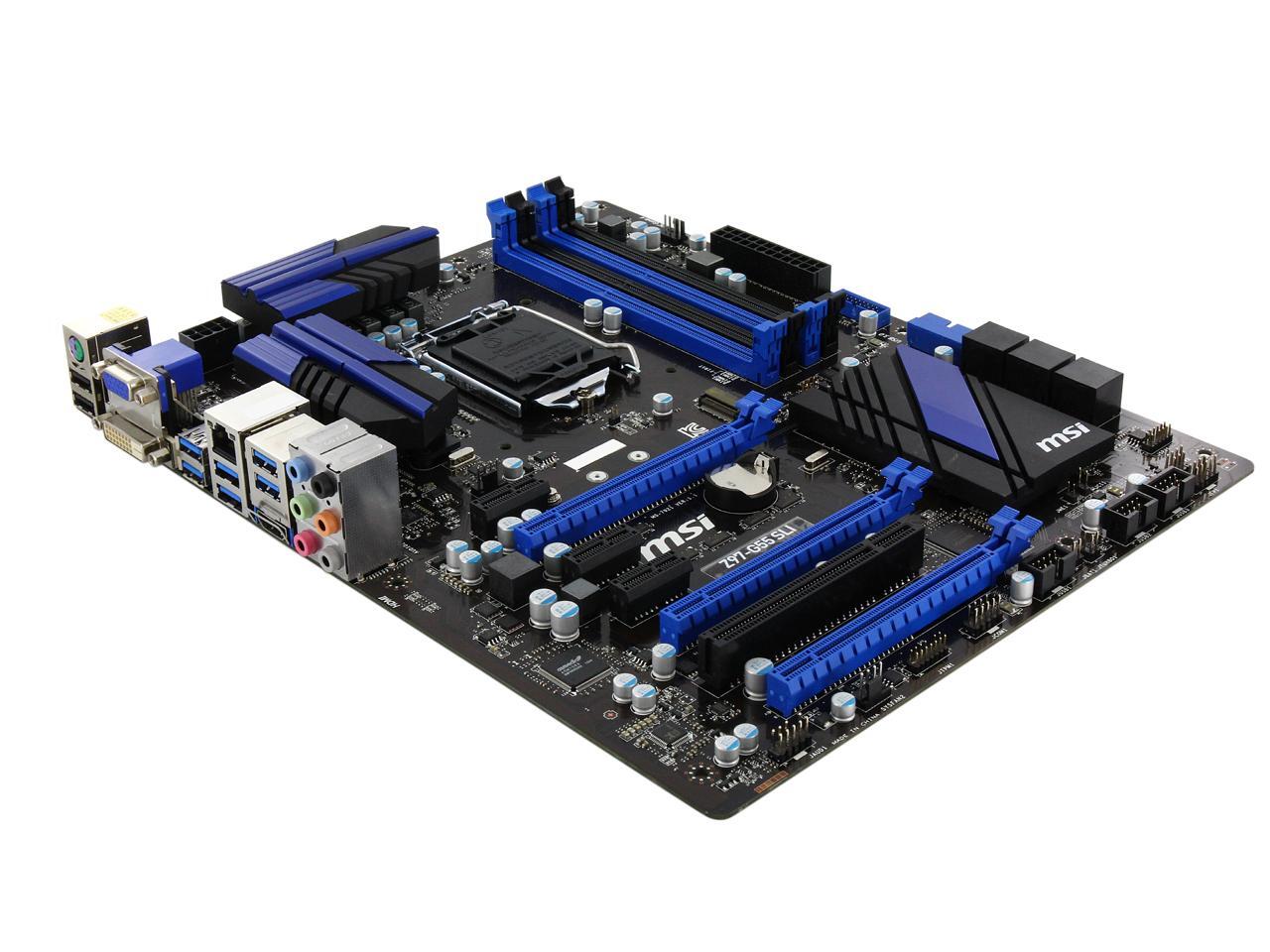

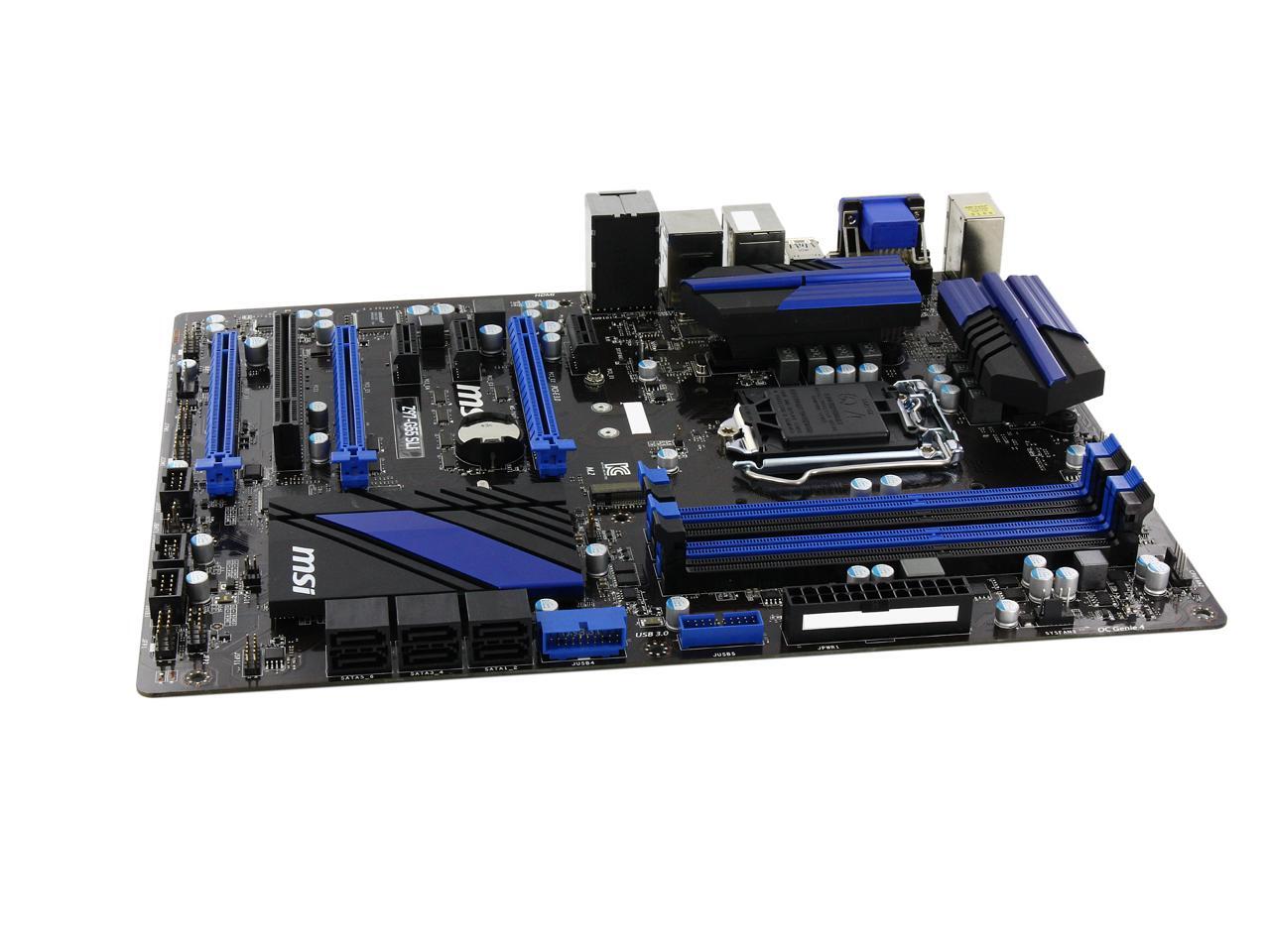

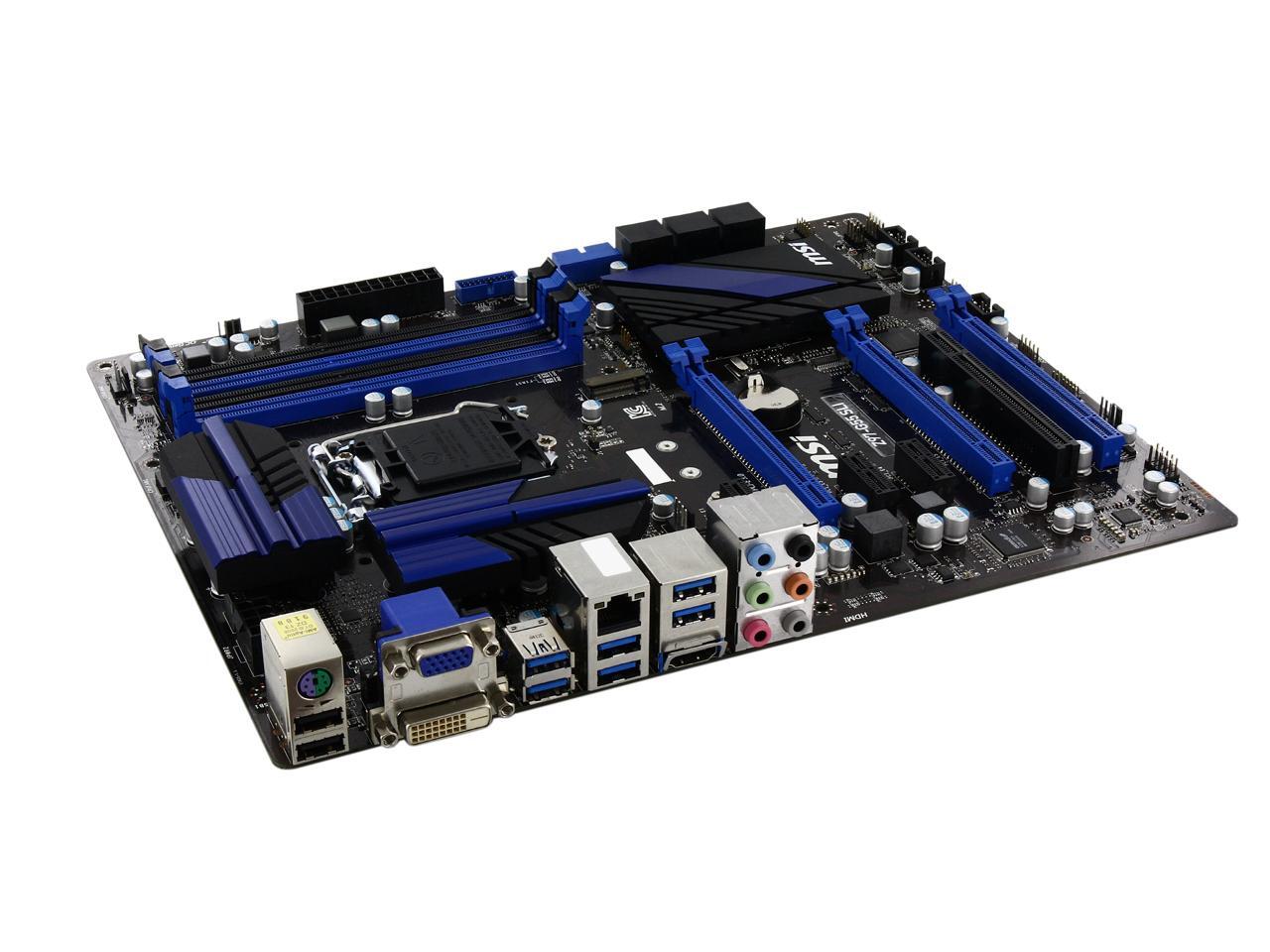

MSI Z97-G55 SLI LGA 1150 Intel Z97 HDMI USB 3.0 ATX Intel Motherboard

Used - Very Good

Learn more about the MSI Z97-G55 SLI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

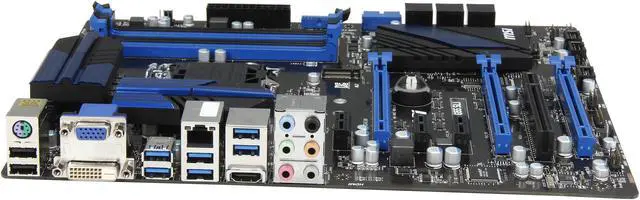

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D 1 x D-SUB
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	6 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	6 Ports

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Power Pin	24 Pin

Item#: 9SIAWFGKEU6226
