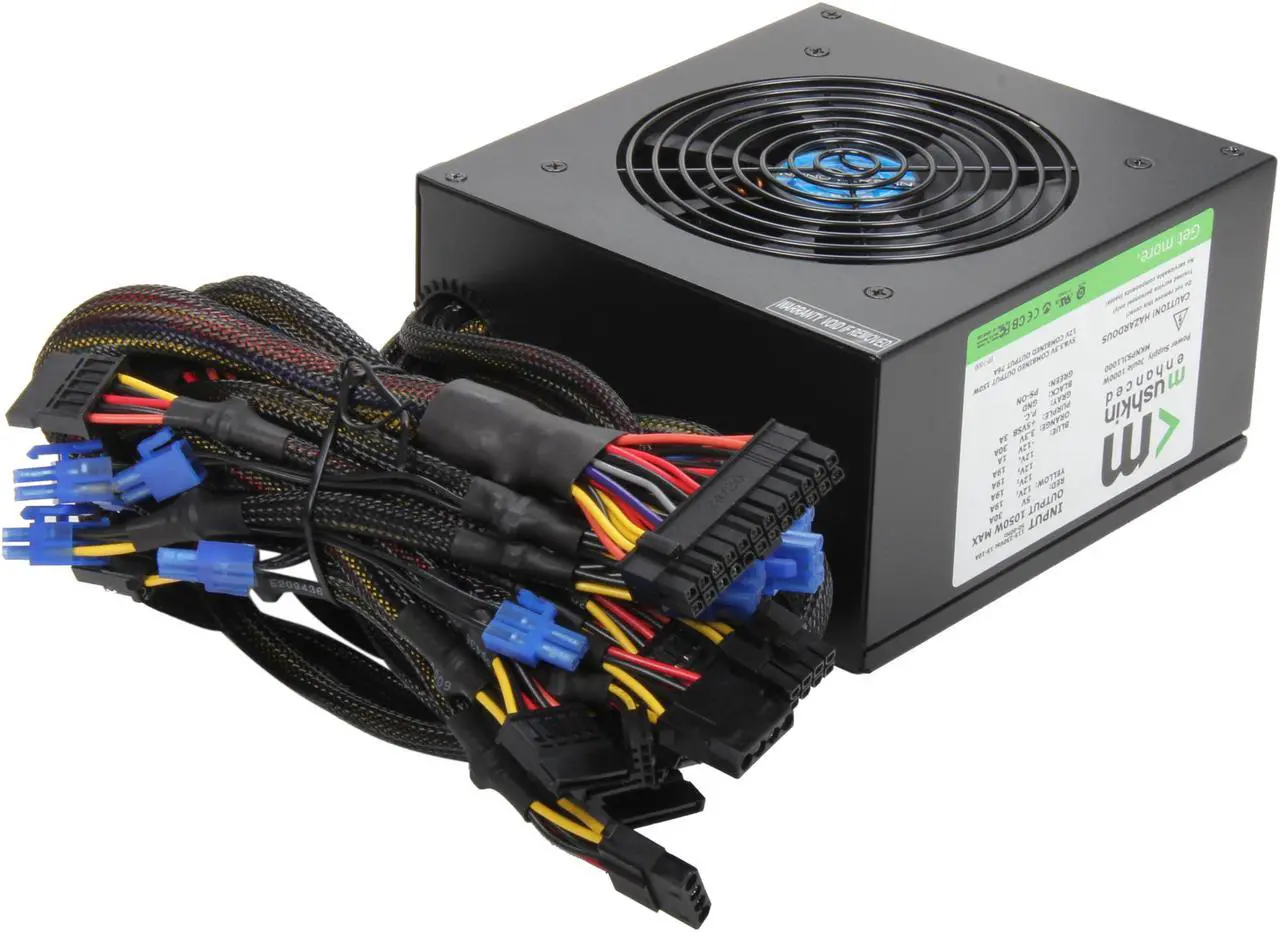

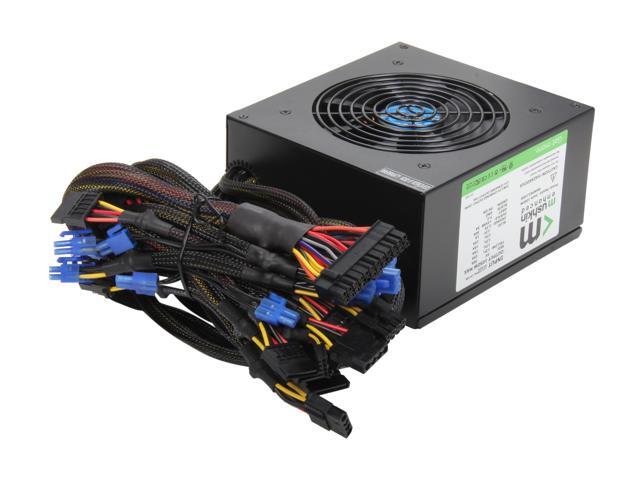

Mushkin Enhanced MKNPSJL1000 1000 W ATX12V v2.3 80 PLUS GOLD Certified Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (11)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Mushkin Enhanced MKNPSJL1000

General
Brand Mushkin Enhanced
Model MKNPSJL1000
Details
Type ATX12V v2.3
Maximum Power 1000 W

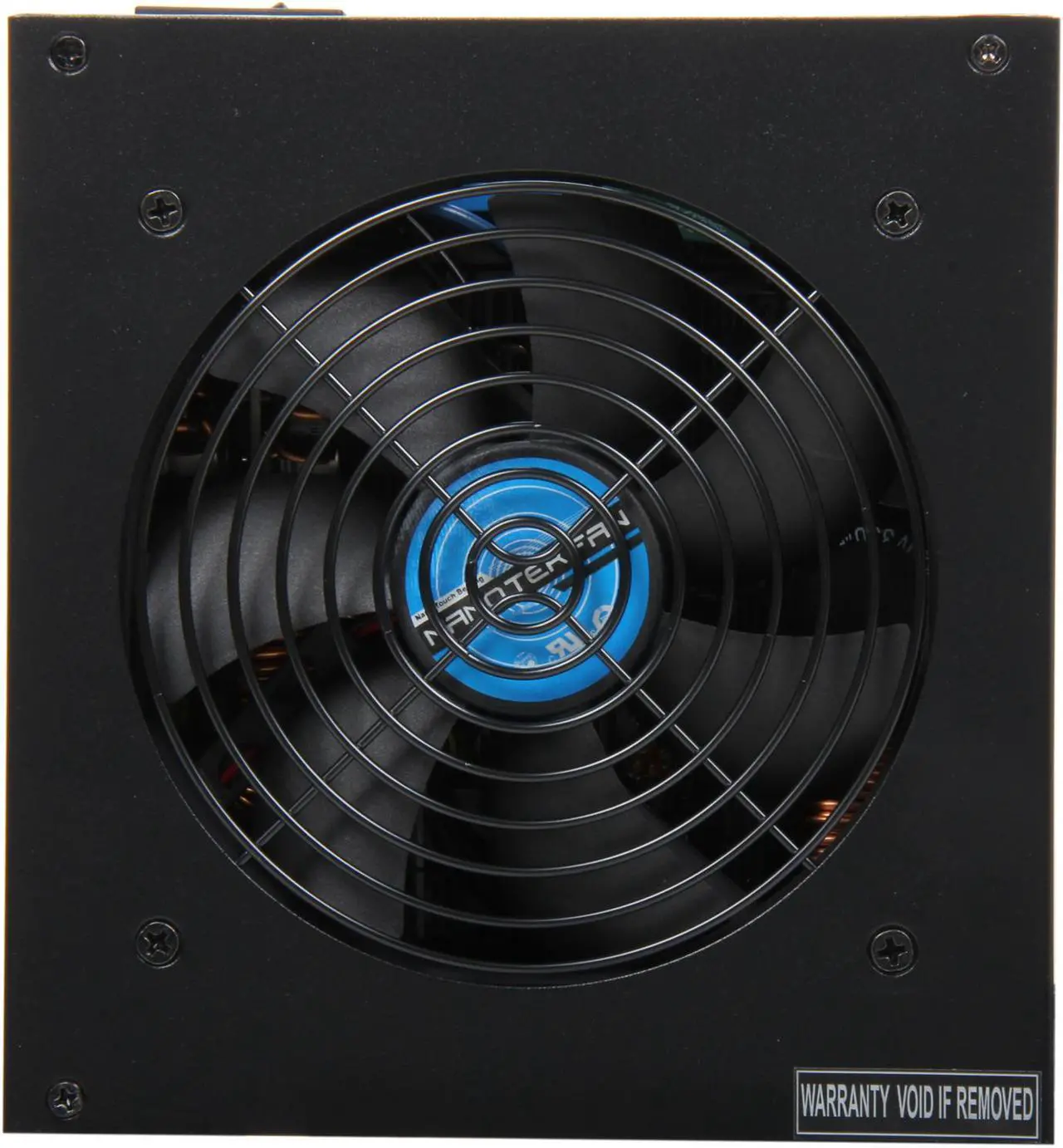

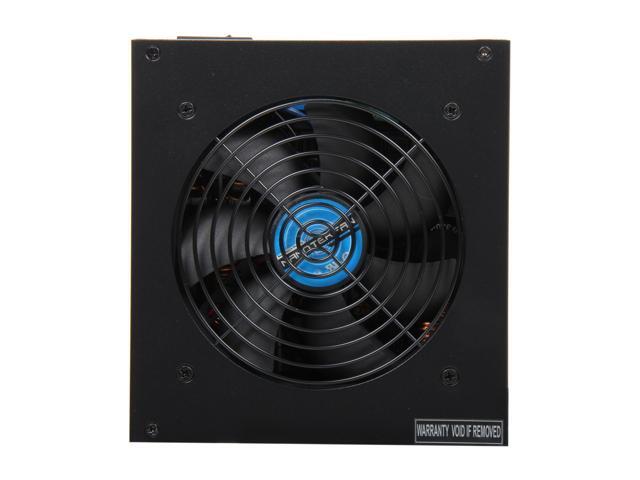

Fans 1 x 120mm Long Life Nano Bearing Cooling Fan
PFC Active
Main Connector 20+4Pin
+12V Rails 4
PCI-Express Connector 6 x 6+2-Pin
SATA Power Connector 12
Modular No

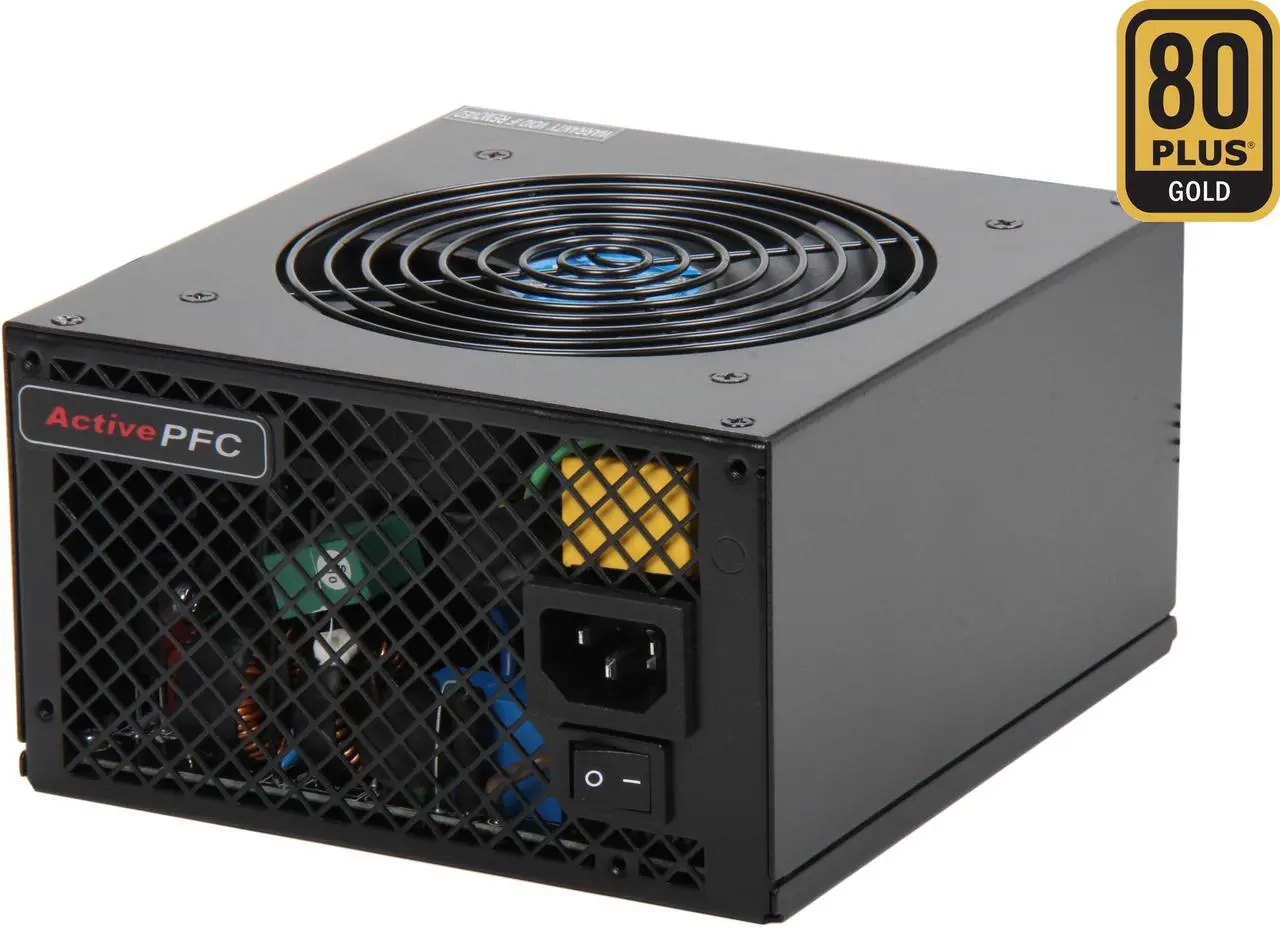

Energy-Efficient 80 PLUS GOLD Certified
Over Voltage Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 15A @ 115V, 10A @ 230V

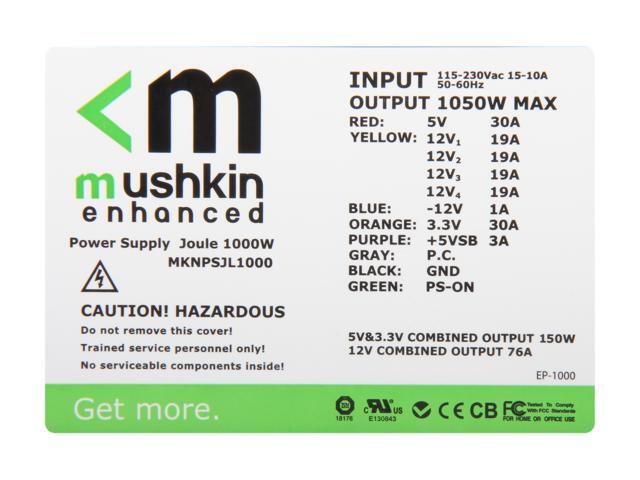

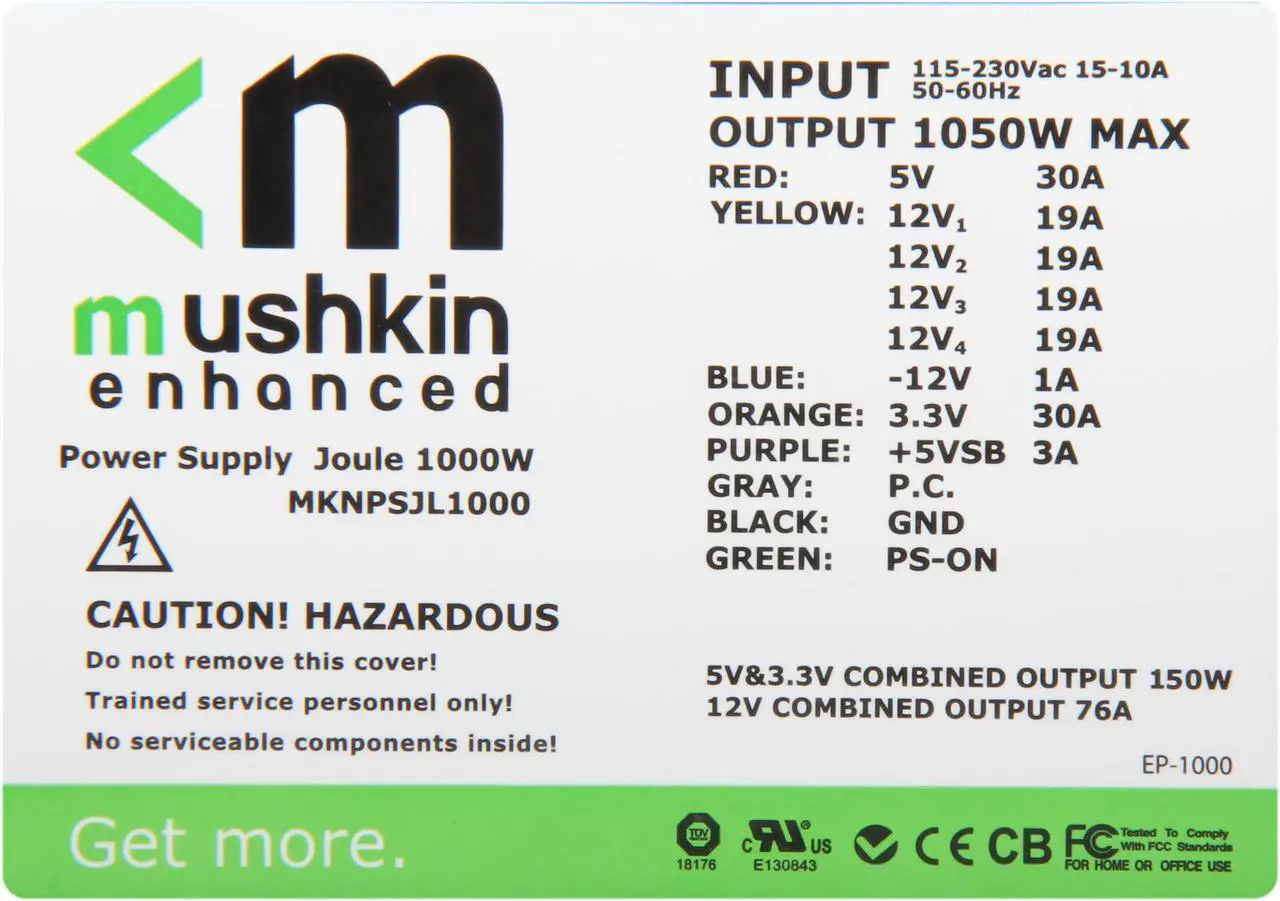

Output +3.3V@30A, +5V@30A, +12V1@19A, +12V2@19A, +12V3@19A, +12V4@19A, [email protected], [email protected]
Approvals UL, TUV, CB, CE, FCC, RoHs

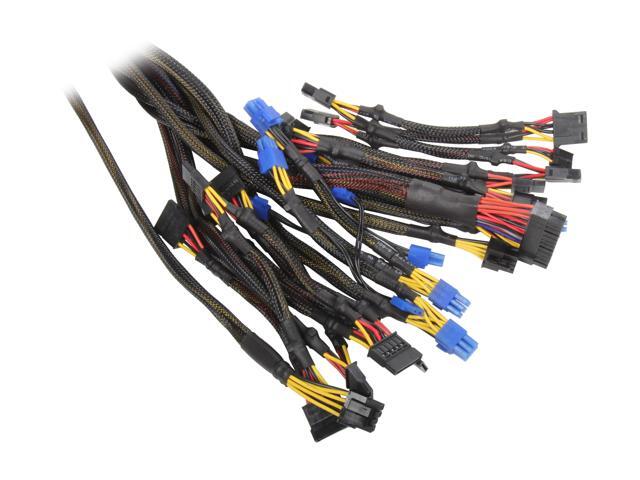

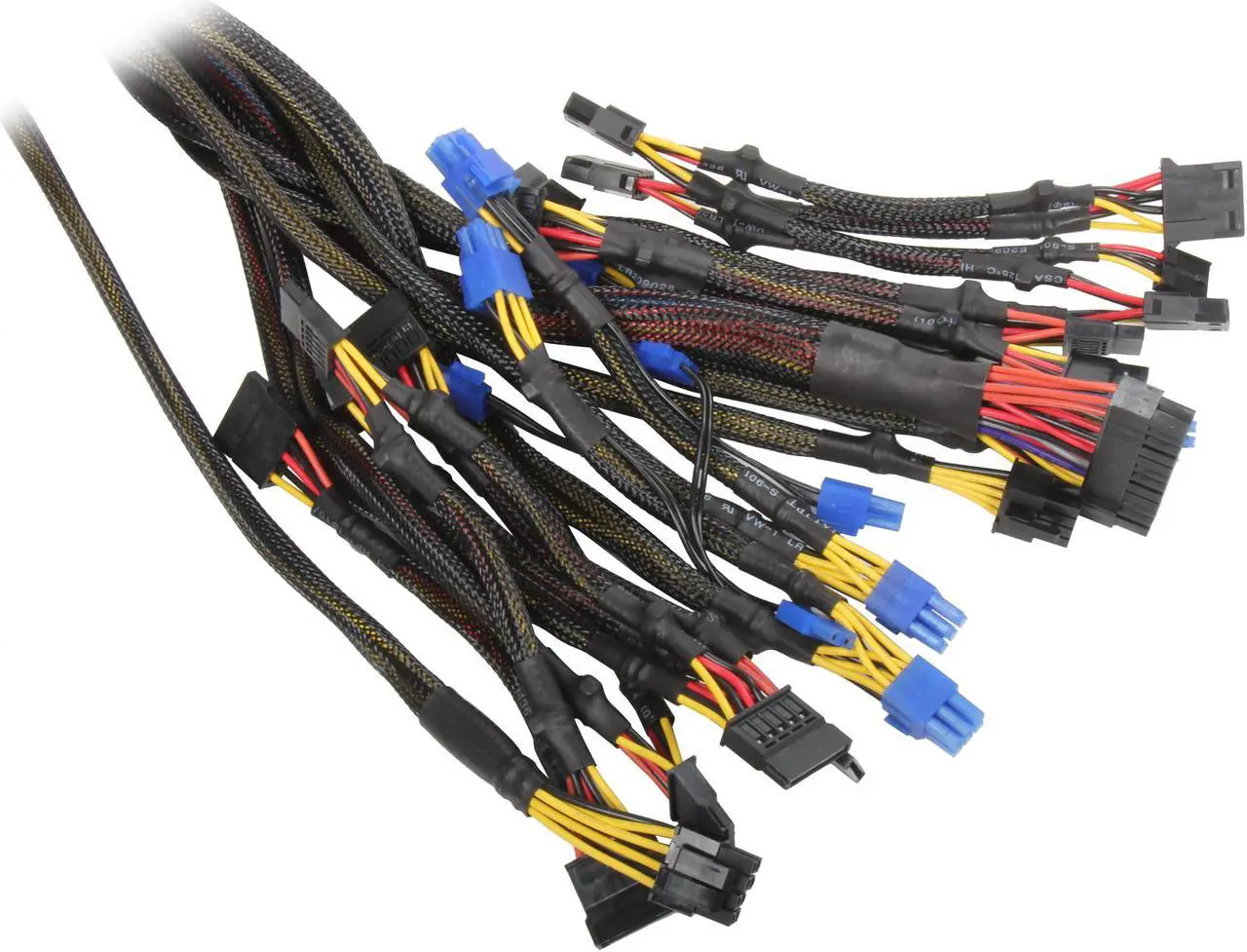

Connectors 1 x Main connector (20+4Pin)
1 x 4+4 Pin ATX12V
4 x Peripheral
12 x SATA
1 x Floppy
6 x PCI-E
Features

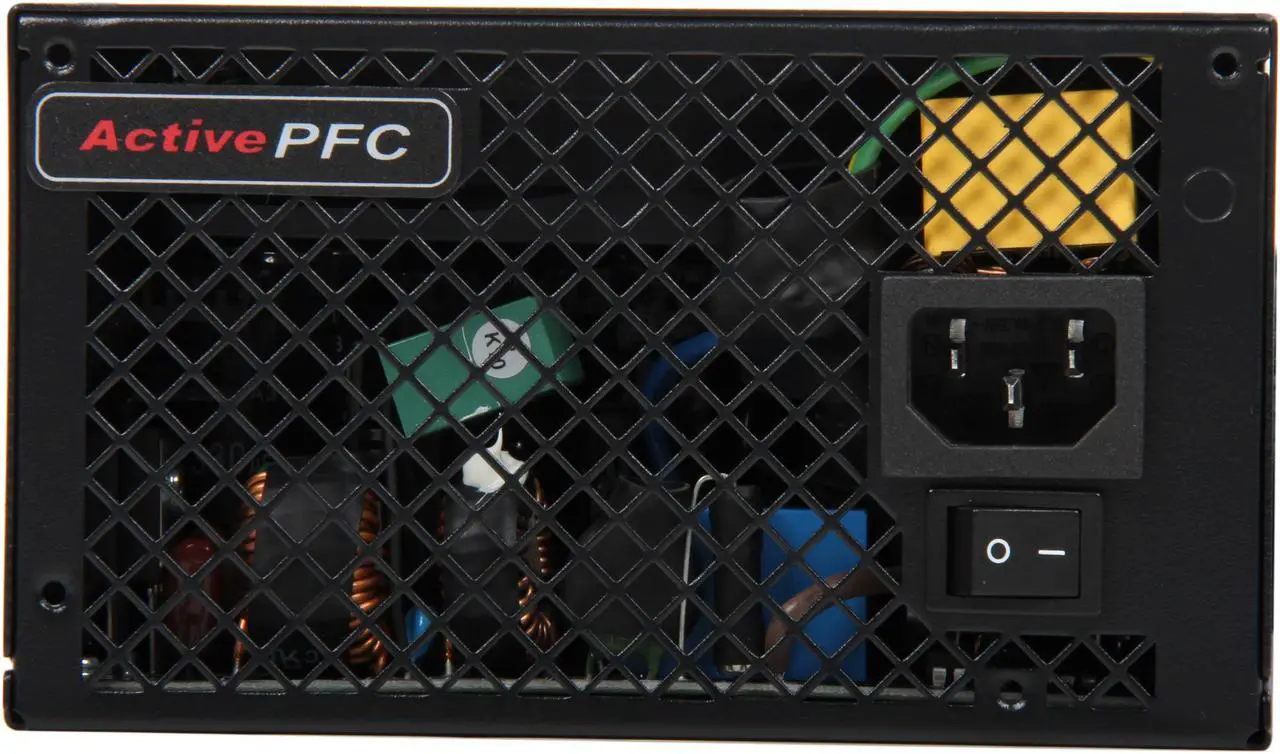

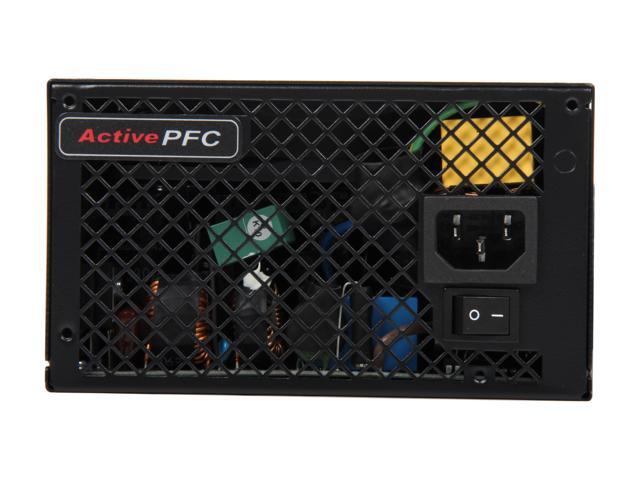

Features Active PFC

Auto AC switch

Low Ripple and noise

Output over voltage protection

Short circuit protection on all outputs

100% Hi-Pot Tested
Dimension & Weight
Dimensions 5.91" x 3.39" x 6.930"
Weight 8 lbs.
Additional Information
Date First Available August 26, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
