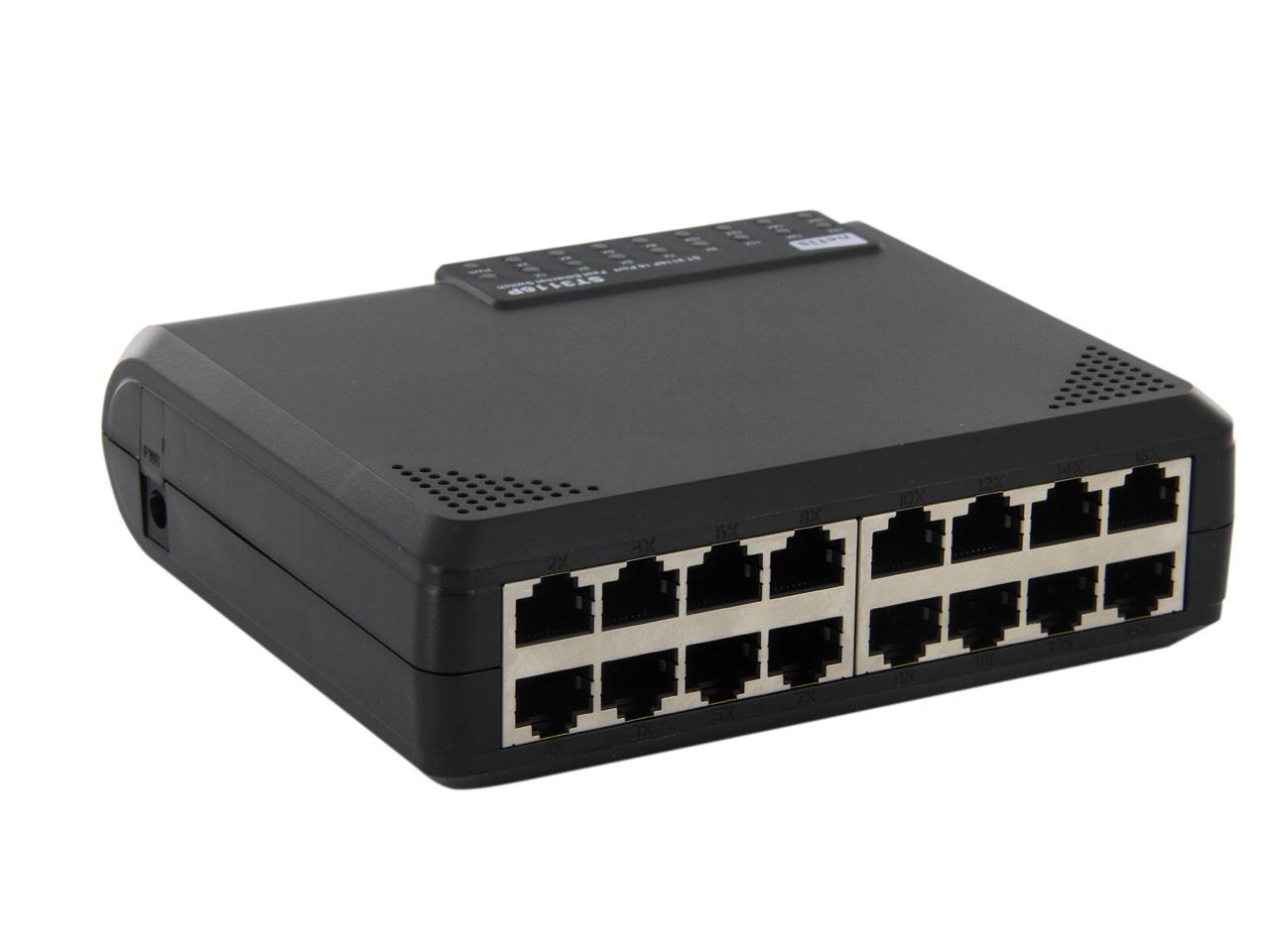

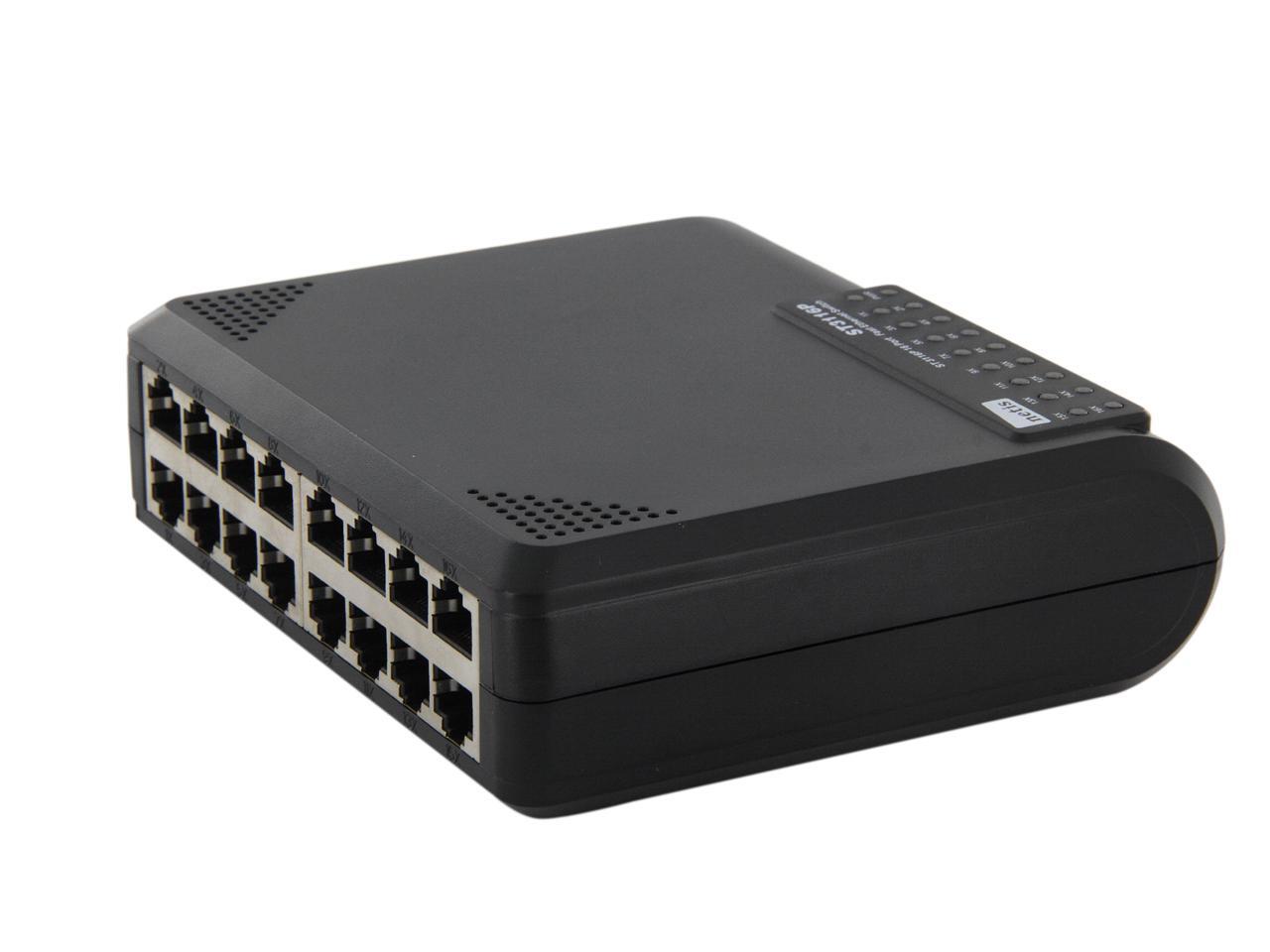

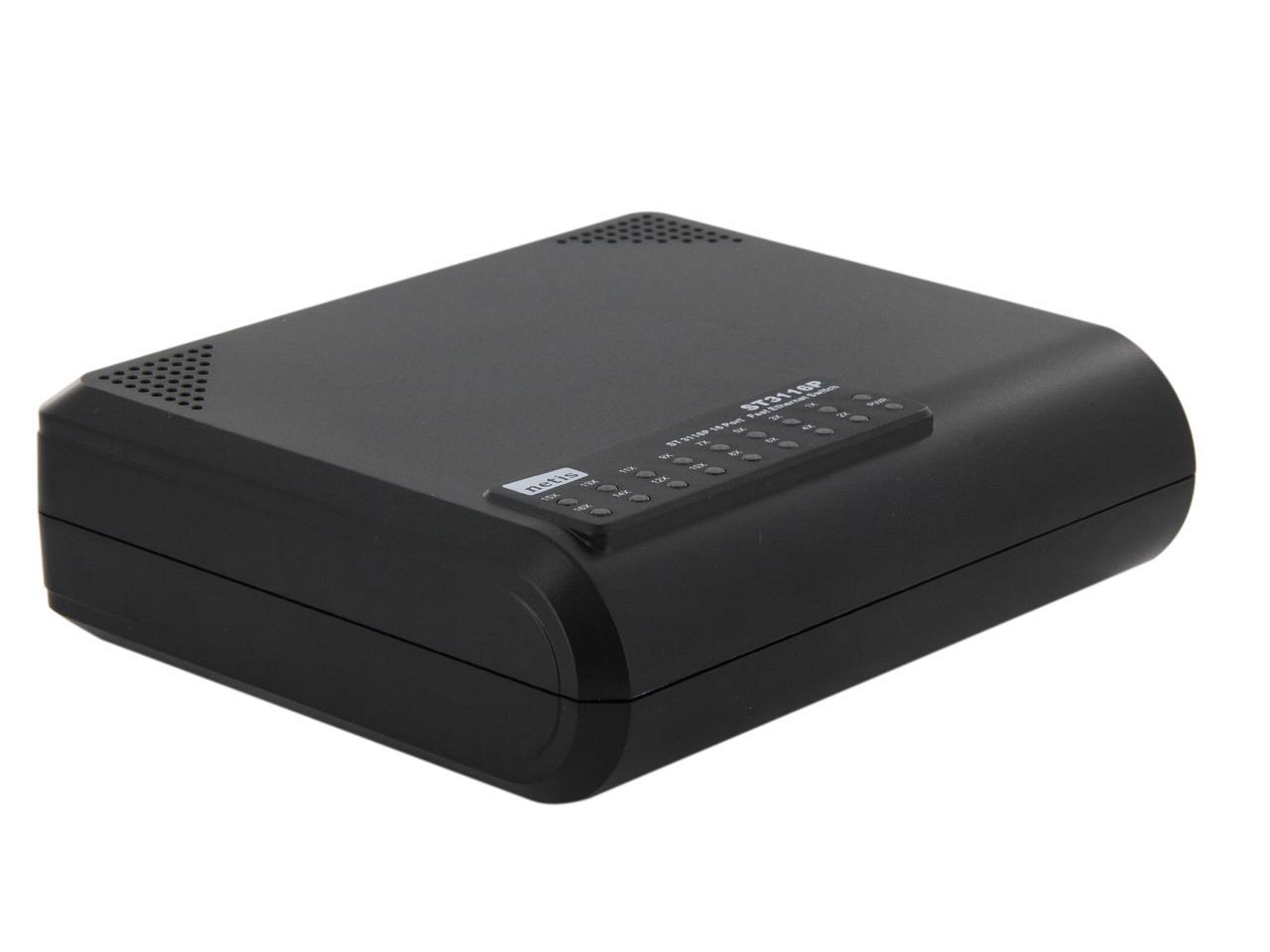

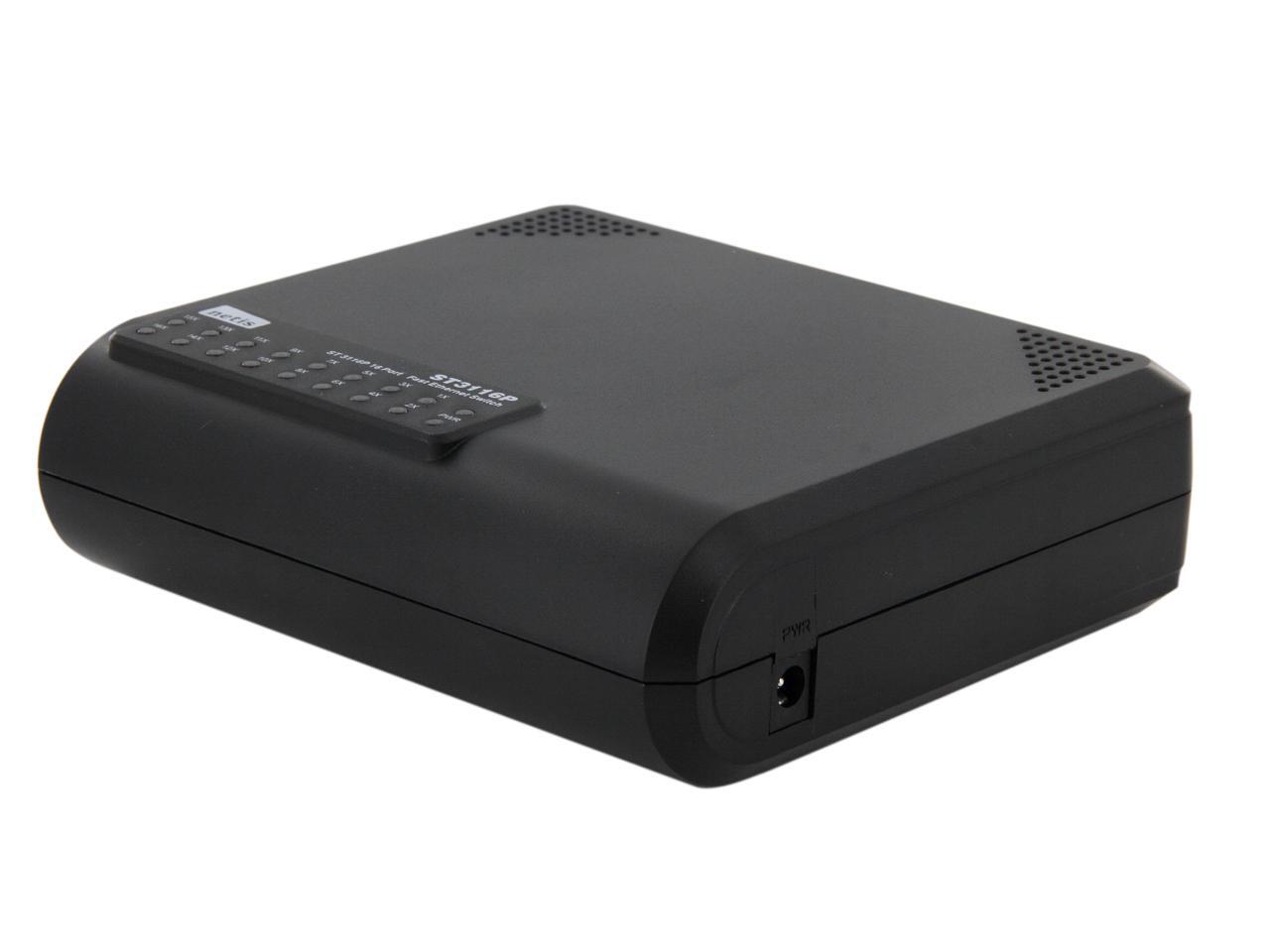

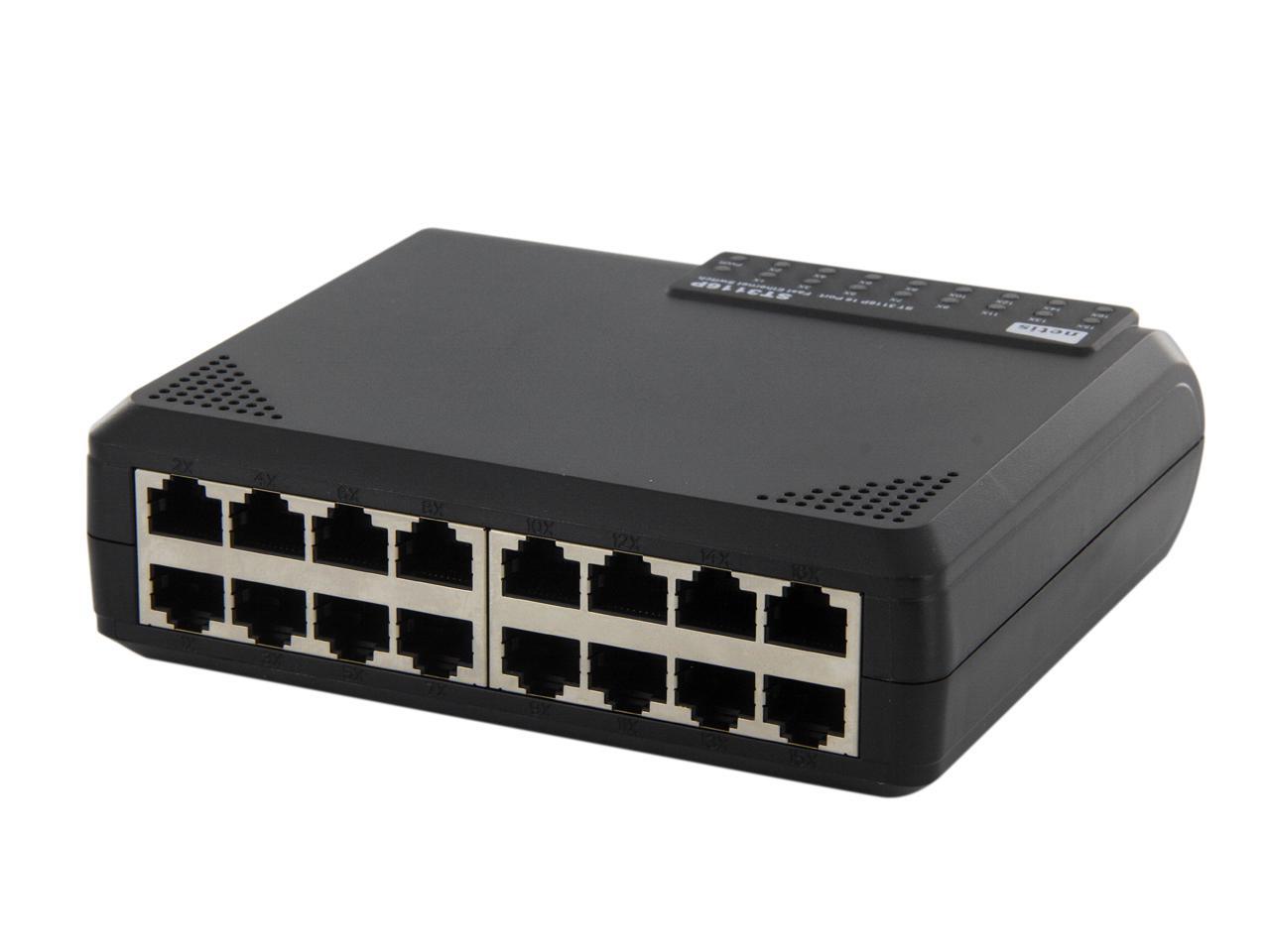

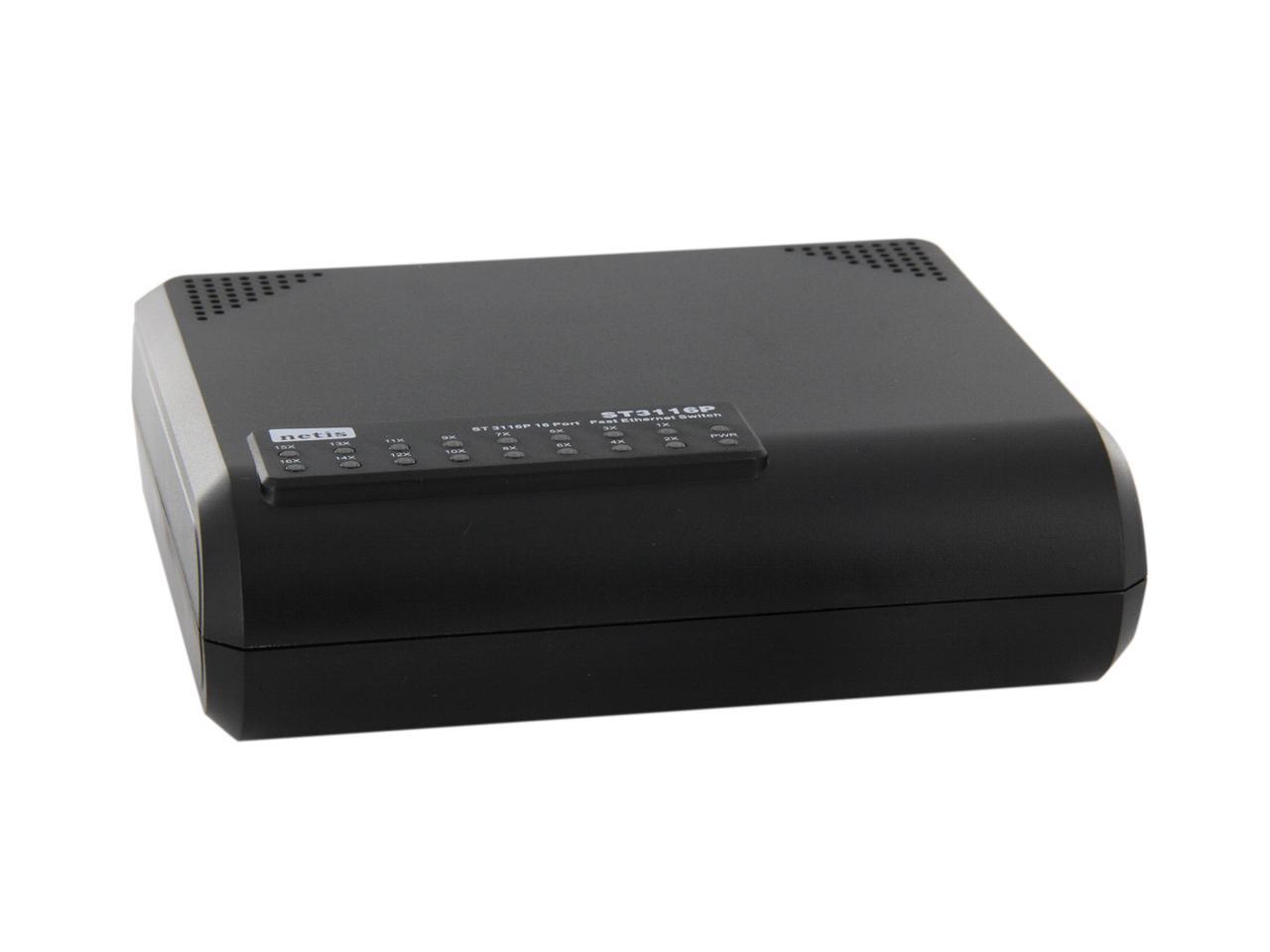

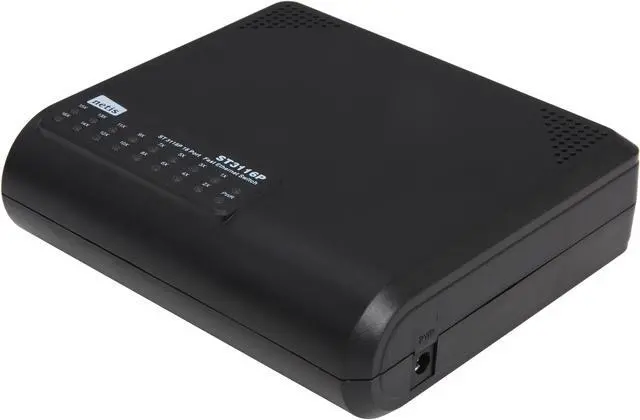

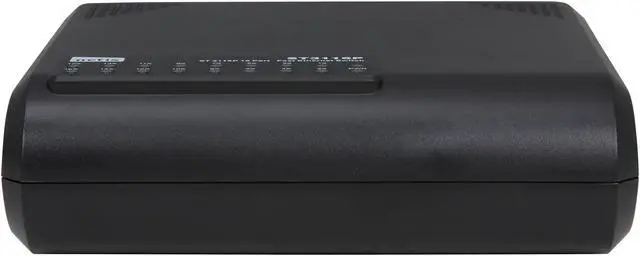

NETIS ST3116P Unmanaged 16 Port Fast Ethernet Plastic Desktop Switch
- 16 x 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX
- 8K MAC Address Table
- Smart
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now

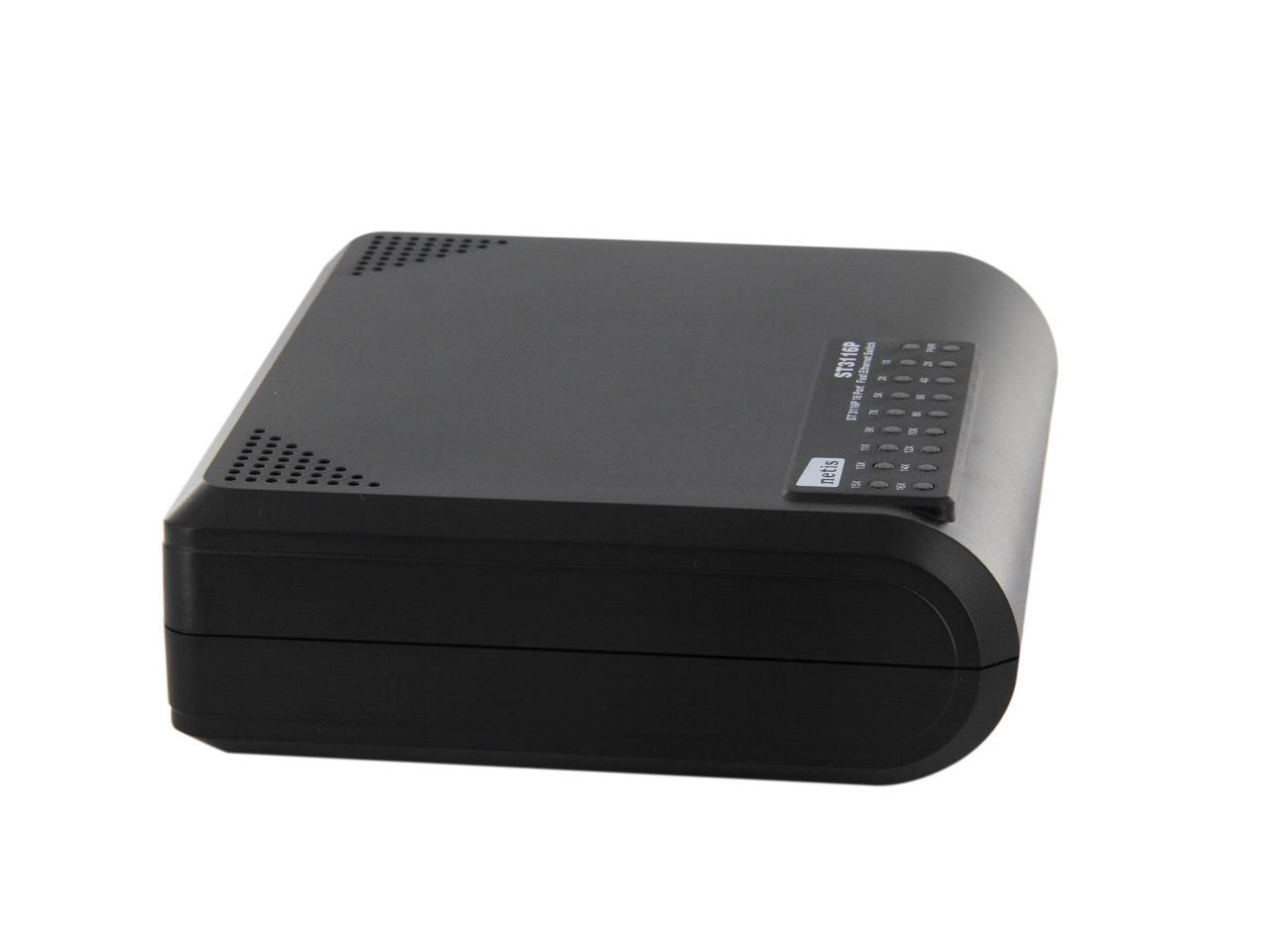

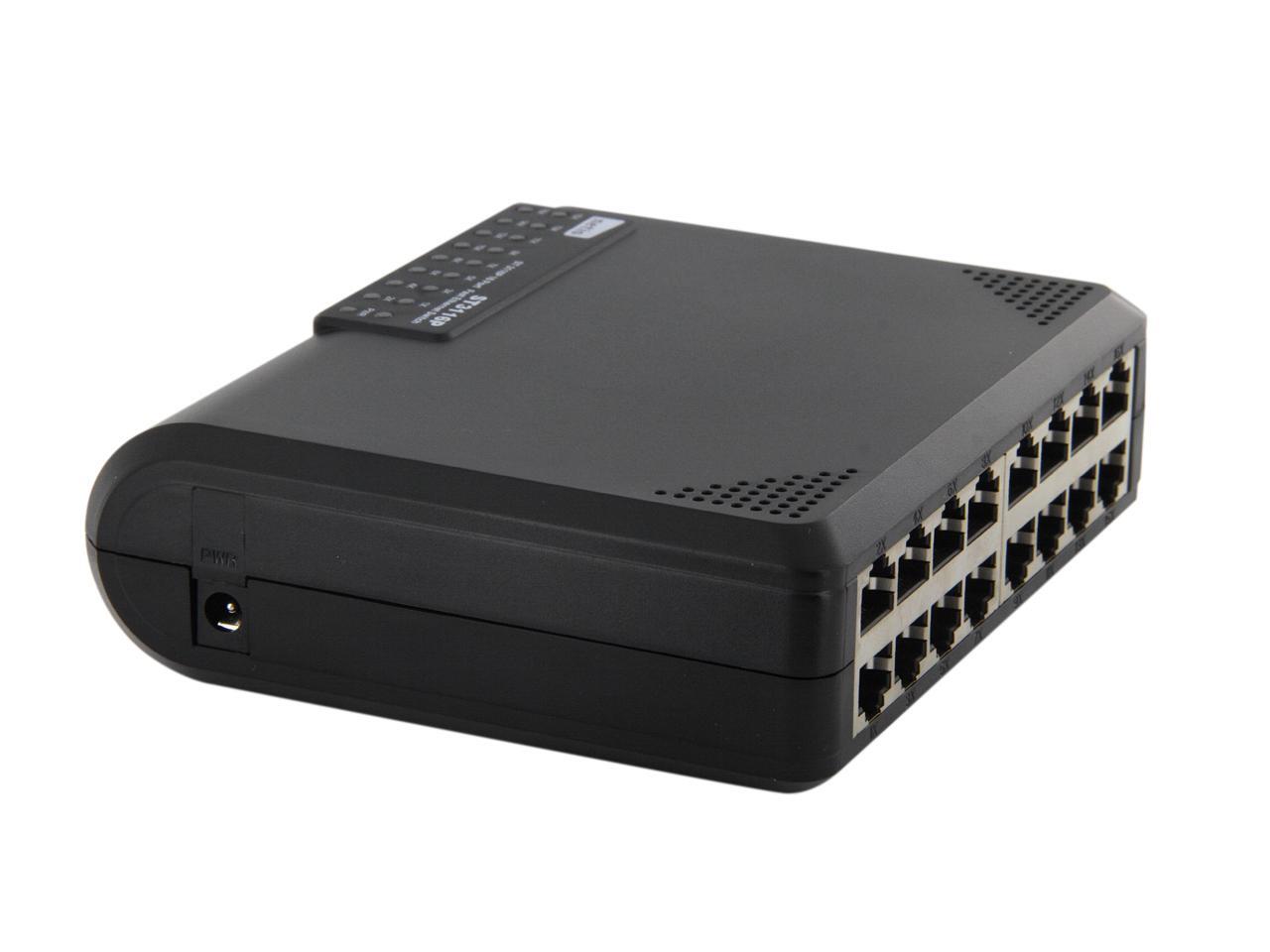

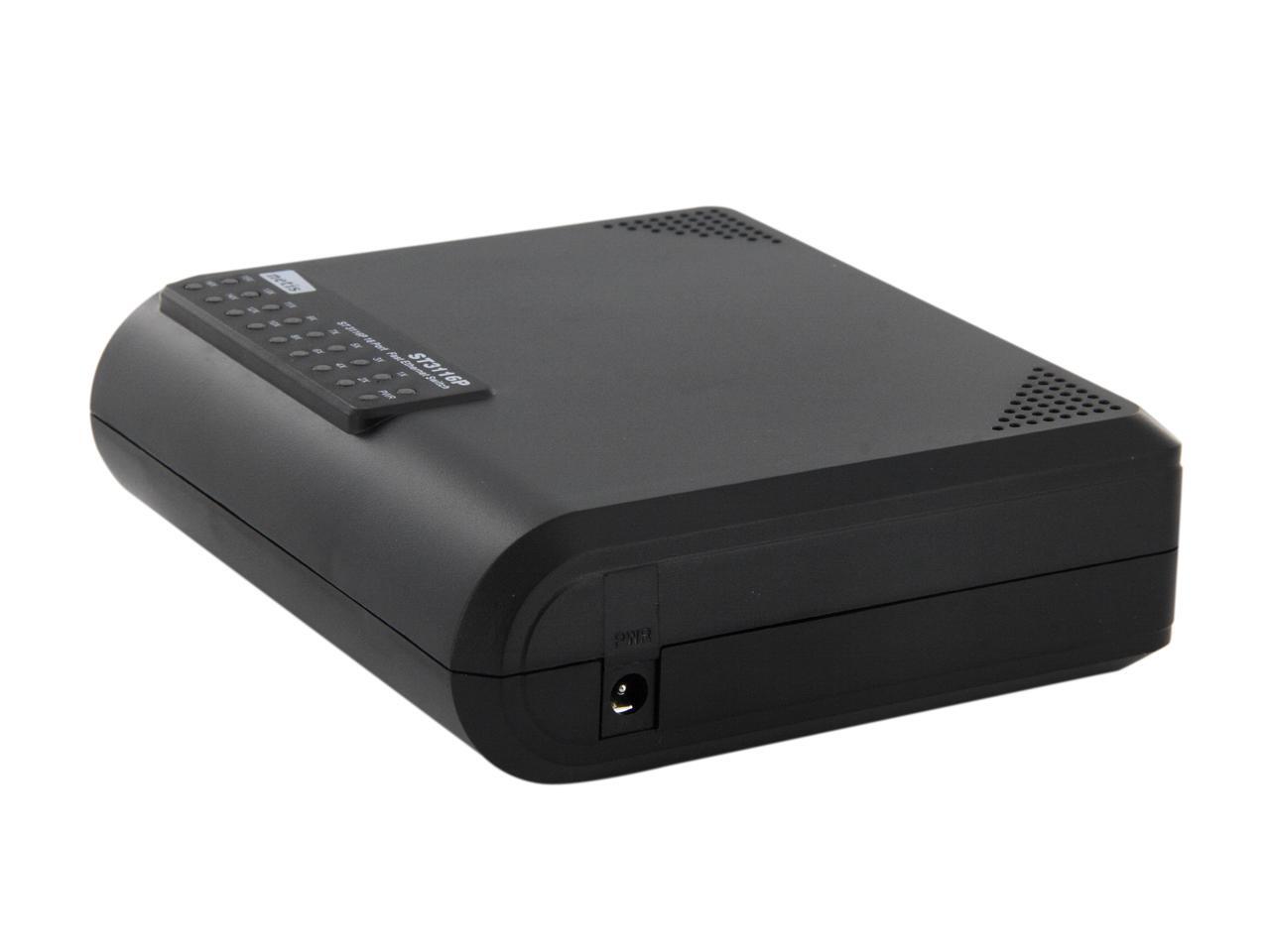

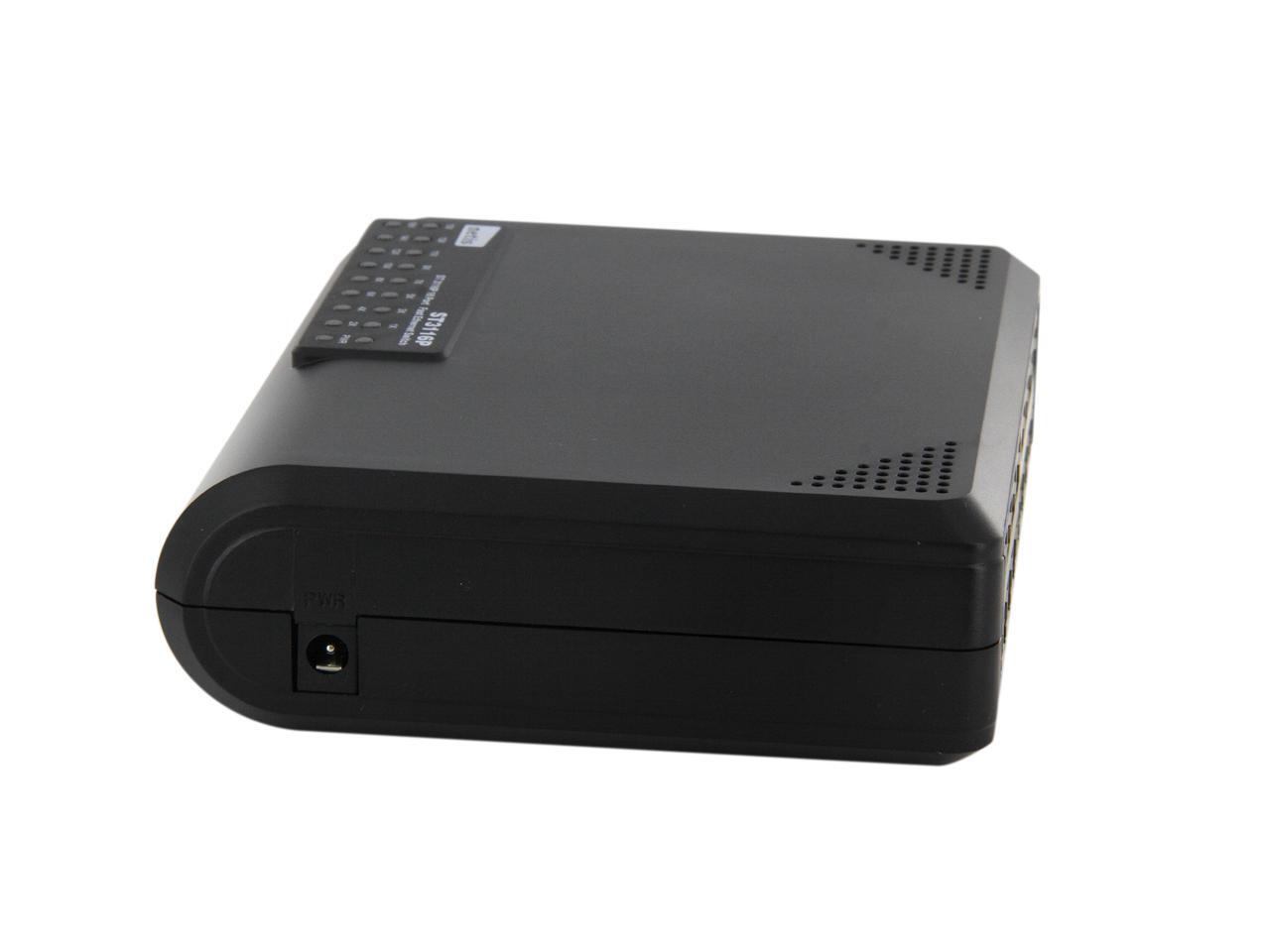

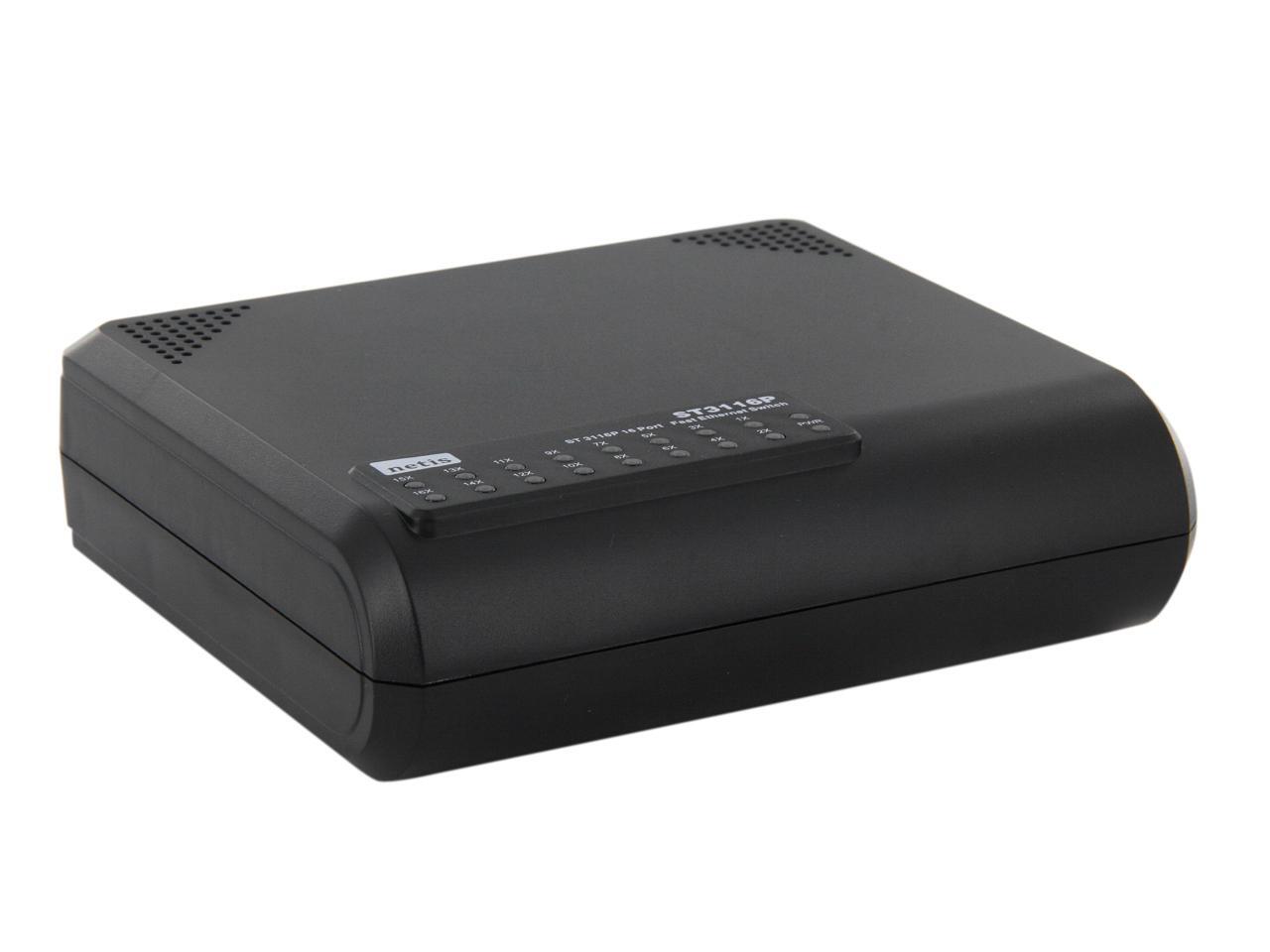

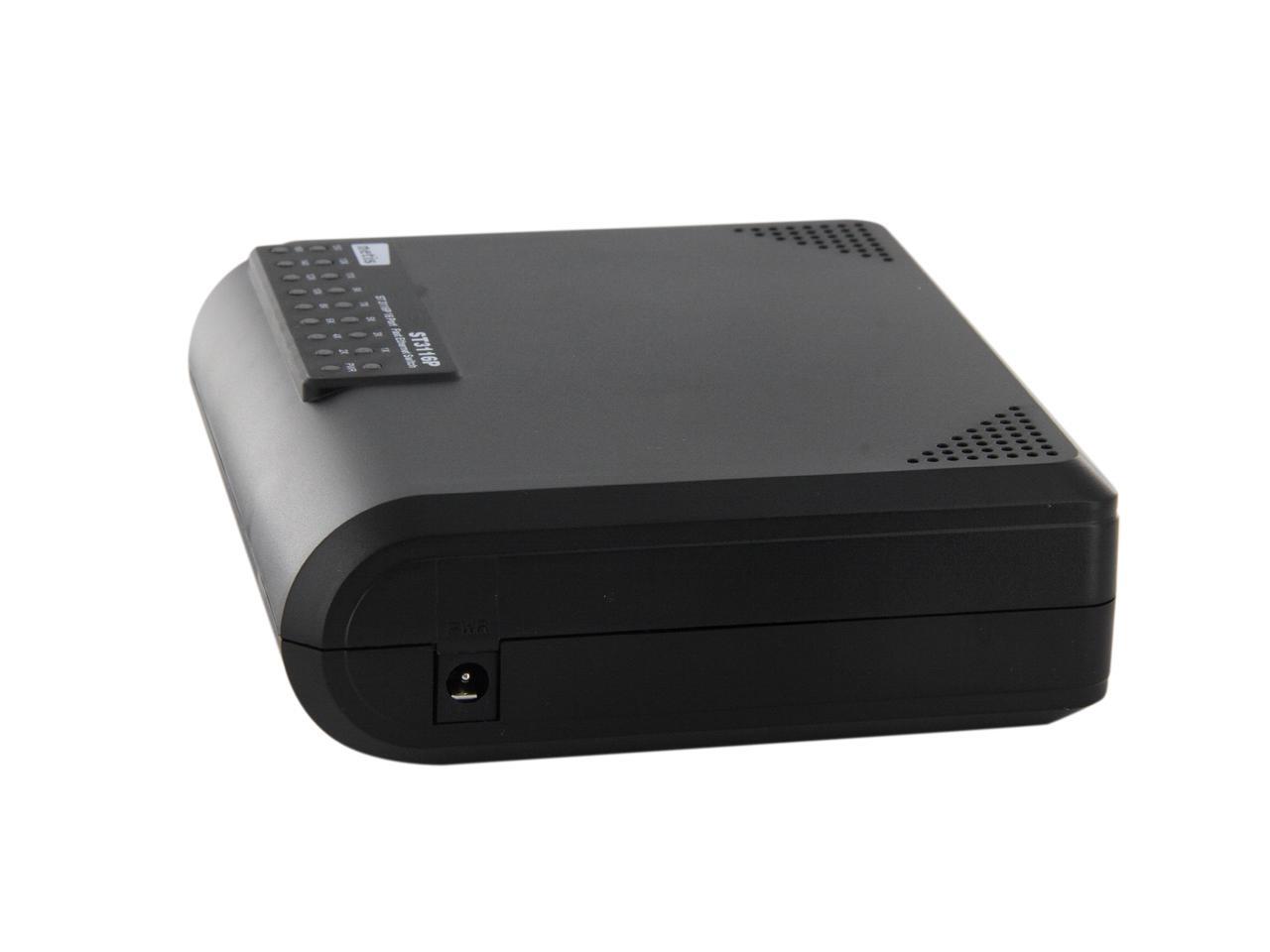

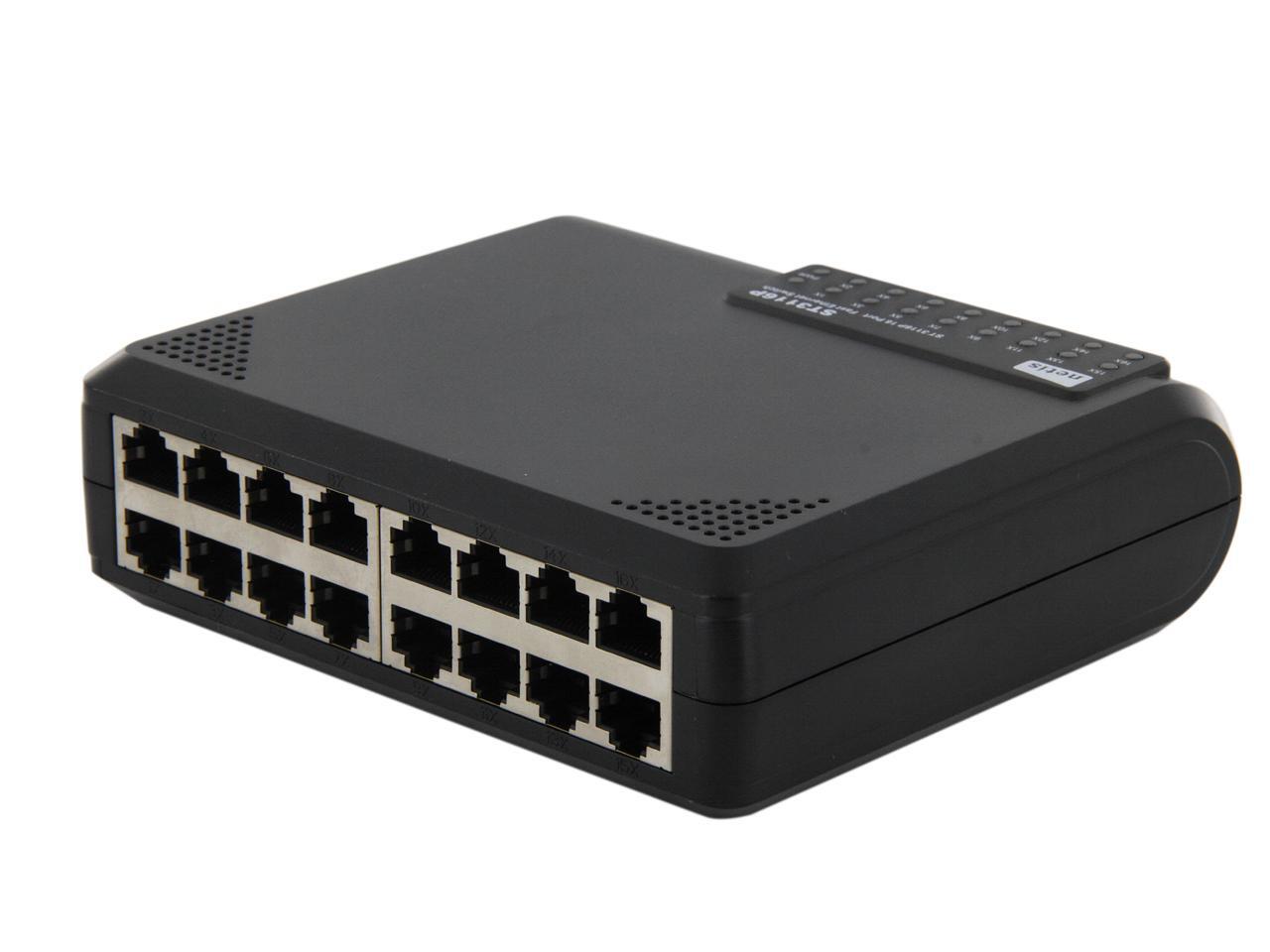

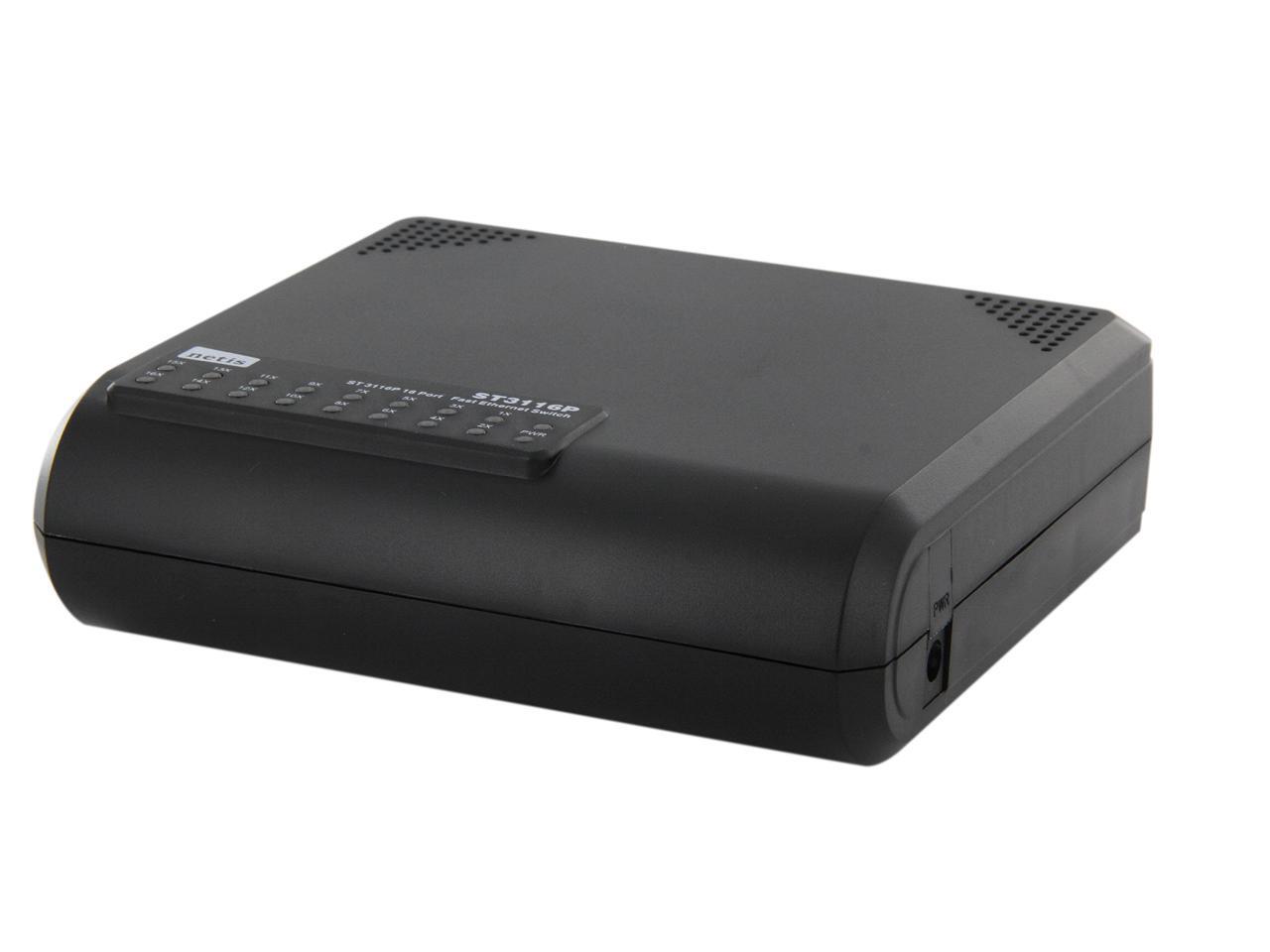

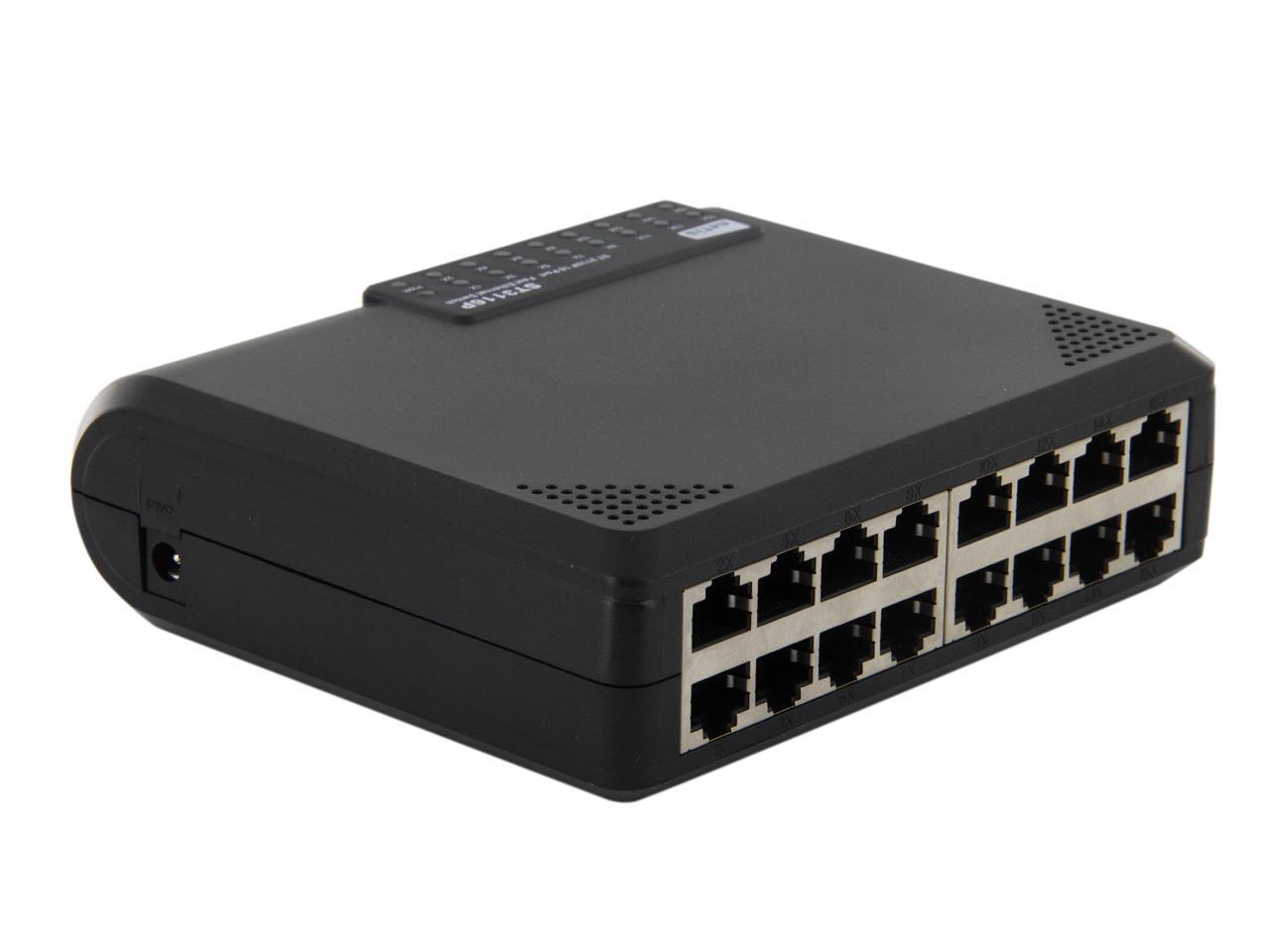

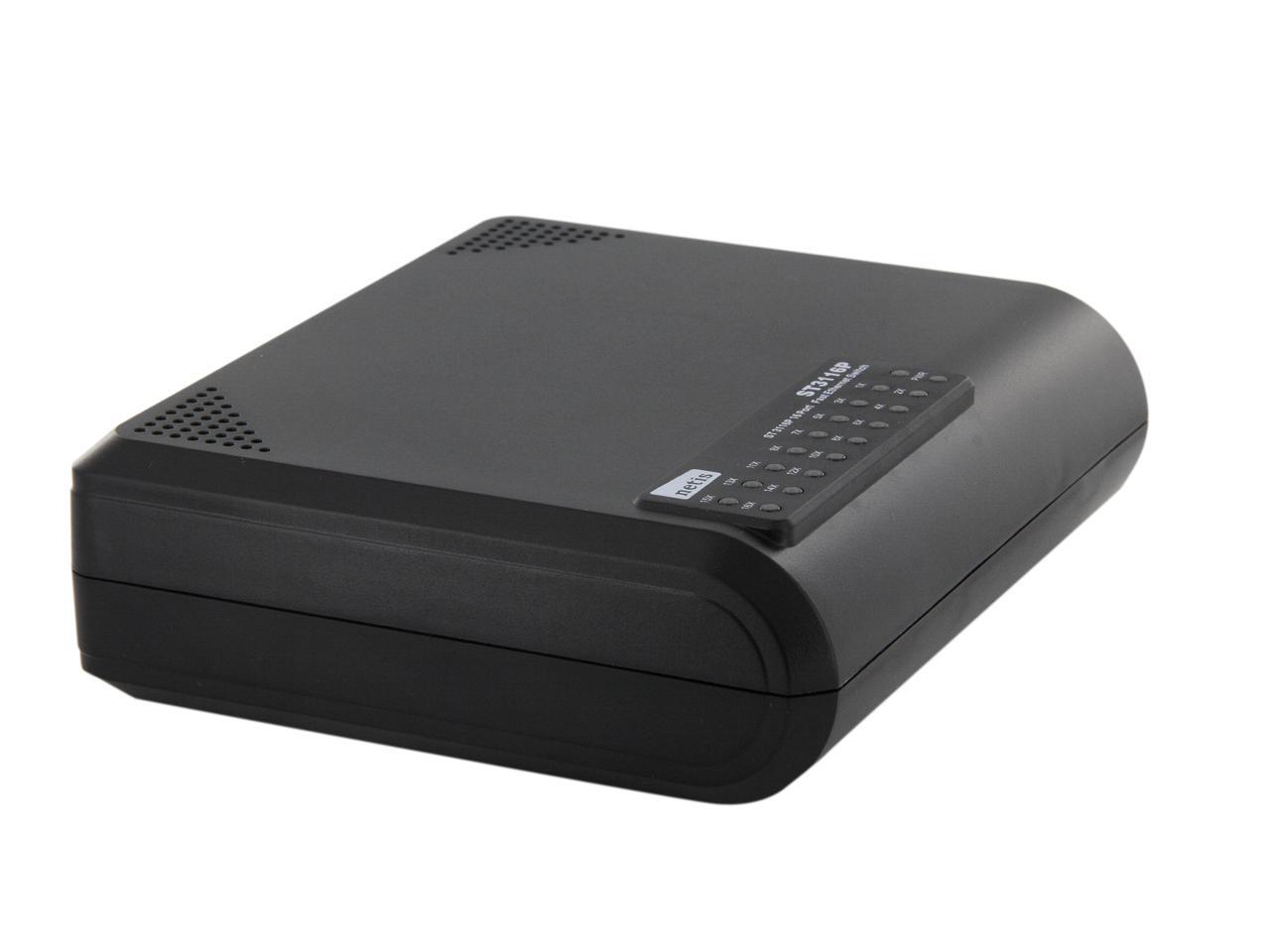

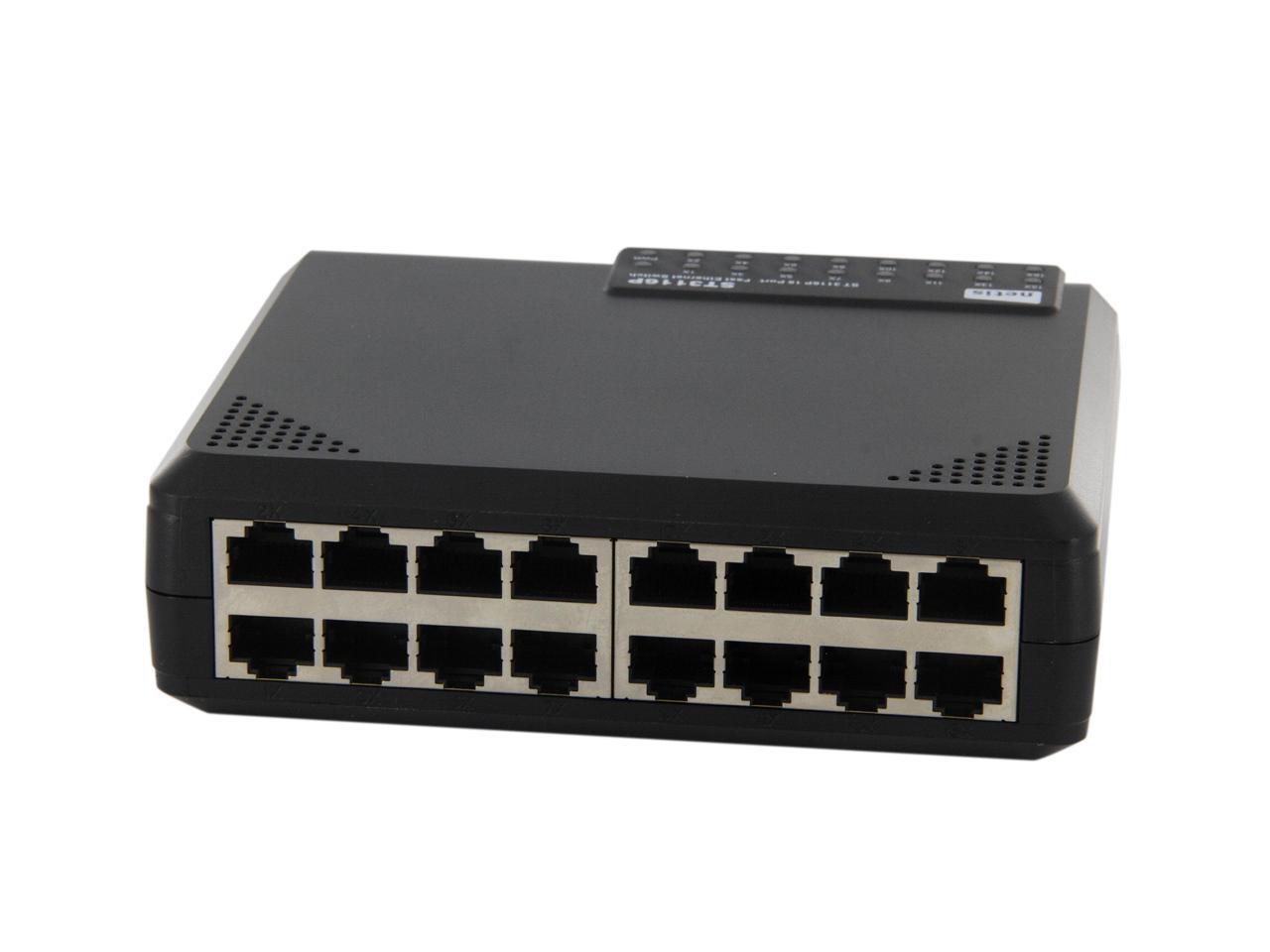

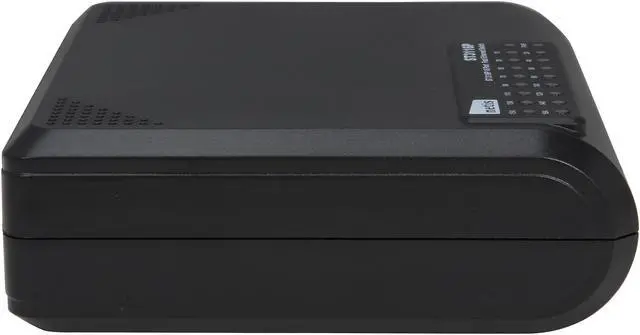

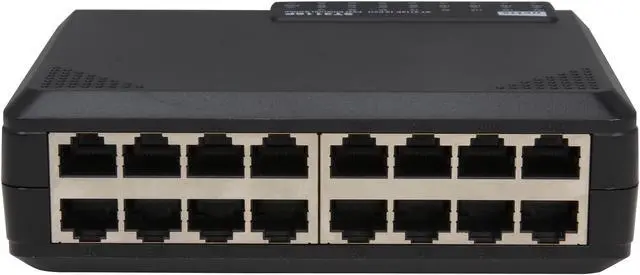

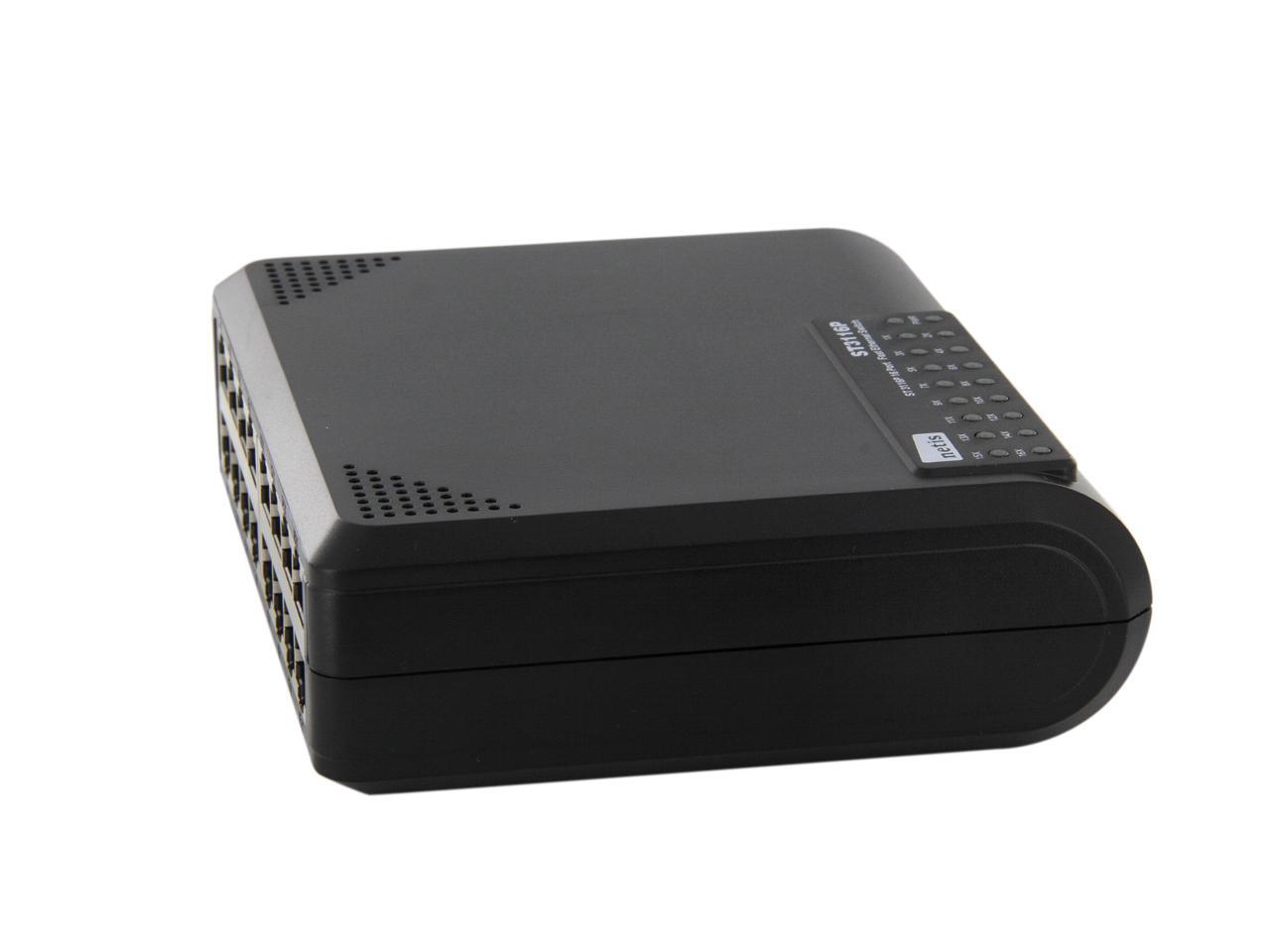

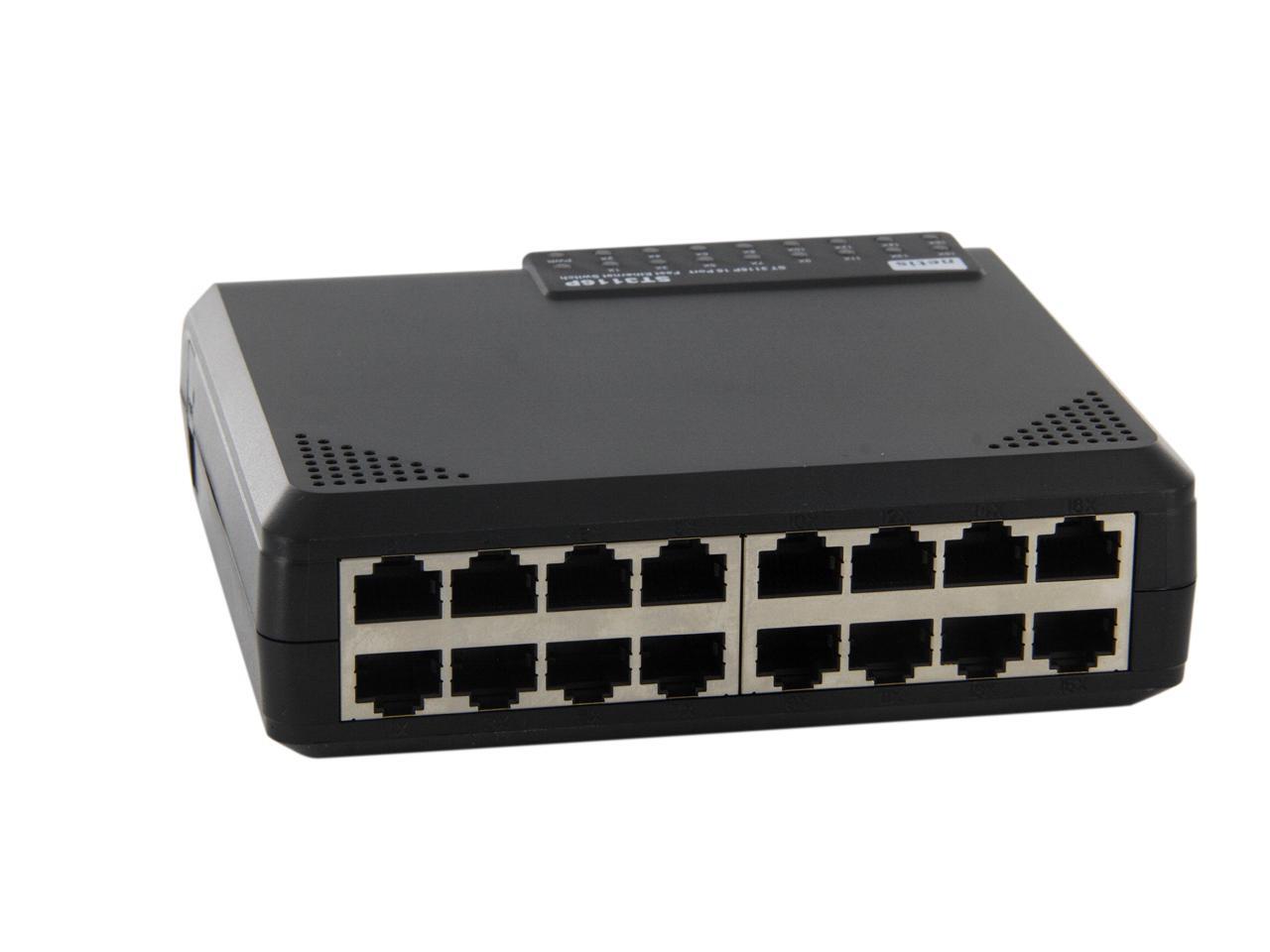

Netis ST3116P Unmanaged 16-Port Fast Ethernet Switch
What it Does
The Netis ST3116P Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. It is ideal for the small and medium office use. Each port supports Auto MDI/MDIX functionality, eliminating the need for crossover cables or uplink ports. The 16-Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
Features
- 16 10/100Mbps RJ45 Ports
- Supports MAC address self-learning and auto MDI/MDIX
- Green Ethernet technology link down power saving and link on various cable length power saving
- Supports Jumbo frame
- Supports 8K MAC address table
- 3.2Gbps Switching Capacity
- Fanless design to make sure it works quietly without disturbing the department or office use
- Plug and play, no configuration required
Specifications
| Hardware | |
|---|---|
| Interface | 16 x 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |

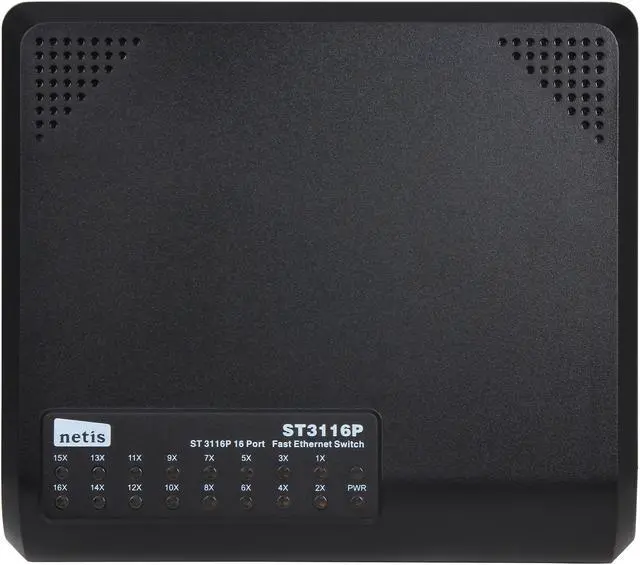

| LED | PWR, 1X-16X |

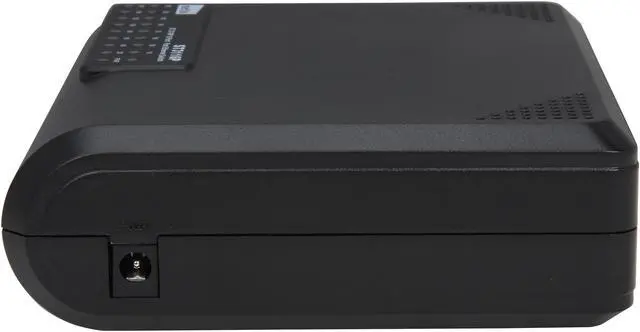

| Power Supply | DC 9V/500mA (Output) |
| Dimensions (L x W x H) | 9.0 x 9.0 x 2.75 inches (230 x 230 x 70mm) |
| Switching Features | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Data Transmission Rate | 10/100Mbps (Half-duplex) 20/200Mbps (Full-duplex) |
| Switching Fabric Capacity | 3.2Gbps |
| Jumbo Frame | 2KB |
| MAC Address Table | 8K, Auto-learning & auto-aging |
| Others | |
| Certifications | FCC, CE |
| Environment | Operating Temperature: 32 - 104°F (0 - 40°C) Storage Temperature: -14 - 158°F (-20 - 70°C) Operating Humidity: 5% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing |

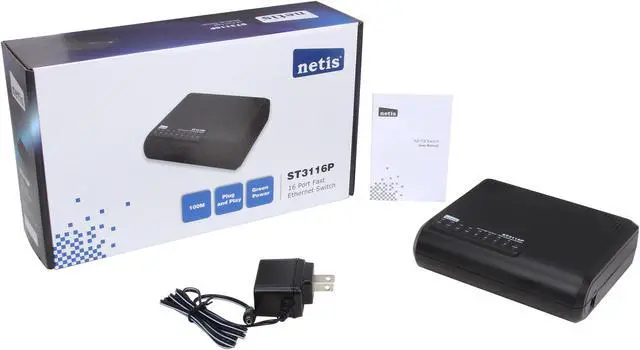

Contents
- ST3116P
- Quick Installation Guide
- Power Adapter
